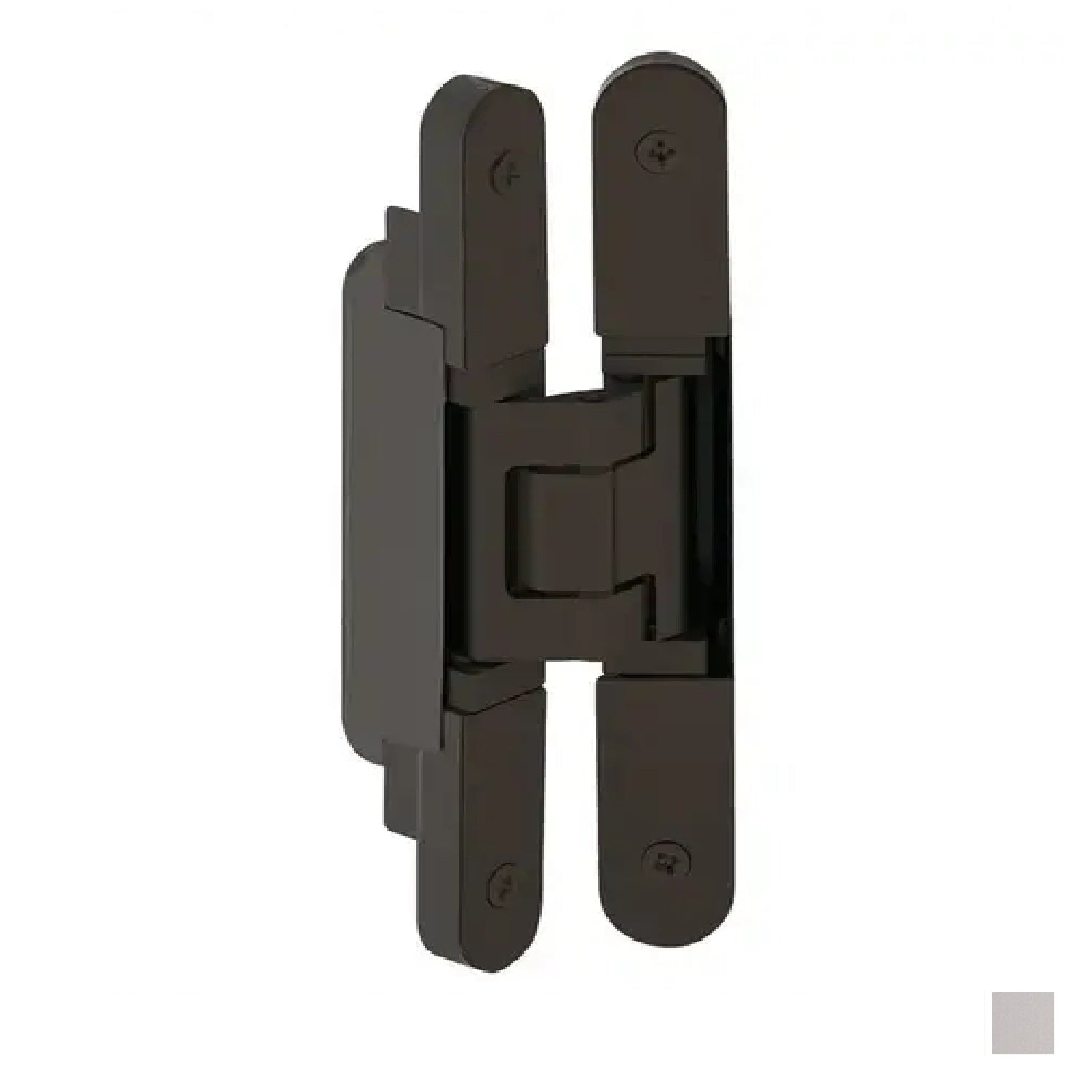

Hafele Concealed Hinge TE540 Adjustable - Available in Various Finishes

Hafele Concealed Hinge TE540 Adjustable

Concealed Hinge are door hinges that are hidden from view when the door is closed.

Concealed Hinge Function - is to support the door while allowing it to open and close smoothly, with the hinge hidden from sight for improved aesthetics and security.

Features:

• Used in door frames made out of hollow metal or wood in flush interior doors
• Maintenance-free slide bearings
• Suitable for left and right hand applications
• UL listed for 20 minute rated fire doors (Maximum door size: 4’ x 8’ for a single door, 8’ 8’ for a pair of doors)
• Maintenance-free slide bearings

Specifications:

• Door Thickness: 25mm
• Door Weight Max: 120kg
• Height: 200mm

• Width: 32mm
• Flange Shape: Rounded
• For Frame Type: Steel, Wooden and Aluminium Frame
• Material: Aluminium Steel
• Mounting: for DIN left and DIN right hand use
• Router Bit Diameter: 16mm
• Thrust Ring Diameter: 30mm
• Available Finish:

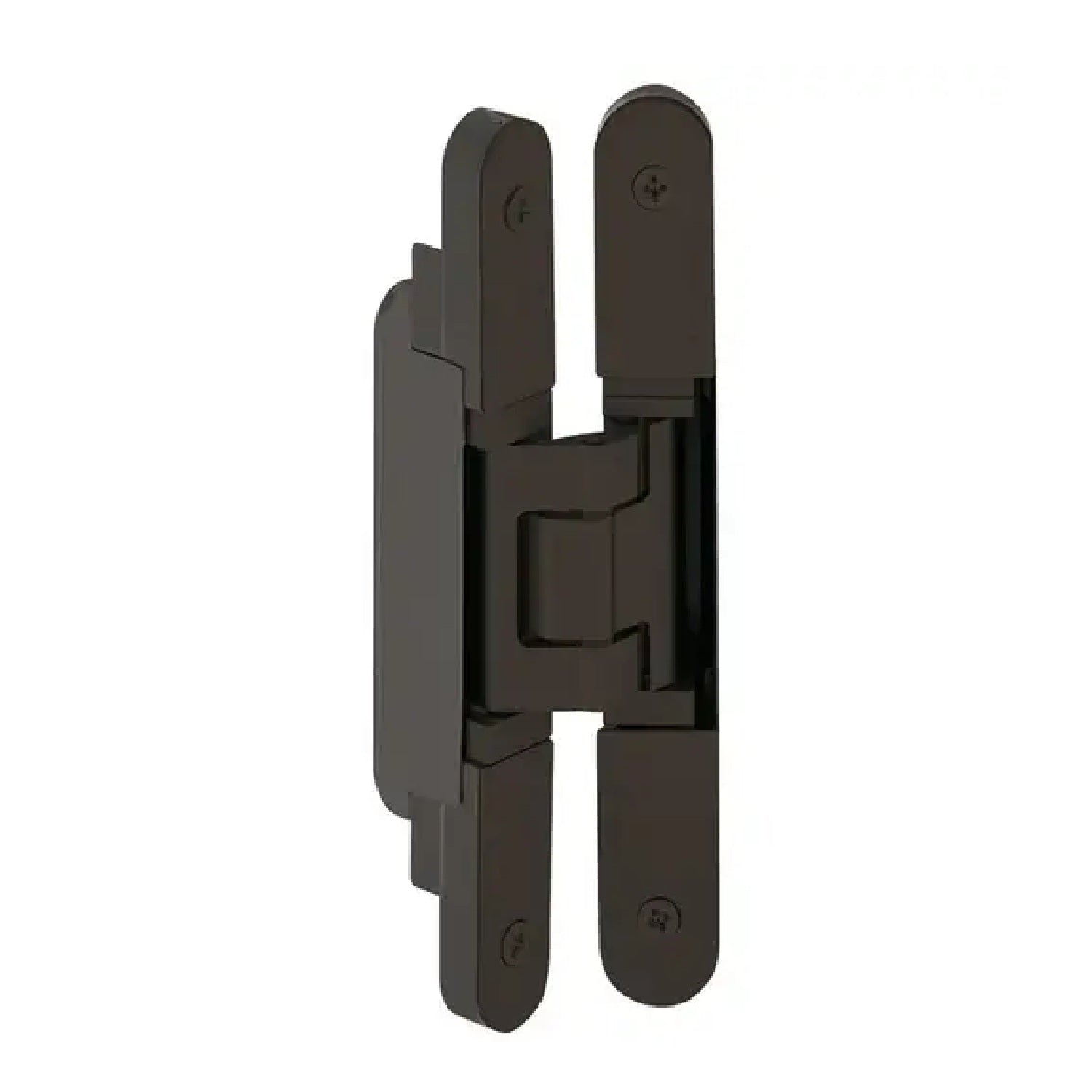

  • Matt Black

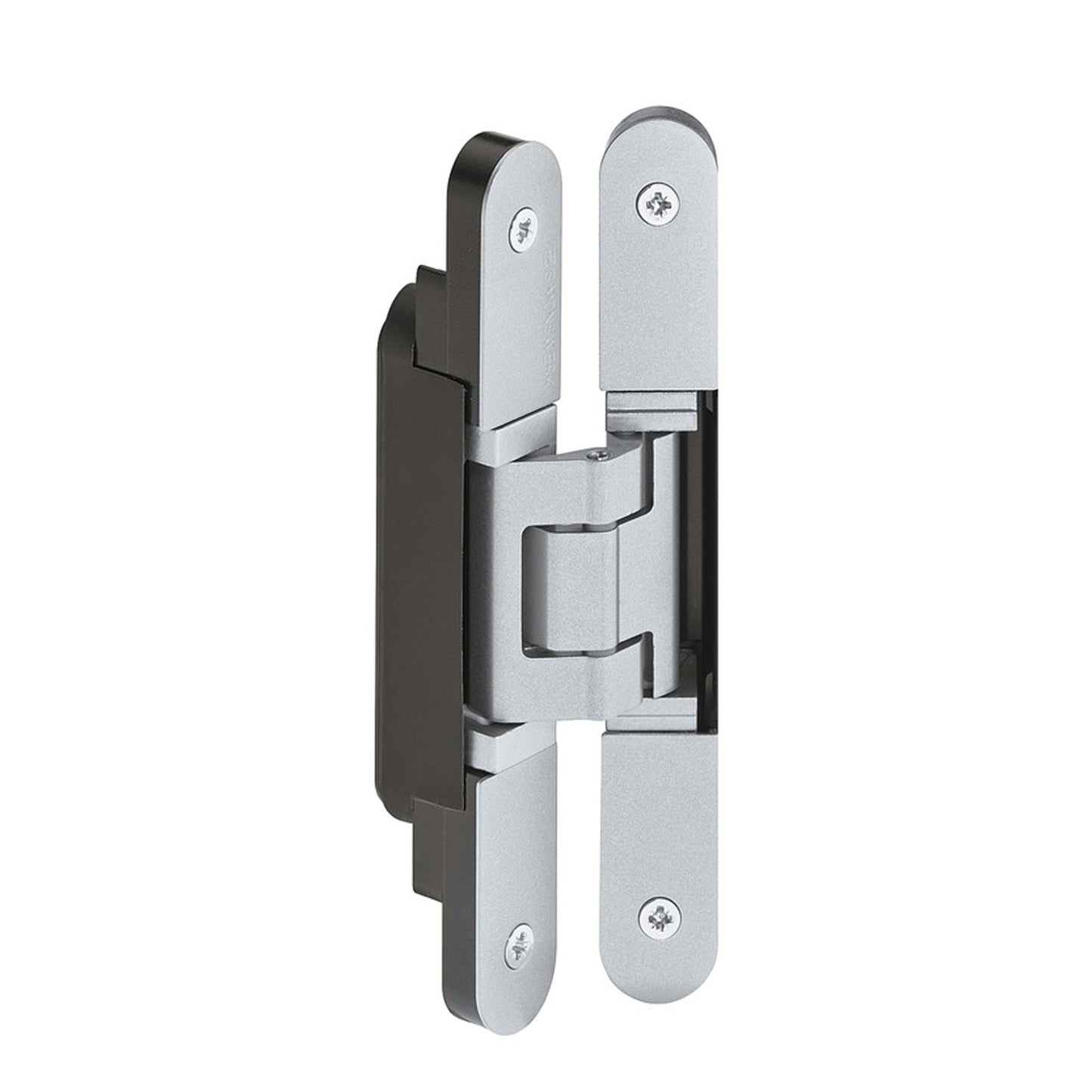

  • Satin Chrome
