Hafele Salice Silentia 105 Deg Cabinet Hinge 48/6mm with Clip Mounting Plate Display Pack 3

Hafele Salice Silentia 105 Degree Cabinet Hinge 105 Degrees with Salice Clip Mounting Plate

Salice Hinge ideal for office furniture, residential cabinetry, and commercial and institutional case work.

Salice Hinge Function - a hinge with adjustable built-in soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.

Includes:

• 2 x Hafele Salice Silentia Concealed Hinges 105 Degrees with Screw fixing 329.28.710
• 2 x Hafele Salice Clip Mounting Plate with Quick Fixing System 329.74.513

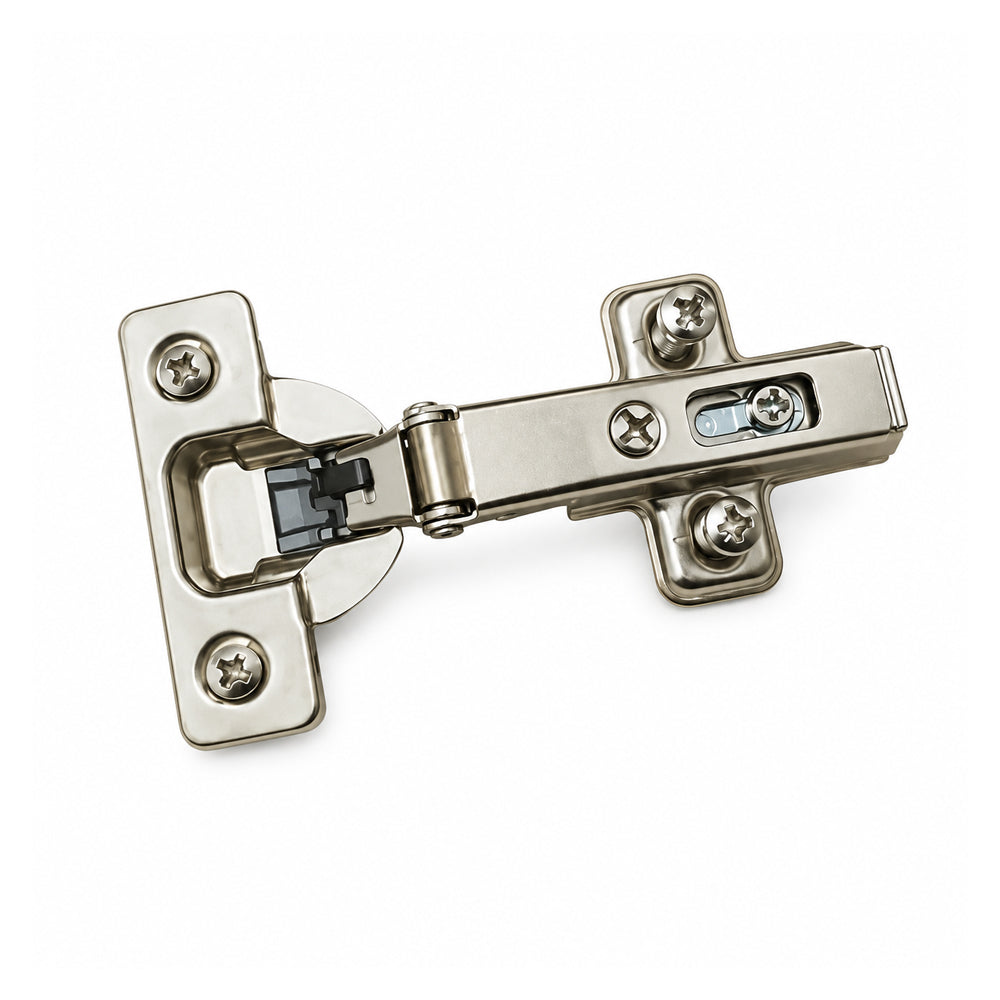

Hafele Salice Silentia Concealed Hinges 105 Degrees with Screw fixing
329.28.710

Features:

• Integrated Silentia+ soft-close mechanism
• Twin silicone-oil dampers provide smooth, quiet closing
• Adjustable closing action
• Full-overlay configuration
• Concealed installation for a clean cabinet appearance
• Suitable for residential, office and commercial cabinetry
• Durable nickel-plated steel construction

Specifications:

• Hinge Type: Concealed soft-close hinge
• Application: Full-overlay timber cabinet doors
• Opening Angle: 105 Degrees
• Material: Steel
• Cup Diameter: 35mm
• Cup Drilling Depth: 12mm
• Drilling Pattern: 48/6mm
• Minimum Door Thickness: 16mm
• Side Adjustment: −1.5/+4.5mm
• Height Adjustment: +-2mm
• Cup Fixing: Screw fixing
• Mounting: Compatible with Salice A slide-on or SM quick-fixing mounting plates
• Finish: Nickel Plated

Hafele Salice Clip Mounting Plate with Quick Fixing System
329.74.513

Features:

• Designed for Salice concealed cabinet hinges
• Clip-on quick-fixing system for efficient installation
• Cruciform mounting-plate design
• Pre-mounted Euro screws
• Adjustable height and depth
• Durable nickel-plated steel construction
• Suitable for residential and commercial cabinetry

Specifications:

• Material: Steel
• Distance: 3mm
• Drilling depth: 11mm
• Drill-hole Diameter: 5mm
• Screw Spacing: 32mm
• Edge Distance: 37mm
• Height Adjustment: +-2mm via slots
• Depth Adjustment: Via eccentric screw
• Fixing Method: Quick-fixing SM system
• Mounting: Pre-mounted Euro screws
• Compatibility: Hafele Metalla 510 and compatible Salice concealed hinges
• Finish: Nickel Plated
