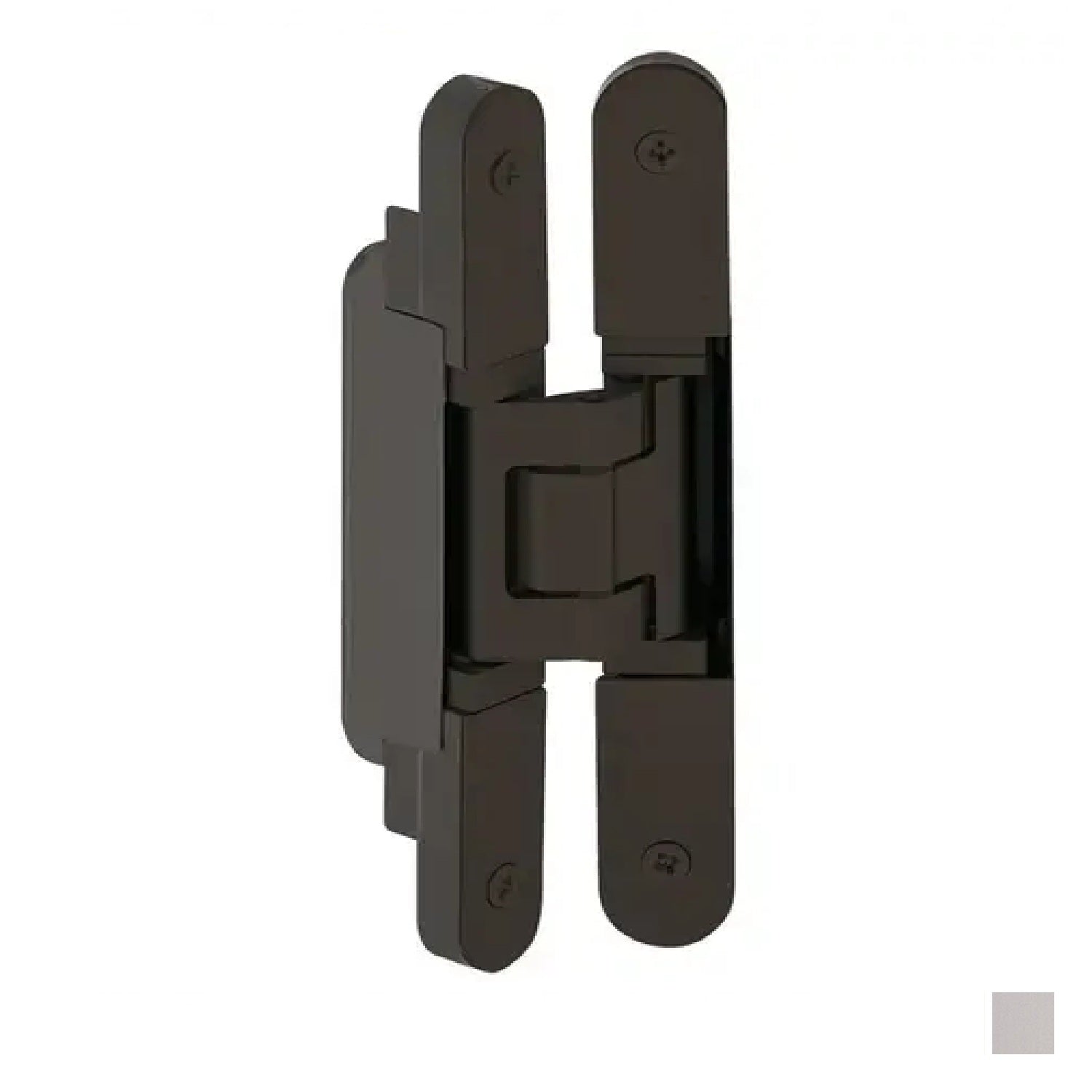

Hafele Tectus Concealed Hinge TE240 60kg - Available in Various Finishes

Hafele Tectus Concealed Hinge TE240

Concealed Hinge are door hinges that are hidden from view when the door is closed.

Concealed Hinge Function - is to support the door while allowing it to open and close smoothly, with the hinge hidden from sight for improved aesthetics and security.

Features:

• Offers a seamless solution for modern door installations, combining aesthetic appeal with robust functionality
• With a size of 155 mm and a sleek satin chrome look, this hinge is designed for flush doors in hollow metal, wood, or aluminum frames, ensuring a polished finish that complements any environment
• This hinge features a 3D adjustment capability, allowing precise modifications in height, side, and closing pressure to achieve the perfect fit. It accommodates door thicknesses of at least 25 mm and can support doors weighing up to 132 lbs, making it ideal for a variety of applications
• The maintenance-free friction bearings enhance durability and reduce upkeep, ensuring reliable performance over time
• Versatile enough for both DIN left and right-hand mounting, with an impressive opening angle of 180 degrees for full access
• Constructed from high-quality aluminum and steel, this hinge is certified in compliance with EN 1935:2002 standards, assuring its quality and reliability. With its rounded flange design and thoughtful engineering, this concealed hinge stands out as a top choice for building professionals and discerning homeowners alike

Specifications:

• Door Thickness: 25mm
• Door Weight Max: 60kg
• Height: 155mm

• Width: 18mm
• Flange Shape: Rounded
• For Frame Type: Steel, Wooden and Aluminium Frame
• Material: Aluminium Steel
• Mounting: for DIN left and DIN right hand use
• Router Bit Diameter: 16mm
• Thrust Ring Diameter: 30mm
• Available Finish:

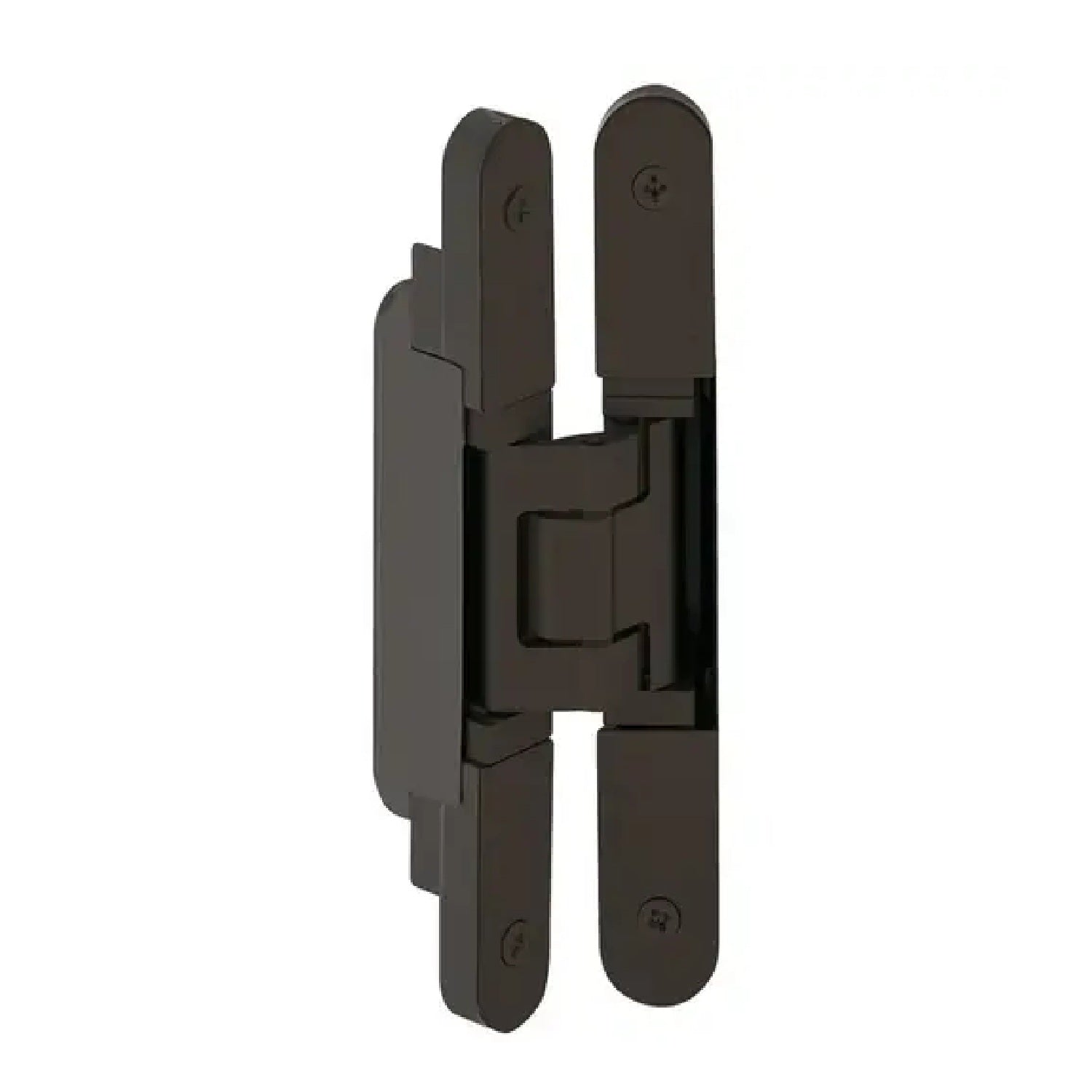

  • Matt Black

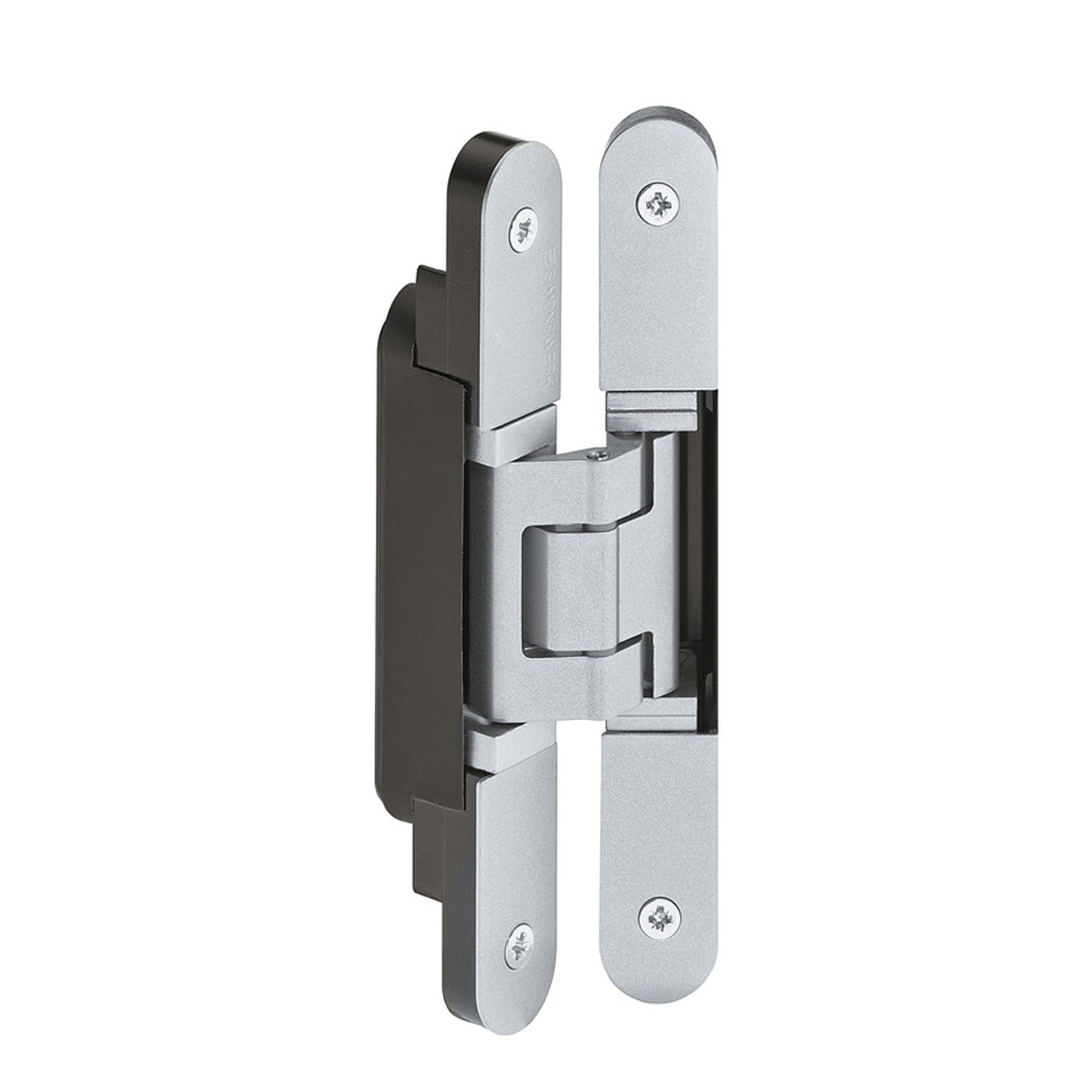

  • Satin Chrome
