SKU: HB525SC
Halliday & Baillie 525 Stair Rail Bracket with Light Wiring Capability
RRP: $338.42
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Halliday & Baillie Stair Rail Bracket with Light Wiring Capability
525
Stair Rail Bracket - is installed directly on a wall. Typically used for Commercial & Domestic projects
Stair Rail Bracket Function - are used to attach stairway railings to the wall of a stairway for safety and utility
Features:
- Has been developed from the HB 520 Bracket and incorporates a channel allowing for 12 volt wiring to connect to LED lighting stripsBoth a wired and non-wired version as not all brackets in a run will require wiring capacity. For the non-wired counterpart please see the HB 527
- Includes all fasteners including anchor for masonry and wood framed plasterboard walls
- Epoxy not included
- Our brackets have been tested and comply with AS/NZ1170. 1:2022 Structural Design Action Standards, and the International Building Code (IBC 2003) 200lb fall rating. In addition, all of our brackets work within the New Zealand Building Code Acceptable Solutions D1/AS1 Access Routes, depending on the balustrade used.

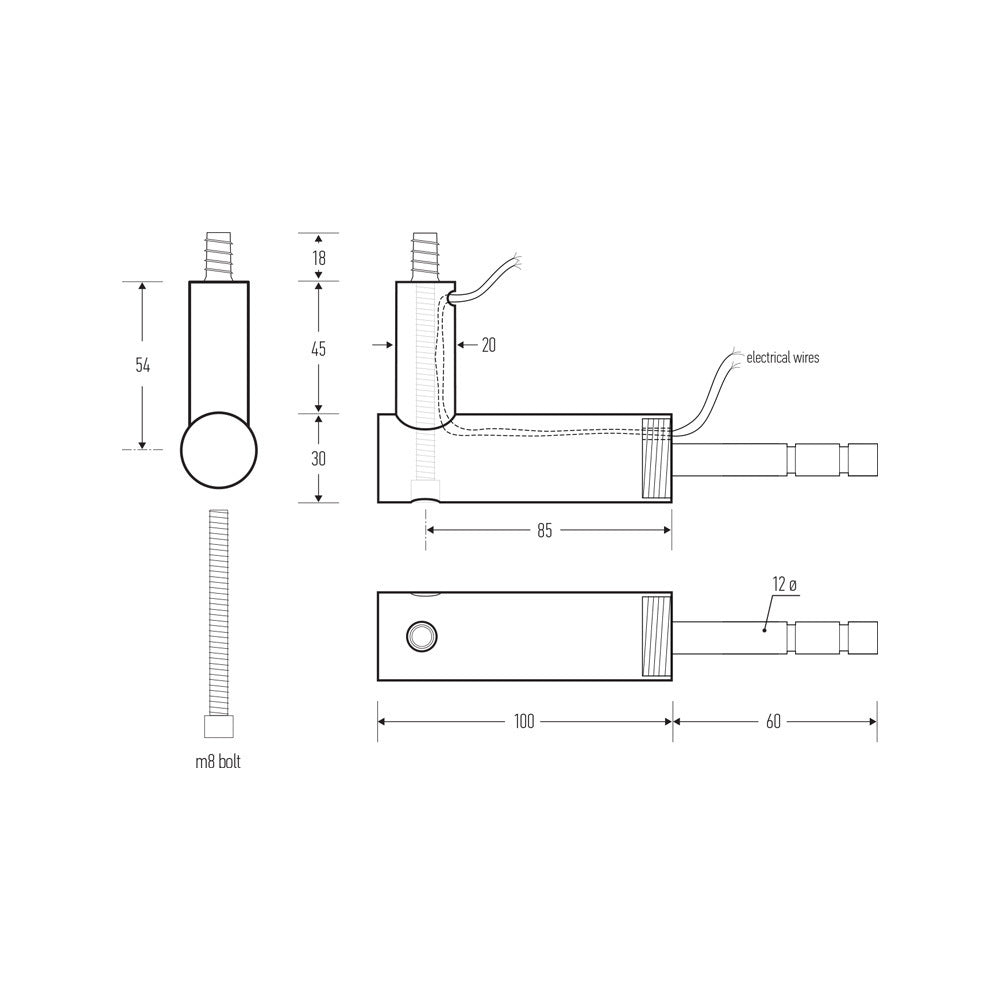

Specifications:
- Material: Non-anodized Aluminium Alloy
- Projection from wall: 100mm (offstand)
- Overall Height: 75mm (upstand)
- Recommended Spacing: 600mm to 800mm
-

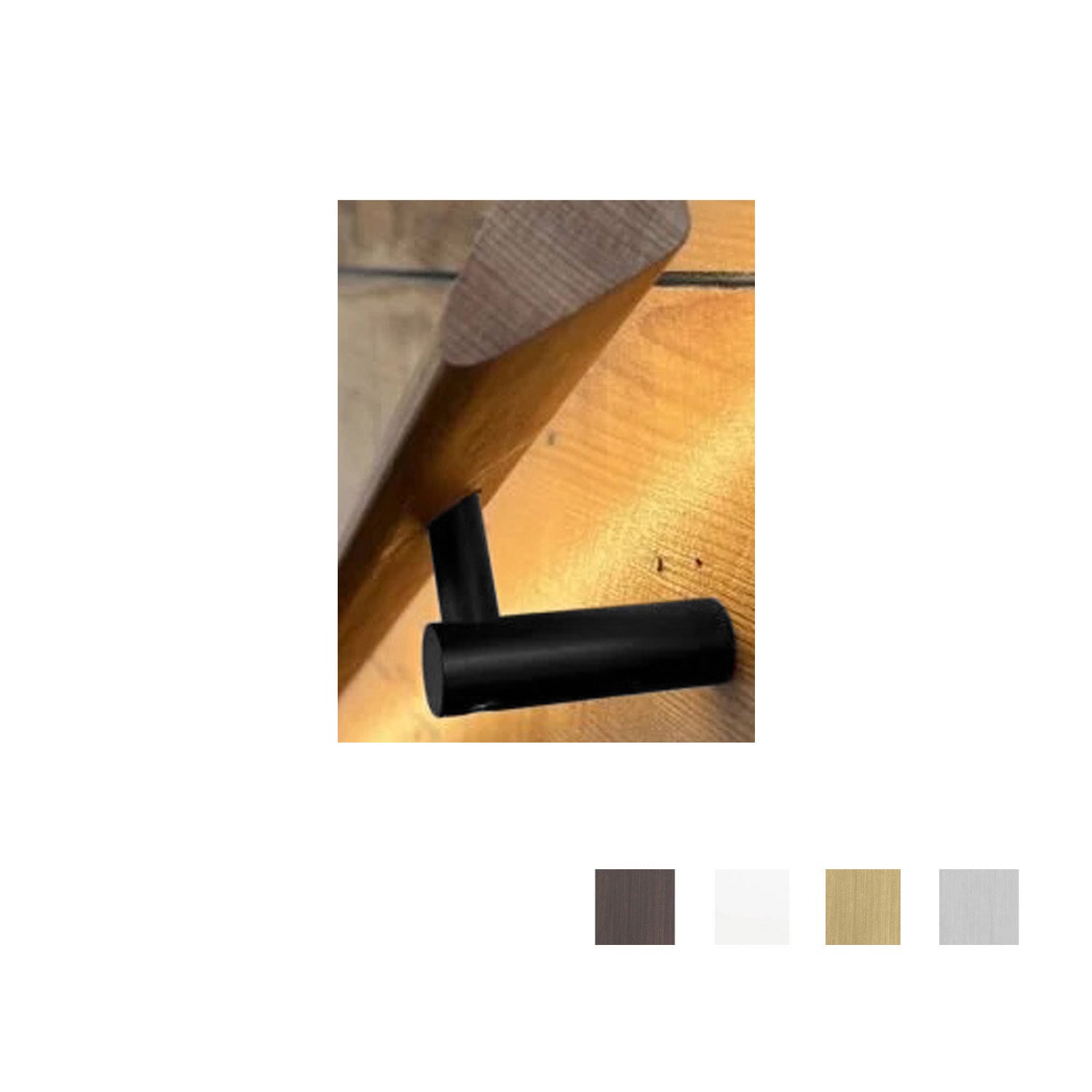

Available Finish:

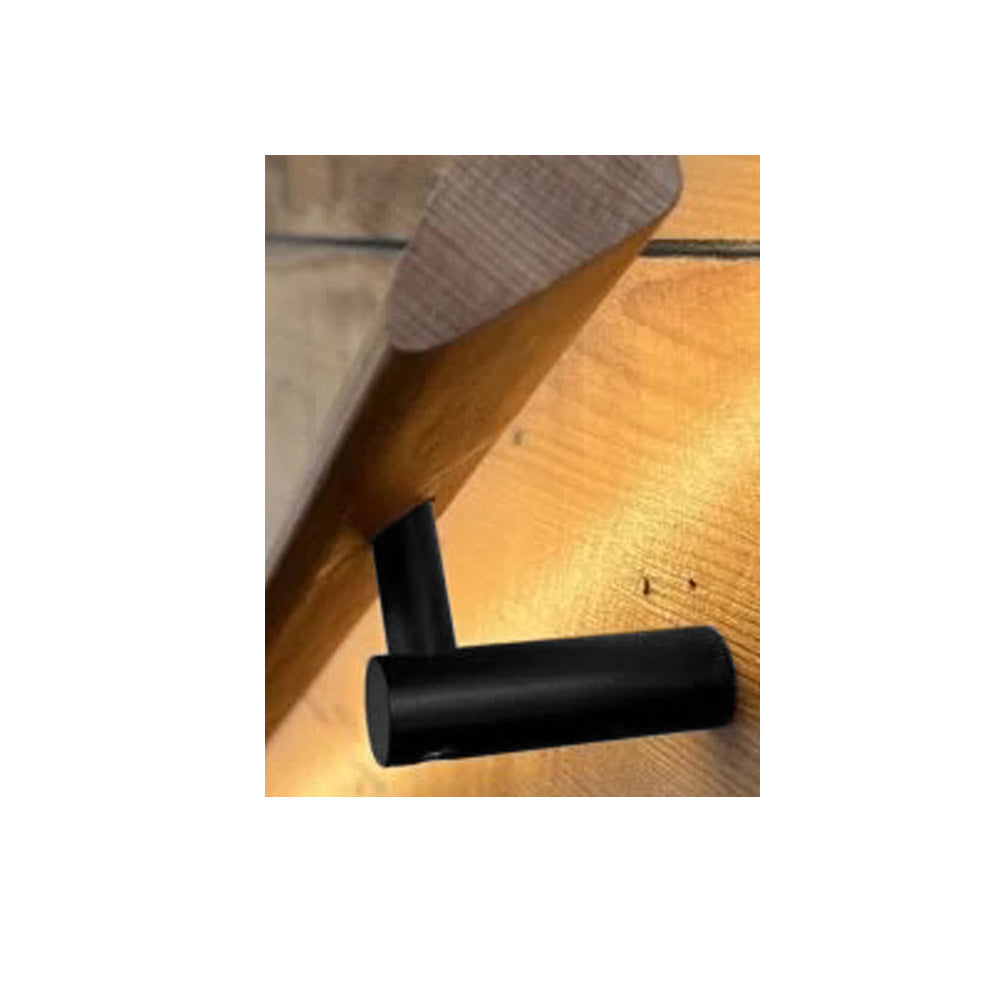

- Electro Black Ace

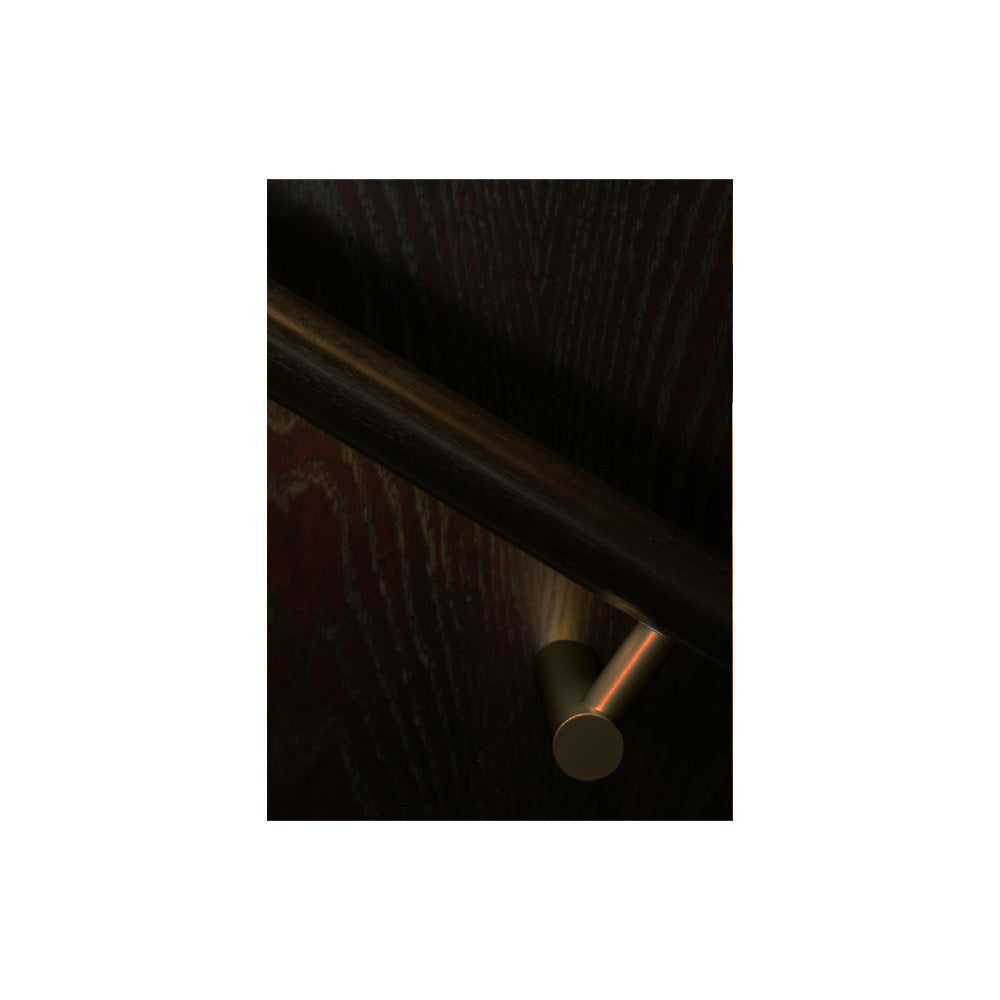

- Electro Dark Bronze

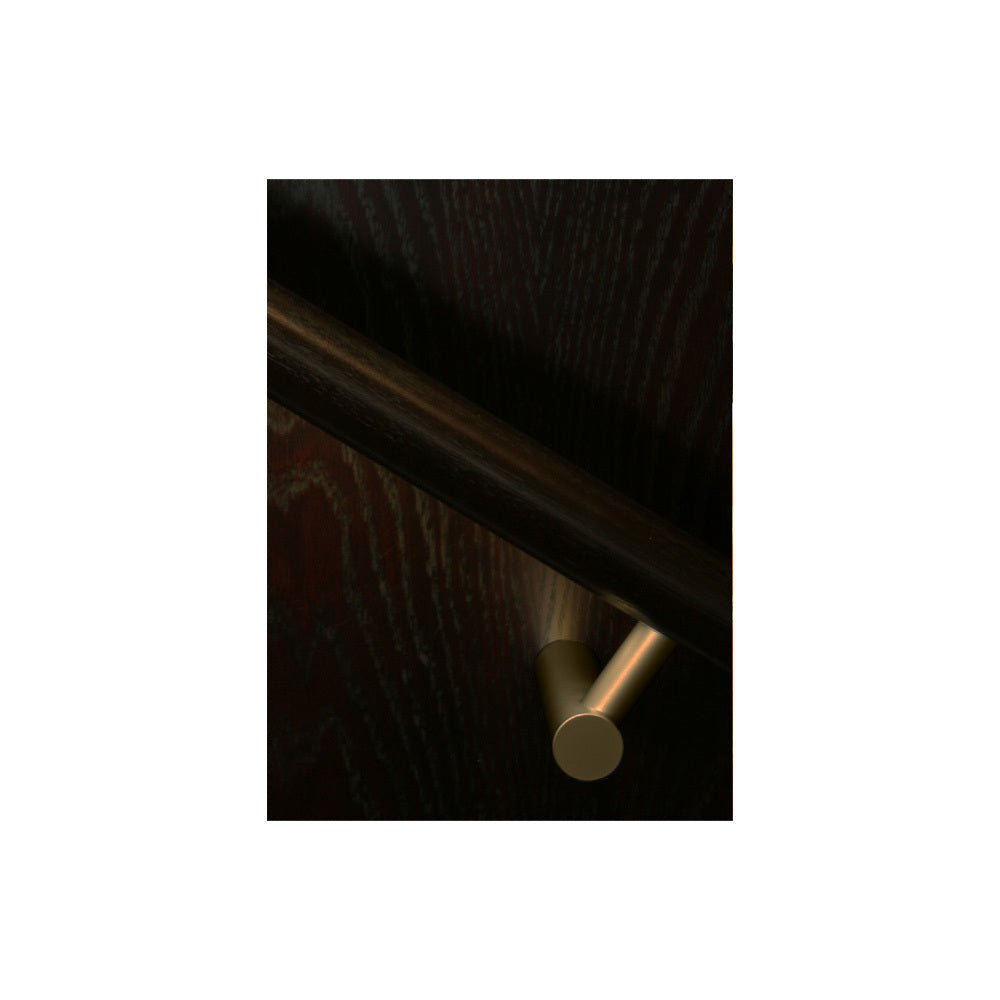

- Electro Medium Bronze
- Satin Chrome
- White
Note: Glass fixing kits not available for styles HB 525, HB 526, HB 527 and HB 528.
Halliday & Baillie Stair Rail Bracket with Light Wiring Capability
HB525 SC
Stair Rail Bracket - is installed directly on a wall. Typically used for Commercial & Domestic projects
Stair Rail Bracket Function - are used to attach stairway railings to the wall of a stairway for safety and utility
Features:
- Has been developed from the HB 520 Bracket and incorporates a channel allowing for 12 volt wiring to connect to LED lighting stripsBoth a wired and non-wired version as not all brackets in a run will require wiring capacity. For the non-wired counterpart please see the HB 527
- Includes all fasteners including anchor for masonry and wood framed plasterboard walls
- Epoxy not included
- Our brackets have been tested and comply with AS/NZ1170. 1:2022 Structural Design Action Standards, and the International Building Code (IBC 2003) 200lb fall rating. In addition, all of our brackets work within the New Zealand Building Code Acceptable Solutions D1/AS1 Access Routes, depending on the balustrade used.
Specifications:
- Material: Non-anodized Aluminium Alloy
- Projection from wall: 100mm (offstand)
- Overall Height: 75mm (upstand)
- Recommended Spacing: 600mm to 800mm
- Finish: Satin Chrome
Note: Glass fixing kits not available for styles HB 525, HB 526, HB 527 and HB 528.
