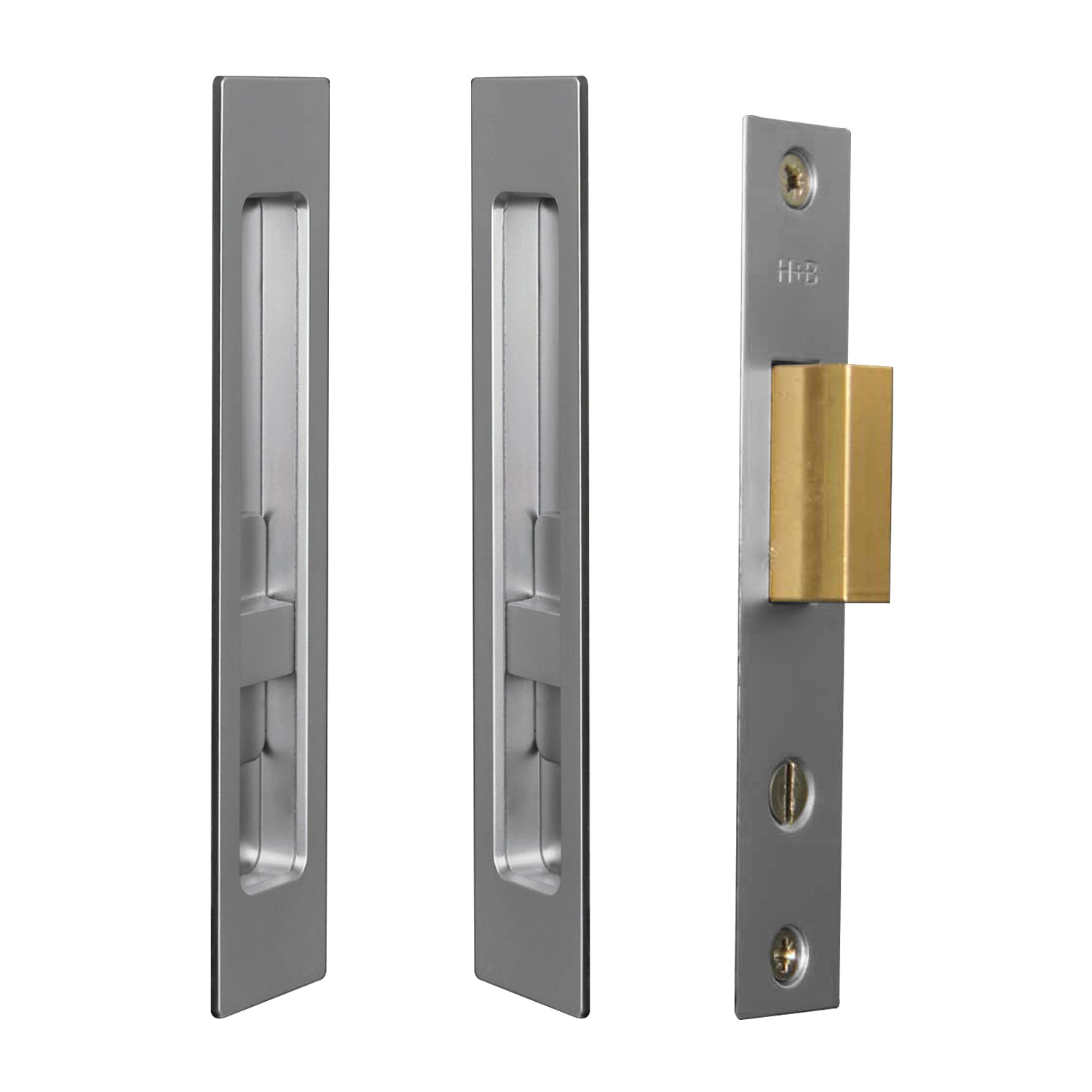

Halliday & Baillie Pivot Door Privacy Set Flush Pull Snib/Snib 310mm Satin Chrome HB1488-SC

Halliday & Baillie Pivot Door Privacy Set Flush Pull with Snib/Snib
1488 SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 6-8 business weeks after payment is made.

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 1 x HB 690 D Series Lock Body
• 2 x HB 1475 Flush Pulls
• 1 x HB 1410 Fixing Kits (one set for HB 1483)
• 1 x Strike and Dust Box
• 2 x spindle lengths (please specify door thickness for doors over 2.36”)
• Fasteners

Features:

• Developed primarily for use on large doors where scale is required, or the doors are particularly heavy
• These sets can function on oversized sliding doors for extra purchase, or on bifold doors
• Sets utilize the longer HB 1475 flush pulls which offer a deeper internal finger area and an offset grip to one side resulting in left and right-handed options
• Suitable for timber or large aluminium doors

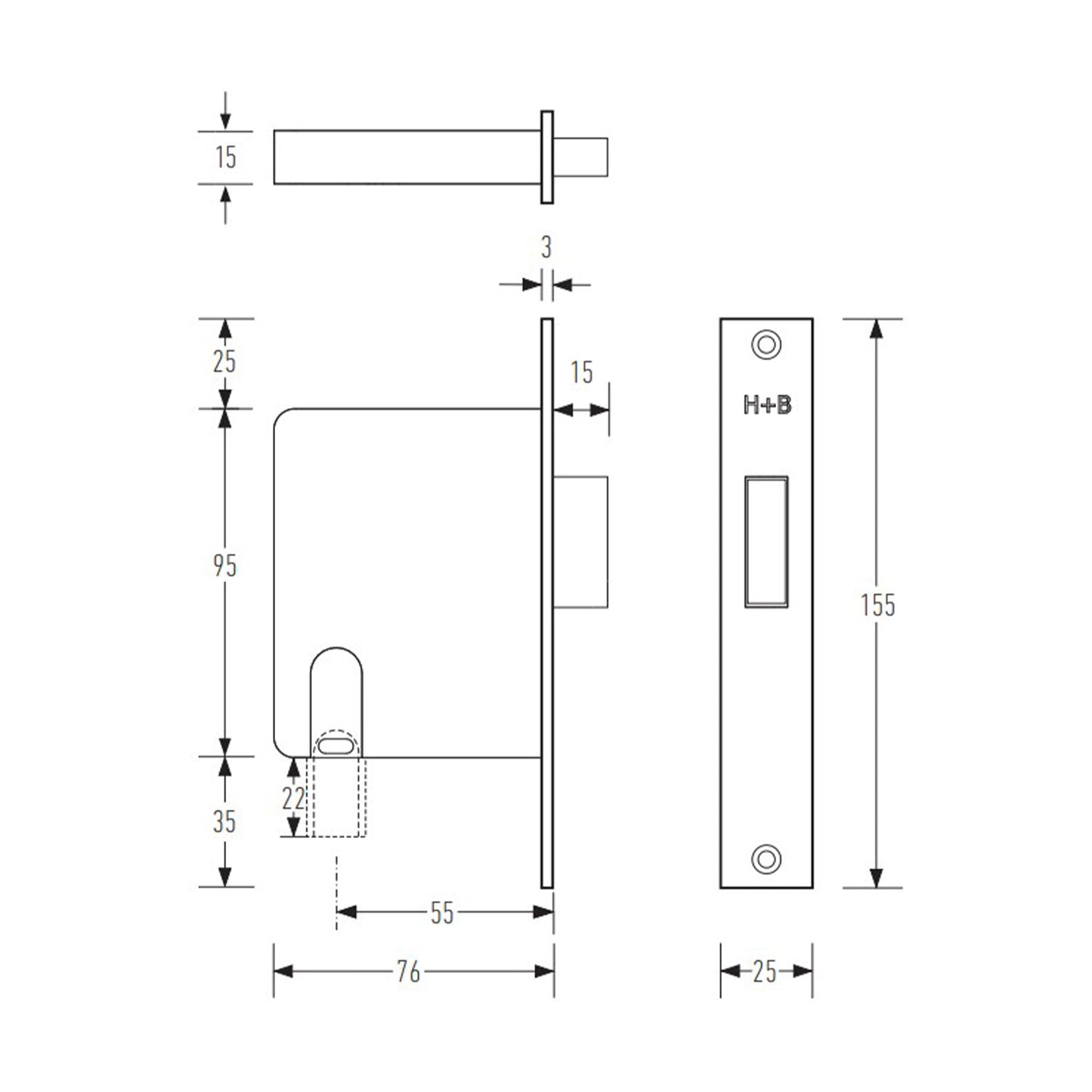

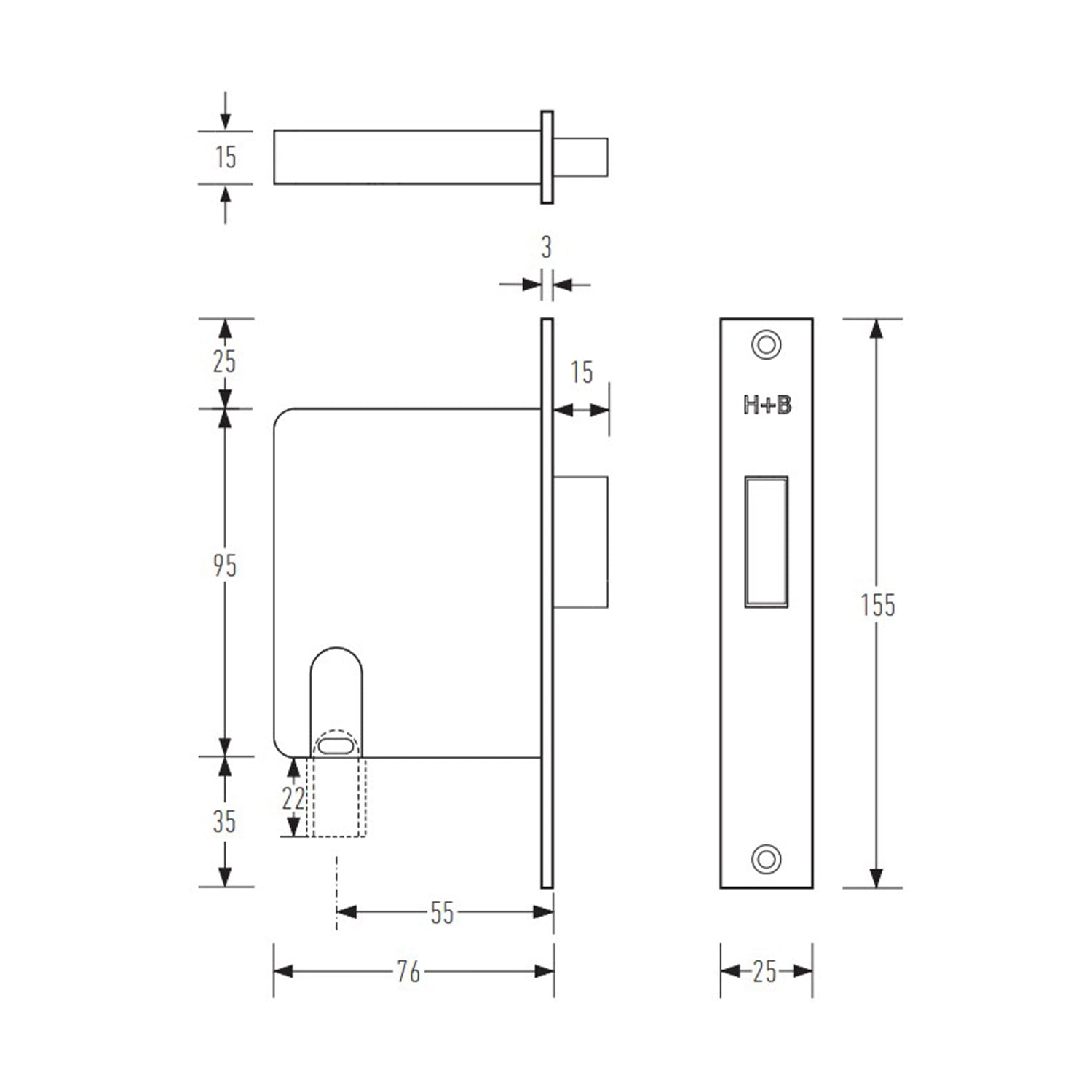

Specifications:

• Flush Pull Material: Milled Solid Brass
• Lock Body Material: Diecast Zinc, Brass, 316 Stainless Steel
• Lock Body Length: 95mm
• Lock Body Width: 15mm
• Lock Body Depth: 76mm
• Backset: 55mm
• Lock Faceplate Length: 155mm
• Lock Faceplate Width: 25mm
• Minimum Door Thickness: 45mm

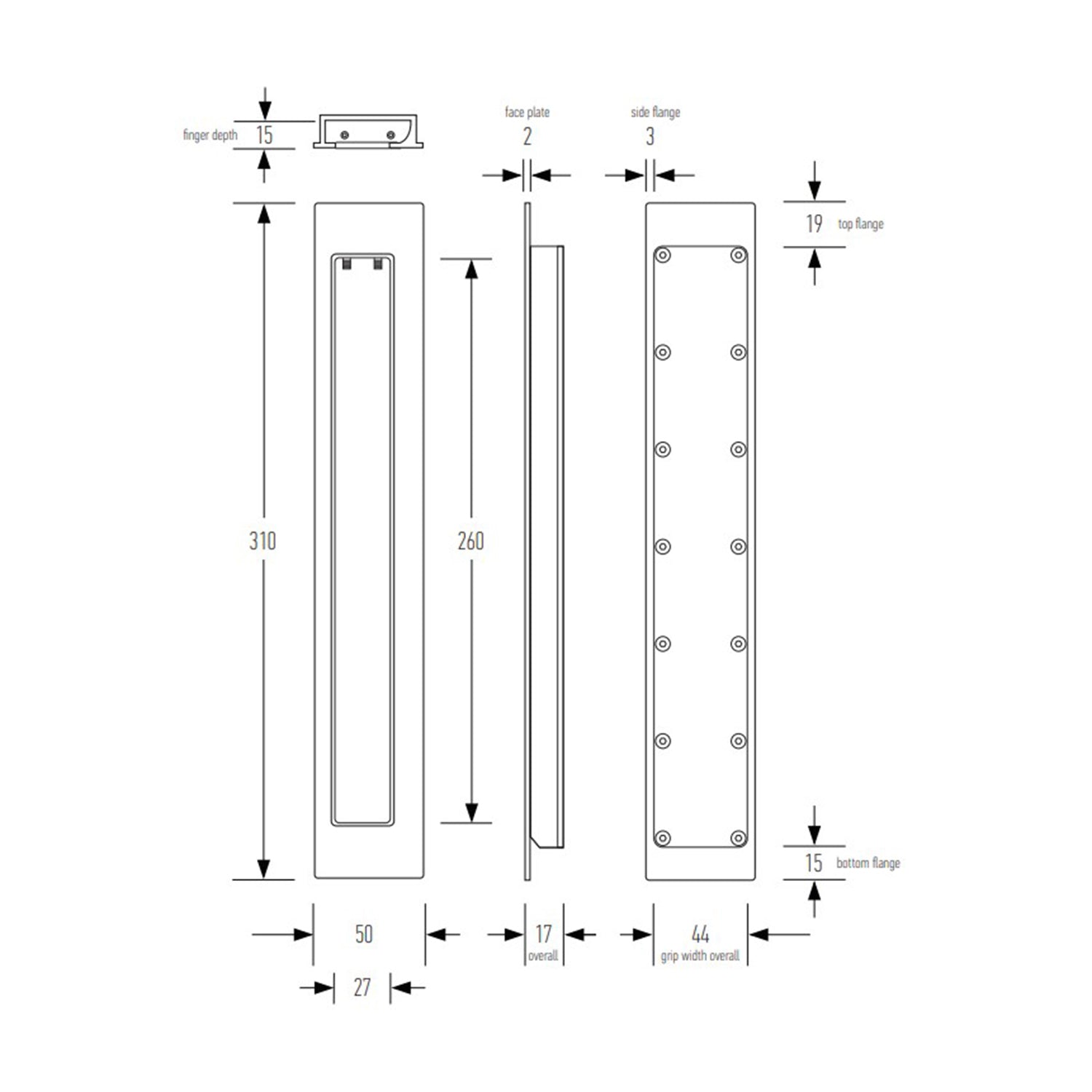

• Flush Pull Length: 310mm
• Flush Pull Width: 50mm
• Flush Pull Depth: 17mm
• Internal Depth: 15mm
• Finish: Satin Chrome
