Interlock Door Lock Pack with Mortice Lock Verona Lever White with Euro Cylinder

Interlock Door Lock Pack with Mortice Lock Verona Lever White with Euro Cylinder
LOCKPACKVERONA6

Entrance Lever with Mortice lock & Euro Double Cylinder is commonly used in residential and commercial buildings for secure and stylish entryways.

Entrance Lever with Mortice lock & Euro Double Cylinder Function - is a high-security door handle system designed for enhanced safety and ease of access, featuring a robust mortice lock and a versatile Euro double cylinder.

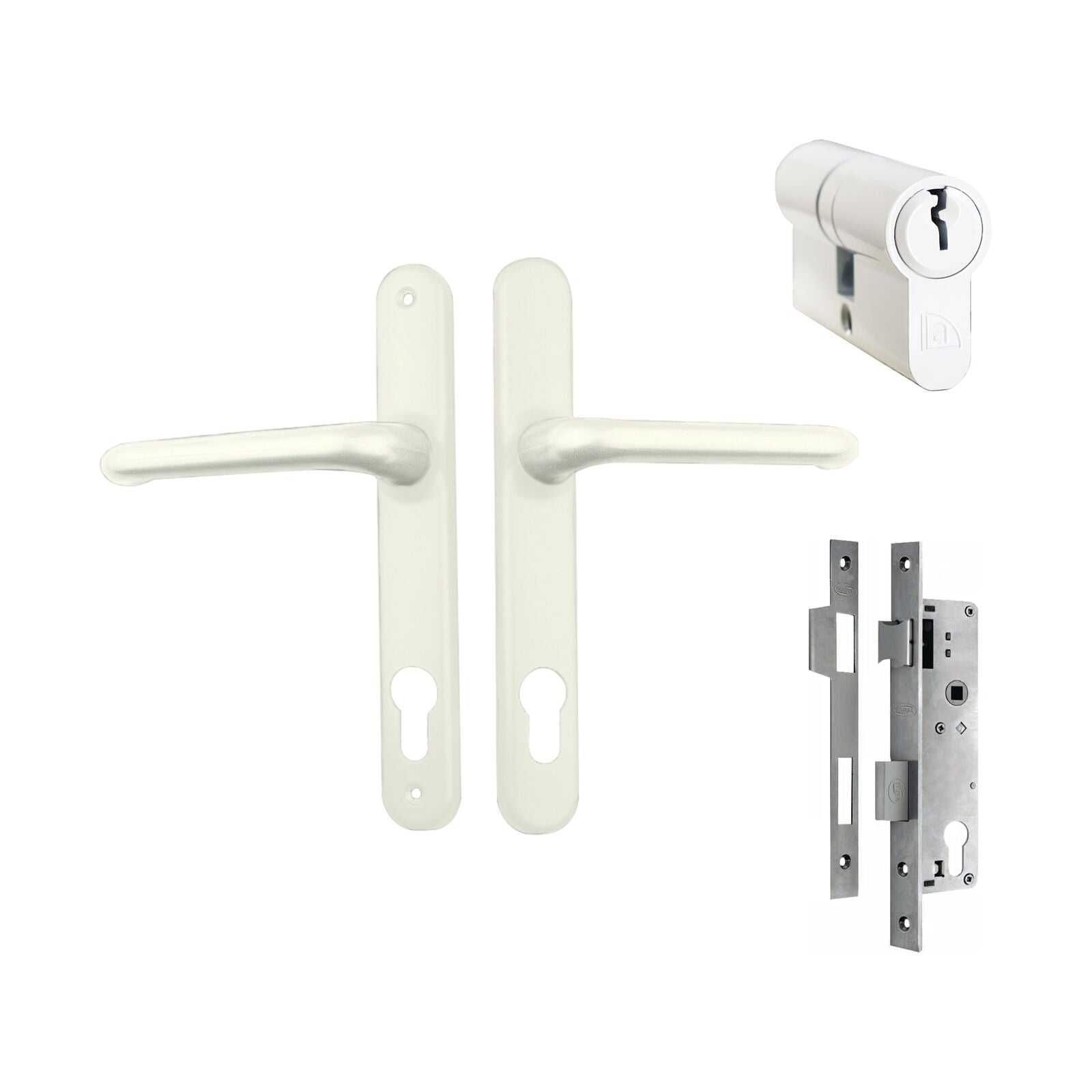

Includes:

• 1 x Lockwood Door Handle Verona Long Plate Furniture Lever Pearl White (VR20485PW)
• 1 x Austyle Mortice Lock 30mm Backset 85mm Pitch Satin Stainless Steel (49201)
• 1 x Austyle C4 5 Pin Euro Double Cylinder 65mm White (89144)

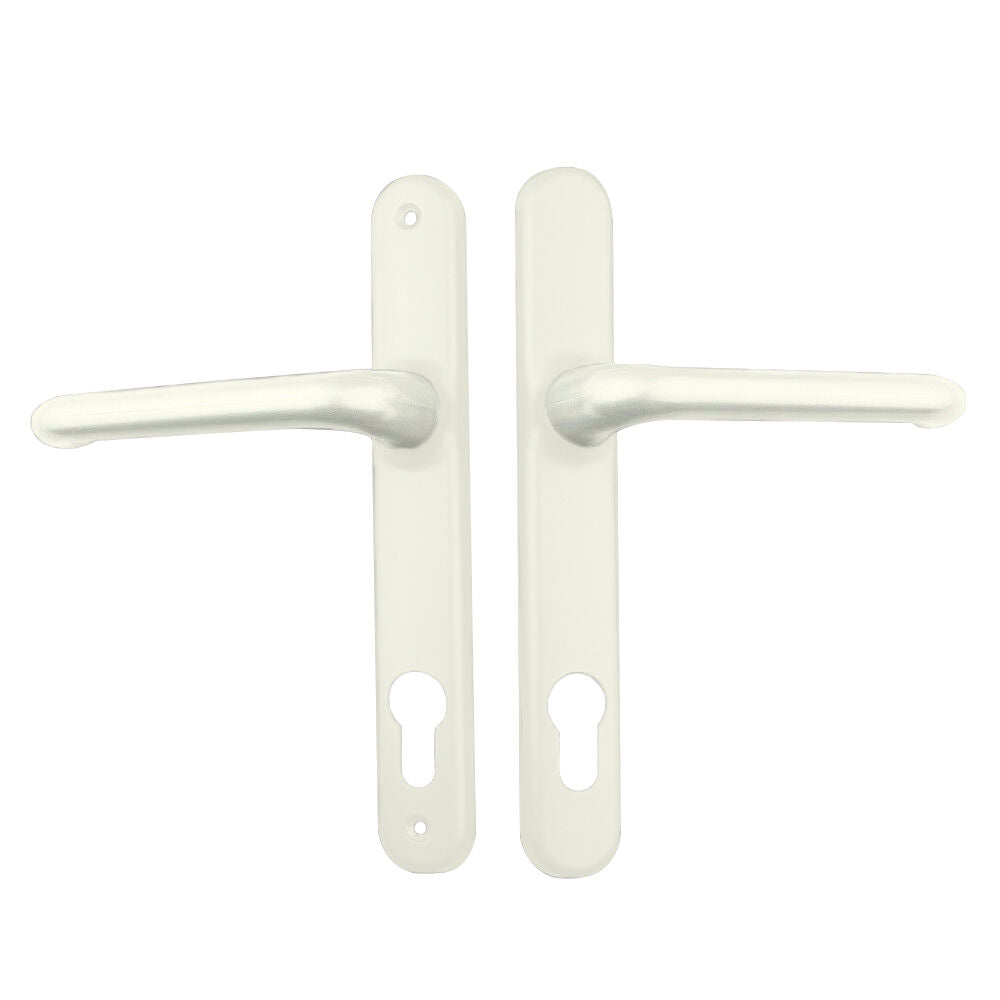

Lockwood Door Handle Verona Long Plate Furniture Lever Pearl White
VR20485PW

The Verona Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.

Features:

• Stylish range of contemporary non handed lever designs
• Range of available finishes
• Solid metal lever escutcheon
• The Verona Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
• All lever handles are reversible Suits 85 mm pitch mortice locksets
• Includes 7.6 mm square stepped spindle
• Available in trade pack
• Lockwood Verona door furniture is supplied as a complete set, with both the internal and external plates
• Suitability - Residential and semi-commercial buildings
• Handing - Easy, field selectable handing
• Fixing - Lockwood Verona Series Door Furniture is a complete set, supplied with both the internal and external plates
• Plates are designed to fit back to back to be fully concealed externally
• Keying - Use with Euro profile cylinder

Specification:

• Finish: Pearl White

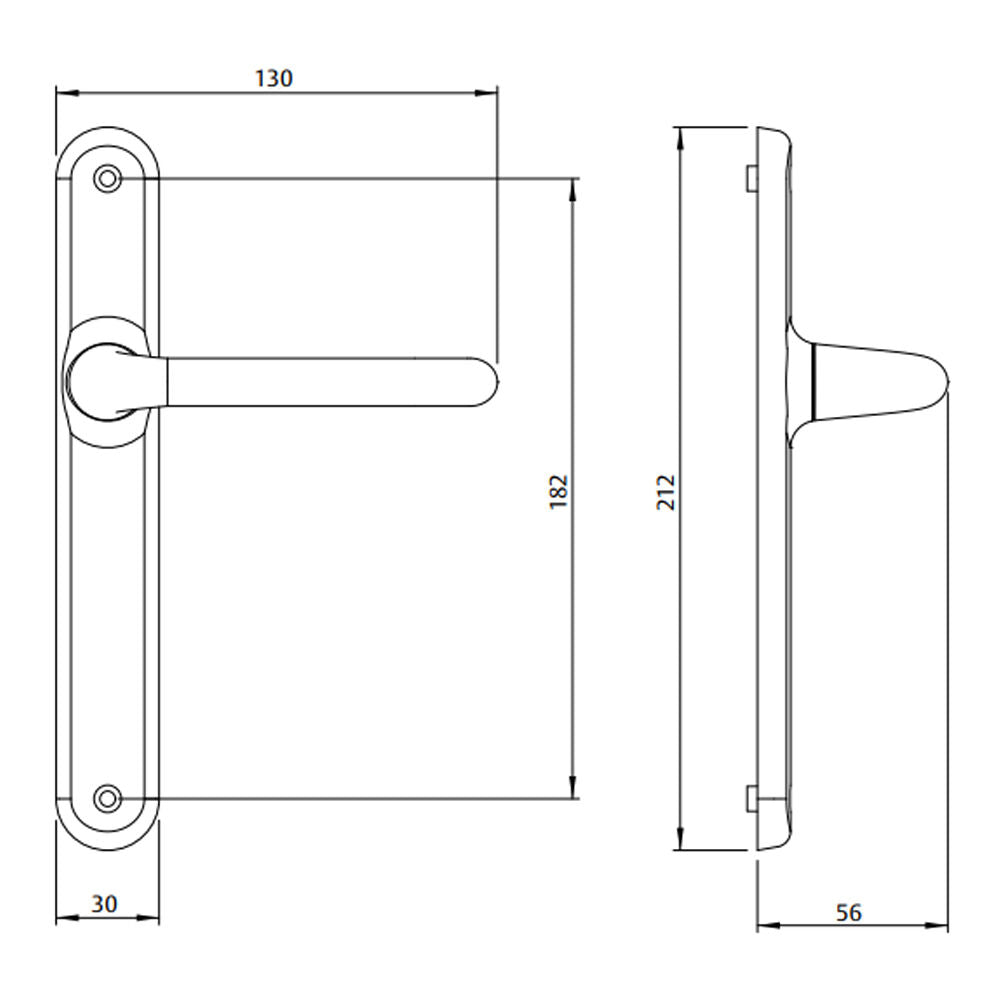

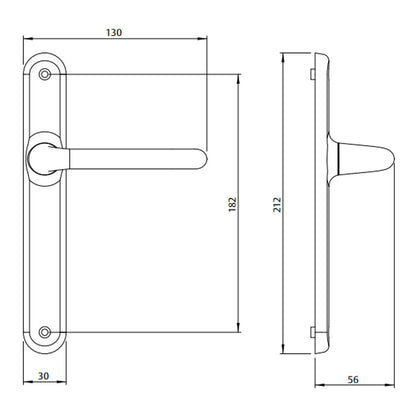

• Dimensions: 211 x 31 x 9mm
• Material: Solid Zinc Die-Cast
• Door Thickness: Minimum 32mm - Maximum 45mm
• Sold as Pair

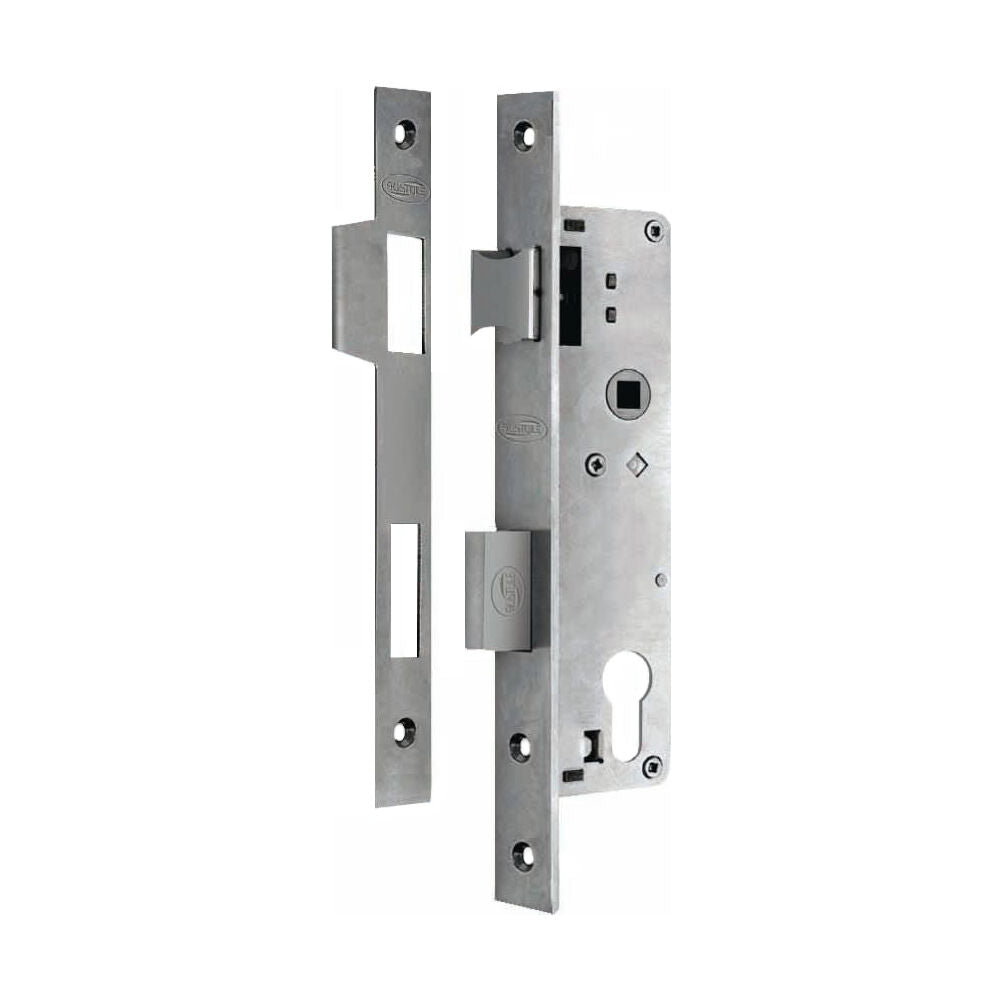

Austyle Mortice Lock
49201

Features:

• Narrow back set for Aluminium frames
• Stainless Steel components
• High Security entrance or external door lock designed and engineered in Australia
• Simultaneously retracts latch when unlocking the door for a quick exit
• Reversible latch for left or right hand door openings
• Heavy duty casing and internal components
• Non-combustible internal components

Specifications:

• Backset: 30mm
• Lock/Handle Centres: 85mm
• Face Plate: 240mm
• Length Body of the Lock: 170mm
• Width of the Lock: 45mm
• Door Frame: Aluminium
• Door Type: Hinged Doors
• Security: External/Lockable Doors
• Finish: Satin Stainless Steel

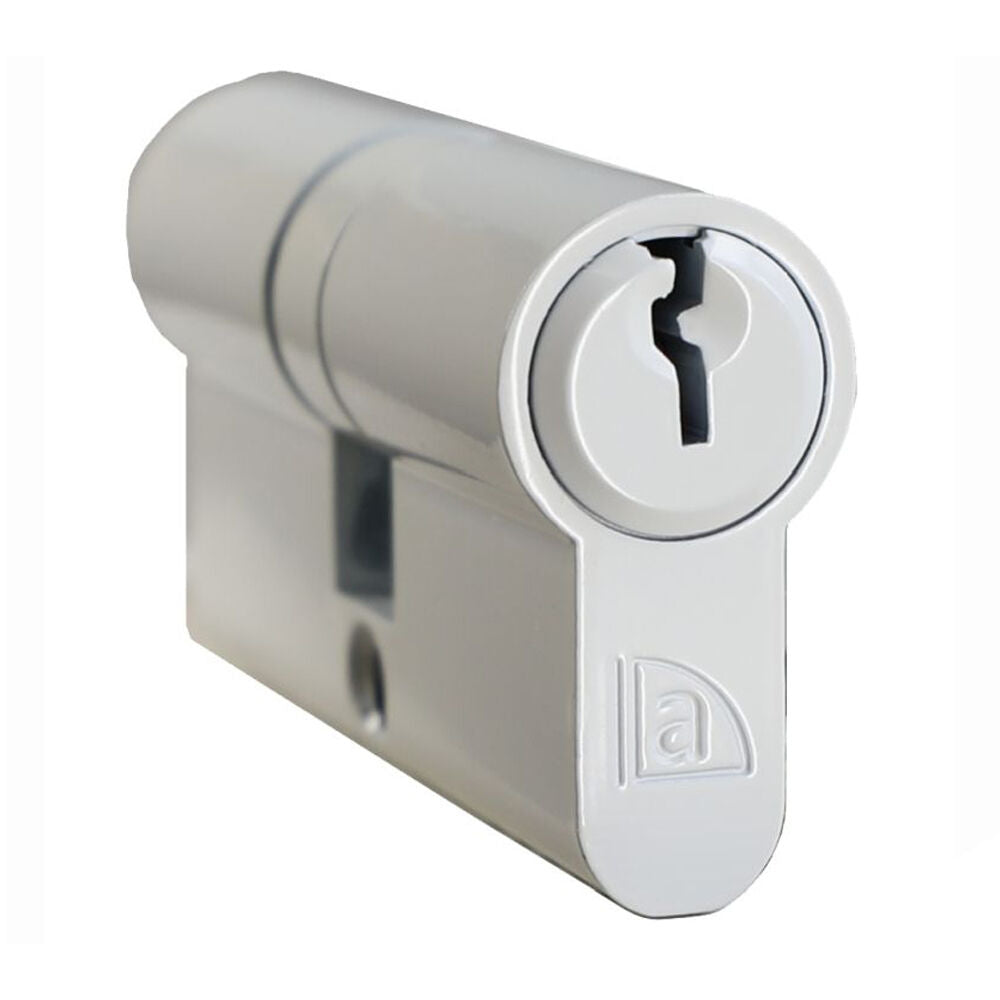

Austyle C4 5 Pin Euro Double Cylinder
89144

Features:

• Independent CAM Operation
• Australian Standard C4 Profile / 2 Keys Included
• Grub Screw Pins For Easy Re-keying

Specifications:

• Material: Solid Brass
• Keyway: C4 5Pin
• Size: 65mm
• Finish: White
