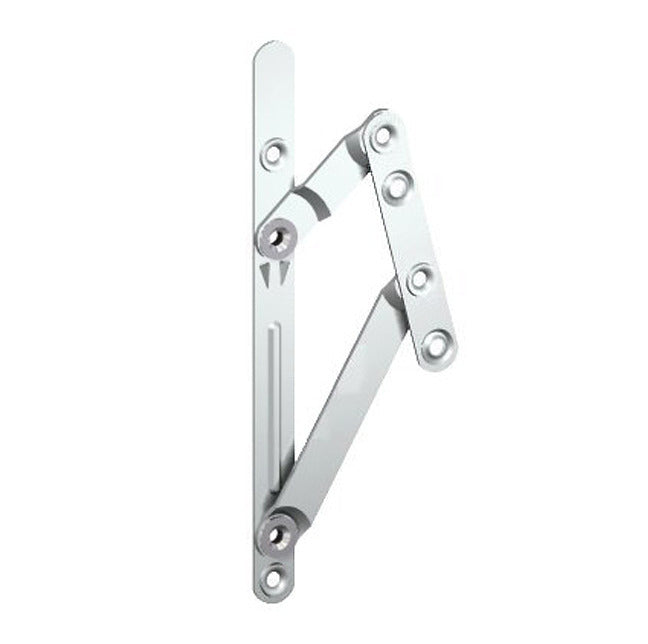

Interlock Window Stay 198mm Non-Friction Hinge Stainless Steel P1002NF Pair

Interlock Window Non-Friction Stay
4-B Series 200 NF
P1002NF

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.

• A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes.
• Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.

Features:

• Non-handed
• Manufactured with the unique feature
• No sliding channels
• Factory set friction levels mean no on-site adjustment is required
• Fixed directly through the bearing eyelet as well as through the formed screw or rivet holes
• Incorporates the Interlock patented frictional bearing
• Sold in pairs

Specifications:

• Opening Angle: 40 Degrees
• Max Sash Weight: 10kg
• Fixing Surfaces: Timber, Metal
• Finish: Stainless Steel

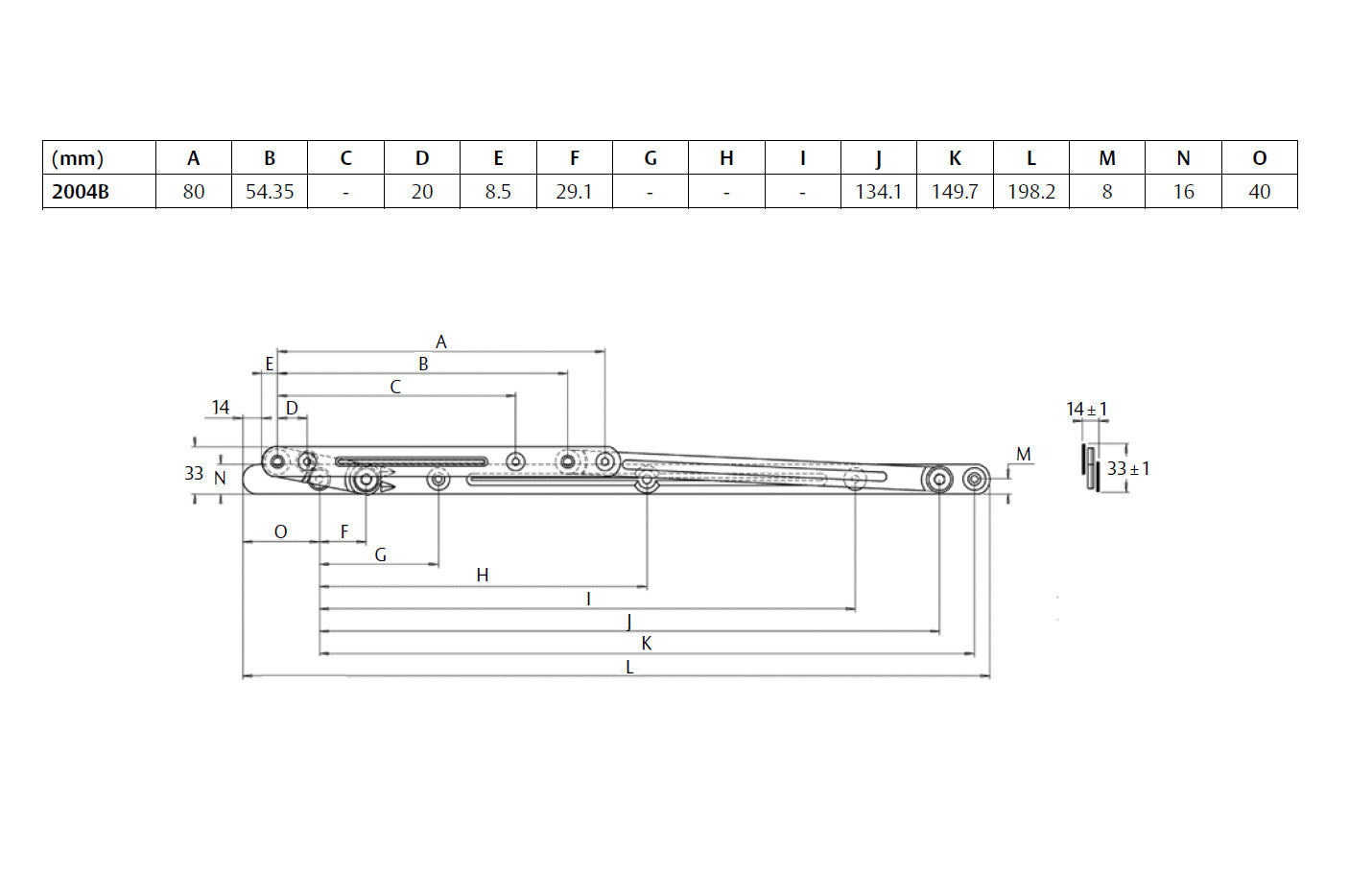

• Dimensions: shown in images
