SKU: ASSP1004

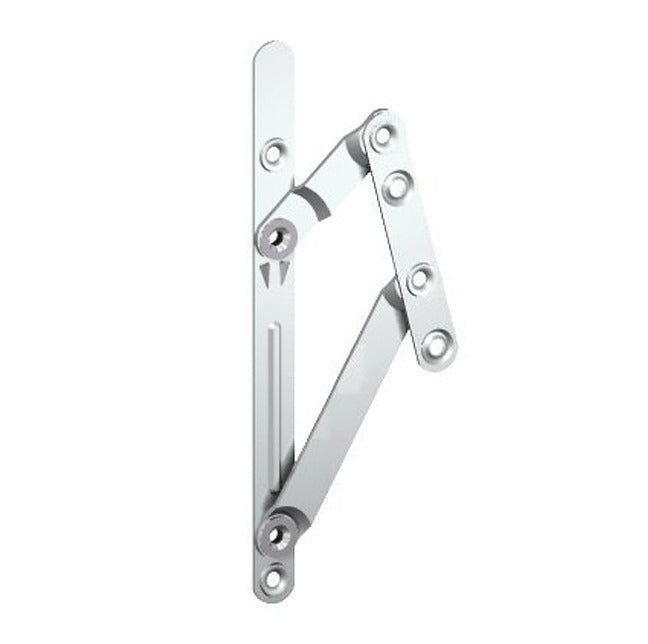

Interlock Window Stay 503mm Friction Hinge Stainless Steel P1004 Pair
WAS: $91.38
RRP: $101.54
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Interlock Window Friction Stay
4-B Series 500
P1004
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.
- A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes.
- Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.
Features:
- Non-handed
- Manufactured with the unique feature
- No sliding channels
- Factory set friction levels mean no on-site adjustment is required
- Fixed directly through the bearing eyelet as well as through the formed screw or rivet holes
- Incorporates the Interlock patented frictional bearing
- Sold in pairs
- Max Sash Height: 1800mm
- Opening Angle: 25 Degrees
- Max Sash Weight: 30kg
- Fixing Surfaces: Timber, Metal
- Finish: Stainless Steel

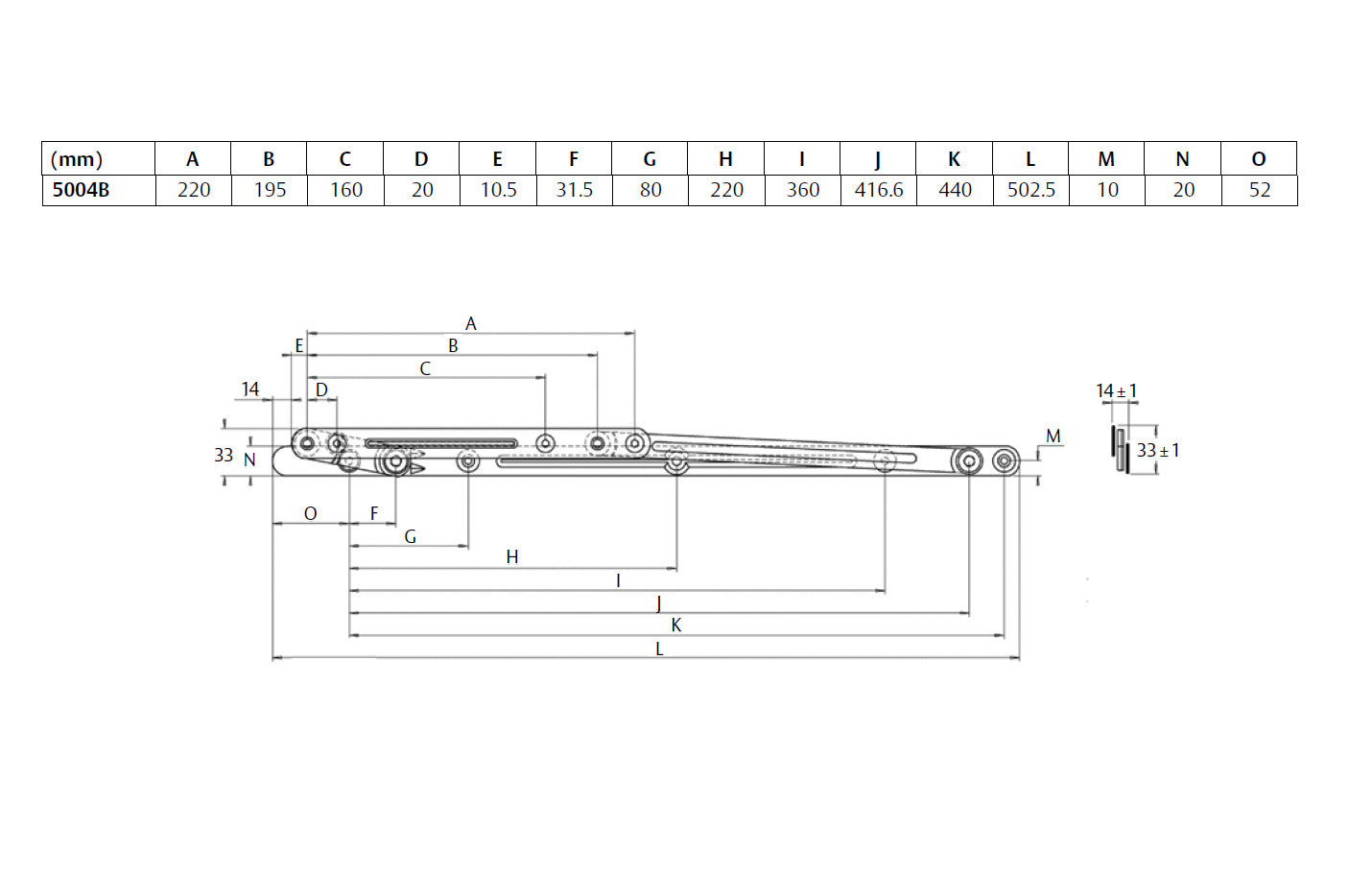

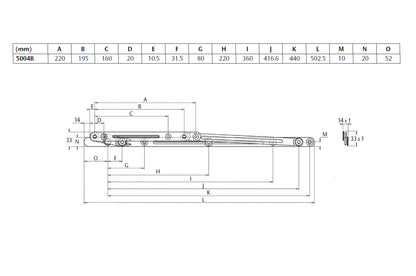

- Dimensions: shown in images
Interlock Window Friction Stay
4-B Series 500
P1004
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.
- A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes.
- Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.
Features:
- Non-handed
- Manufactured with the unique feature
- No sliding channels
- Factory set friction levels mean no on-site adjustment is required
- Fixed directly through the bearing eyelet as well as through the formed screw or rivet holes
- Incorporates the Interlock patented frictional bearing
- Sold in pairs
- Max Sash Height: 1800mm
- Opening Angle: 25 Degrees
- Max Sash Weight: 30kg
- Fixing Surfaces: Timber, Metal
- Finish: Stainless Steel
- Dimensions: shown in images
