SKU: ASSP1080

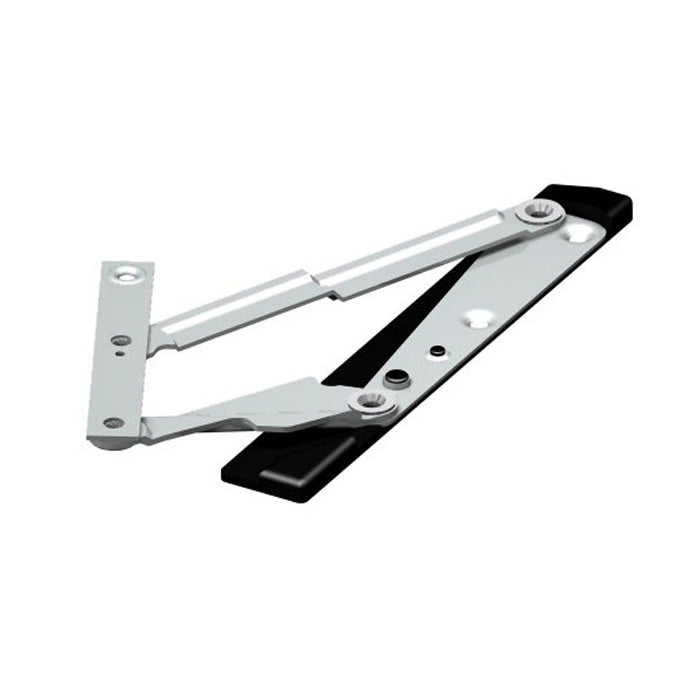

Interlock Window Stay 420mm Friction Hinge Stainless Steel Pair P1080
Restocking Soon: ETA End October
RRP: $112.85
Payments accepted:
Couldn't load pickup availability

There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Interlock Window Friction Stay
4-BC Series 430
P1080
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.
- A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung (PSH) aluminium, timber or uPVC sashes.
- Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.
Features:
- A comprehensive range to cater for most applications
- Manufactured with the unique "pull in" feature
- Non-handed
- No sliding channels
- Factory set friction levels thus no on-site adjustment necessary
- Incorporates the patented Interlock friction bearing
- Sold in pairs
Specifications:
- Max Sash Height: 1000mm
- Opening Angle: 90 Degrees
- Max Sash Weight: 40kg
- Fixing Surfaces: Timber, Metal
- Finish: Stainless Steel

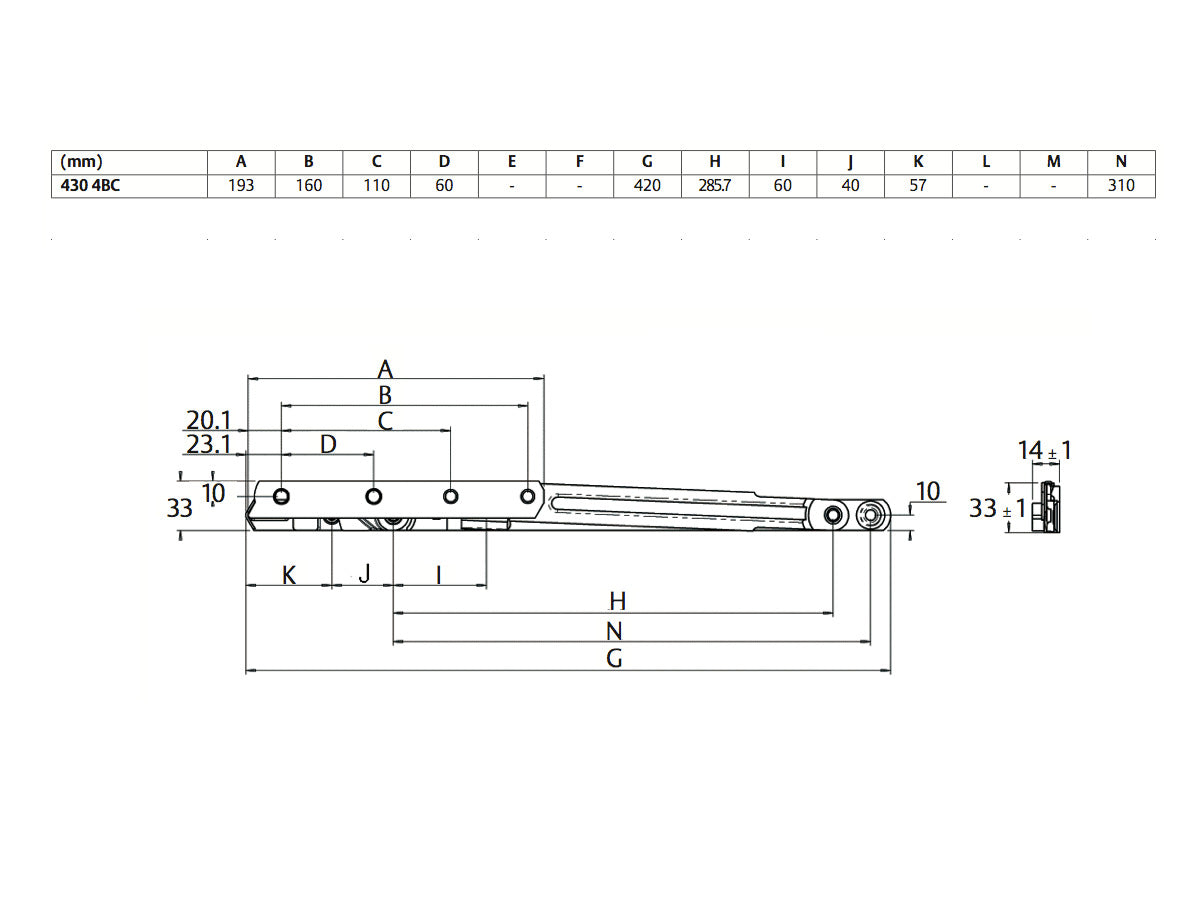

- Dimensions: shown in images
