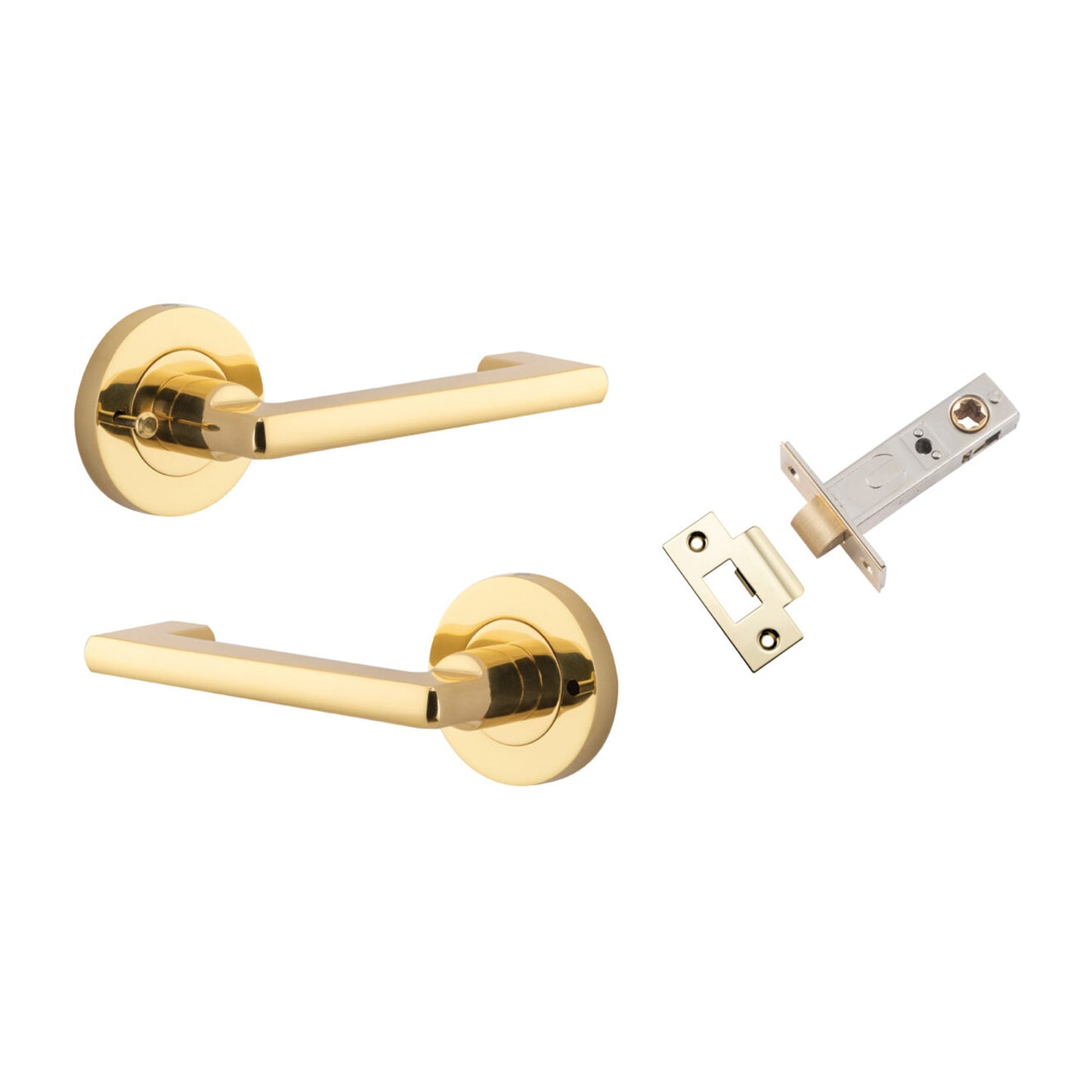

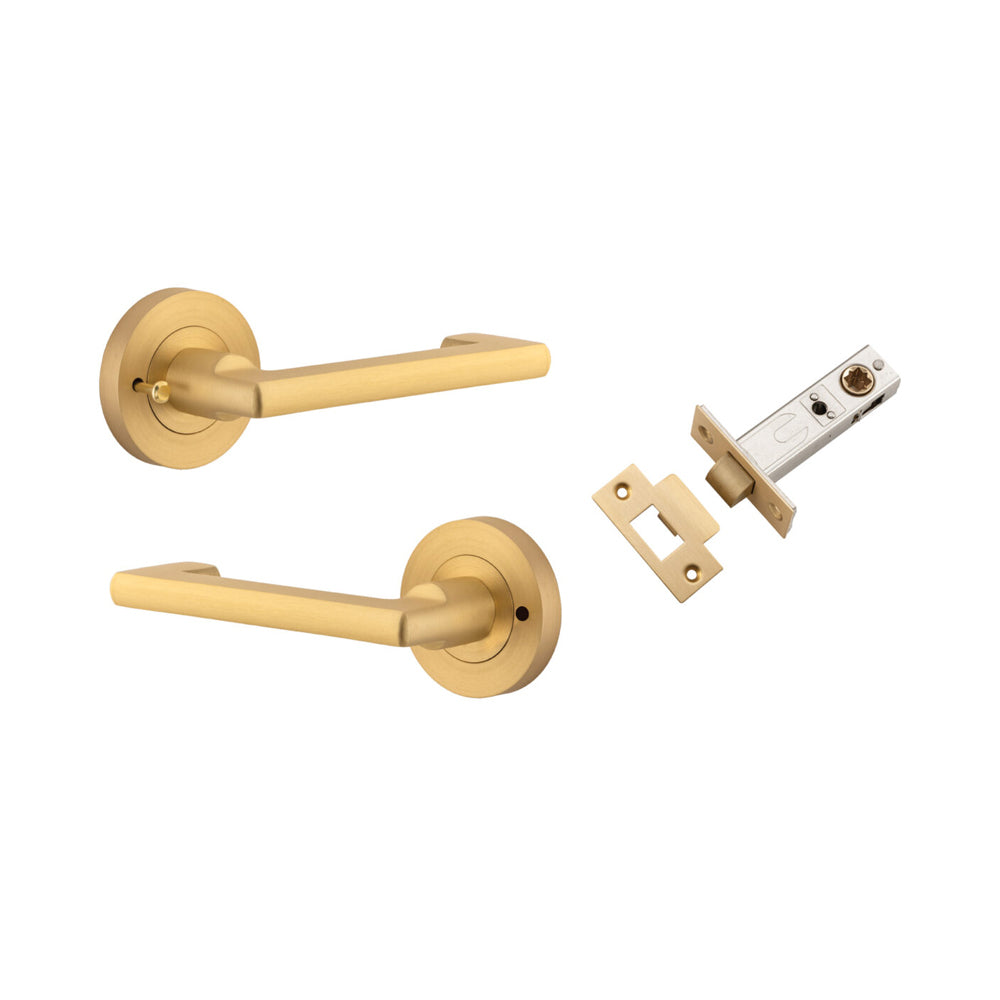

Iver Baltimore Return Door Lever Handle on Round Rose Inbuilt Privacy

Iver Baltimore Return Door Lever on Round Rose Inbuilt Privacy

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

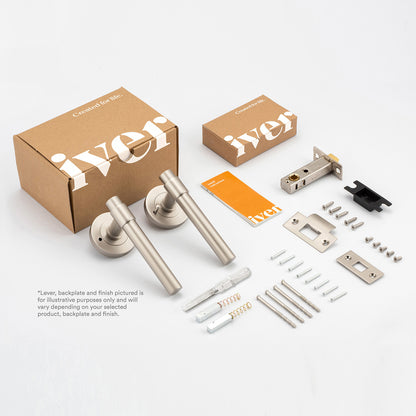

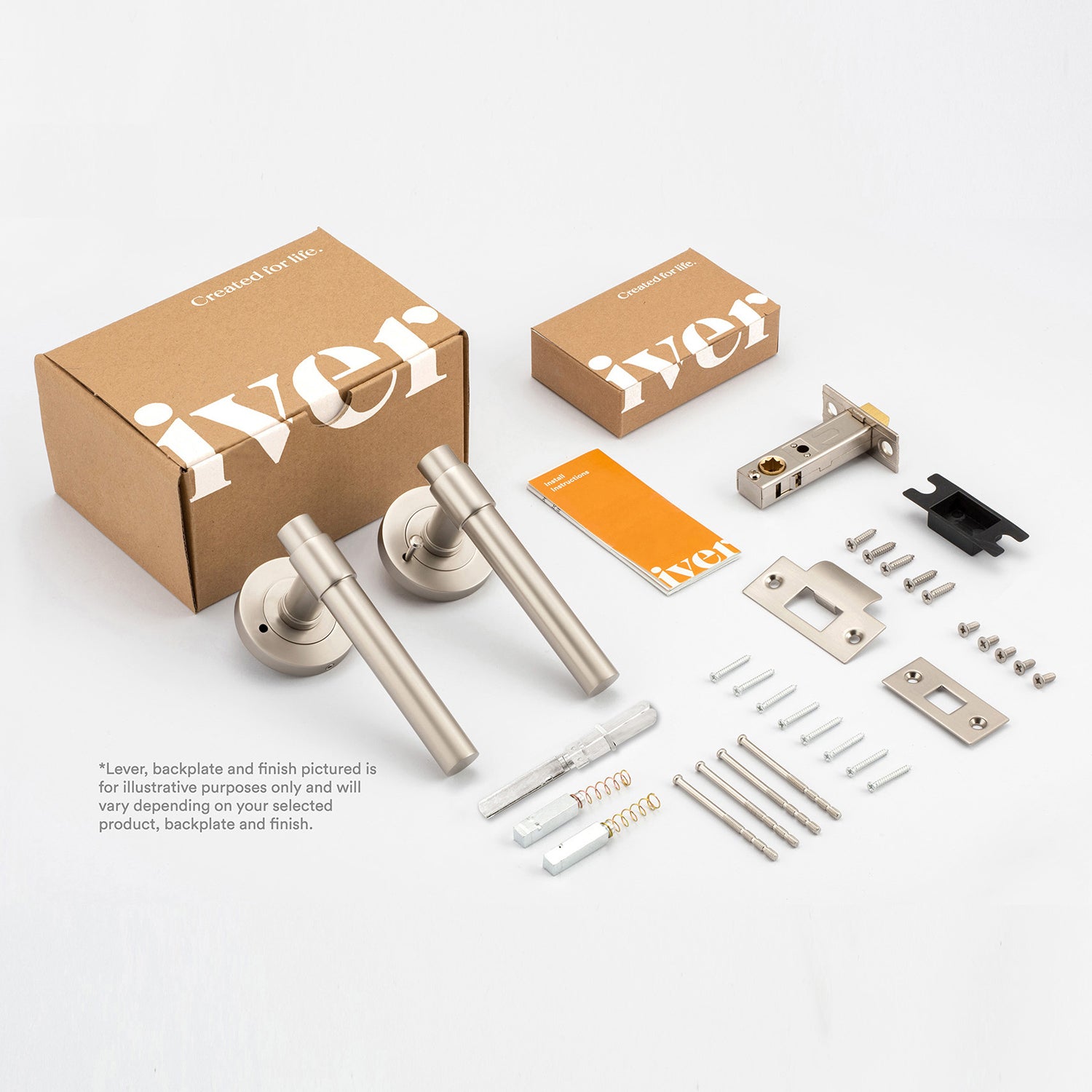

Includes:

• 2 x Levers on Rose of your choice

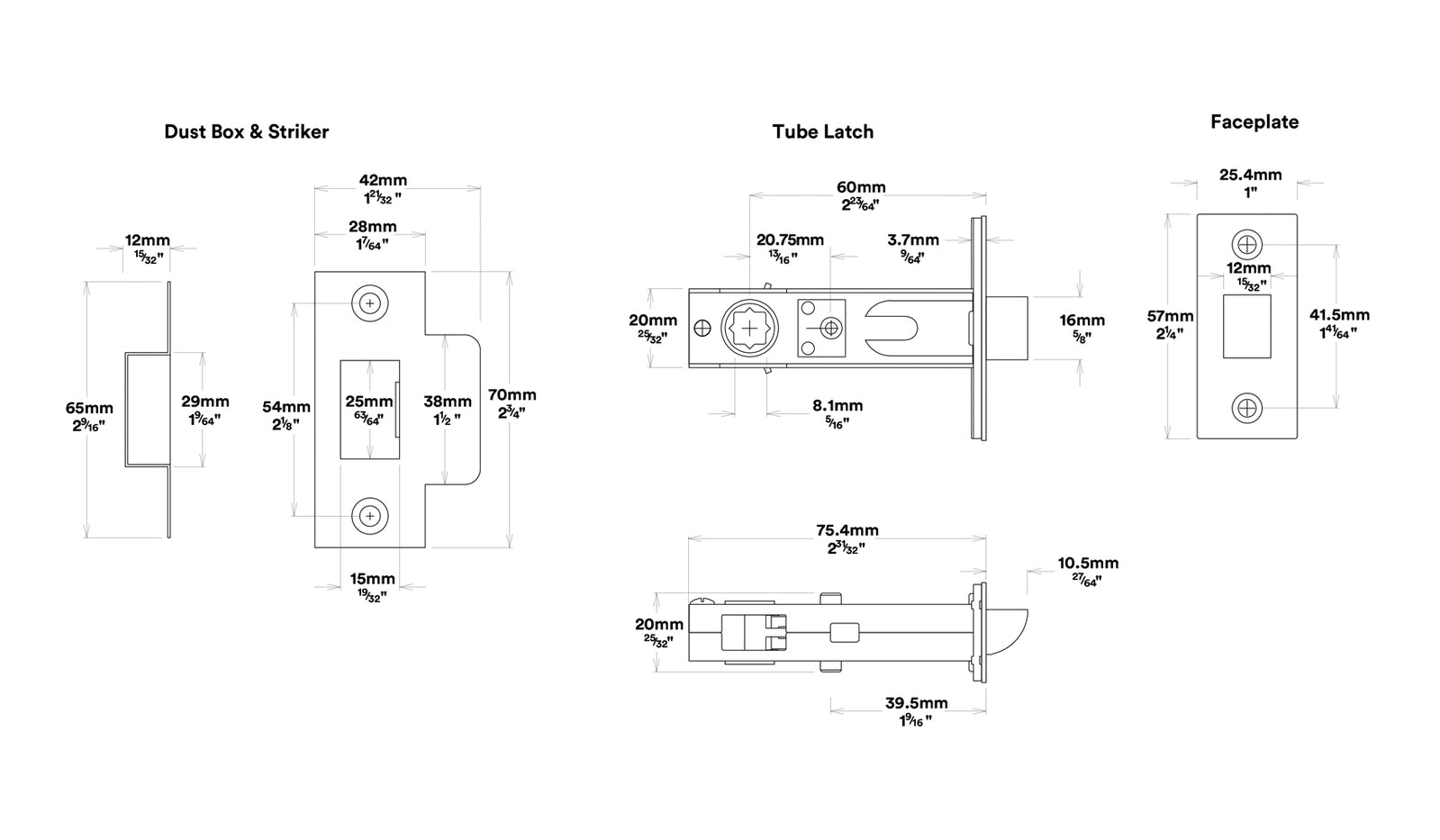

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Baltimore Return lever with inbuilt privacy lock features sleek lines and is fire-rated to 2 hours, making it the perfect option for any commercial project
• Available in selected finishes and complementing the Baltimore range of products.
• 60mm tube latch to suit inbult privacy is provided.
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms
• Successfully tested to meet highest durability rating (500,000 cycles)

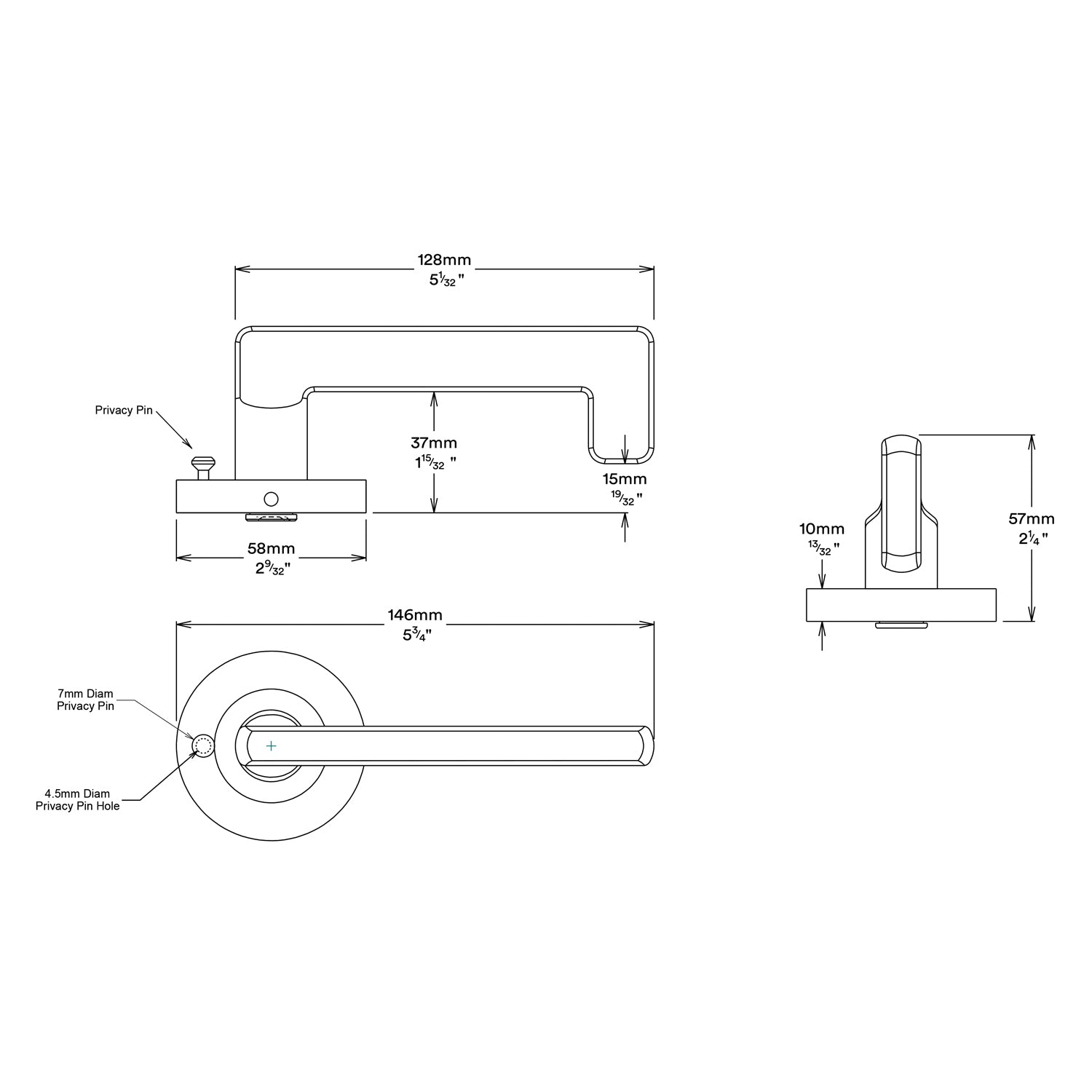

Specifications:

• Backset: 60mm
• Backplate Diameter: 58mm
• Height: 58mm
• Width: 58mm
• Length: 128mm
• Projection: 57mm
• Centre to Centre: 41.5mm
• Function: Privacy
• Available Finish:

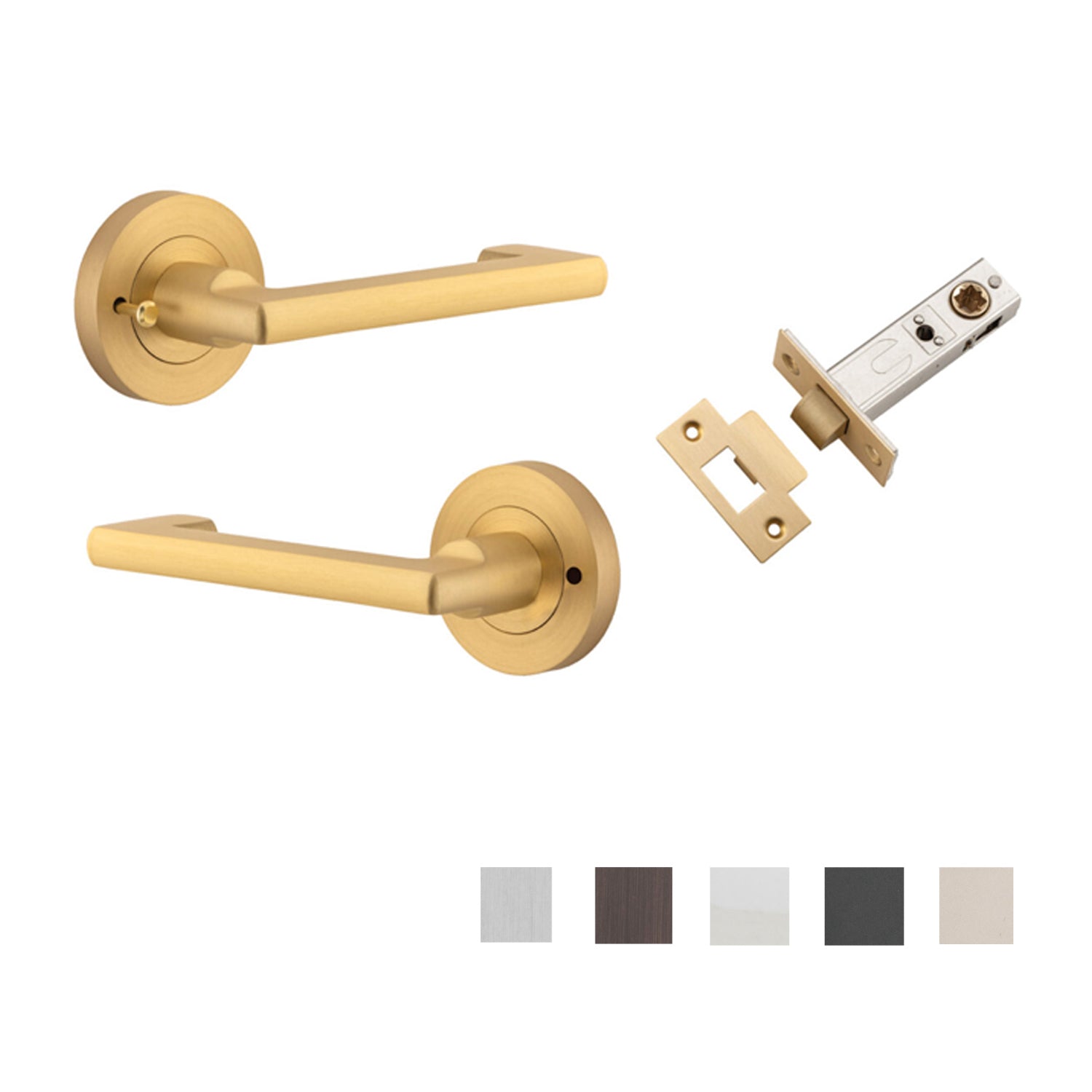

  • Brushed Brass

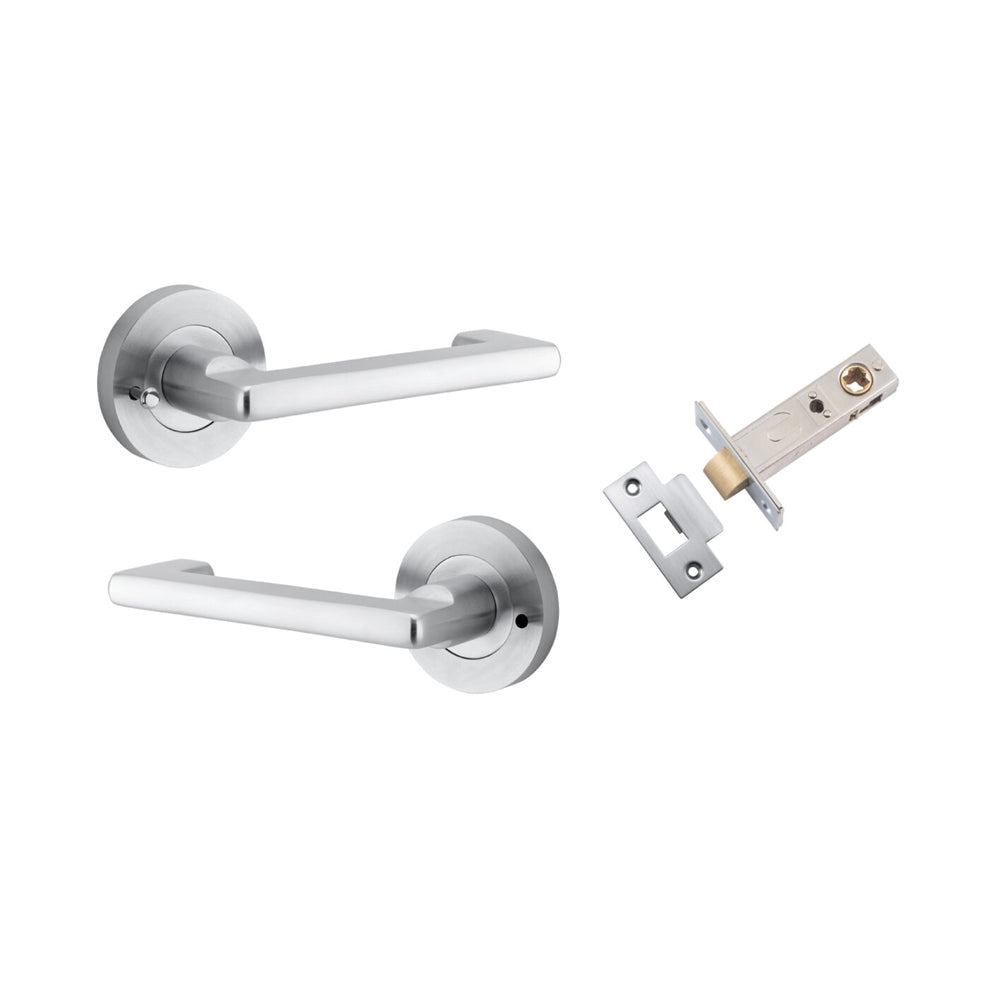

  • Brushed Chrome

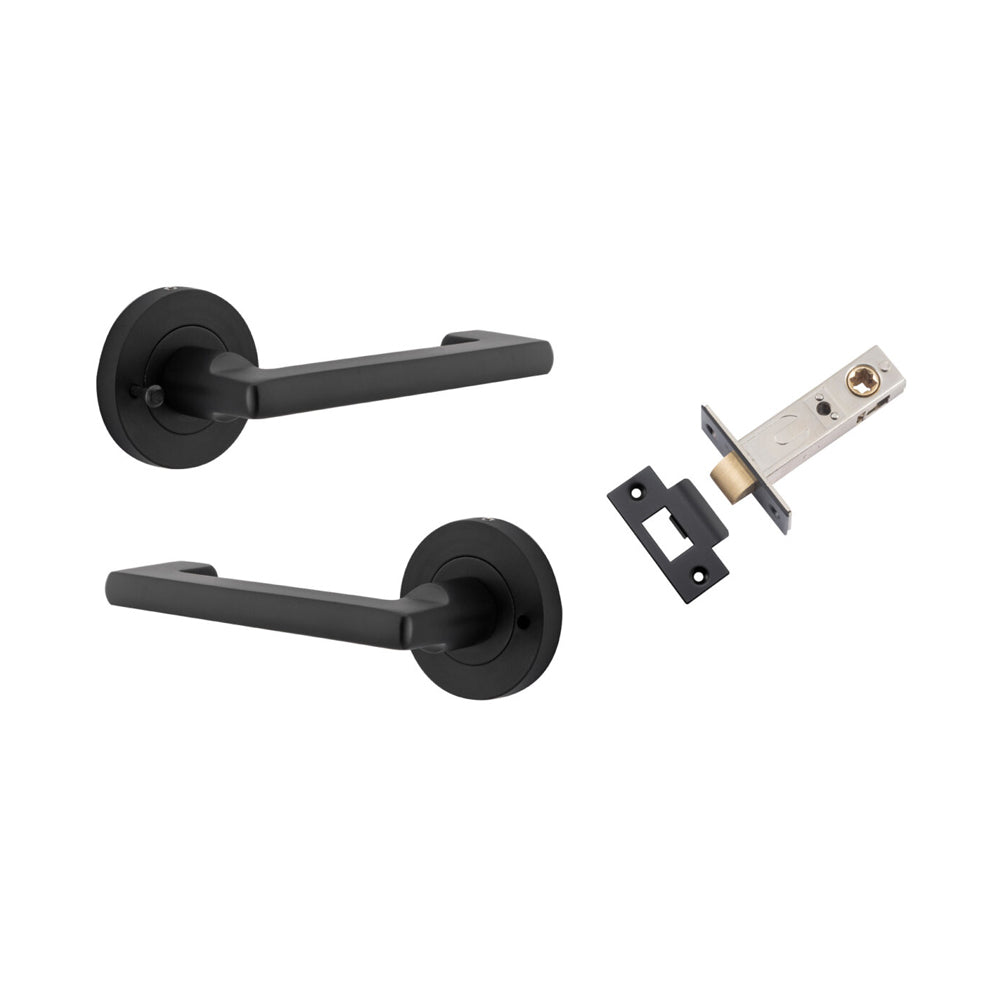

  • Matt Black
  • Polished Brass

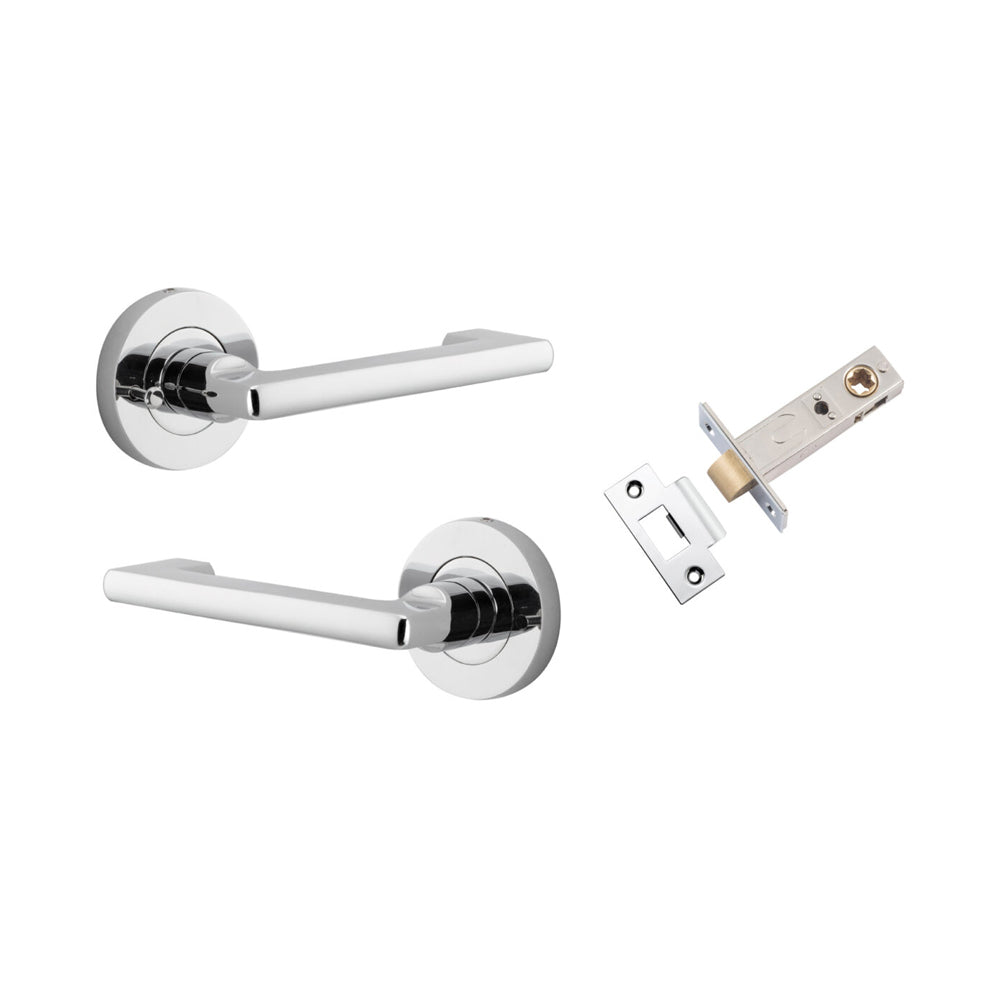

  • Polished Chrome

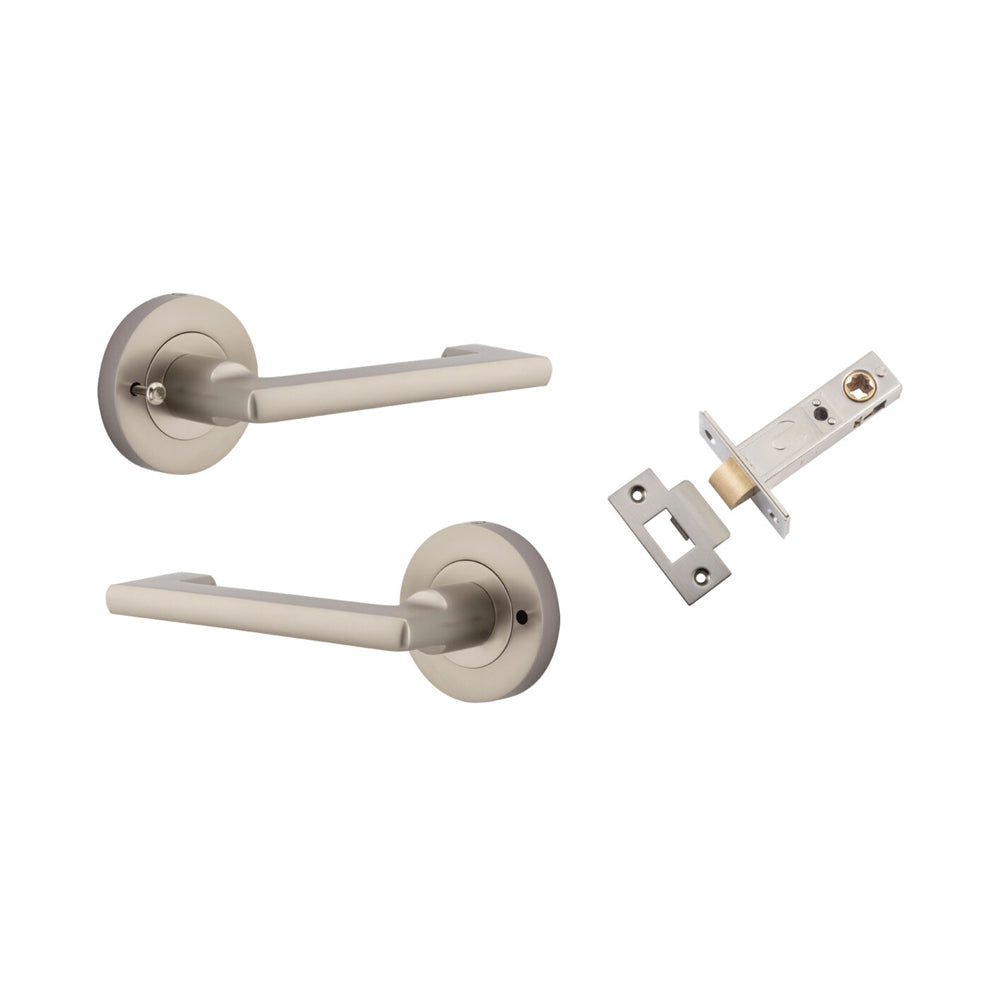

  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
• Please note that the Baltimore Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.
