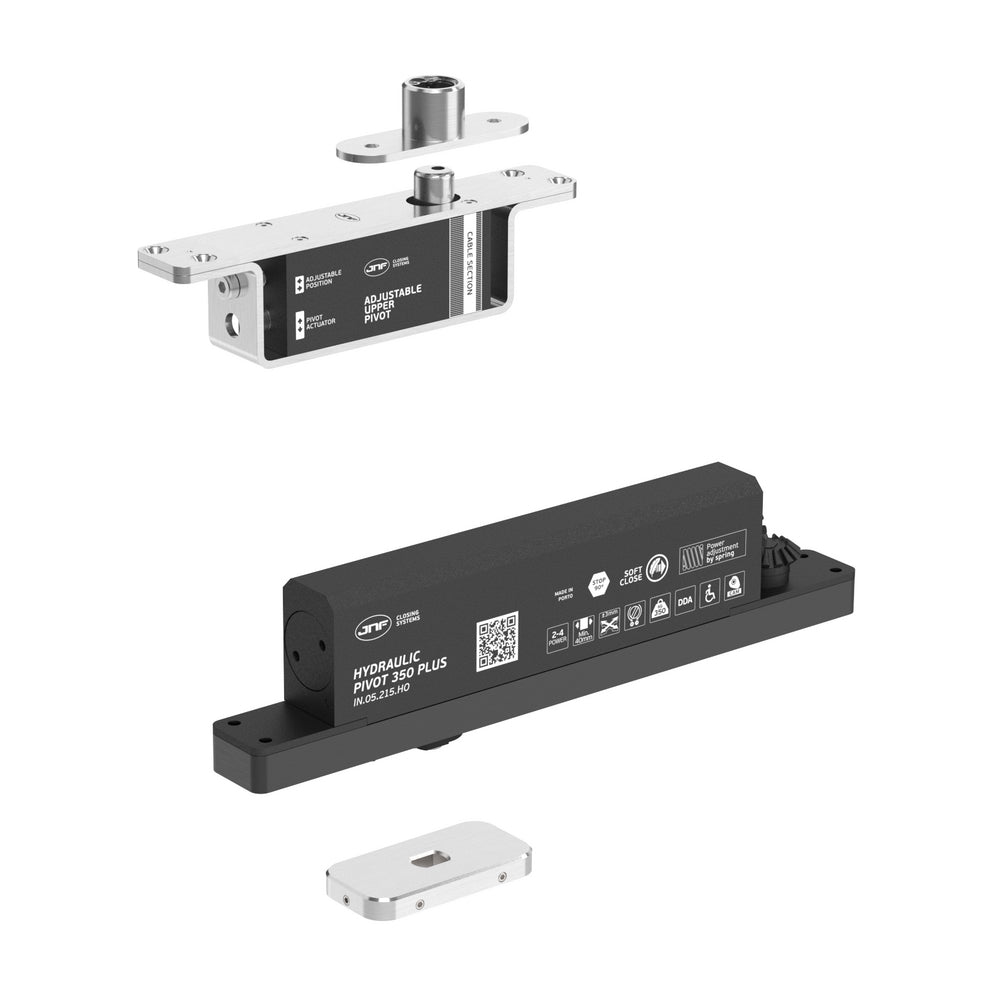

JNF 350 Plus Hydraulic Pivot with Hold Open 90 Degree 350kg IN.05.215.HO

JNF 350 Plus Hydraulic Pivot with Hold Open 90 Degree 350kg
IN.05.215.HO

Pivot Set are commonly used for large and heavy doors that could pose challenges for traditional hinge systems. These doors might include oversized commercial doors, industrial doors, and entrance doors in public buildings.

Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.

Features:

• Designed for large and heavy pivot doors with smooth, controlled movement
• Hydraulic CAM system ensures silent and fluid door operation
• Equipped with dual hydraulic valves for precise adjustment of closing speed and latching
• Soft-close mechanism for controlled and quiet closing
• Supports bidirectional (double-action) or single-action doors
• Hold-open function at 90 Degrees (HO version)

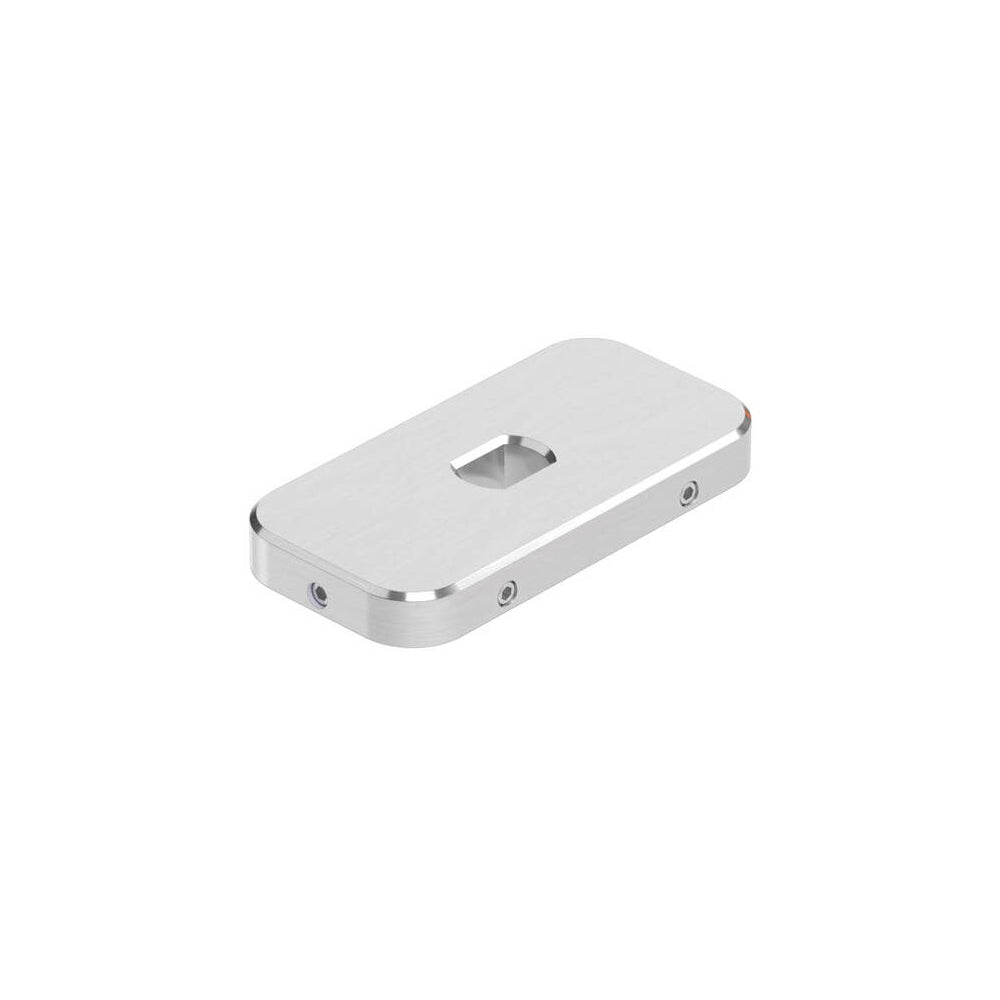

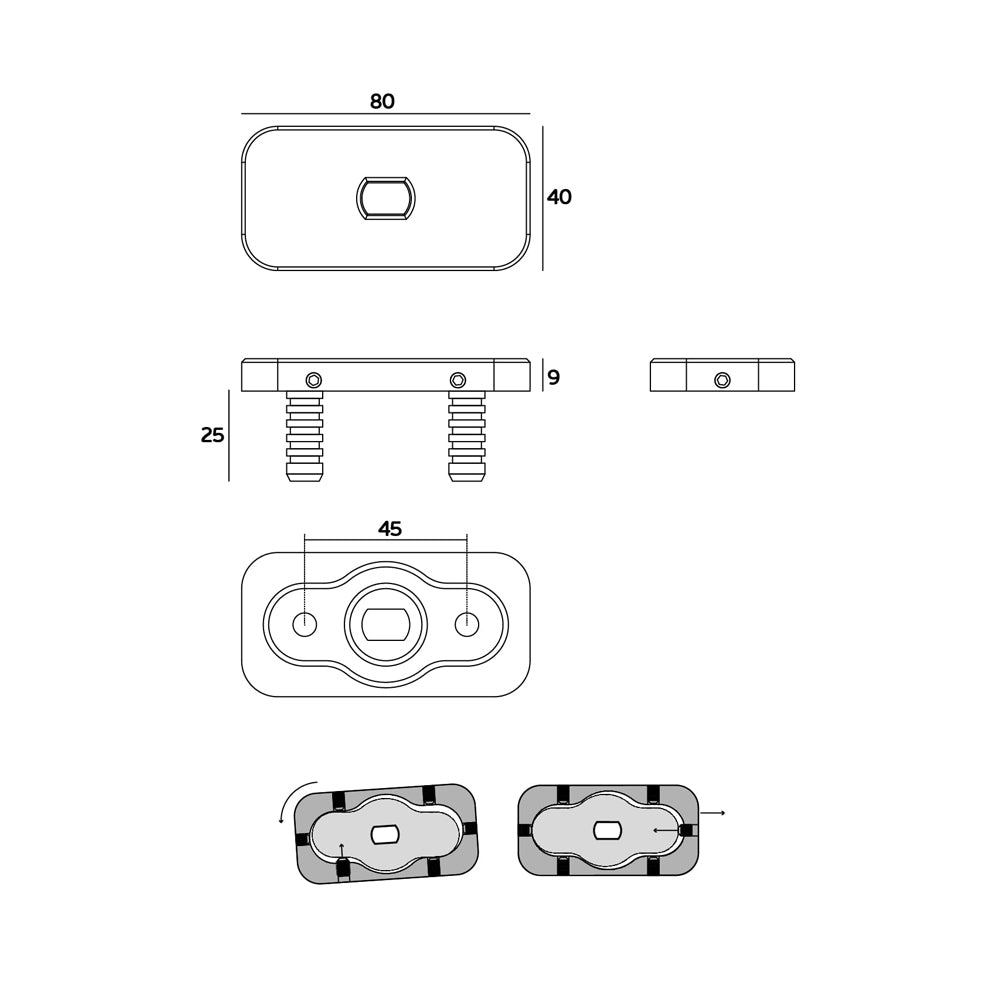

• Fully concealed system inside the door with minimal visible floor plate
• Adjustable settings:
  • Closing speed
  • Final latching speed
  • Force (Power EN 2–4)

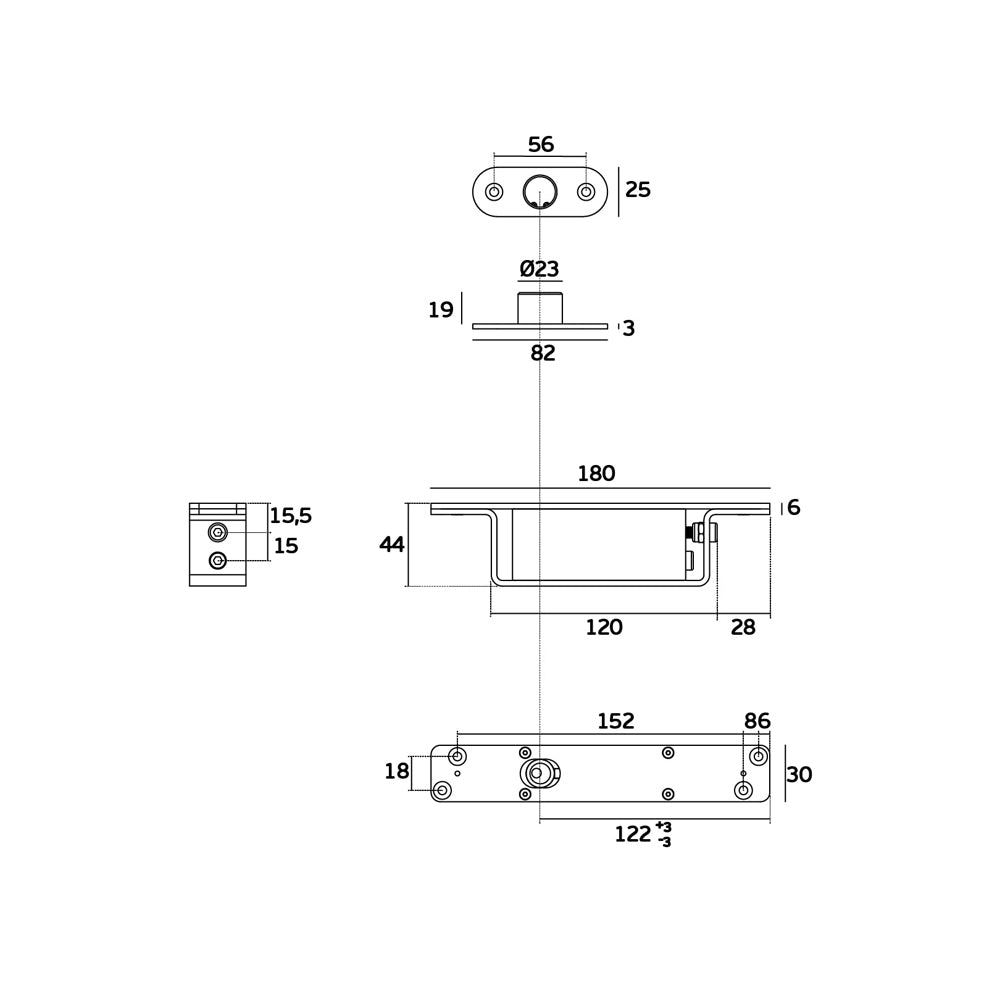

  • Position (top and bottom adjustment)

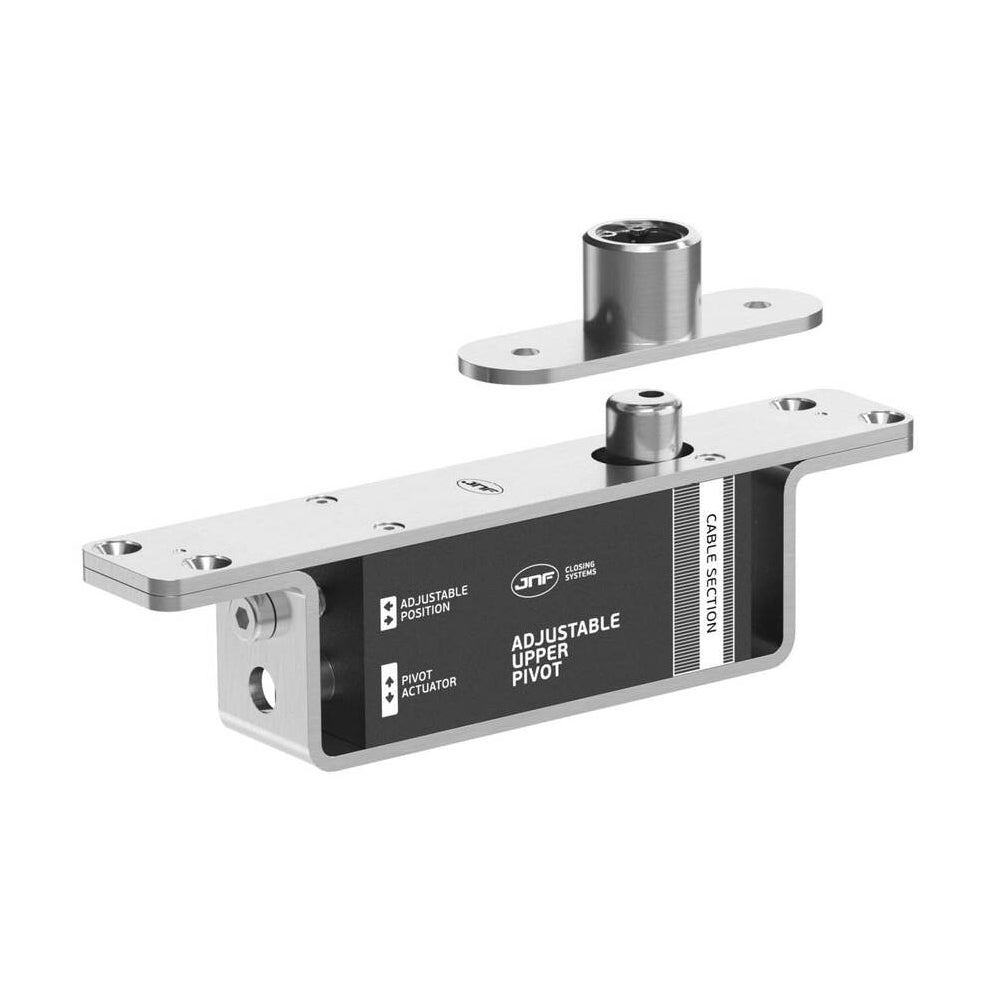

• Allows cable routing through top pivot for electrified doors
• Suitable for modern architectural and high-traffic applications

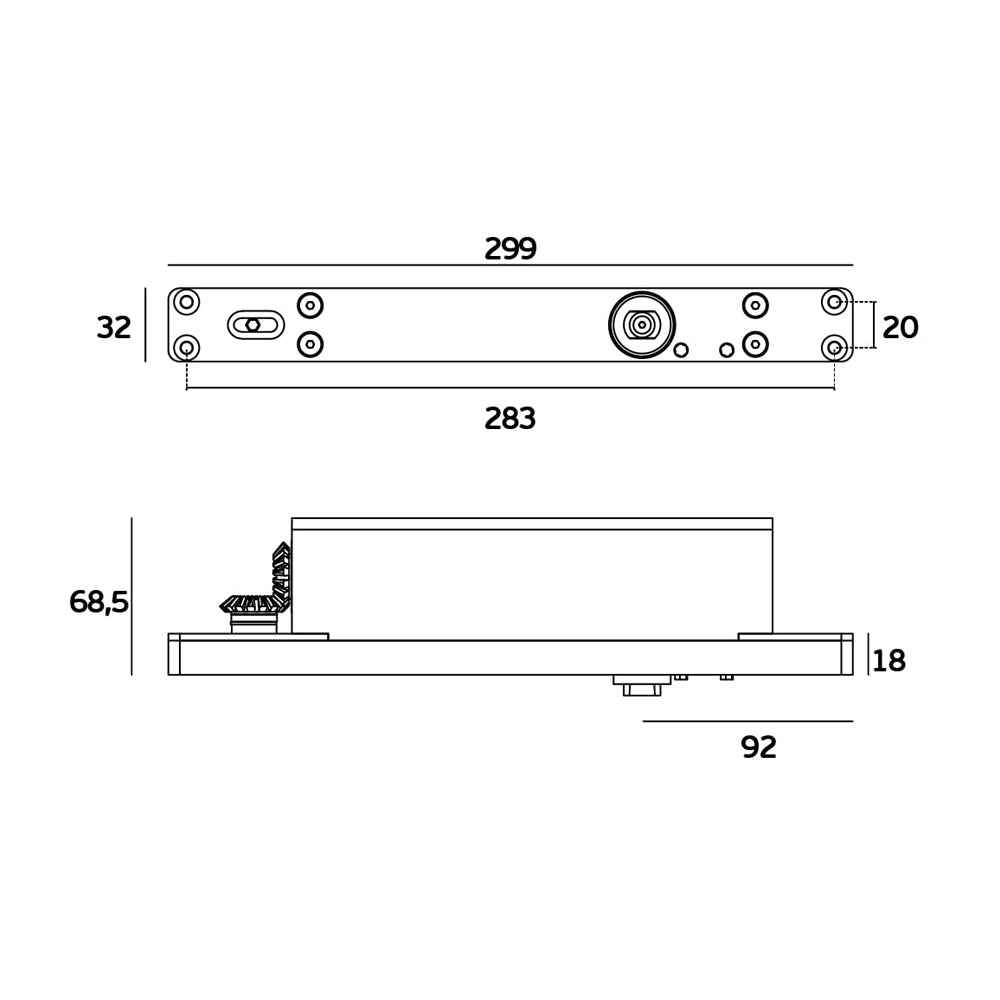

Specifications:

• Material: Stainless Steel EN 1.4301 (AISI 304)
• Maximum Door Weight: 350 kg
• Maximum Door Width: 3000mm
• Minimum Door Thickness: 40mm
• Opening Angle: +120 Degrees / -120 Degrees
• Power Rating: EN 2-4 adjustable
• Door Type: Wooden, metal, or aluminum pivot doors
• Installation: Concealed (mortised in door with floor base and top pivot)
• System Type: Hydraulic pivot hinge with CAM mechanism
• Functionality: Soft close, hold-open (90 Degrees), adjustable force and speed
• Finish: Satin
