SKU: JNFIN05061B
JNF Coplan Series 150 Invisible Hinge with 3D Adjustment 80kg - Available in Various Finishes
RRP: $81.61
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
JNF Coplan Series 150 Invisible Hinge with 3D Adjustment
Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.
Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.
Features:
- Invisible (concealed) hinge design for frameless / modern doors

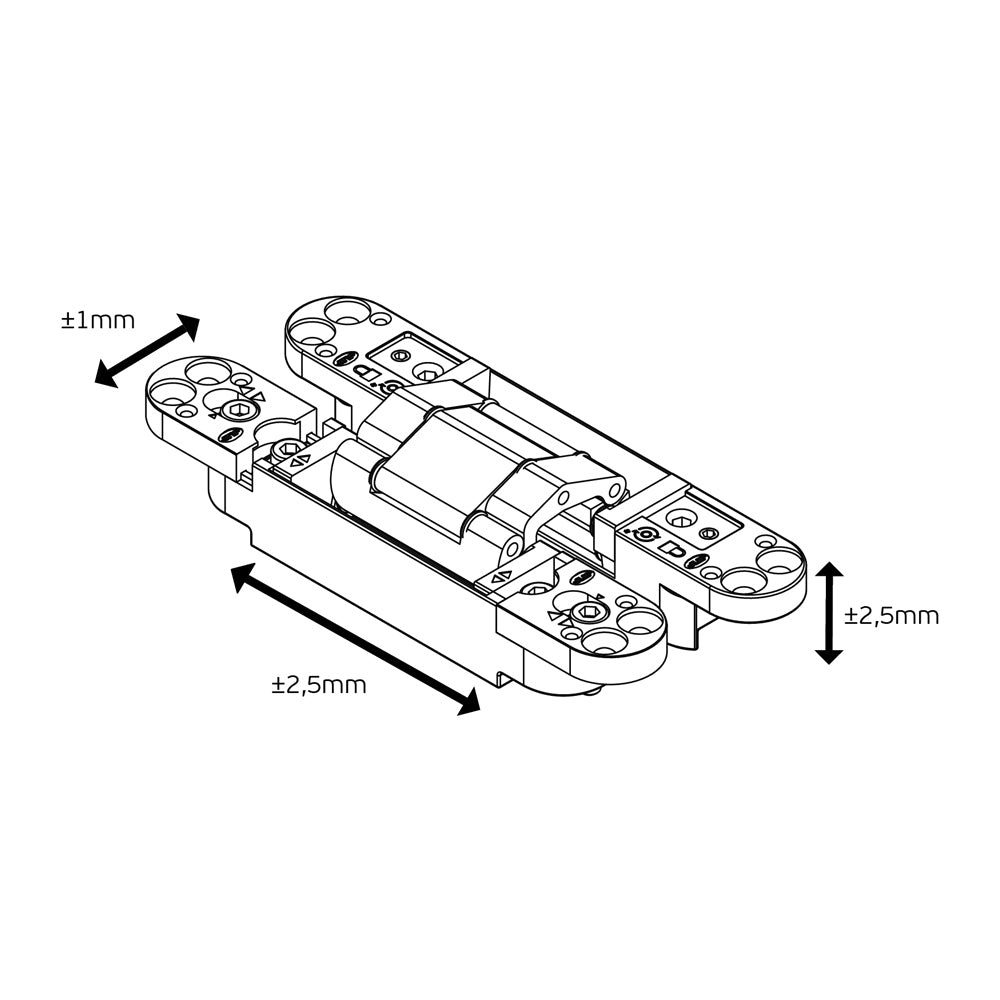

- Fully 3D adjustable system
- Vertical adjustment
- Horizontal (side-to-side) adjustment
- Depth adjustment

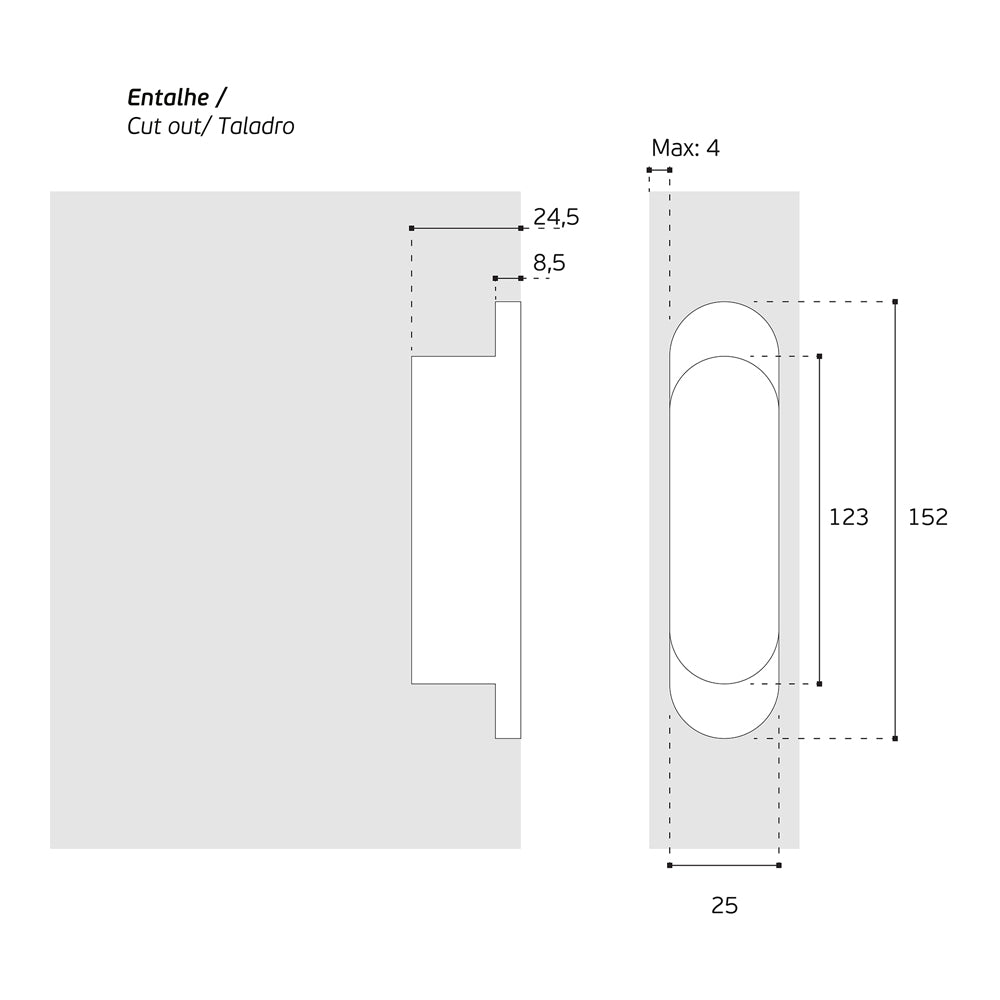

- Designed for seamless hidden installation inside the door frame
- Suitable for interior and exterior doors (with correct screw selection)
- Reversible for left or right-hand doors
- Self-lubricating anti-friction washers for smooth operation
- Built for high-end architectural and furniture applications
- Fire-rated certification
Specifications:
- Series: Coplan 150
- Material: Aluminium + Zamak (zinc alloy components)
- Door Thickness (minimum): 31–40mm (depending on installation source variation)
- Max Door Weight: 80 Kg
- Maximum Opening Angle: 120 Degrees

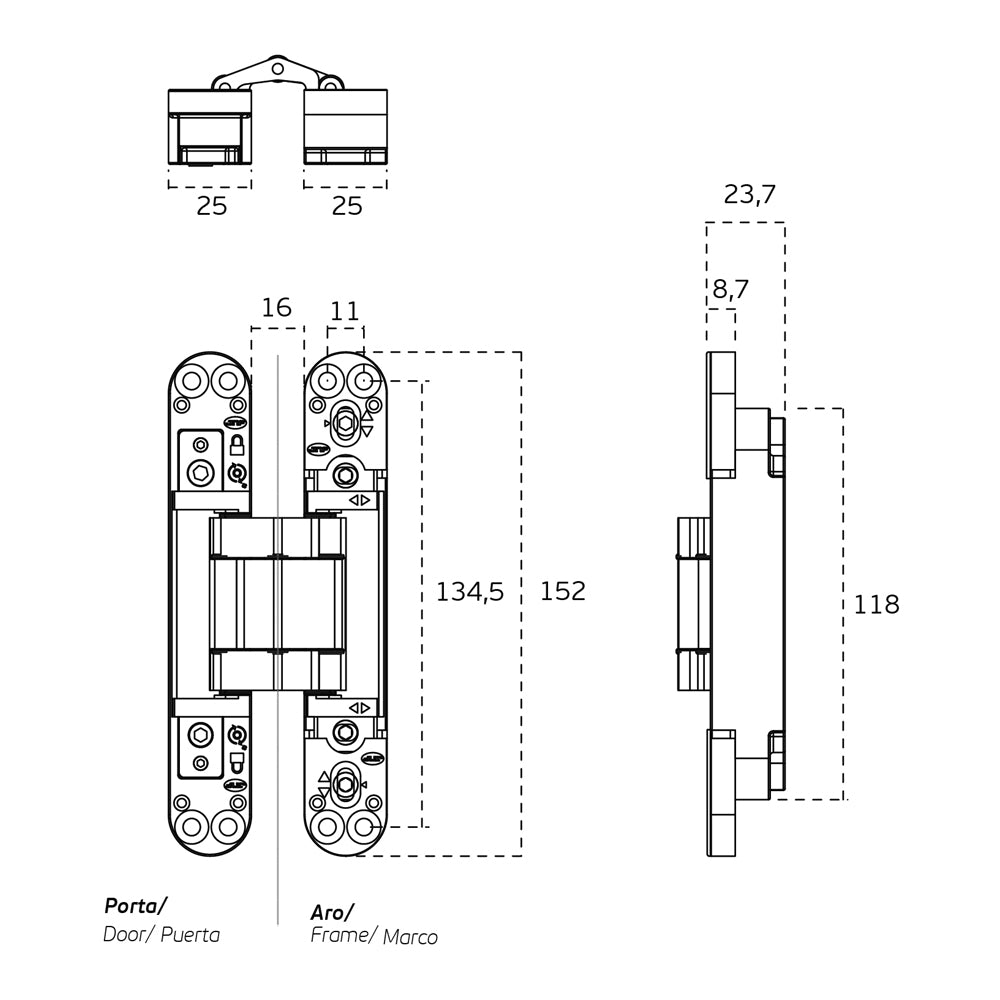

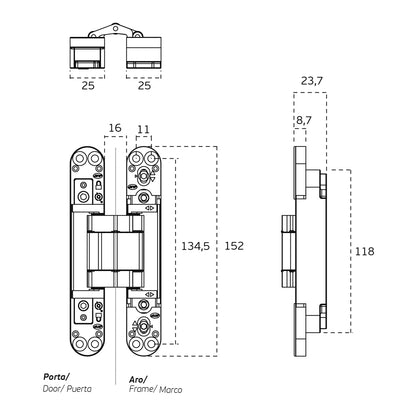

- Dimensions (approx.): 152mm height × 25mm width
- Durability: Tested for high-cycle use (heavy-duty architectural grade)
-
Available Finish:

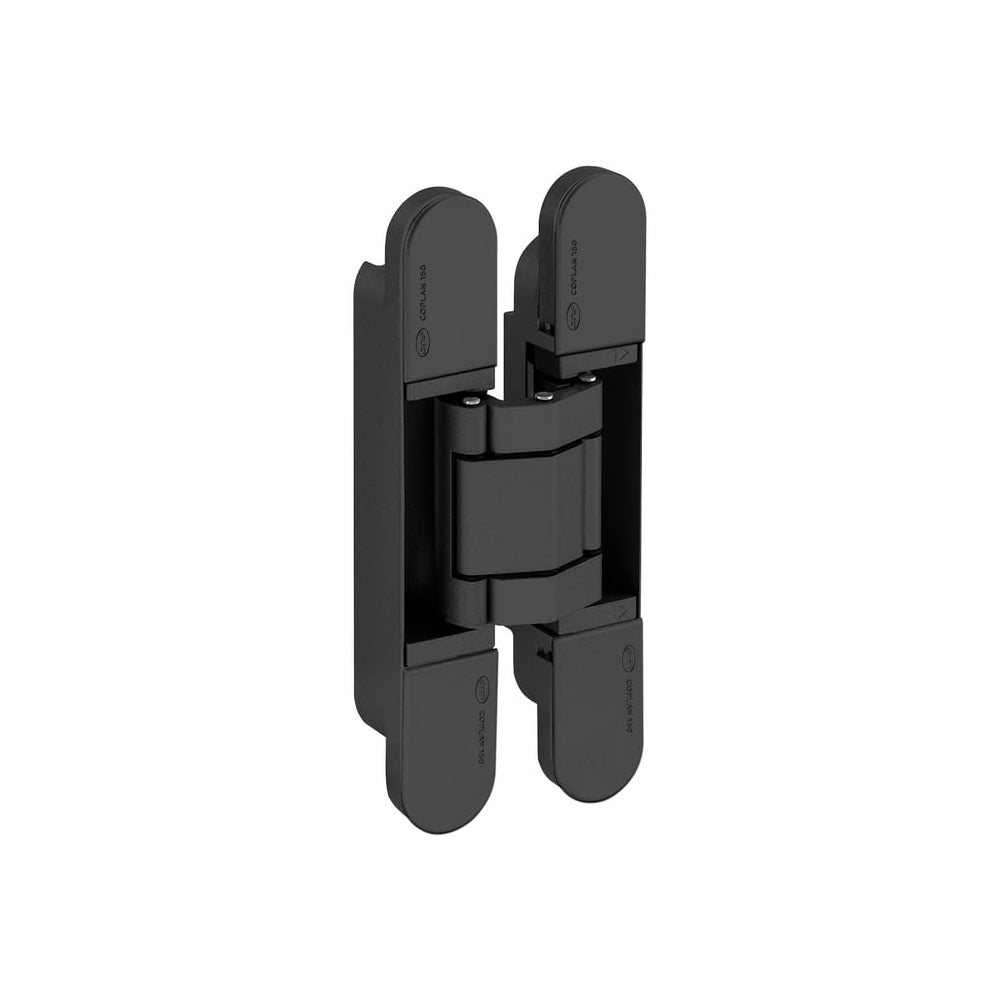

- Black

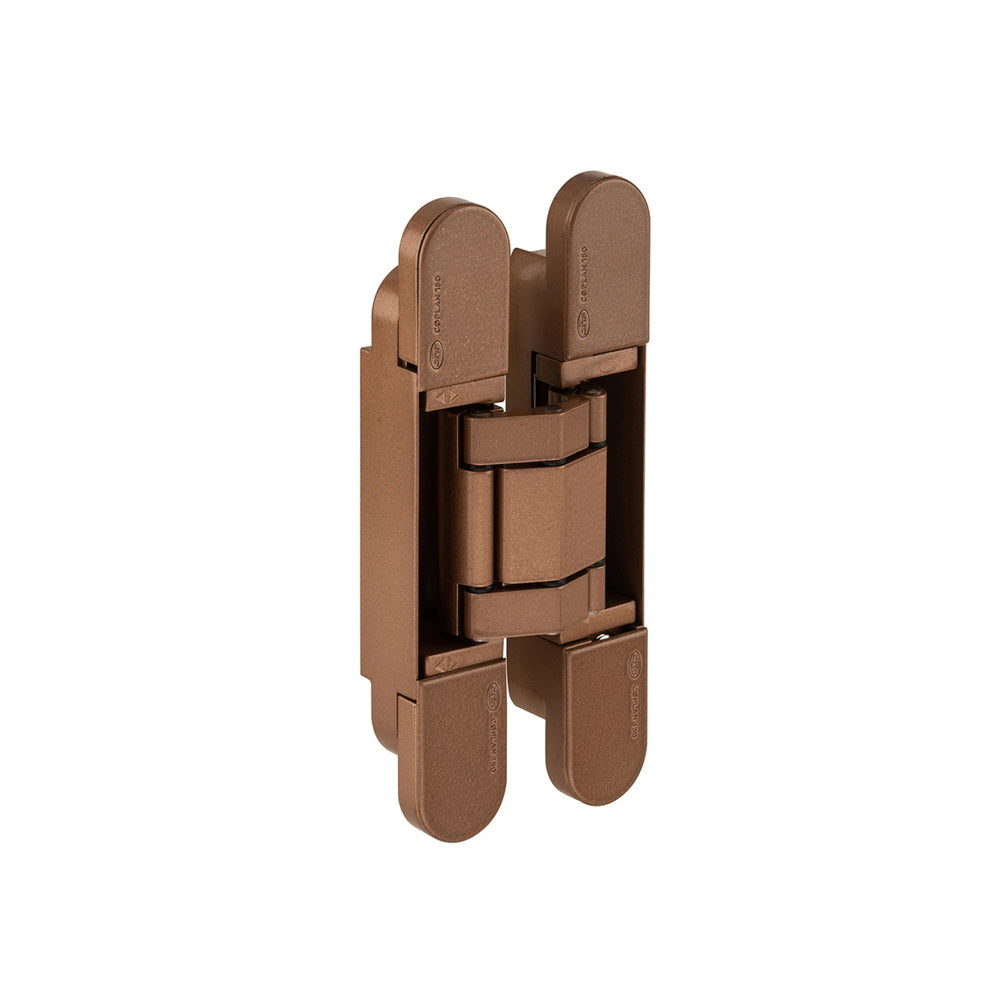

- Copper Coated

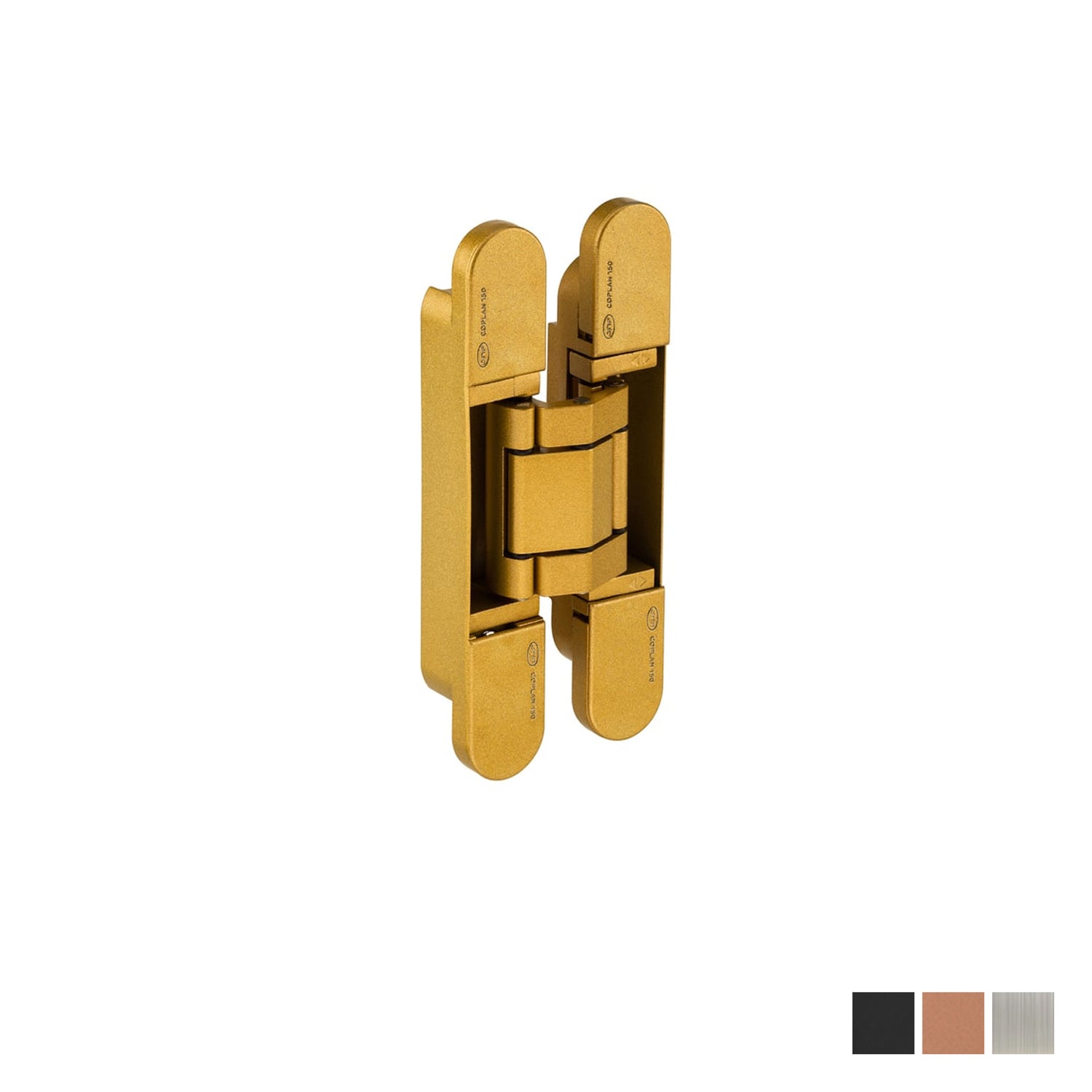

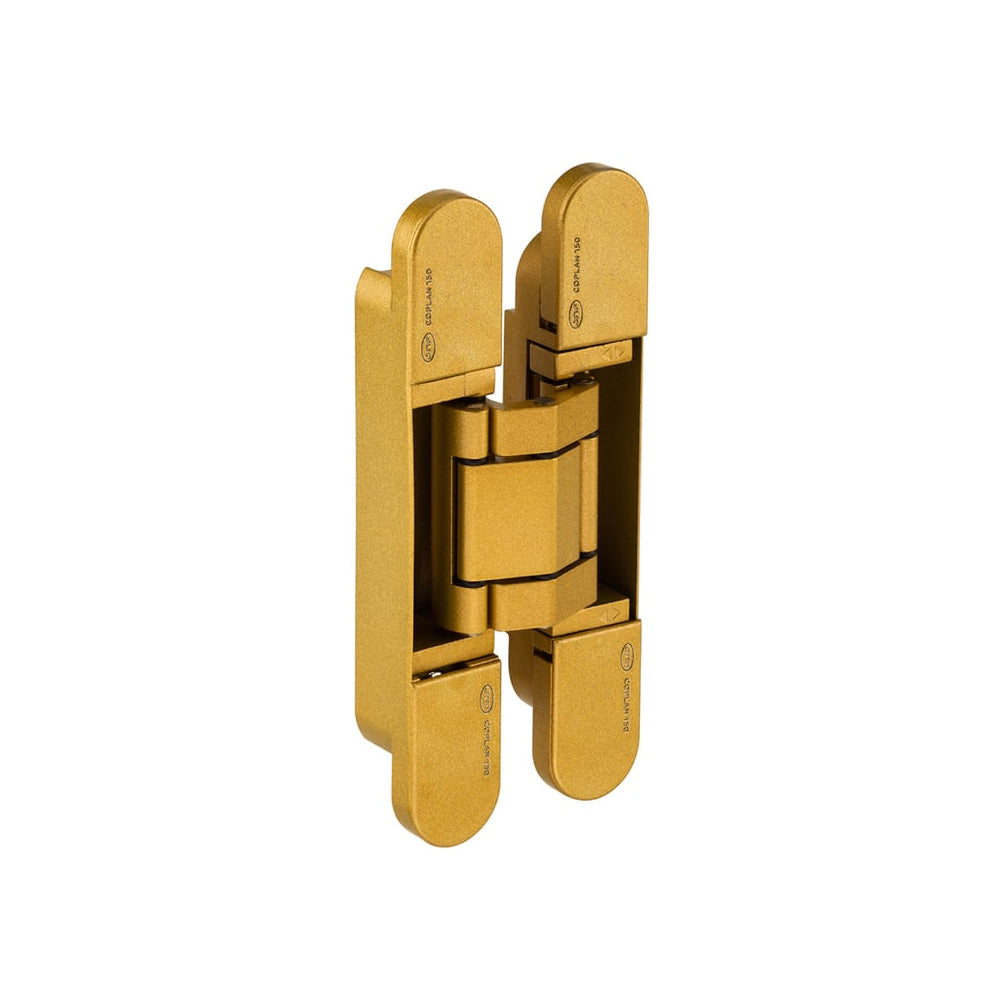

- Gold Coated

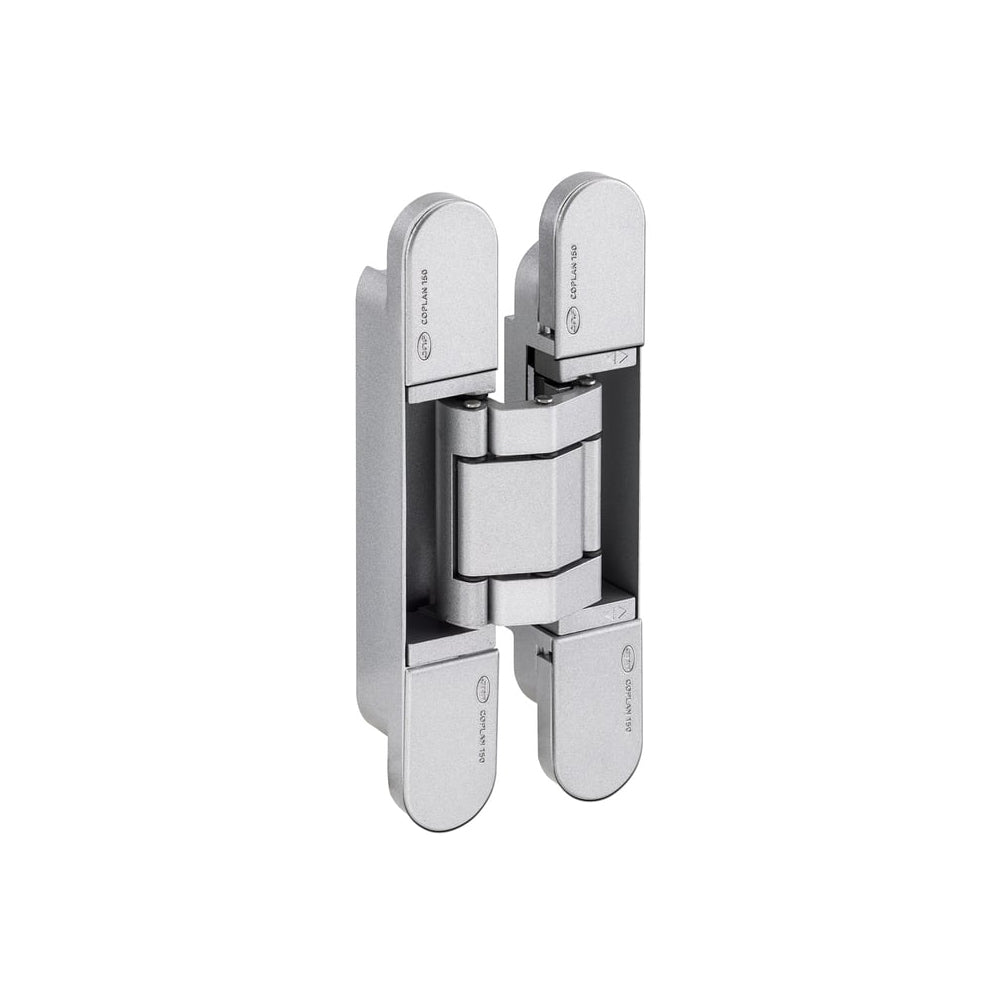

- Silver
JNF Coplan Series 150 Invisible Hinge with 3D Adjustment 80kg
IN.05.061.B
Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.
Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.
Features:
- Invisible (concealed) hinge design for frameless / modern doors
- Fully 3D adjustable system
- Vertical adjustment
- Horizontal (side-to-side) adjustment
- Depth adjustment
- Designed for seamless hidden installation inside the door frame
- Suitable for interior and exterior doors (with correct screw selection)
- Reversible for left or right-hand doors
- Self-lubricating anti-friction washers for smooth operation
- Built for high-end architectural and furniture applications
- Fire-rated certification
Specifications:
- Series: Coplan 150
- Material: Aluminium + Zamak (zinc alloy components)
- Door Thickness (minimum): 31–40mm (depending on installation source variation)
- Max. Door Weight: 80 kg
- Maximum Opening Angle: 120 Degrees
- Dimensions (approx.): 152mm height × 25mm width
- Durability: Tested for high-cycle use (heavy-duty architectural grade)
- Finish: Black
