Dormakaba 951 Mortice Sliding Door Lock 951SCP-LC Short Backset No Cylinder

Dormakaba 951 Series Short Backset Mortice Lock
951SCP-LC

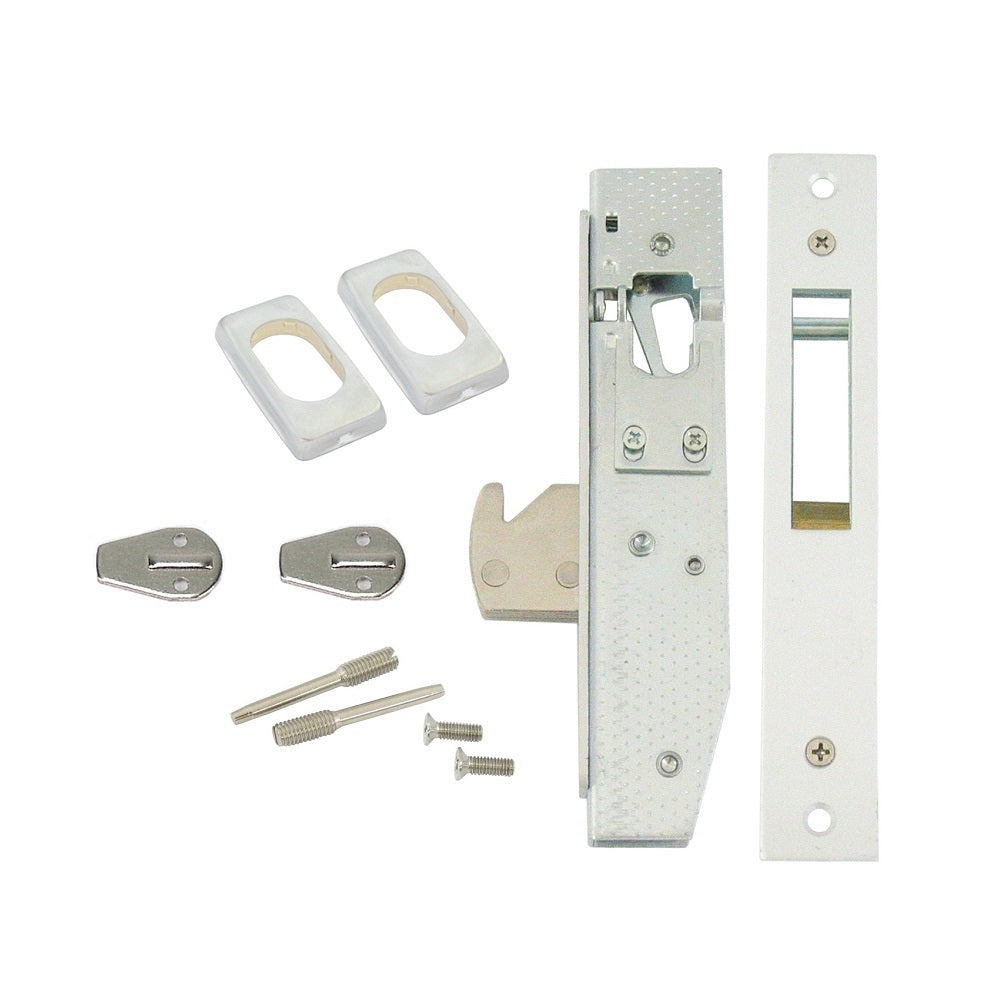

 Includes:

• 1 x 951 lock body & strike
• 2 x Escutcheons
• 2 x Cams

Features:

• 951 Series locks are non-handed and are suitable for narrow stile sliding doors
• The positive action deadbolt is notched to engage and lock into a latching strike when the bolt is in the thrown position
• The deadbolt is locked or unlocked by either key or turn
• Supplied less cylinder
• Self latching strike
• Includes mounting hardware

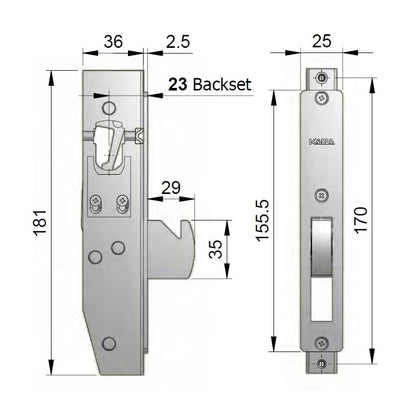

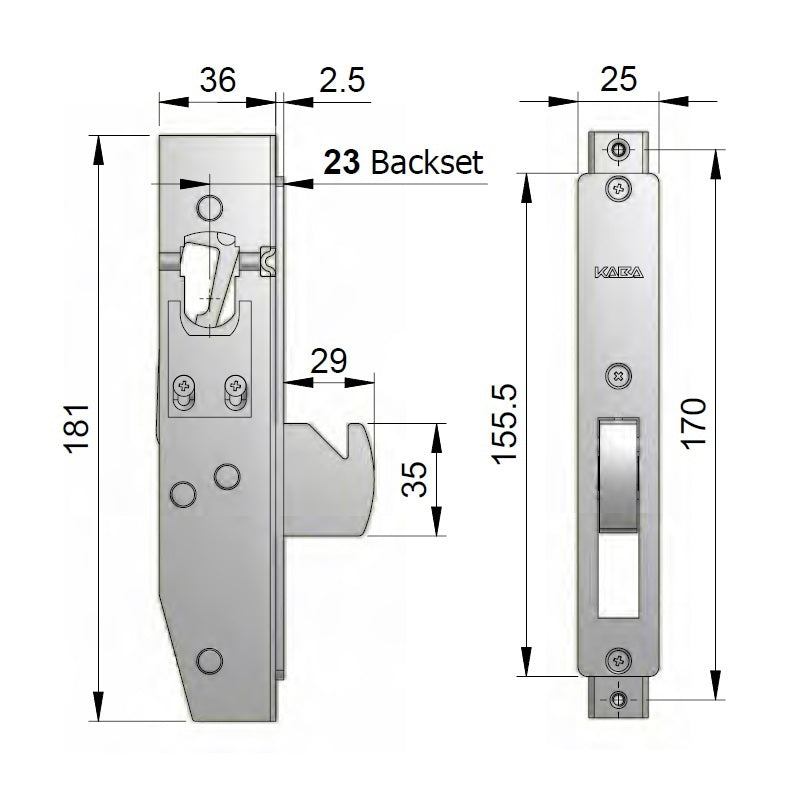

Specifications:

• Laminated Hook Bolt: 29mm
• Backset: 23mm
• Case size:
  • Height: 181mm
  • Depth: 36mm
• Aluminium Fabricator Face Plate:
  • Length: 155.5mm
  • Width: 25mm
• Strike Face Plate:
  • Length: 184mm
  • Width: 28.5mm
• Strike Body:
  • Length: 148mm
  • Depth: 26mm
• Finish: Satin Chrome
