SKU: KABAED22EOSIL

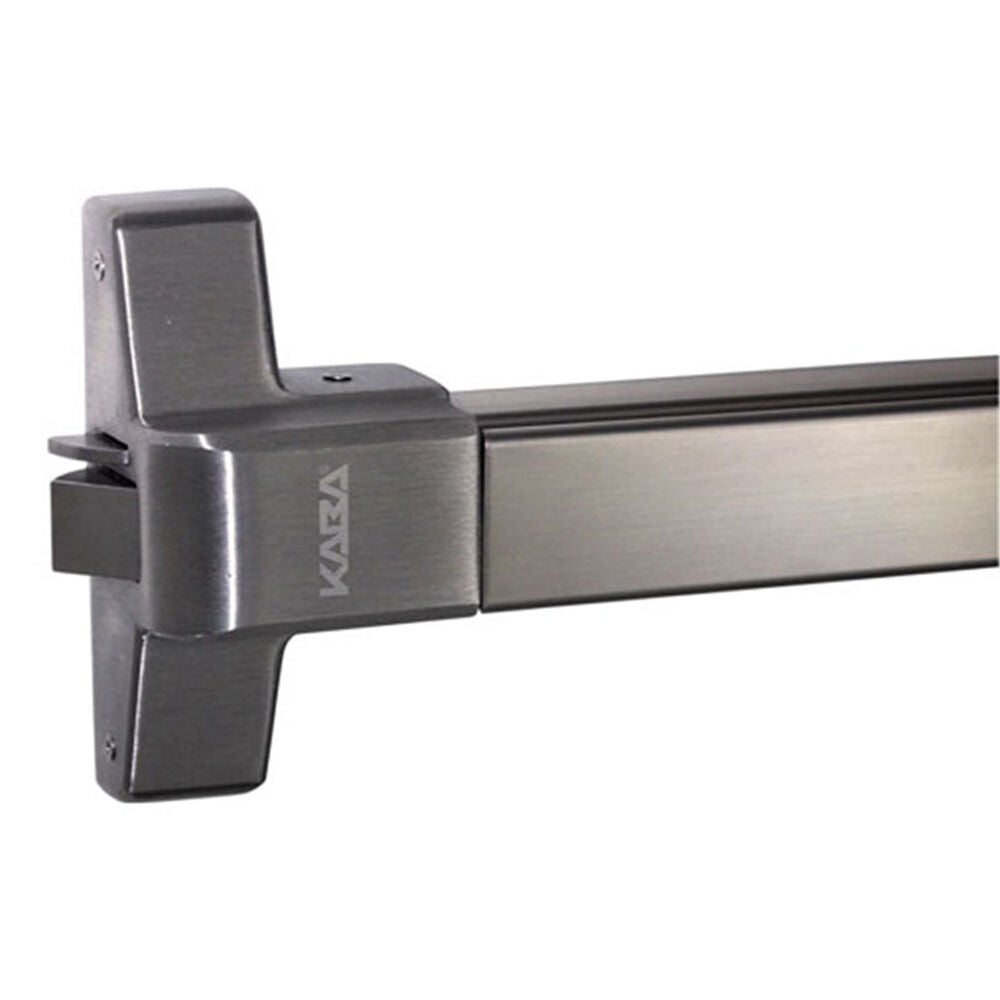

Dormakaba ED22 Panic Exit Device 1085mm Silver ED22EOSIL
RRP: $570.65
Payments accepted:
Couldn't load pickup availability
Kaba ED22 Panic Exit Device
ED22EOSIL
Panic Exit Device is used on doors in public buildings to provide a quick and easy means of exiting a building in the event of an emergency, such as a fire or other life-threatening situations.
Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.
Features:
- Designed to provide emergency egress by a single action pushing motion via a modern design touch pad, fitted horizontally across the door
- Provides secure dead-latching function and offers a latch hold back (dogging) options, external trim options for lever/knob or pull handle and is suitable for double or single, metal or timber doors
- Horizontal fitting with single point locking
- Latch-bolt is dead-latching
- Field selectable handing
- Hex key dogging
Specifications:
- Door Thickness: 35mm - 50mm
- Length: 1085mm (can be field sized to 645mm minimum length)
- Has Dogging: Yes
- Fire Rated: No
- Locking Mode: Locking - Horizontal
- Finish: Silver
