SKU: KABA9025SIL
Dormakaba EN2-5 Door Closer With Standard Arm Back Check Fire Rated Silver 9025SIL
RRP: $409.84
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

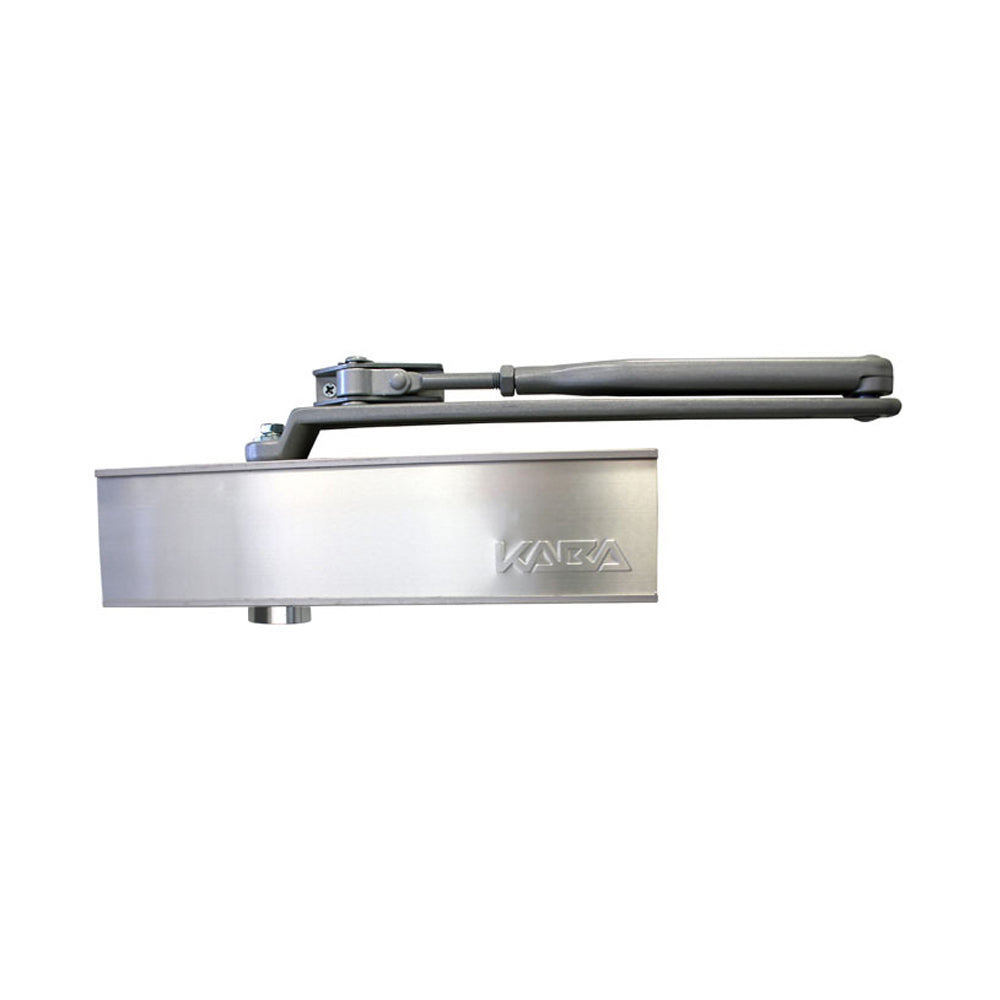

Kaba EN2-5 Door Closer with Standard Arm and PA Bracket
9025SIL
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- A high end unit offering multi-functional operation suitable for most common doors in architectural and commercial applications
- Heavy duty commercial grade door closer
- Closing force power adjustable (EN2-5)
- A single closer provides variable power sizes
- Non-handed installation
- Compact extruded aluminium body design with minimal projection allowing installation to door with adjacent wall at 90°
- Back check - beyond approx 60° (valve adjustable)
- Delayed action - between 180° and 65°
- Parallel arm bracket supplied as standard
- Fixing screws supplied to suit timber or metal fixing

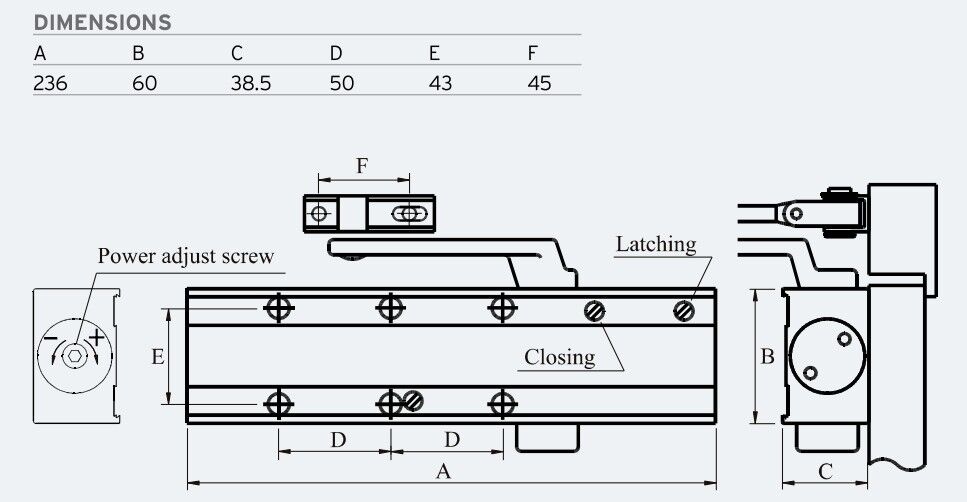

Specifications:
- Material: Aluminium
- Spring Strength: EN 2-5
- Length: 236mm
- Height: 60mm
- Depth: 38.5mm
-
Adjustable closing speed and latching speed:
- Closing speed action (180 - 15 Degrees)
- Latching speed action (15 - 0 Degrees)
- Max Door Weight: 100kg
- Max Door Width: 1250mm
- Max Opening: 180 Degrees
- Back Check: Yes
- Delayed Action: Yes
- Include PA Bracket: Yes
- Includes Fixing Screws: Yes
- Finish: Silver
Compliance:
- Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
