SKU: KABAED22MFSSS
Dormakaba Exit Only Mortice Lock Fire Rated Satin Stainless Steel 1060mm ED22MFSSS
RRP: $1,111.78
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

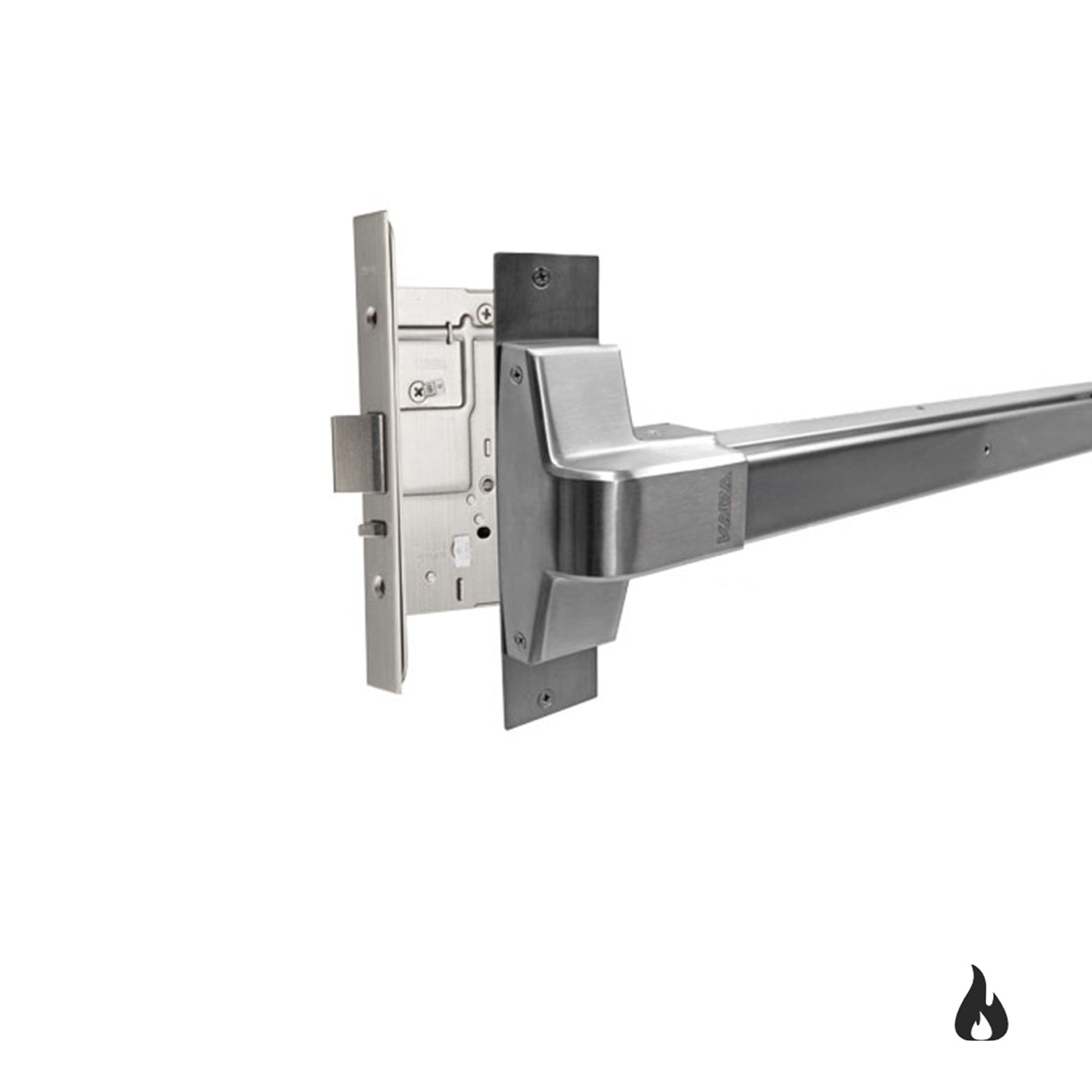

Dormakaba Exit Only Mortice Lock Fire rated
ED22MFSSS
Panic Exit Device provide a fast and convenient means of escape in the case of an emergency.
Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.
Features:
- Horizontal fitting

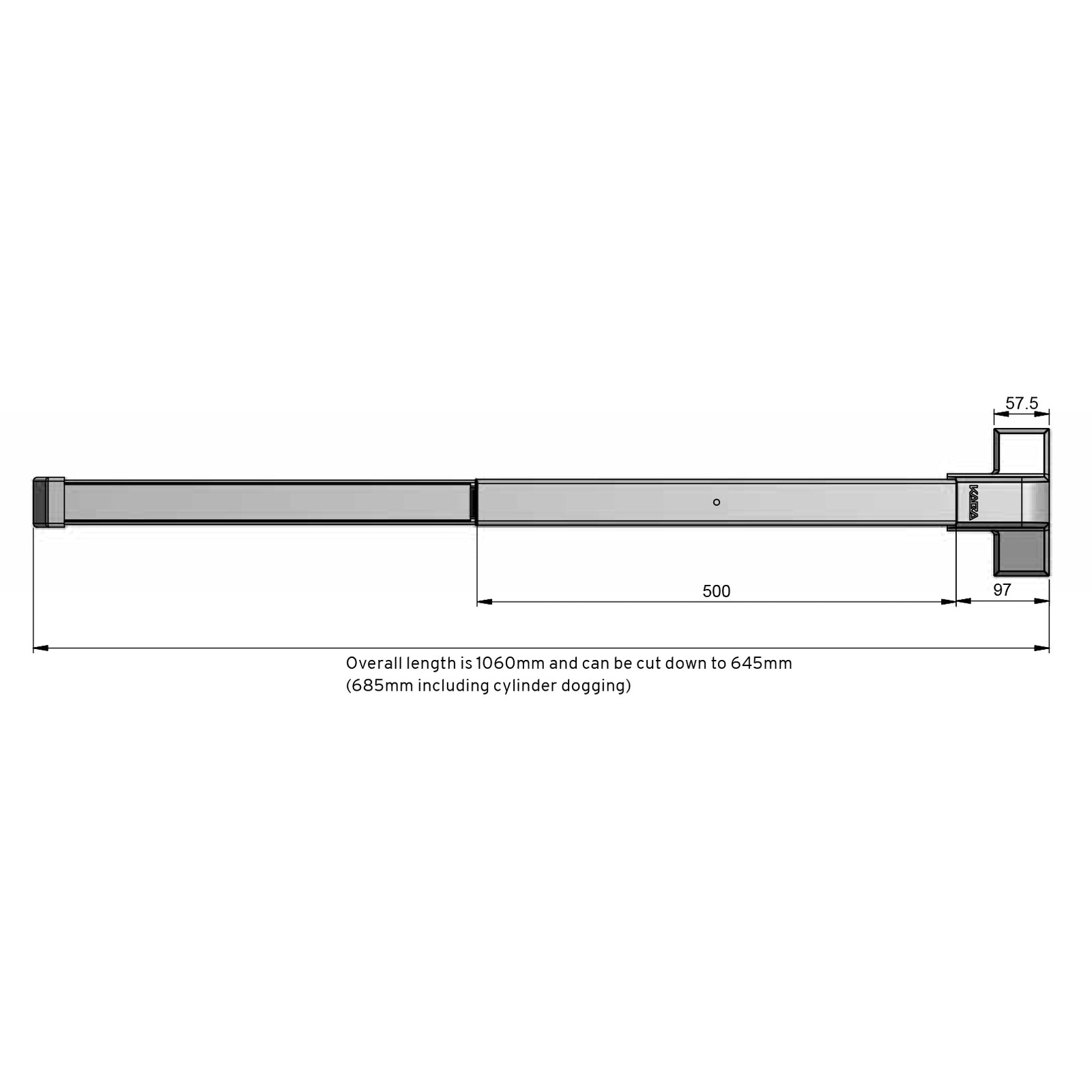

- Supplied in 1060 mm standard length
- Can be field sized to 645 mm minimum length
- Supplied complete with mortice lock (MS2ED)
- Mounting plates and thru fixing screws (supplied)
- Field selectable handing
Specification:
- Material: Stainless Steel
- Door Thickness: 35mm - 50mm
- Length: 1060mm
- Locking Mode: Locking - Horizontal With Mortice Lock
- Has Dogging: No
- Finish: Satin Stainless Steel
Fire Rating:
- Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Note: Fire doors cannot include dogging due to fire regulations.
