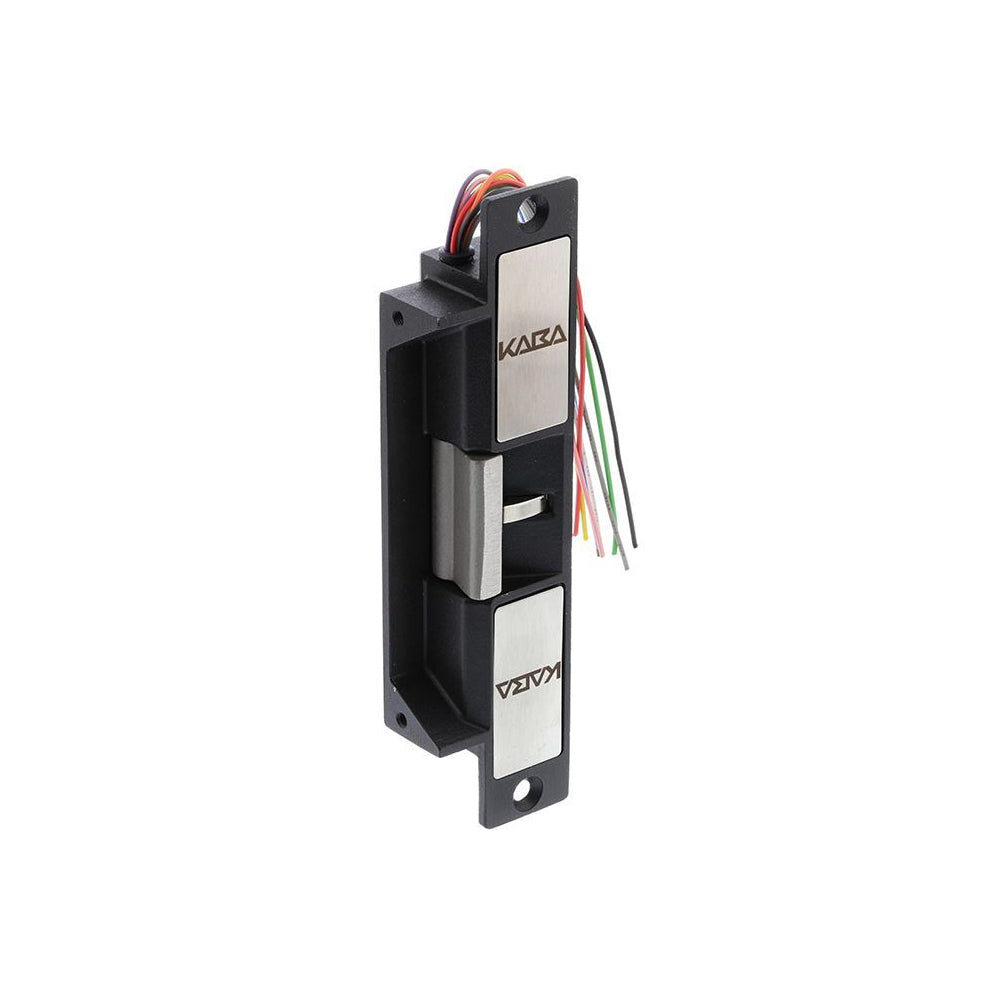

Dormakaba High Security Fully Monitored Electric Strike 12-24 VDC/AC KES2200

Dormakaba High Security Fully Monitored Electric Strike
KES2200

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• A high security electric strike, offering a single model including switch monitoring of latch and strike, variable voltage from 12VDC/AC to 28VDC/AC, a fast & convenient interchangeable Fail Safe/Fail Secure function (changeable on site).
• The construction includes pre-drilled holes for optional extension lips. Also included in package is an installation kit for metal frame installation.

Features:

• Fail safe/fail secure interchangeable
• Variable voltage 12~24VDC/AC
• Suits Latch depth up to 15mm
• Monitored Latch and Keeper
• Pre-drilled for optional extension lips
• Includes mounting tabs for metal frame
• Cycle tested to 1 Million cycles
• 2 Hour Fire Rating
• CE Certified
• C-Tick

Specifications:

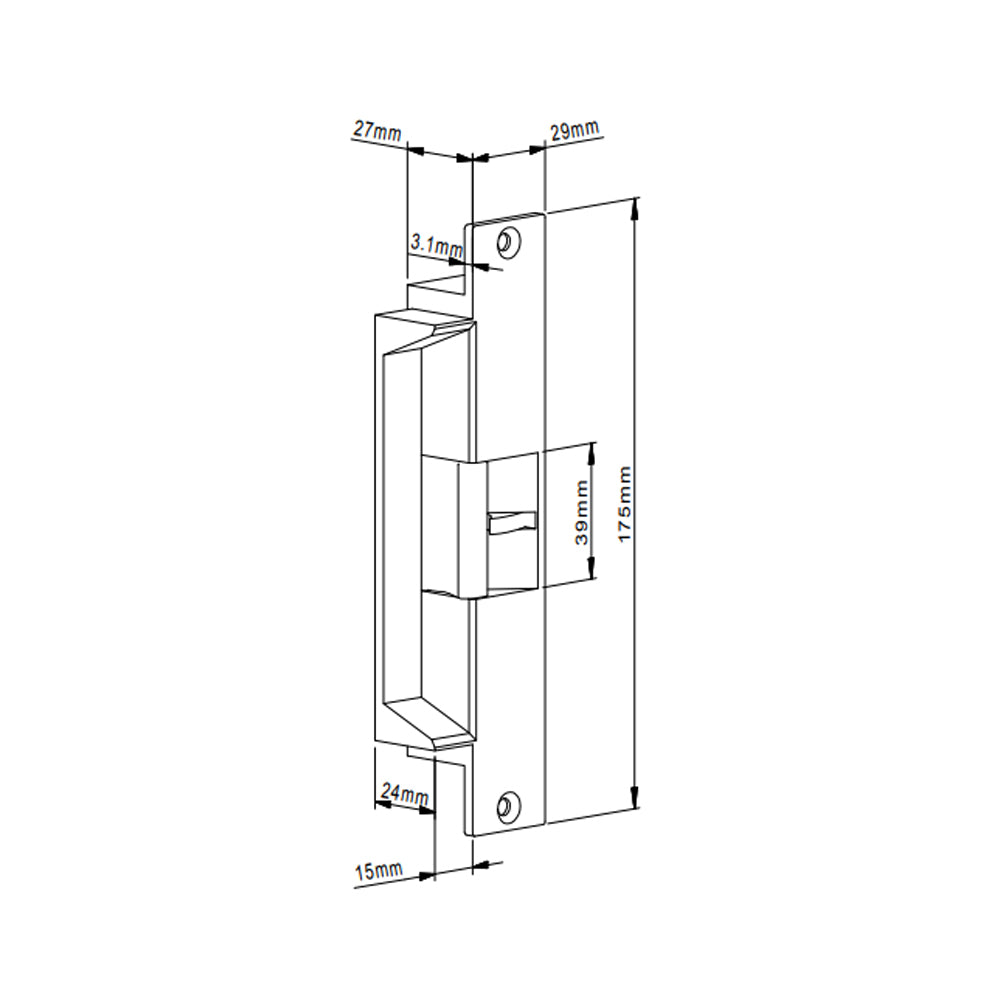

• Dimensions: 175L x 44W x 27D (mm)
• Operation Voltage Variable:12~24VDC/AC
• Voltage Tolerance: +/- 15%
• Current Draw: 12VDC/190mA, 24VDC/140mA
• Latch/Keeper Micro Switch Rating: 1A/125VAC
• Operating Temperature: -10C~45C
• Humidity: 0-95%
