SKU: KILIS5161HSI1000CA19
Kilargo Horizontal Brush Seal IS5161Hsi - Available in Various Sizes
RRP: $70.45
Payments accepted:
Couldn't load pickup availability
Kilargo Horizontal Brush Seal
IS5161Hsi
Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.
Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.
Features:
- Silicone sweep seals are all utilised to prevent ambient or medium temperature smoke, draught and dust penetration

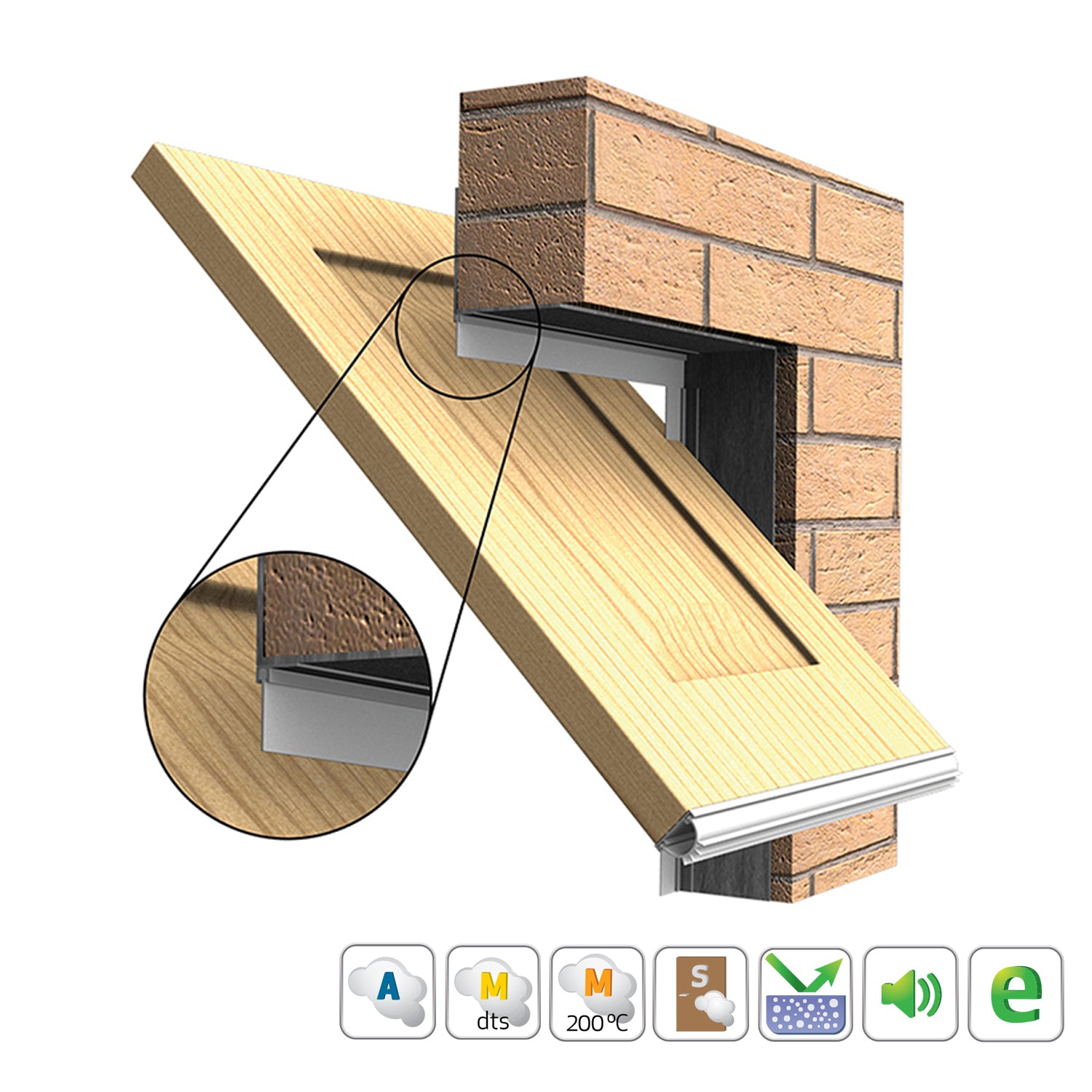

- IS5161Hsi is designed with a 90 degrees angle aluminium carrier for use on sliding doors
- Ensuring the highest standards of production, this product is proudly manufactured in Australia
Fixing:
- Silicone sweep seals (within carriers) can be screw-fixed or self-adhered to the desired surface
- Fixing screws and aggressive backing tape are supplied

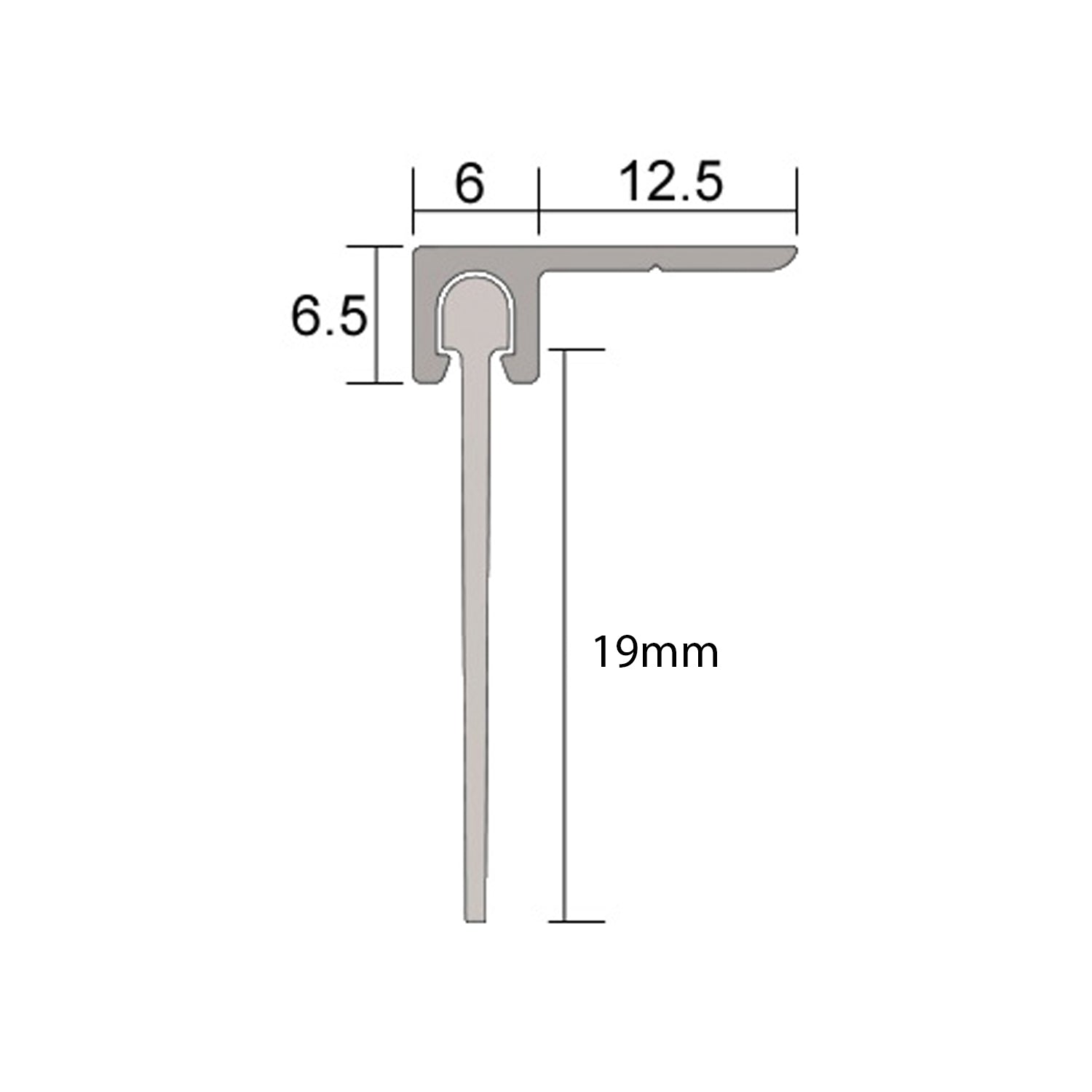

Specifications:
-
Available Brush Size:
- 19mm
- 25mm
-
Available Length:
- 1000mm
- 1250mm
- 1500mm
- 1750mm
- 2000mm
- 2250mm
- 2500mm
- 2750mm
- 3000mm
- 3500mm
- 4000mm
- 4500mm
- 5000mm
- Finish: Clear Anodised

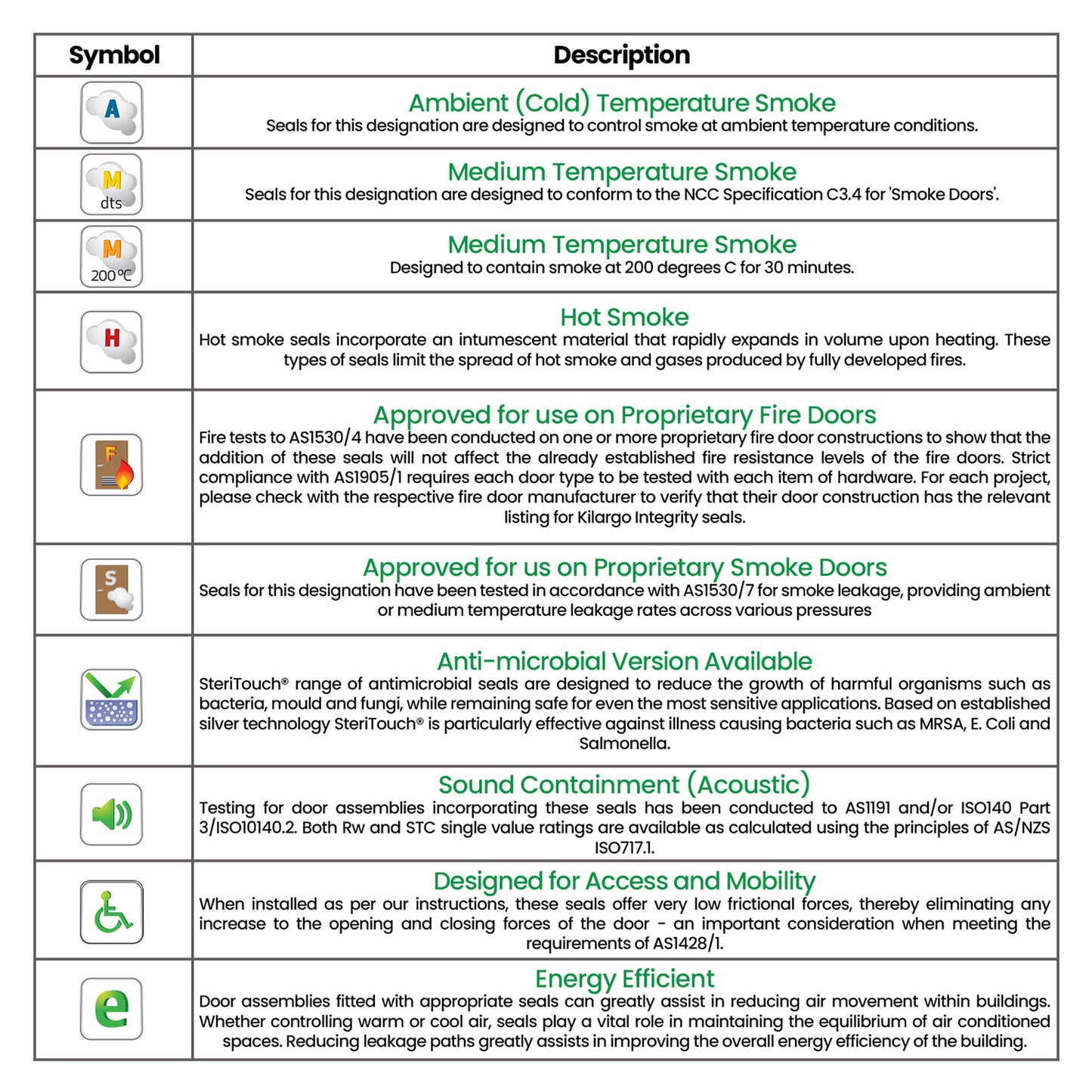

Approvals/Compliant:
- Medium temperature smoke leakage approvals to AS1530 Part 7
- Compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
Kilargo Horizontal Brush Seal
IS5161Hsi-1000CA-19
Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.
Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.
Features:
- The IS5160H seal is designed with a 90 degrees angle aluminium carrier and is used to prevent draught and dust penetration on sliding doors
- Ensuring the highest standards of production, this product is proudly manufactured in Australia
Fixing:
- Silicone sweep seals (within carriers) can be screw-fixed or self-adhered to the desired surface
- Fixing screws and aggressive backing tape are supplied
Specifications:
- Brush Size: 19mm
- Length: 1000mm
- Finish: Clear Anodised
Approvals/Compliant:
- Medium temperature smoke leakage approvals to AS1530 Part 7
- Compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
