Kilargo Intumescent Fire and Smoke Door Perimeter Seal KG1612BW Sets

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Graphite intumescent combined fire, smoke and acoustic seal.

Application

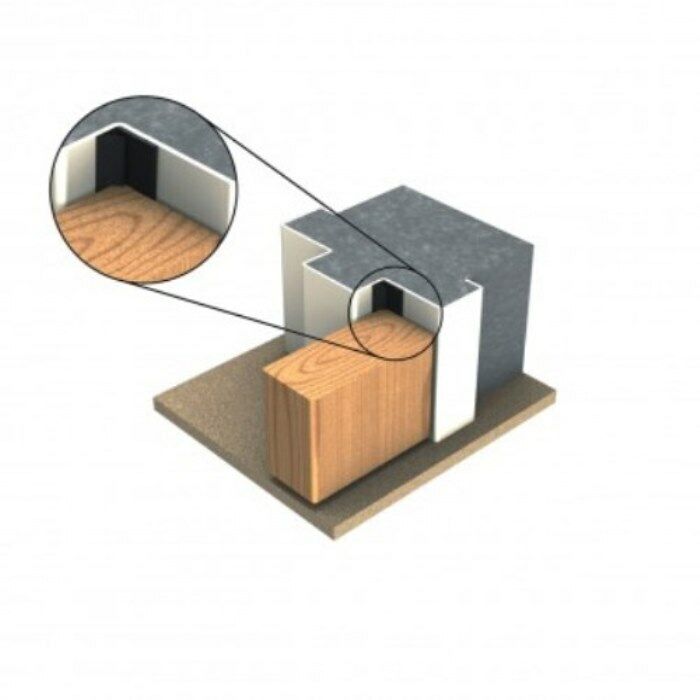

This hybrid, intumescent fire & smoke seal is simply fitted onto the rebate of a door frame perimeter to provide resistance against fire, smoke, sound, draugh Twin Fin, dust and light.

Key Features

• Tested on proprietary fire doors for up to 2 hours fire resistance.
• Fi Twin Fin quickly and easily without removal of the door.
• Provides an excellent acoustic & smoke seal across all temperatures.
• Offers an ou Twin Fintanding acoustic performance.
• Simple self-adhesive application onto the door frame.
• Strategically located in the impact free zone of the opening.

Use With

Used in conjunction with a Kilargo door bottom solution such as the IS8010si automatic door bottom or KP3504TF seal to provide a total door sealing system.

Materials

Kilargo high performance graphite based intumescent core with PVC skin combined with an elastomeric sealing blade. Supplied with aggressive self adhesive backing tape on both flanges of the carrier.

Gap Size

Minimum 2mm Maximum 3mm

Sizes

Door Se Twin Fin:

• Single 1 x 1000mm, 2 x 2100mm
• Long Single 1 x 1000mm, 2 x 2750mm
• Double 3 x 2100mm
• Long Double 1 x 2100mm, 2 x 2750mm

Standard lengths 1000mm, 2100mm, 2400mm, 2700mm, 3000mm

Finish

Standard Colours: Black, White

Fixing

The product is fitted along the rebate of the door frame perimeter and applied using the integral self-adhesive backing tape.

Approval/s

Fully tested to AS1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1

Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies

Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2.
