SKU: KILIS3017SI1000CA
Kilargo IS3017si Sweep Action Blade Seal - Available in Various Sizes
RRP: $44.54
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Kilargo IS3017si Sweep Action Blade Seal
Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

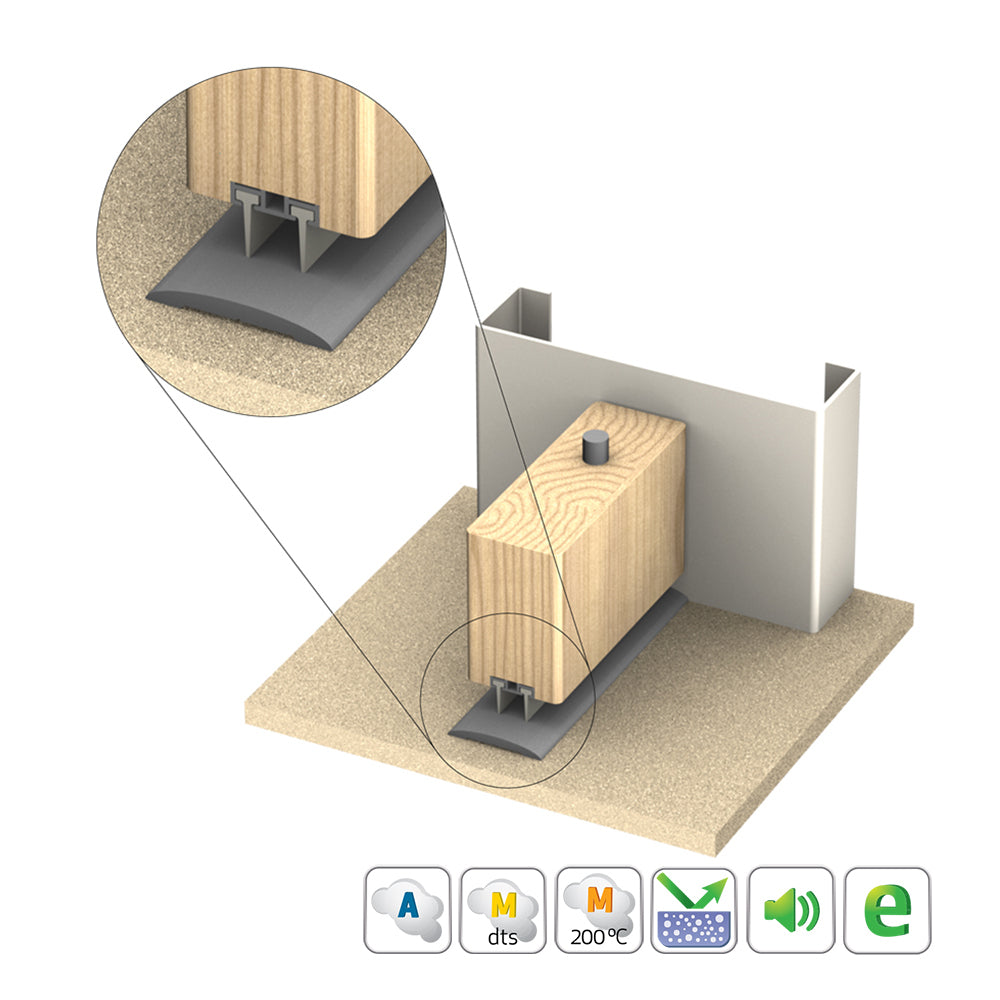

Sweep Seal Function - seals the gap between the door's bottom and the threshold.
Features:

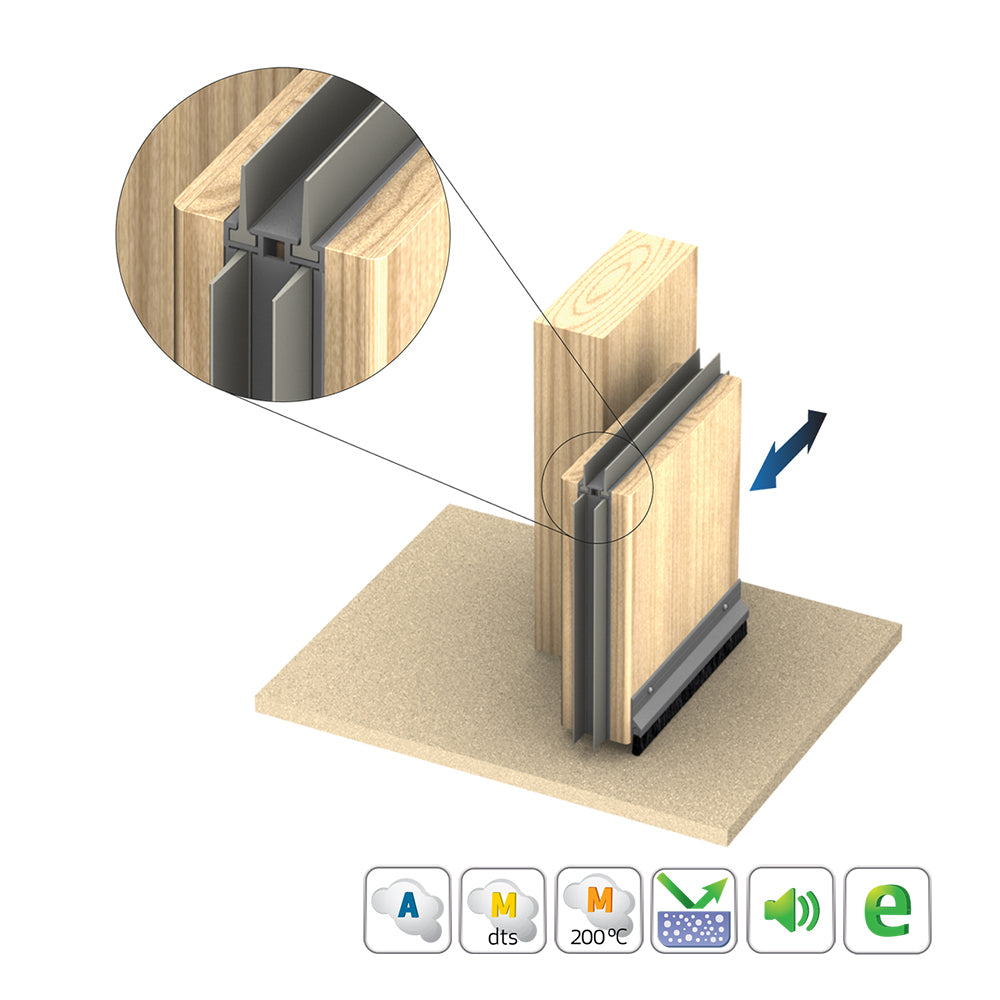

- With high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors
- This seal may be surface mounted or rebated into doors to allow for depth adjustment as required
- This seal provides effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies
Specifications:

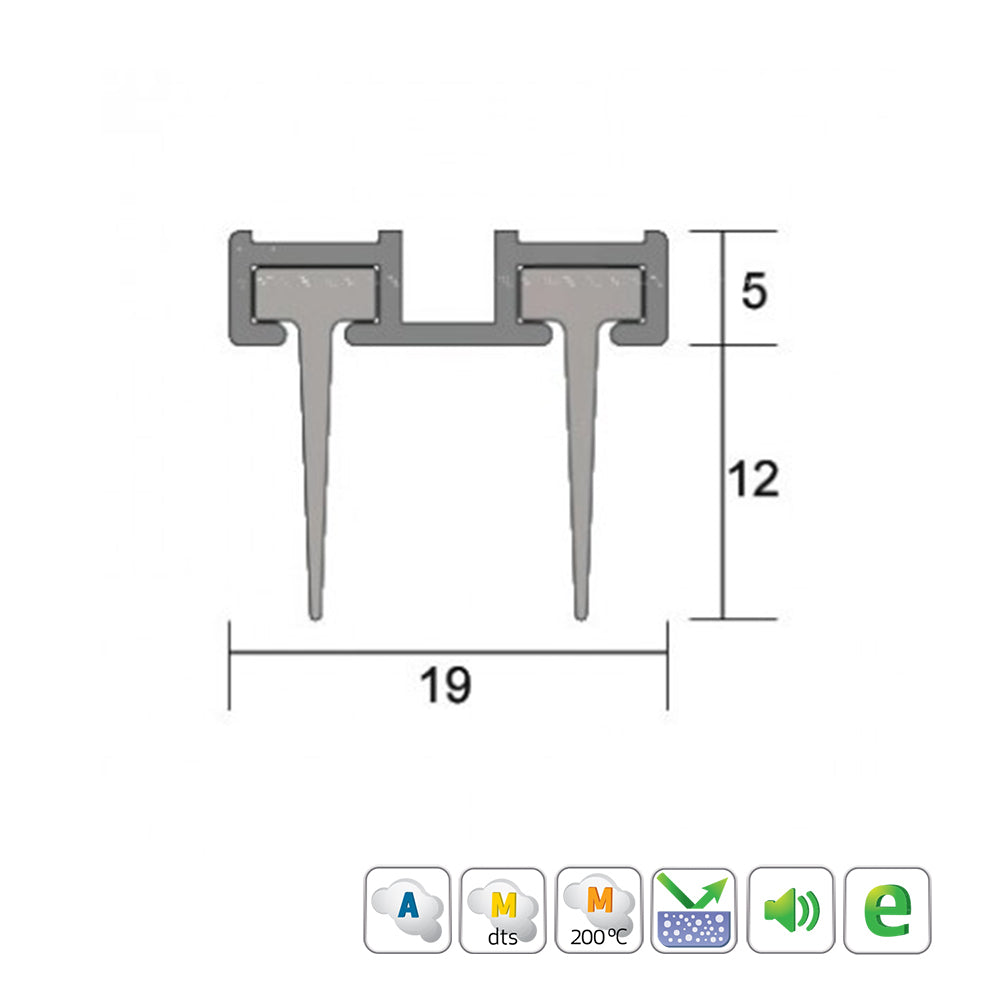

- Gap Size: Min. 8mm / Max. 12mm (allowing for the aluminium carrier to be recessed)
- Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
- Finish: Clear Anodised
-
Fixing:
- Timber fixing screws are supplied with detailed fitting instructions
- Fixing holes are pre-drilled to allow the seals to be positioned accurately
Approvals:
- Conforms to BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
Kilargo IS3017SI Sweep Action Blade Seal
IS3017SI1000CA
This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.
Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.
Sweep Seal Function - seals the gap between the door's bottom and the threshold.
Features:
- With high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors
- This seal may be surface mounted or rebated into doors to allow for depth adjustment as required
- This seal provides effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies
Specifications:
- Gap Size: Min. 8mm / Max. 12mm (allowing for the aluminium carrier to be recessed)
- Length: 1000mm
- Anti-Microbial: No
- Finish: Clear Anodised
- Fixing:
- Timber fixing screws are supplied with detailed fitting instructions
- Fixing holes are pre-drilled to allow the seals to be positioned accurately
Approvals:
- Conforms to BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
