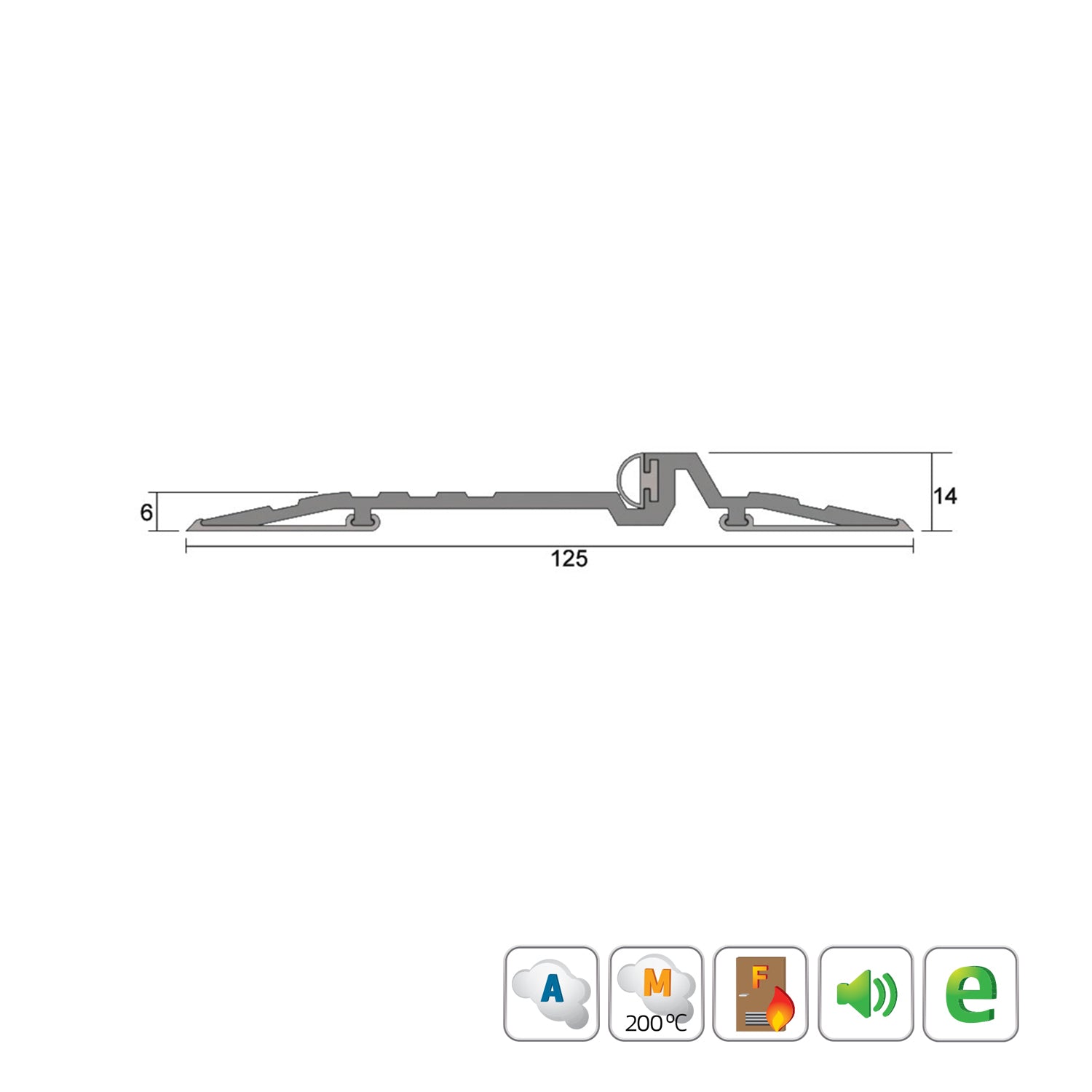

Kilargo IS4220si 125mm Panic Threshold Plate with Silicone Compression Bulb

Kilargo IS4220si 125mm Panic Threshold Plate with Silicone Compression Bulb

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

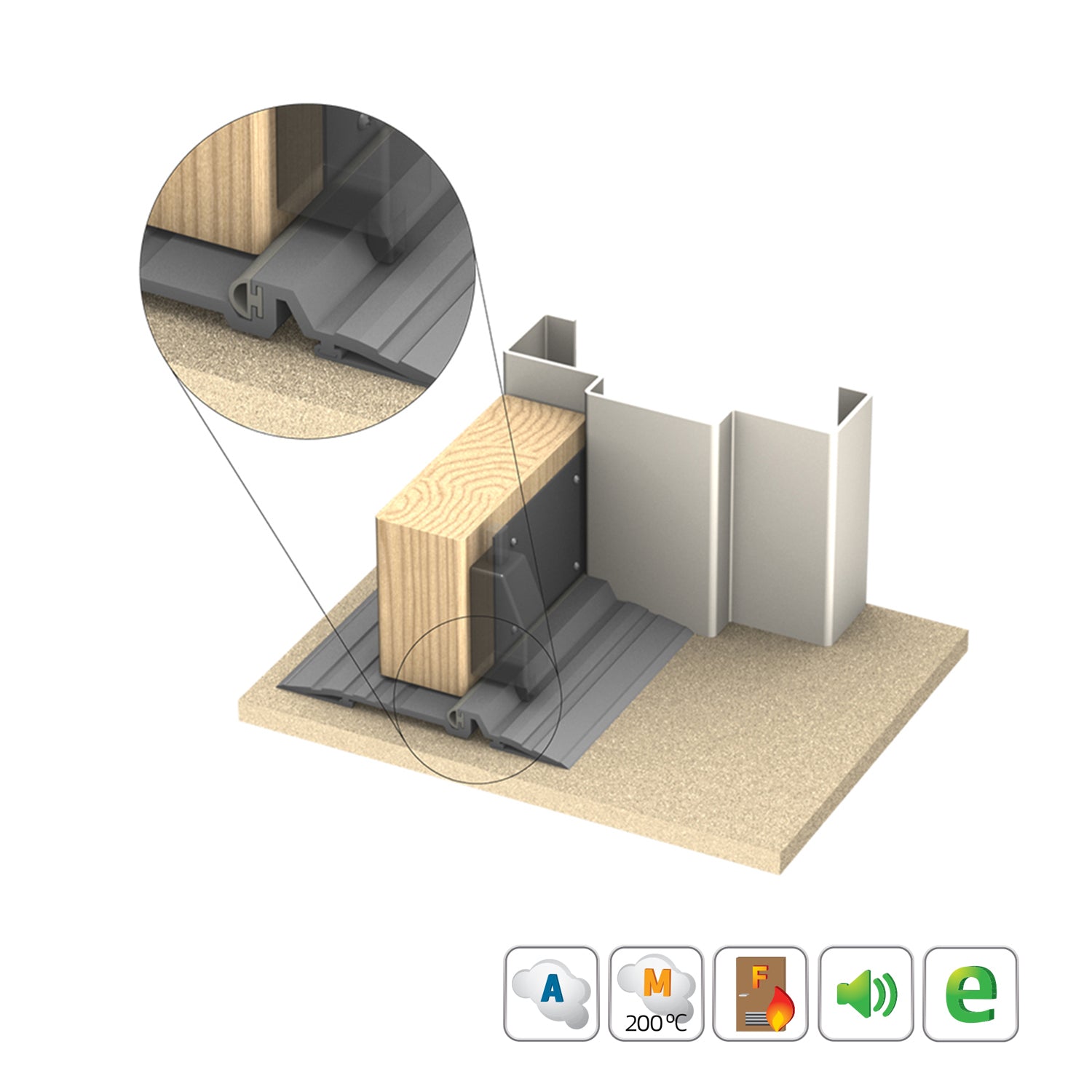

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Threshold plate is suitable for outward opening doors to prevent rain, draughts, light and noise penetration.
• The high performance silicone rubber compression seal, combined with the vinyl bedding pads, help provide an effective acoustic barrier.
• May be used with a panic type exit device (supplied to suit by others).

 Specifications:

• Available Size (Lengths): 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3500mm, 4000mm, 4500mm and 5000mm
• Finish: Clear Anodised
• Fixings: Stainless steel fixing screws and plugs supplied

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
