Kilargo IS5110 Brush Seal with Nylon Brush - Available in Various Finishes

Kilargo IS5110 Brush Door Seal

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

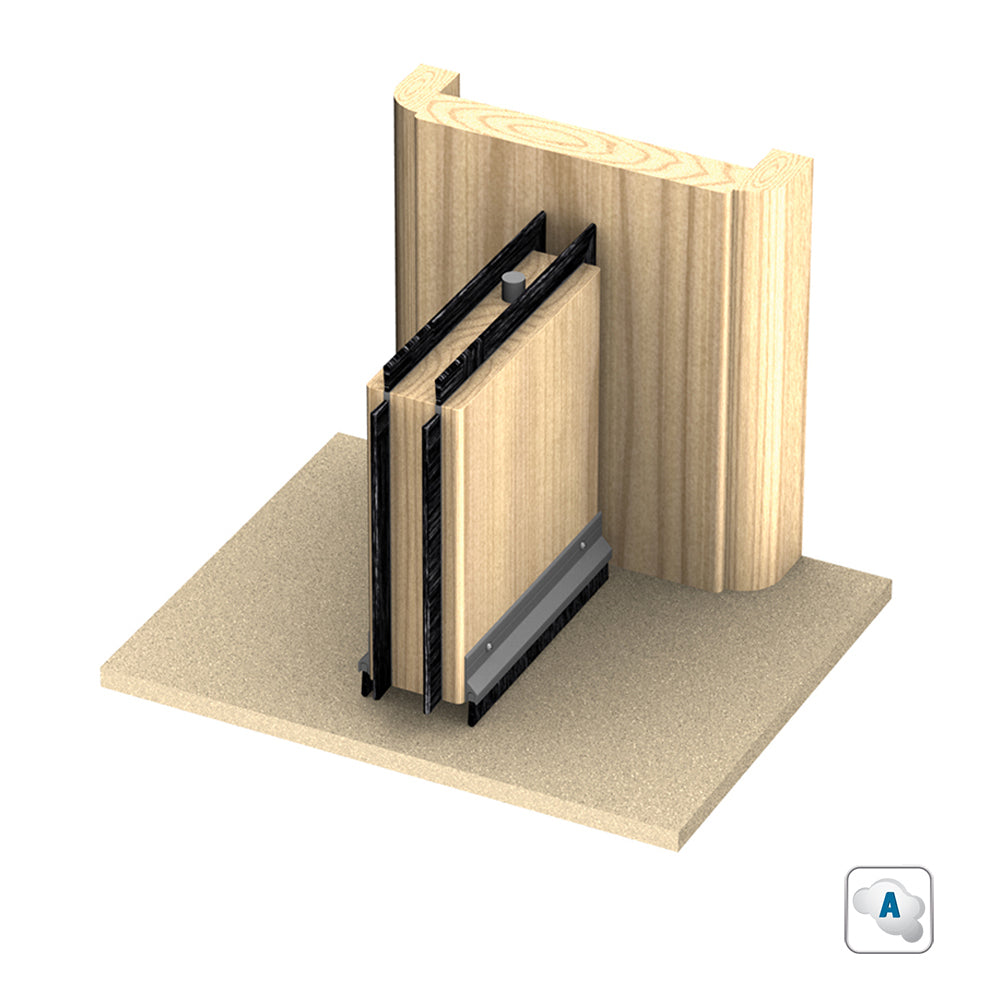

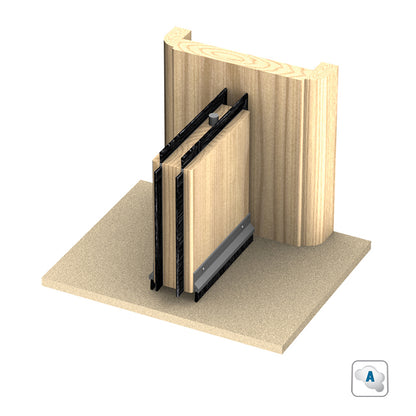

• Designed to be used around the head & jambs, door bottom and meeting stiles of single or double swing doors, revolving, tilt-up and roller doors.
• Help protect against draught and dust, insects and weather penetration.
• Slim-line carriers are aesthetically angled to avoiddust build-up.

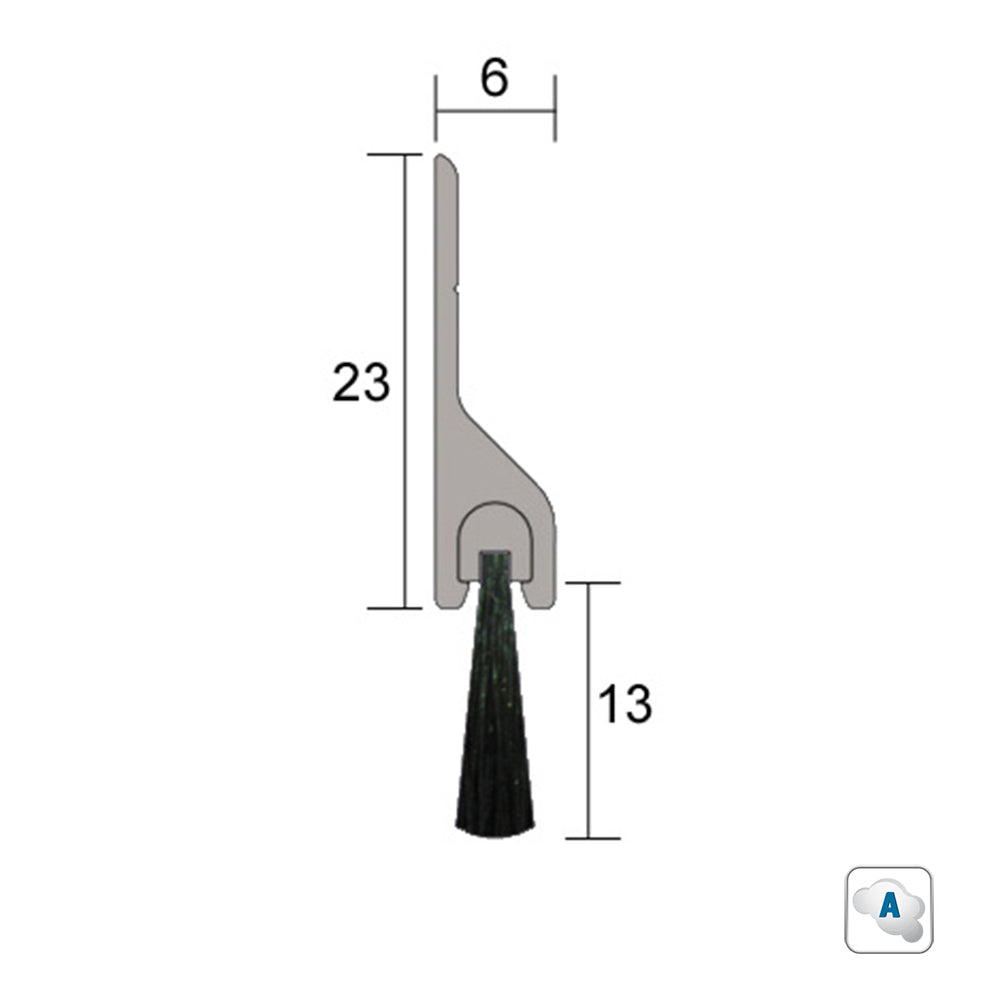

• The black nylon brush filaments, which are locked into a galvanized steel strip, are available fitted to an aluminium carrier, or as brush only.

Specifications:

• Fixing:
  • Brush Door Seals (within carriers) can be screw-fixedor self-adhered to the desired surface
  • Fixing screws and aggressive backing tape are supplied
  • Brush only seals can be mortised into a nominal 3mm (w) x 4mm (d) groove (with the length slightly kinkedfor an interference fit)
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm
• Available Finish:
  • Black anodised aluminium carrier with black nylon brush
  • Clear anodised aluminium carrier with black nylon brush

Approvals:

• Durability tests demonstrating over 100,000 open & close cycles
