Kilargo IS5176ASI Sweep Action Seal - Available in Various Sizes

Kilargo IS5176Asi Sweep Seal

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

Sweep Seal Function - seals the gap between the door's bottom and the threshold. Sweeps away dirt or debris that accumulate at the base of the door when it is closed.

Features:

• Used to prevent ambient/medium temperature smoke, draught and dust penetration

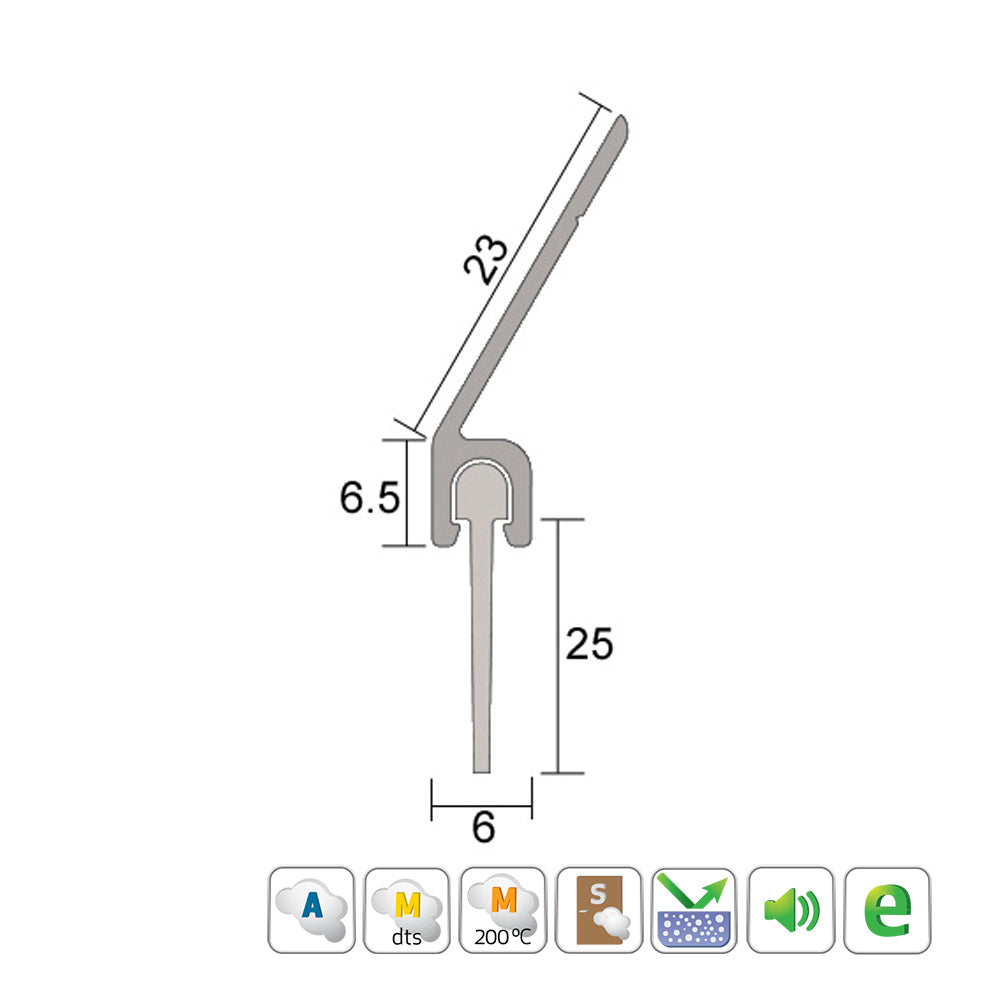

• Designed with a 45 degree angle aluminium carrier and is used around the perimeter of roller and tilt-up doors
• Angled aluminium carrier can be fitted with either a 13mm, 19mm or 25mm silicone fin

Specifications:

• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Silicone Fin:
  • 13mm
  • 19mm
  • 25mm
• Fixing:
• • Silicone sweep seals (within carriers) can be screw-fixed or self-adhered to the desired surface
  • Fixing screws and aggressive backing tape are supplied
• Finish: Clear Anodised

Approvals:

• Conforms to BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
