Kilargo IS7010si Door Perimeter Seal - Available in Various Sizes

Kilargo IS7010si Door Perimeter Seal
IS7010si-1000CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

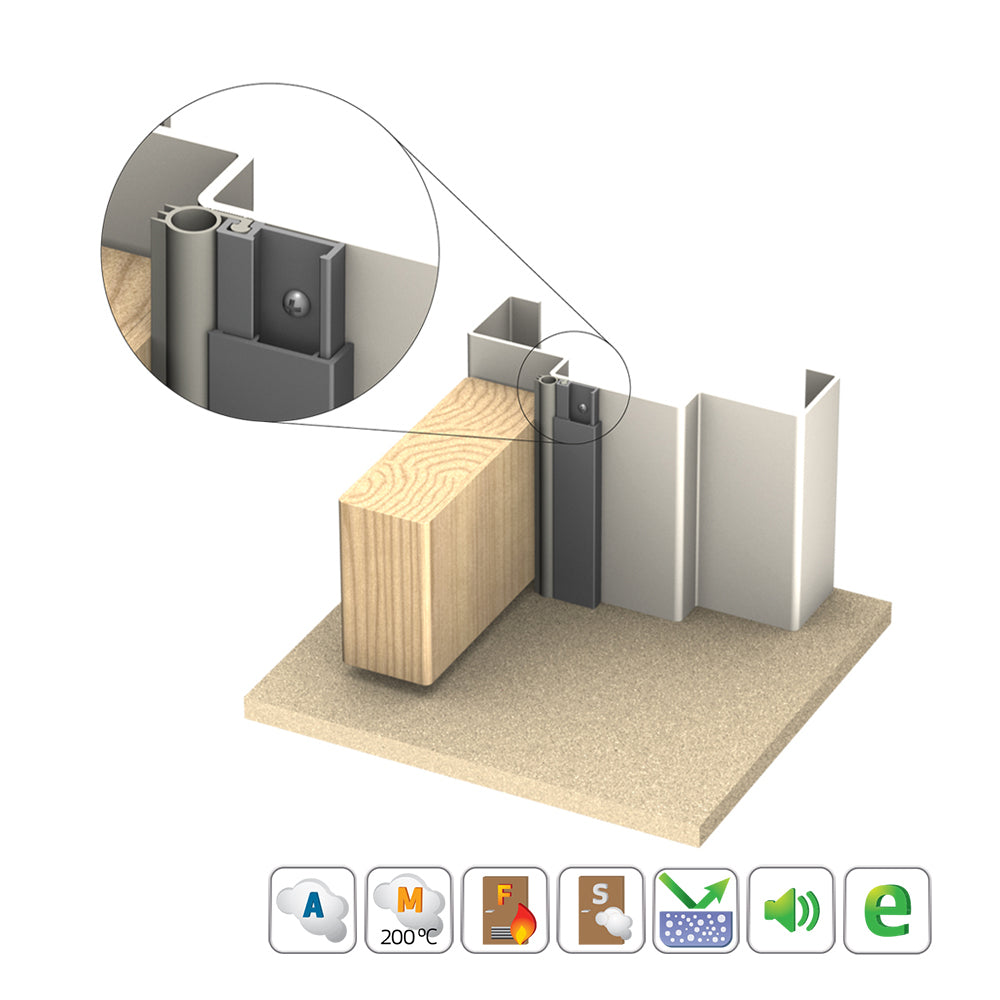

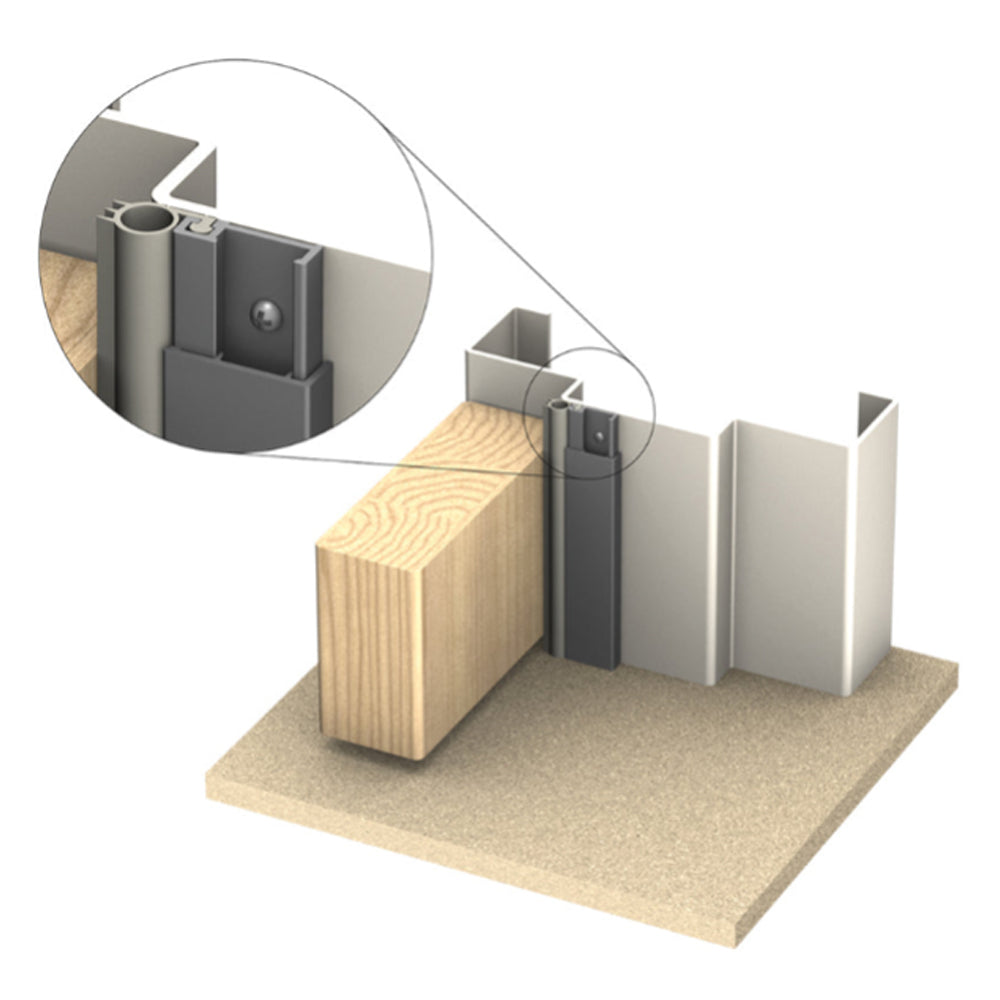

• An aesthetically designed, slim-line compression type perimeter seal for installation around the head and jambs of single swing doors
• Proven to be effective acoustic, smoke, light, dust and weather seals
• Aluminium carrier is pre-drilled and slotted for adjustable retrofit installation
• Easy to install, “snap-on”, anodised aluminium cover plate provides concealed fixings

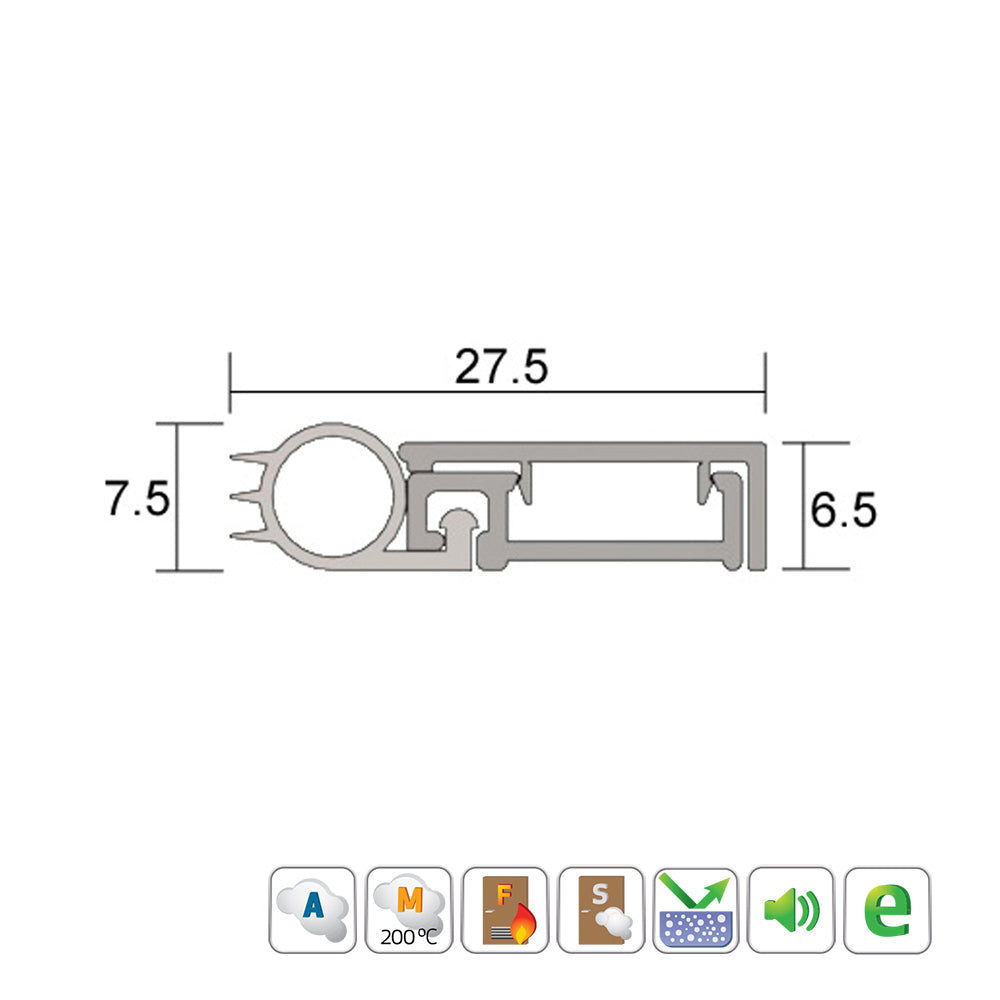

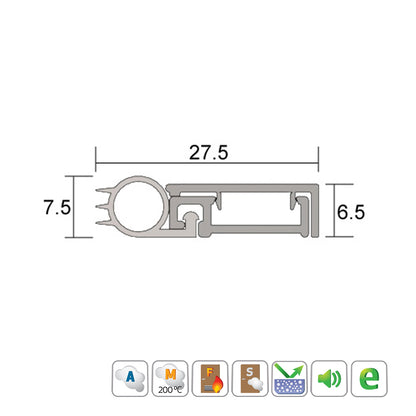

Specifications:

• Gap Size: Min. 0mm / max. 6mm
• Length: 1000mm
• Antimicrobial: No
• Fixing: When fixing IS7010si to rebated frames of single doors, specify a long back set door latch
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
