SKU: KILIS7080SI1000BK
Kilargo IS7080si Compact Door Perimeter Seal - Available in Various Finishes and Sizes
RRP: $55.92
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Kilargo IS7080si Compact Acoustic Perimeter Seal
Perimeter Seal - can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Aesthetically designed, compact perimeter seal, proven to be an effective acoustic, cold smoke, light and weather seal.

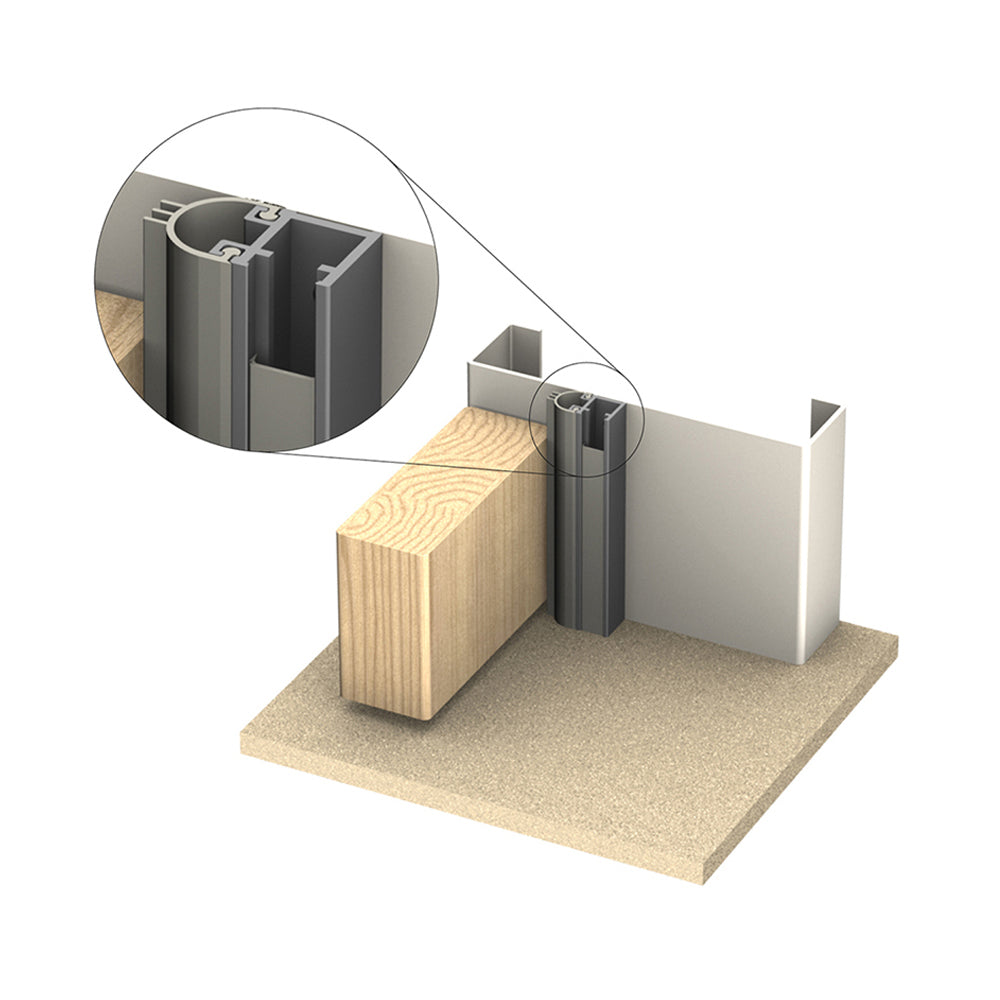

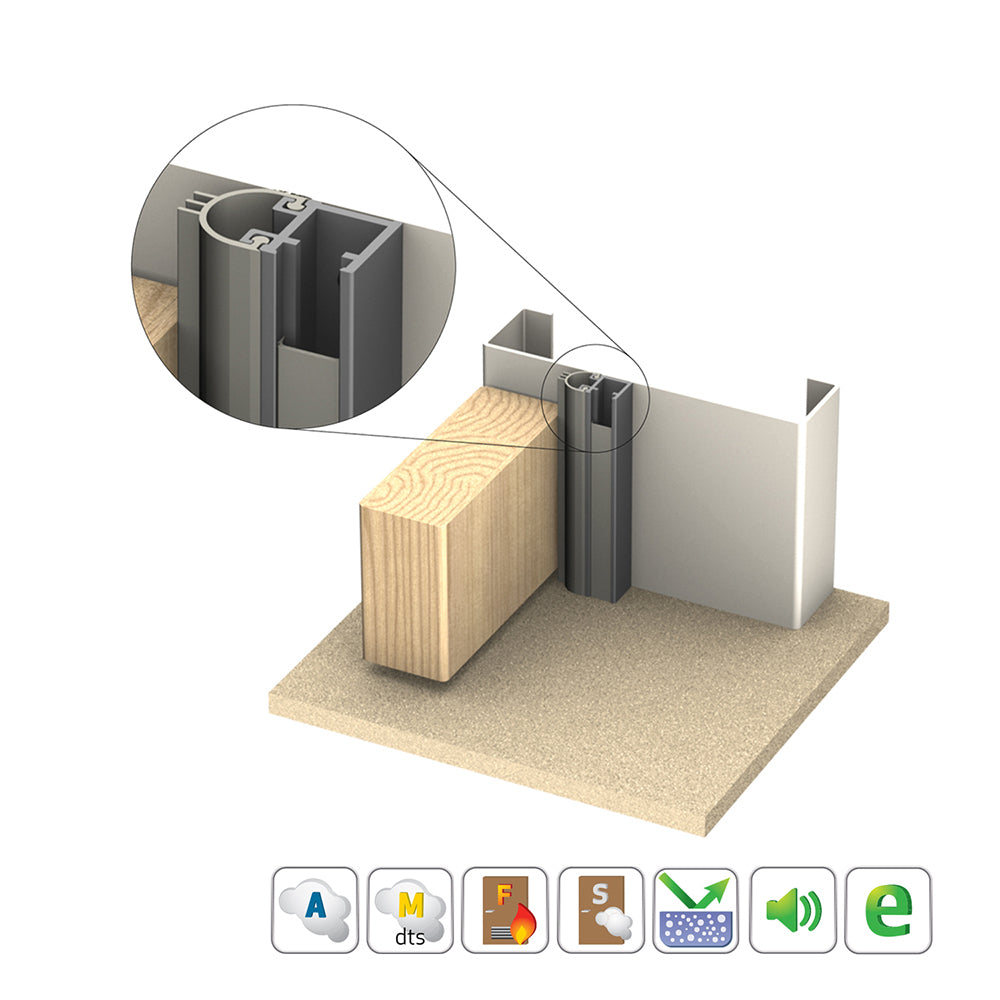

- Can be installed in lieu of a door stop on both steel and timber door frames (where frames are non fire-rated).
- The fixing holes are pre-drilled and slotted to allow the seal to be adjusted and positioned accurately.
- A decorative cover strip is supplied to conceal fixings.
- Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).
Specifications:

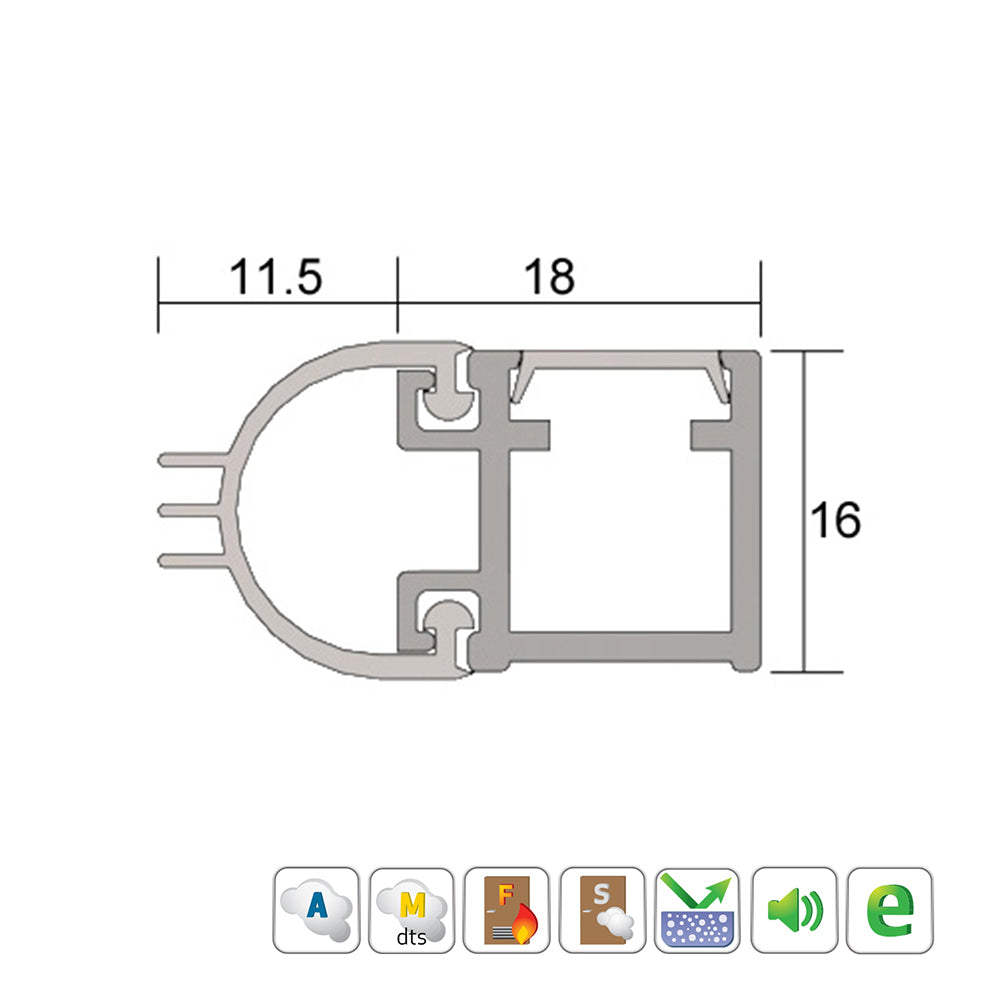

- Gap Size: Min. 0mm / max. 10mm
- Fixing: Rebated frames of single doors, specify a long back set door latch
-
Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
-
Available Finish:
- Clear Anodised
- Black Anodised
Approvals:
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
Kilargo IS7080si Compact Acoustic Perimeter Seal
IS7080SI1000BK
This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Aesthetically designed, compact perimeter seal, proven to be an effective acoustic, cold smoke, light and weather seal.
- Can be installed in lieu of a door stop on both steel and timber door frames (where frames are non fire-rated).
- The fixing holes are pre-drilled and slotted to allow the seal to be adjusted and positioned accurately.
- A decorative cover strip is supplied to conceal fixings.
- Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).
Specifications:
- Gap Size: Min. 0mm / max. 10mm
- Length: 1000mm
- Anti-Microbial: No
- Finish: Black Anodised
- Fixing:
- Rebated frames of single doors, specify a long back set door latch
Approvals:
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
