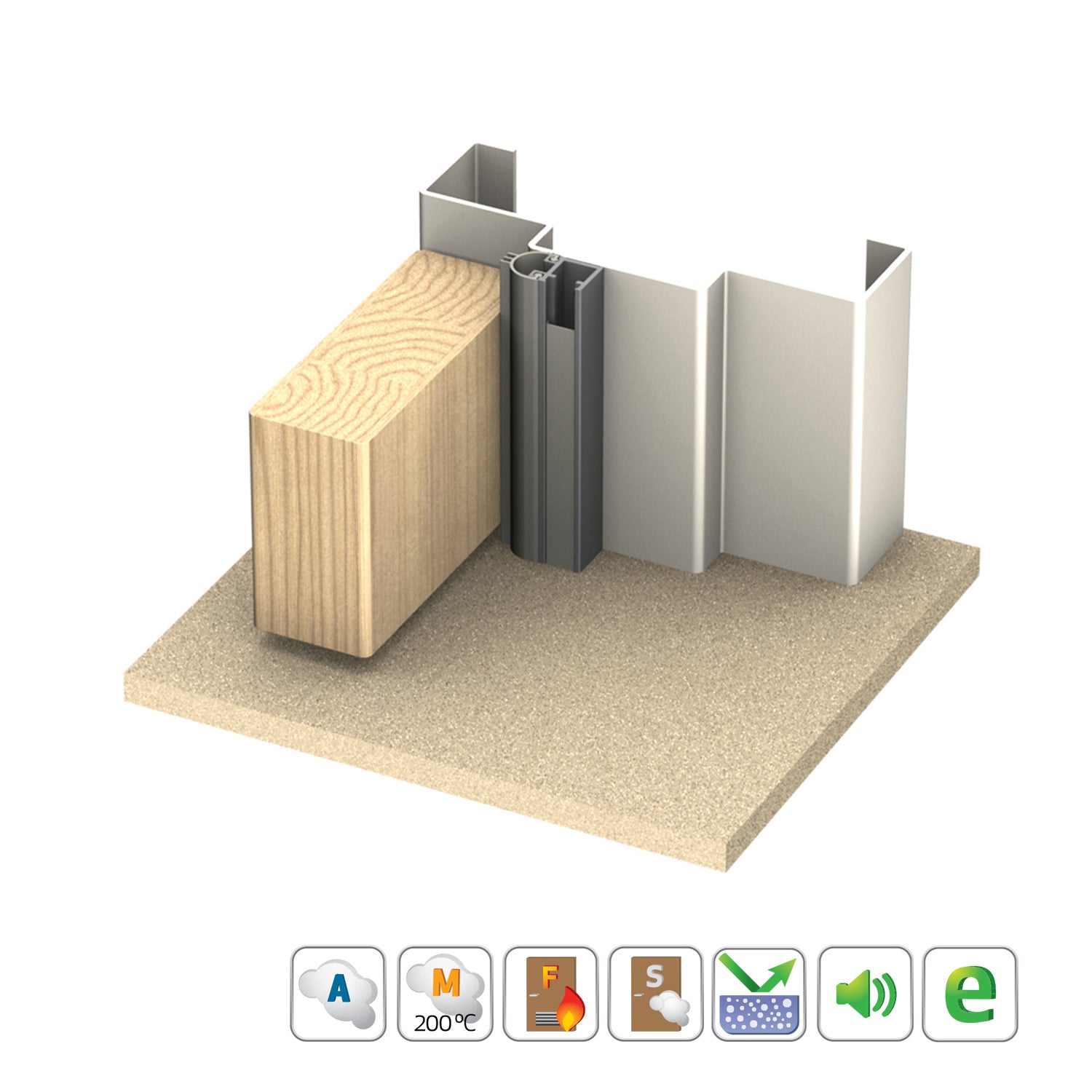

Kilargo IS7080si Door Perimeter Seal - Available in Various Finishes and Sizes

Kilargo IS7080si Door Perimeter Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Designed, compact perimeter seals, proven to be effective acoustic, cold smoke, light and weather seals
• Both can be installed in lieu of a door stop on both steel and timber door frames (where frames are non fire-rated)
• The fixing holes are pre-drilled and slotted to allow the seal to be adjusted and positioned accurately
• A decorative cover strip is supplied to conceal fixings.
• The IS7080si version (silicone gasket) has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).

Specificaitons:

• Gap size: Min. 0mm / max. 10mm
• Door Set Standard Lengths:
  • Single: 1 x 1000mm, 2 x 2100mm
  • Long Single: 1 x 1000mm, 2 x 2750mm
  • Double: 3 x 2100mm
  • Long Double: 1 x 2100mm, 2 x 2750mm
• Available Finish:
  • Black Anodised
  • Clear Anodised
• Fixing: When fixing IS7080si to rebated frames of single doors, specify a long back set door latch

Approval/s:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with NCC Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
