Kilargo IS7095si Adjustable Door Perimeter Seal Set - Available in Various Sizes

Kilargo IS7095si Adjustable Door Perimeter Seal Double Door Set
IS7095SIDDSCA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Designed for high performance acoustic applications.

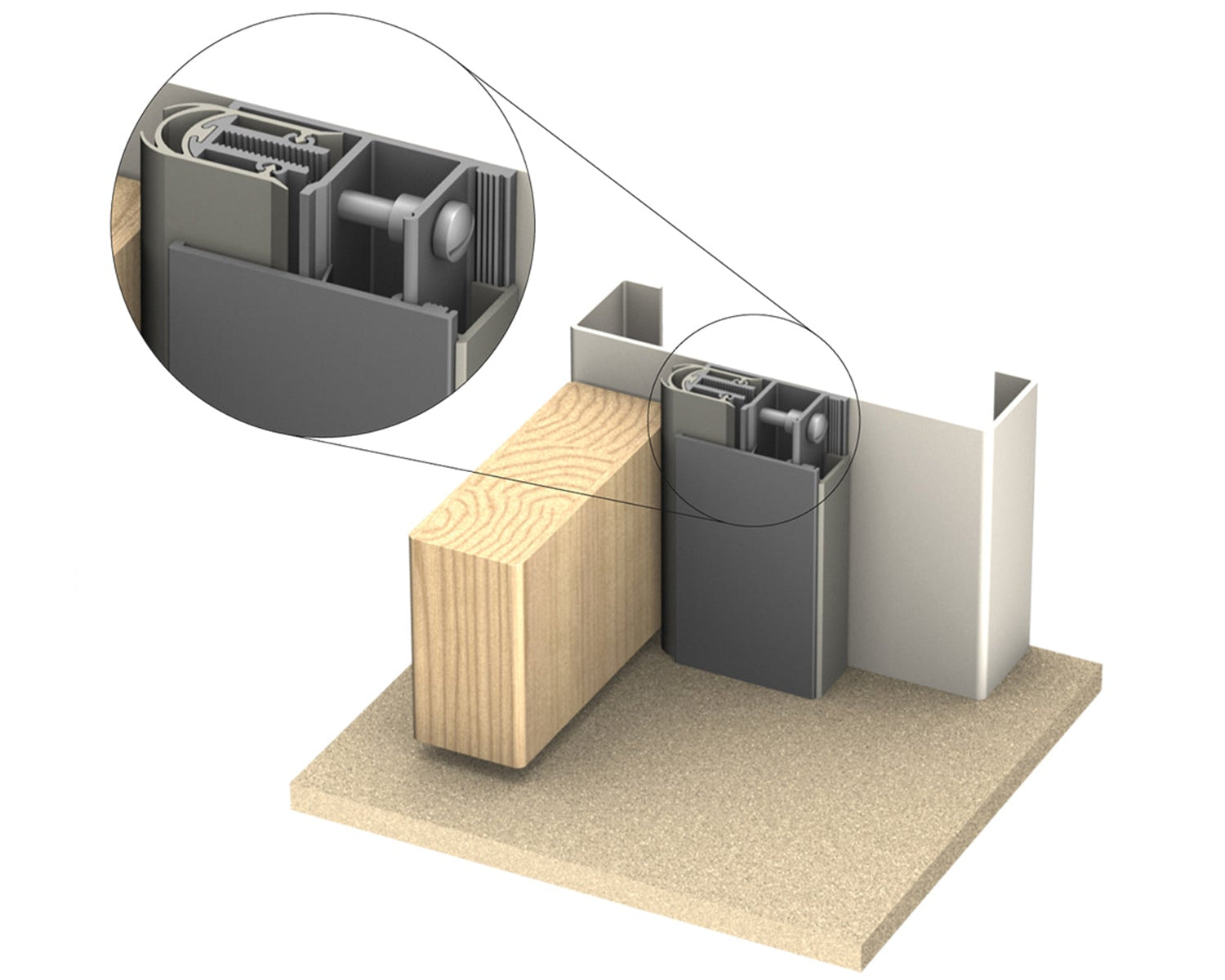

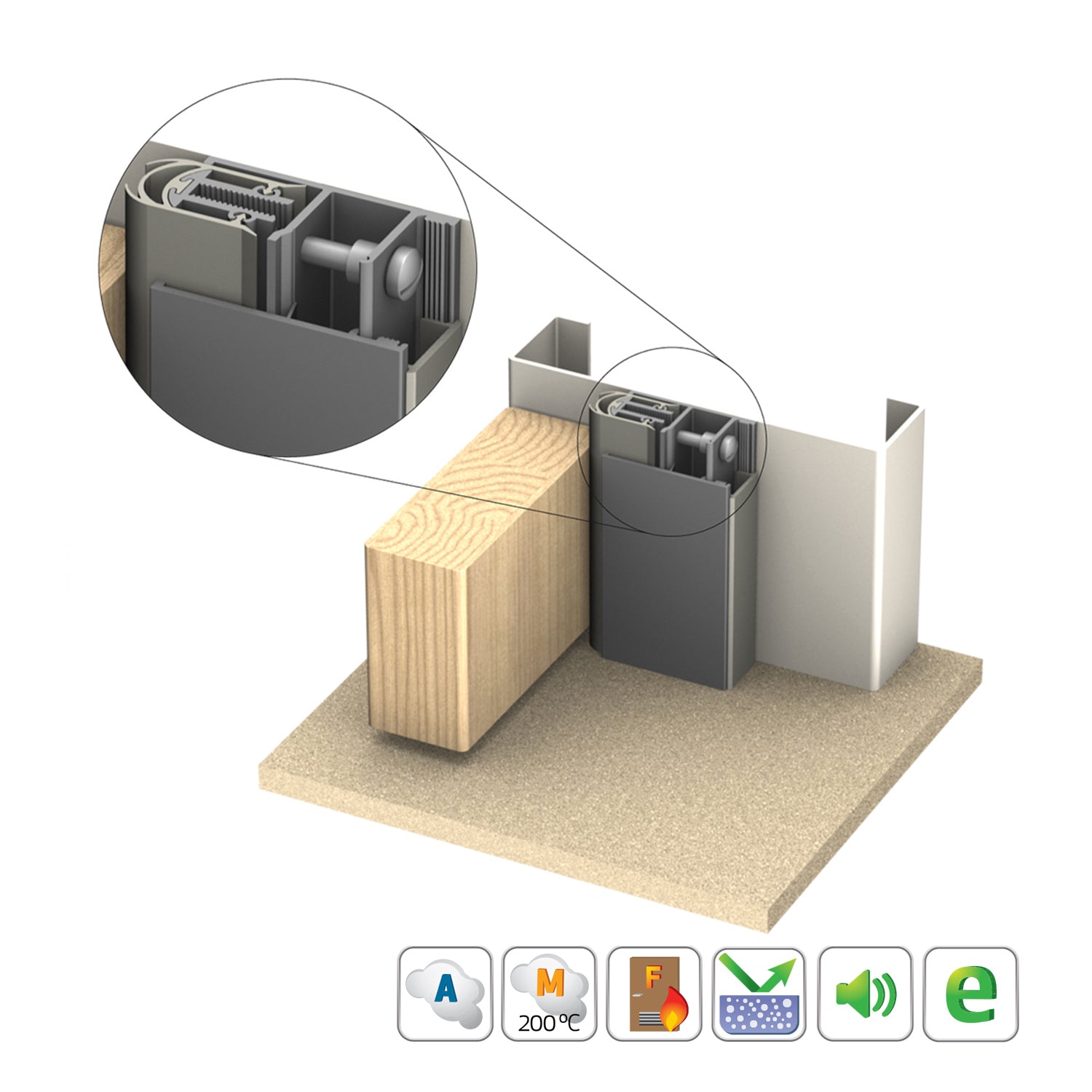

• This seal can be fitted to the head and jambs of door frame perimeters in lieu of door stops, where frames are non fire-rated.
• Can achieve up to 12mm sealing adjustment once the seal has been fitted, for maximum sound control. Fixing screws are concealed behind the aesthetic tamper-proof aluminium cover plate.

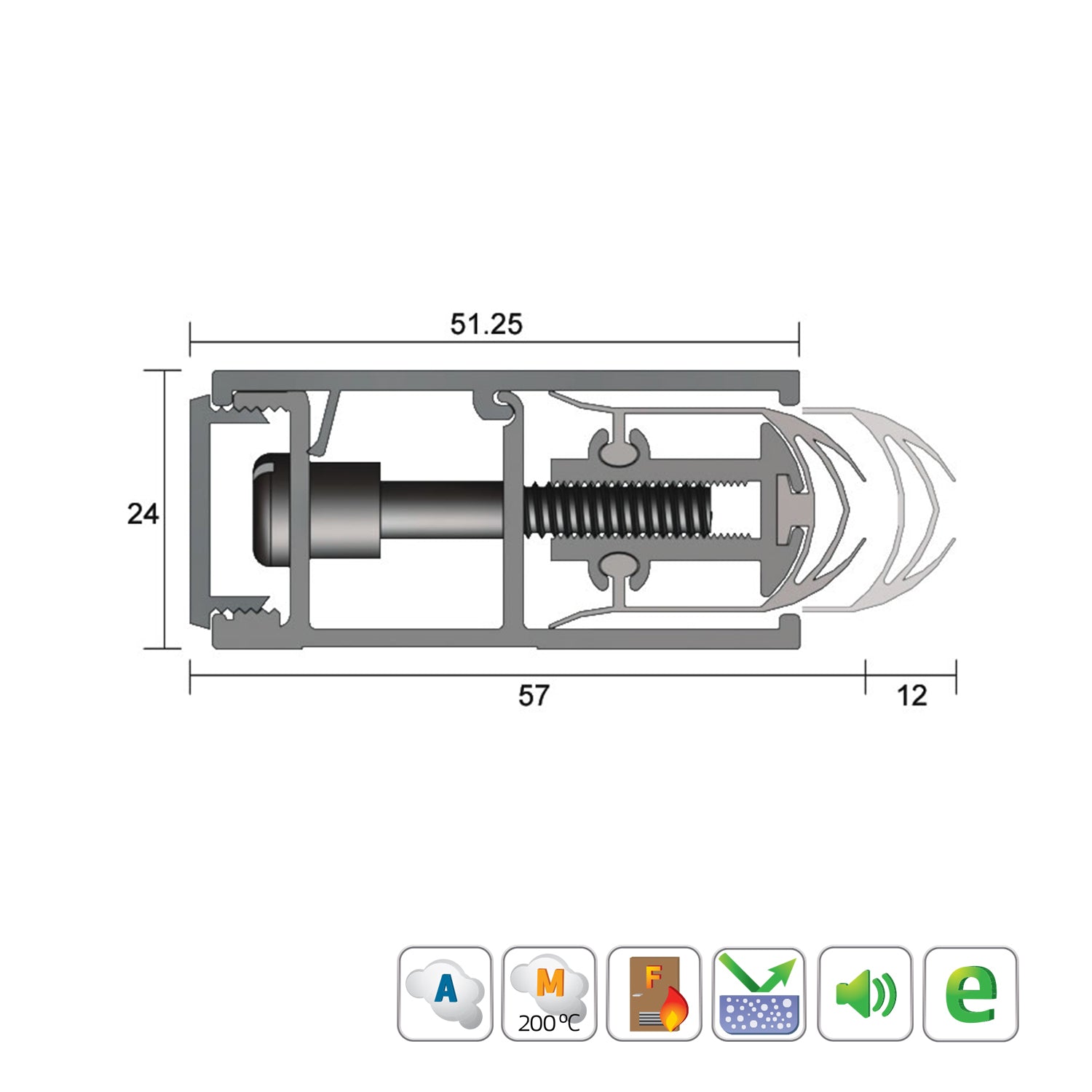

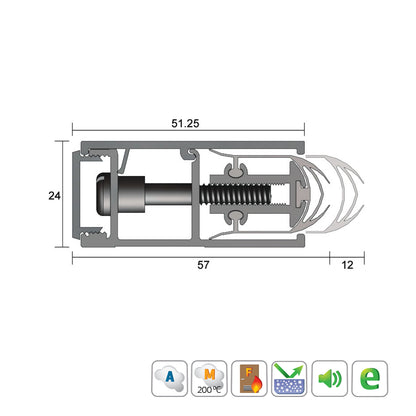

Specifications:

• Gap Size: Min. 0mm / max. 12mm
• Door Set Standard Length: Double Door Set: 3 x 2100mm
• Anti-Microbial: No
• Finish: Clear Anodised
• Fixing:
  • Rebated frames of single doors, specify a long back set door latch

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrate over 100,000 open and close cycles
