Kilargo IS7130si Acoustic Perimeter Door Seal - Available in Various Sizes

Kilargo Antimicrobial Acoustic Perimeter Seal

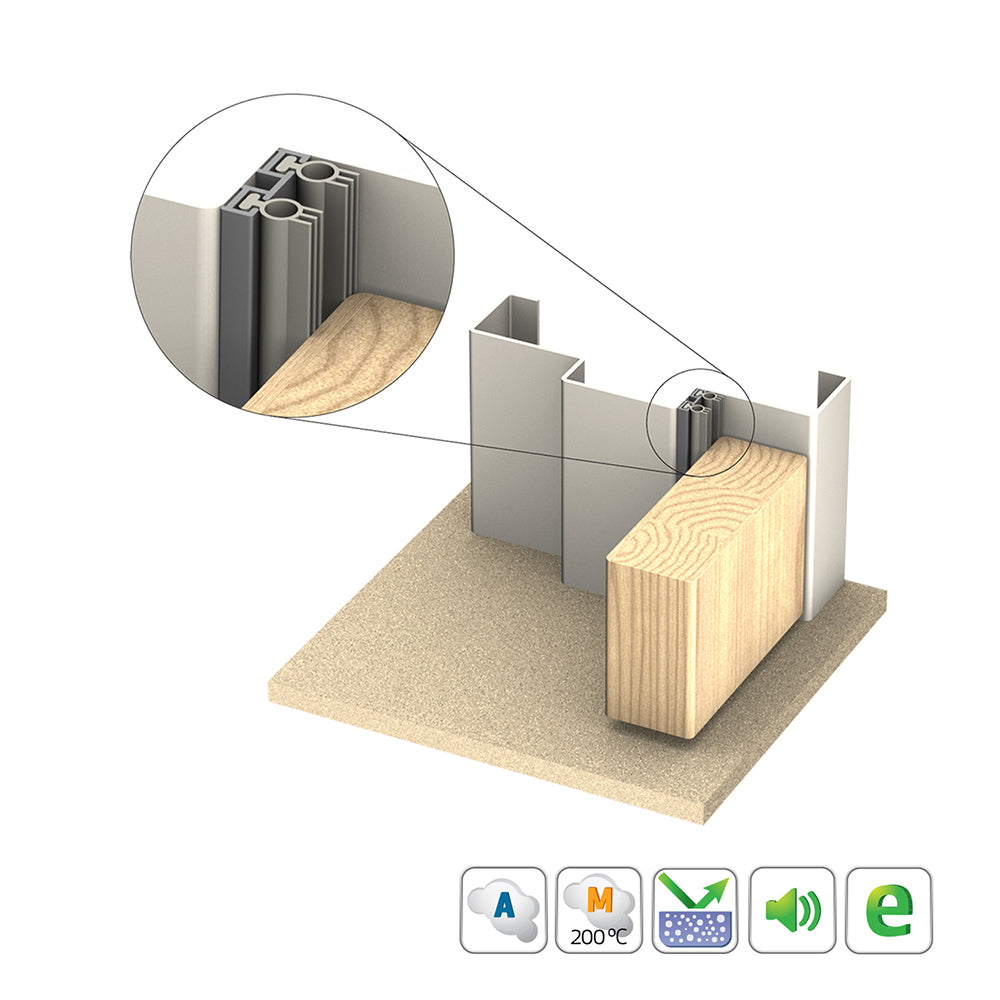

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Effective acoustic seal suitable for fitting to door stops of sufficient depth, around the head and jambs of single swing doors
• Has two silicone compression gaskets providing excellent acoustic and air leakage containment
• It can also be rebated into meeting stiles and door bottoms as a sweep-action type seal.

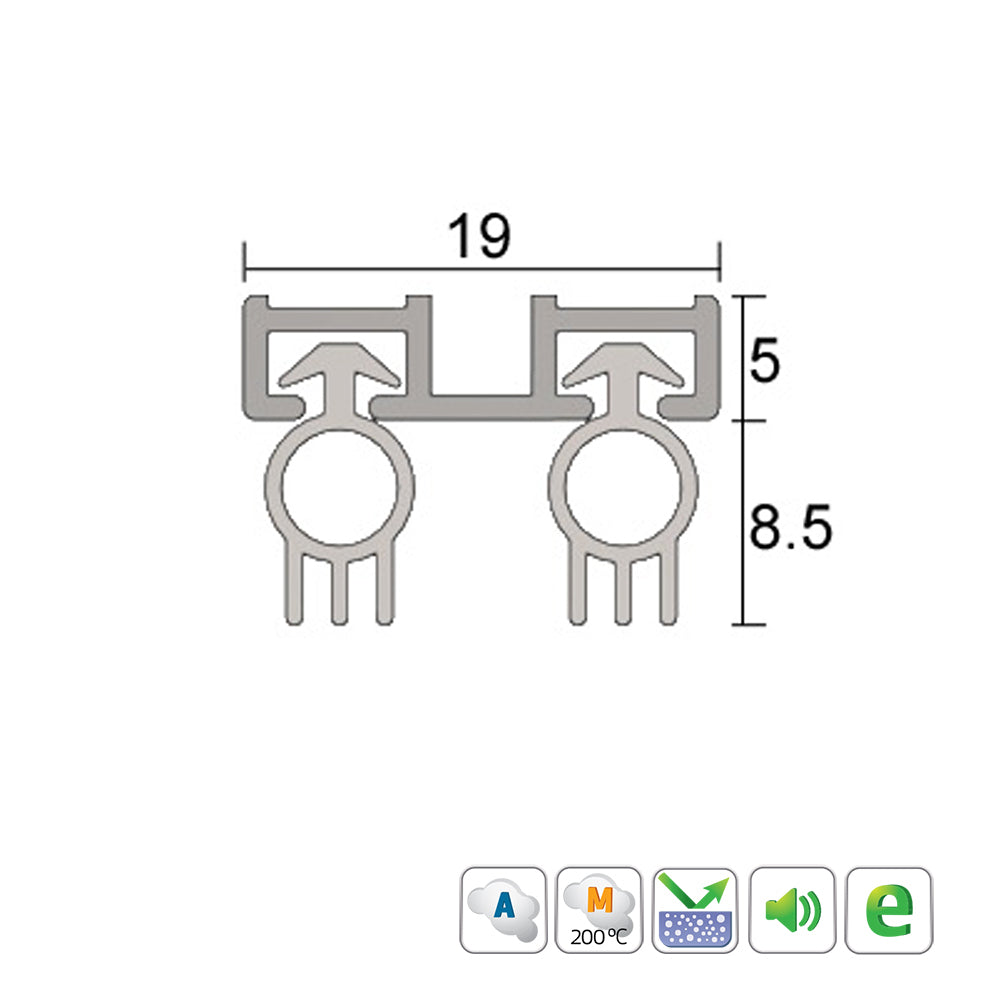

Specifications:

• Gap size:
  • Min. 6mm / max. 8mm (when recessed)
  • Allow 12mm to 13mm when surface-mounted
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Finish: Clear Anodised

Approvals:

• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
