Kilargo IS8005si Fully Mortised Door Seal Clear Anodised - Available in Various Sizes

Kilargo IS8005si Fully Mortised Door Seal

Door Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

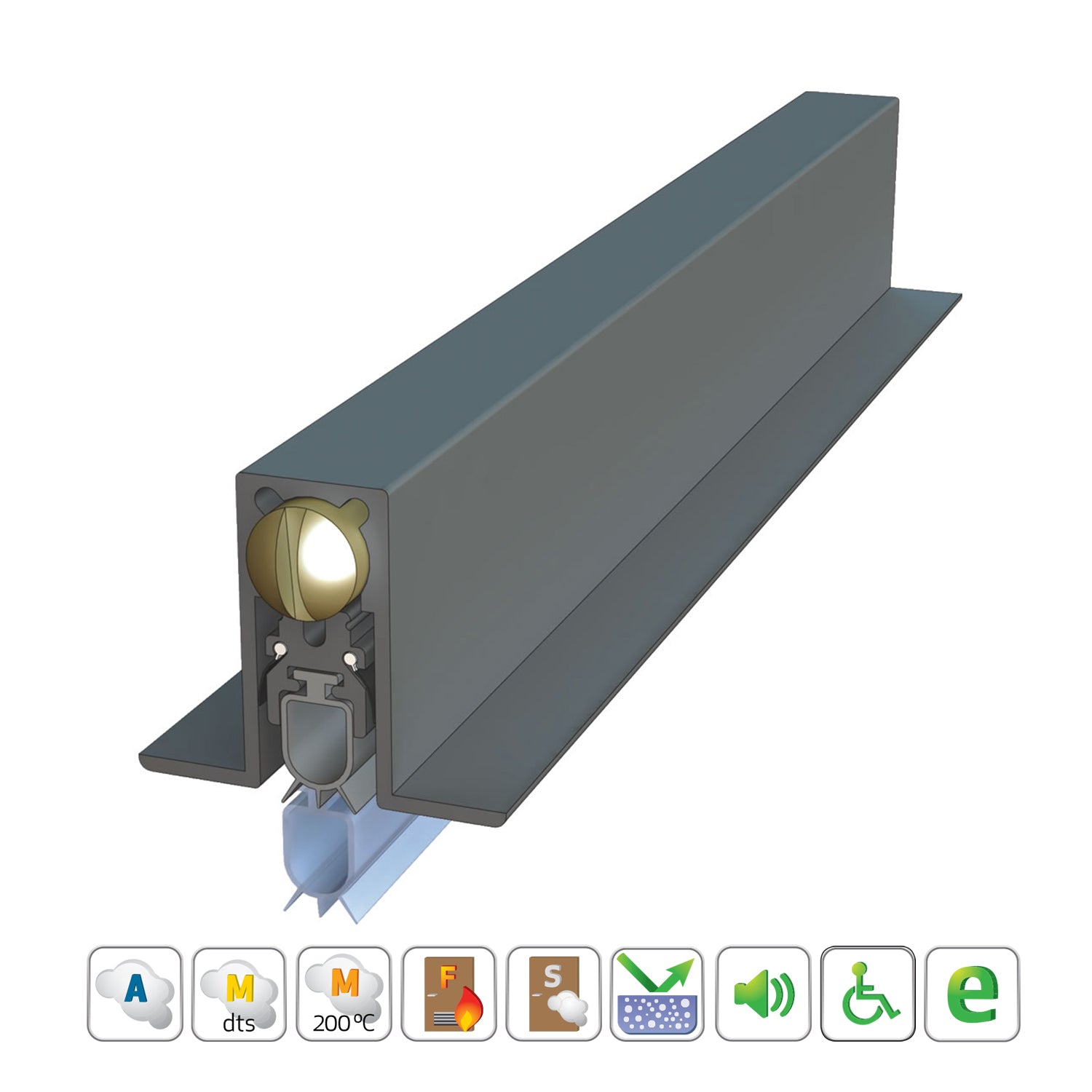

• A slim-line, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors.
• Operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.

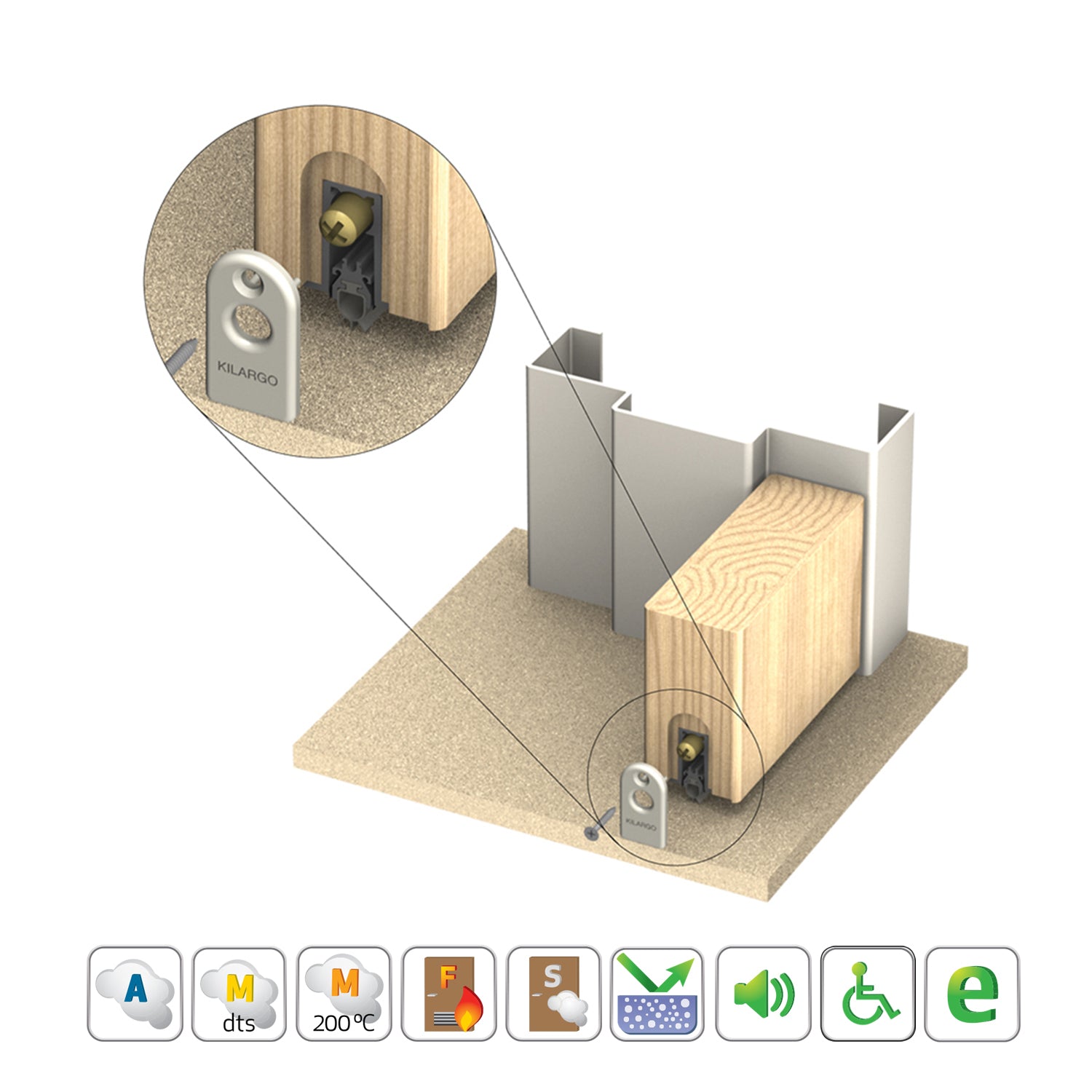

• fixed via flanges on the underside of the door, operating automatically by pressure against the door jamb on its adjustable strike button.
• contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
• Aesthetic brass adjustment button and injection moulded, nylon screw-fixed radiused end plates ensure longevity of the seal mechanism, avoiding dust build-up and preventing foreign matter entering the mechanism housing.

Specifications:

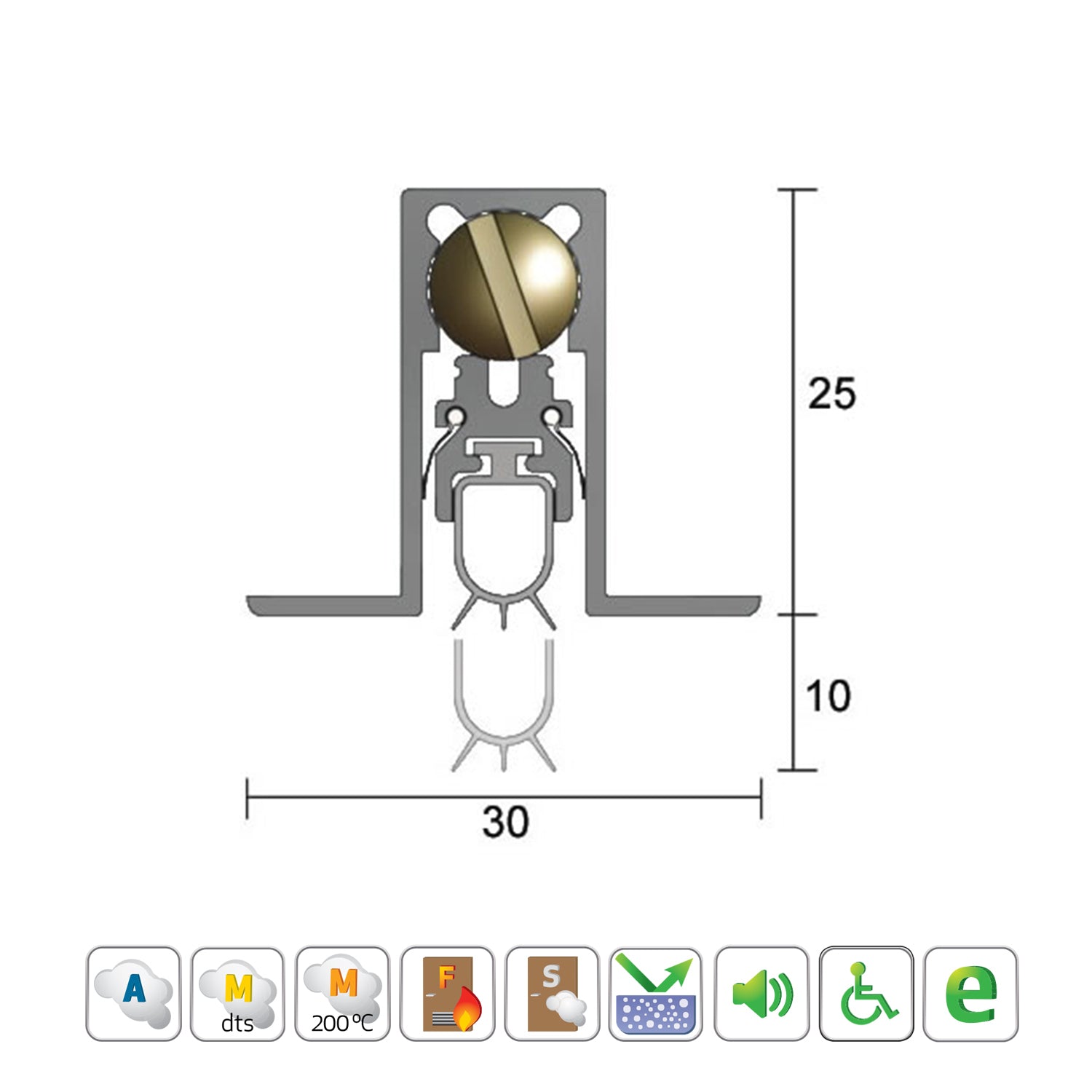

• Gap Size: Min. 3mm / max. 10mm
• Available Sizes:
  • 380mm seal cuts to 275mm
  • 600mm seal cuts to 380mm
  • 820mm seal cuts to 600mm
  • 920mm seal cuts to 820mm
  • 1070mm seal cuts to 920mm
  • 1220mm seal cuts to 1070mm
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles
