Kilargo IS8530si Heavy duty fully mortised seal (1500mm cuts back to 1220mm)

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

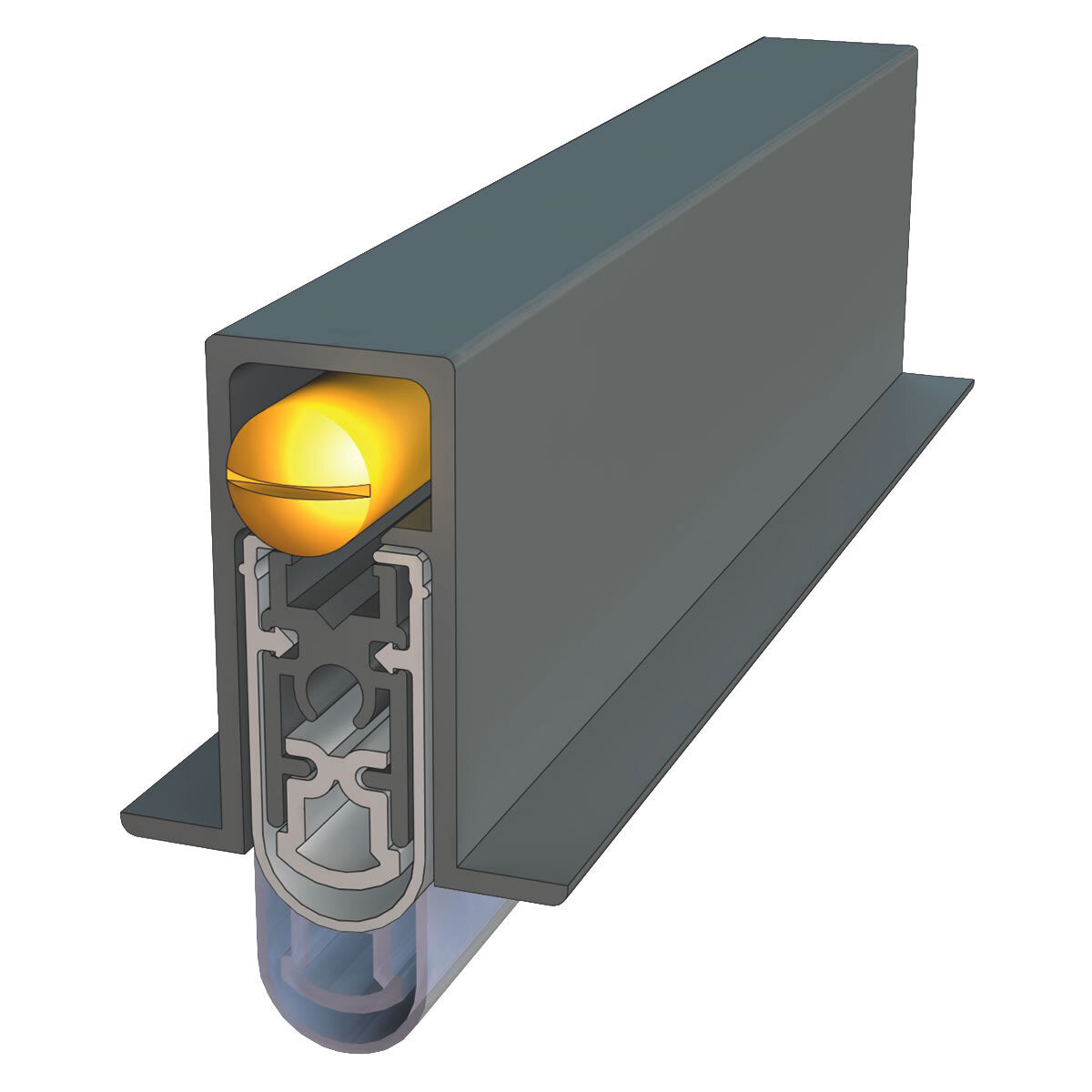

A heavy duty, automatic door bottom seal, designed for highperformance acoustic door systems., which is fully mortised into the bottom of single action doors. The seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion as soon as the door is opened.

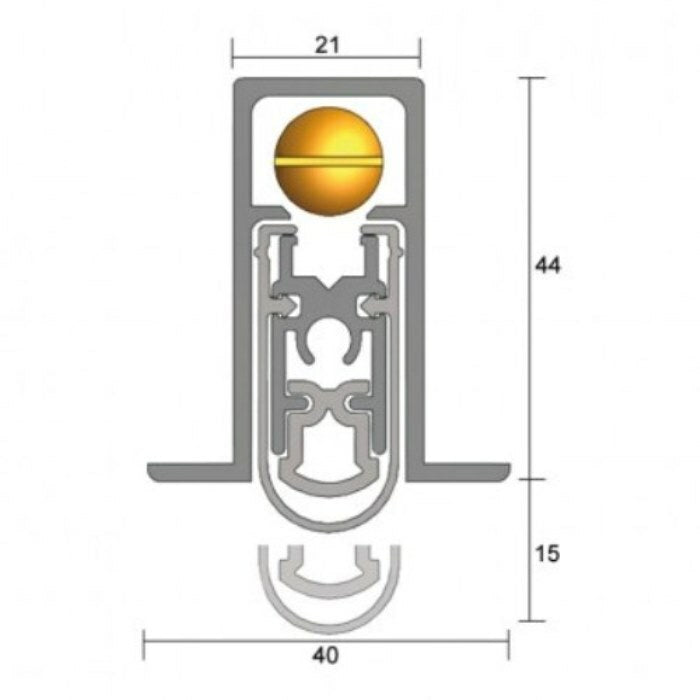

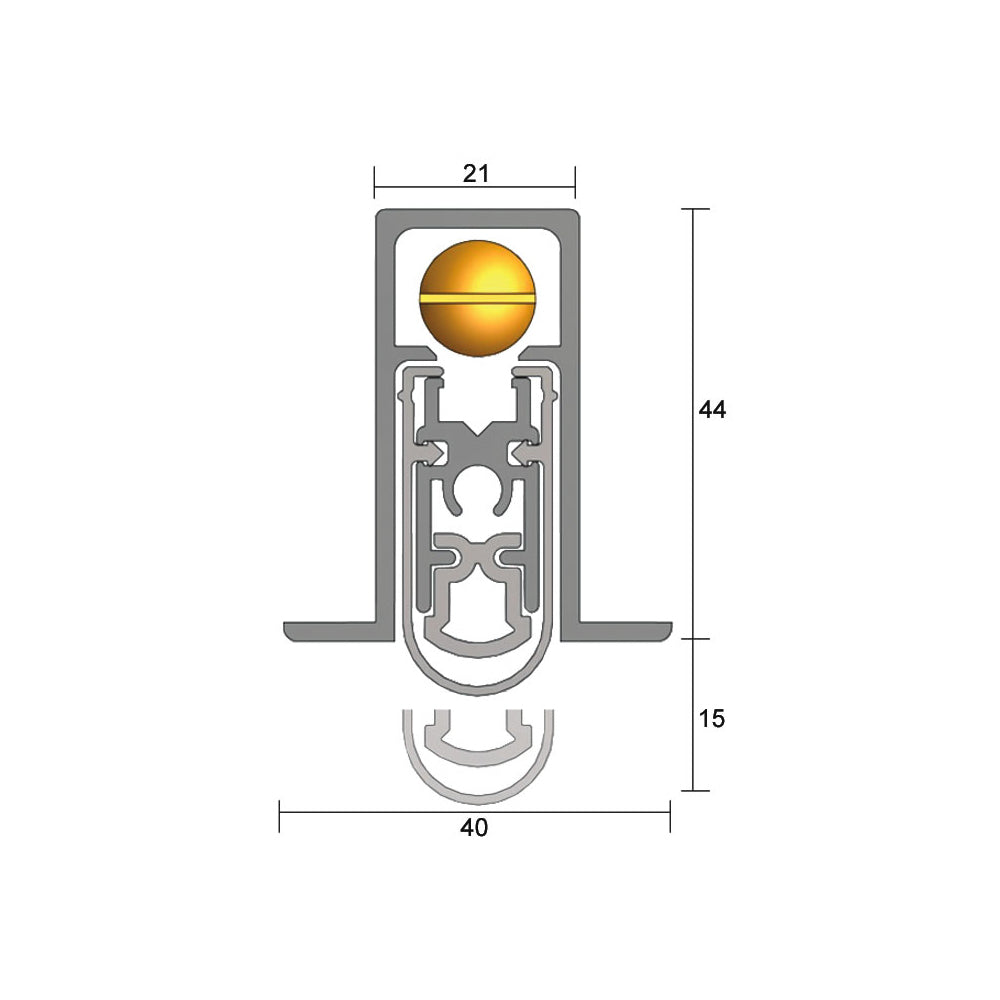

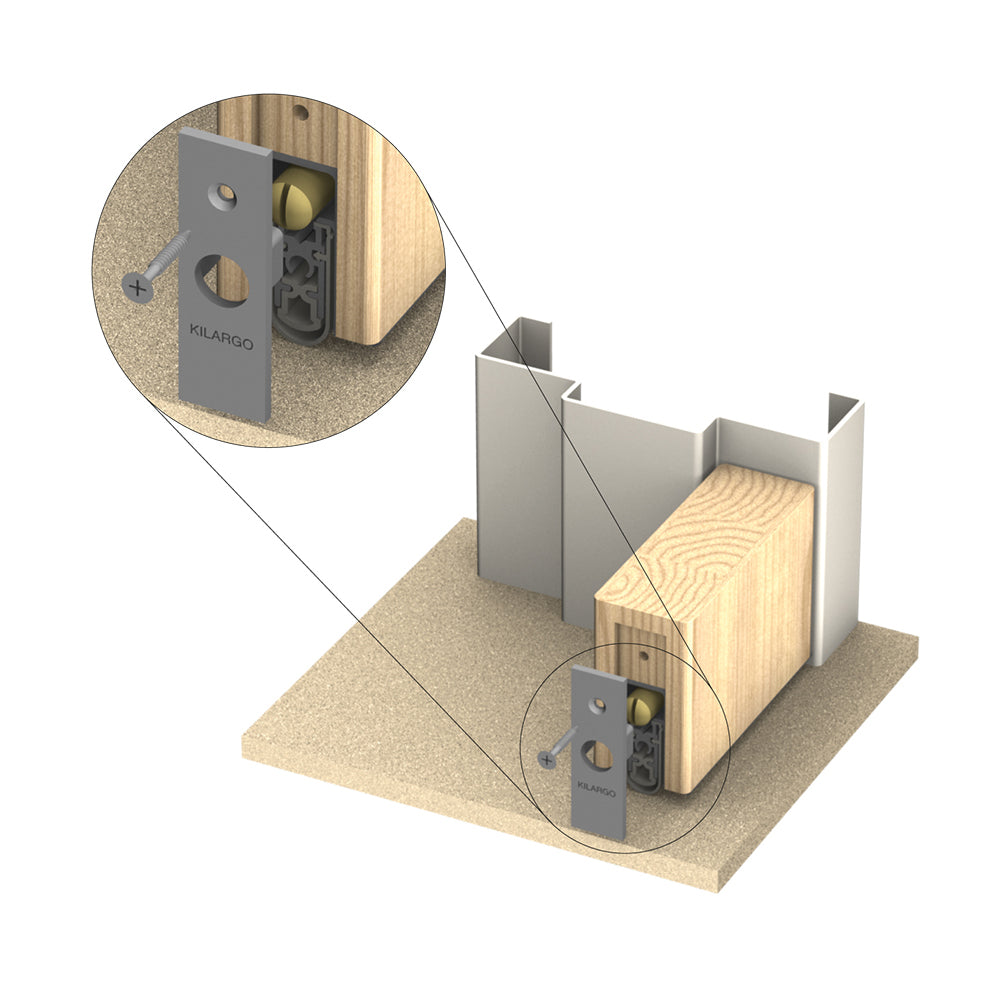

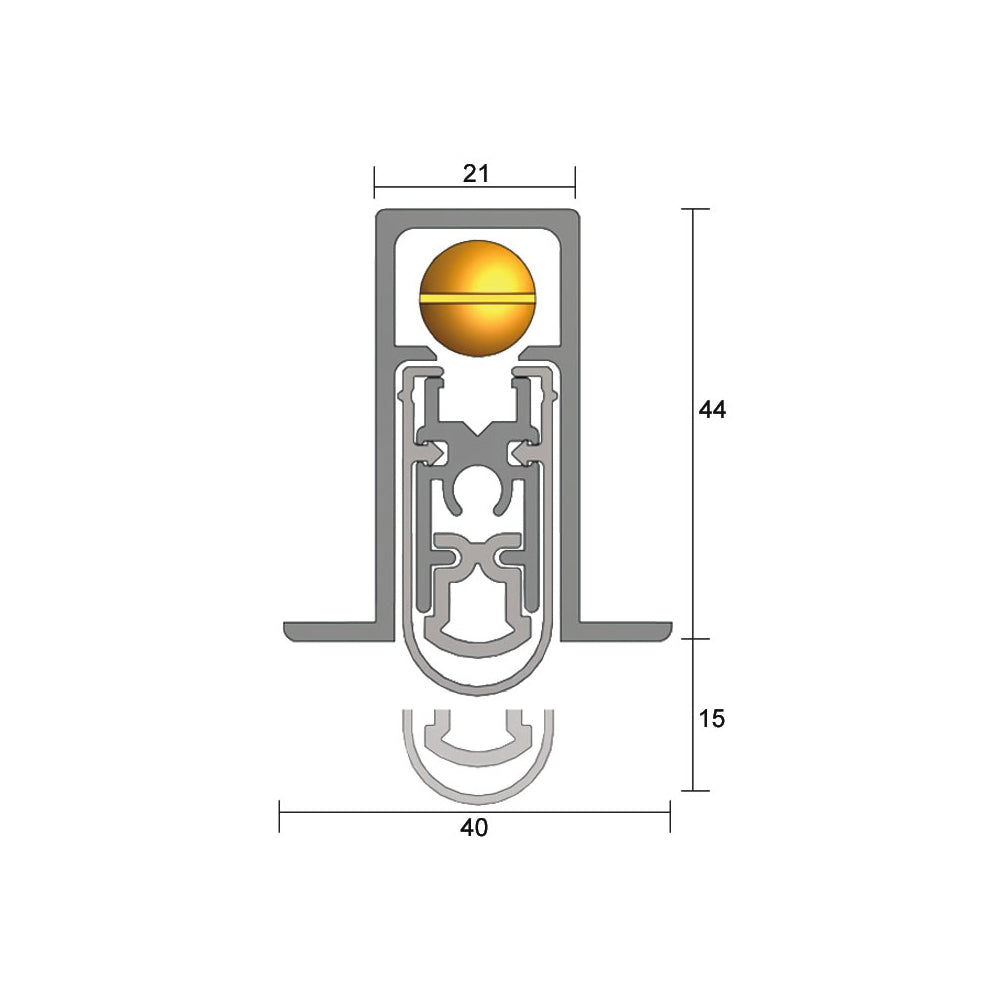

Pressure against the door jamb on the adjustable brass strike button operates the seal automatically. The seal is mounted into a 43mm deep x 21mm wide machined groove along the underside of the door. The seal is screw-fixed into position through the mounting flanges. Aesthetic, screw-fixed cast-aluminium end plates ensure longevity of the seal mechanism.

Gap size

• Min. 6mm / max. 15mm

Standard lengths

• 420mm
• 520mm
• 610mm
• 820mm
• 920mm
• 1070mm
• 1220mm
• 1500mm

IS8530si maximum allowable cut-back sizes:

• 420mm seal cuts to 275mm
• 520mm seal cuts to 420mm
• 610mm seal cuts to 520mm
• 820mm seal cuts to 610mm
• 920mm seal cuts to 820mm
• 1070mm seal cuts to 920mm
• 1220mm seal cuts to 1070mm
• 1500mm seal cuts to 1220mm

(*Seals can be cut on site for exact dimension)

Standard colours

• Silver anodised aluminium with cast-aluminium end plates and grey silicone gasket

(Black cast-aluminium end plates and black silicone gaskets also available upon request)

Approval/s

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with NCC Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles
