Kilargo KG4002 Intumescent Self Adhesive Fire Seal - Available in Various Finishes and Sizes

Kilargo KG4002 Intumescent Self Adhesive Fire Seal
KG4002-1000 SIL

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Intumescent Fire Seal is commonly used in various types of buildings and applications where fire protection and smoke control are essential.

Intumescent Fire Seal  Function - designed to help prevent the spread of fire and smoke through doors, particularly in commercial and public buildings where fire-rated doors are installed.

Application:

• Used to upgrade existing fire doors with up to and including 6mm perimeter gaps

Key Features:

• Can provide up to 2 hours fire resistance on proprietary fire doors
• Non compliant fire doors can be salvaged
• Cost-effective solution
• Easy retro-fit installation
• Ideal for fire engineered solutions where extra protection is necessary for life safety
• Consists of a flame retardant PVC top hat section, encapsulating a high performance intumescent material and two rows of aggressive self-adhesive tape

Specificatins:

• Gap Size: Up to and including 6mm perimeter gaps.

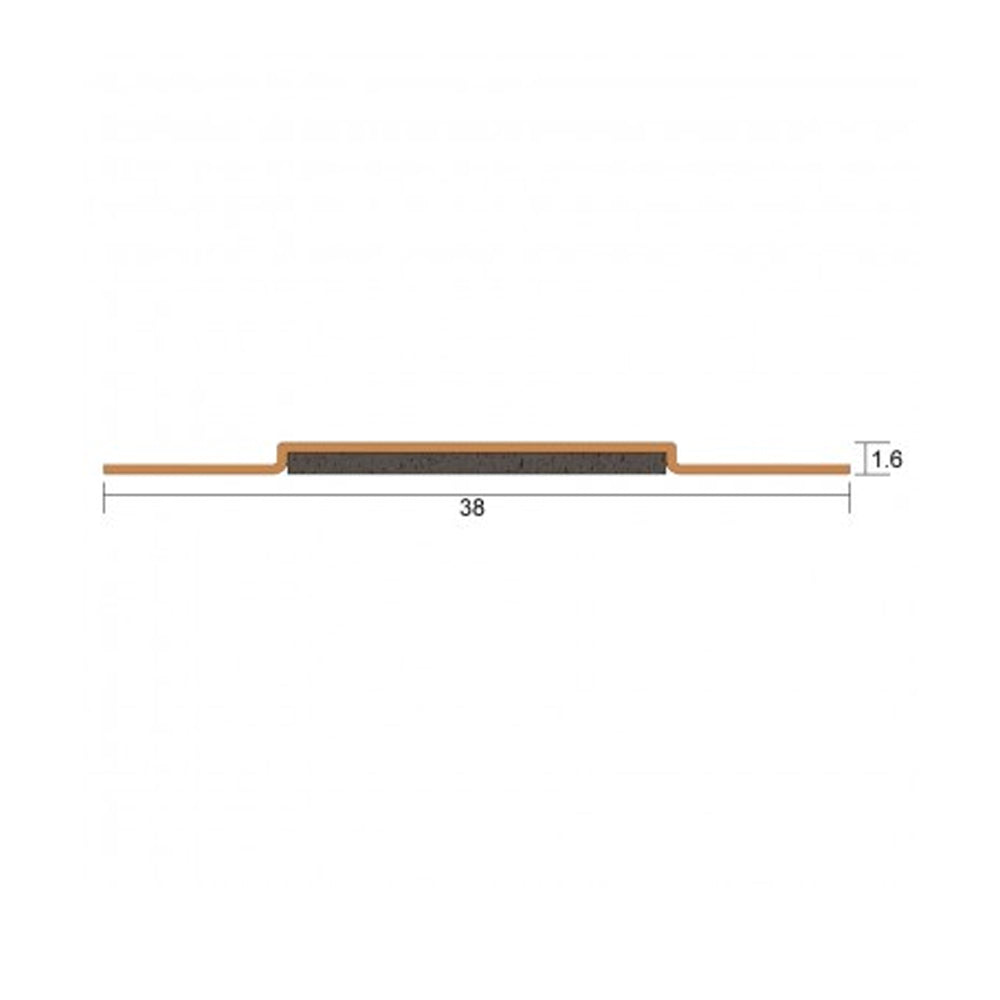

• Dimension: 38mm x 1.6mm
• Length: 1000mm
• Finish: Silver

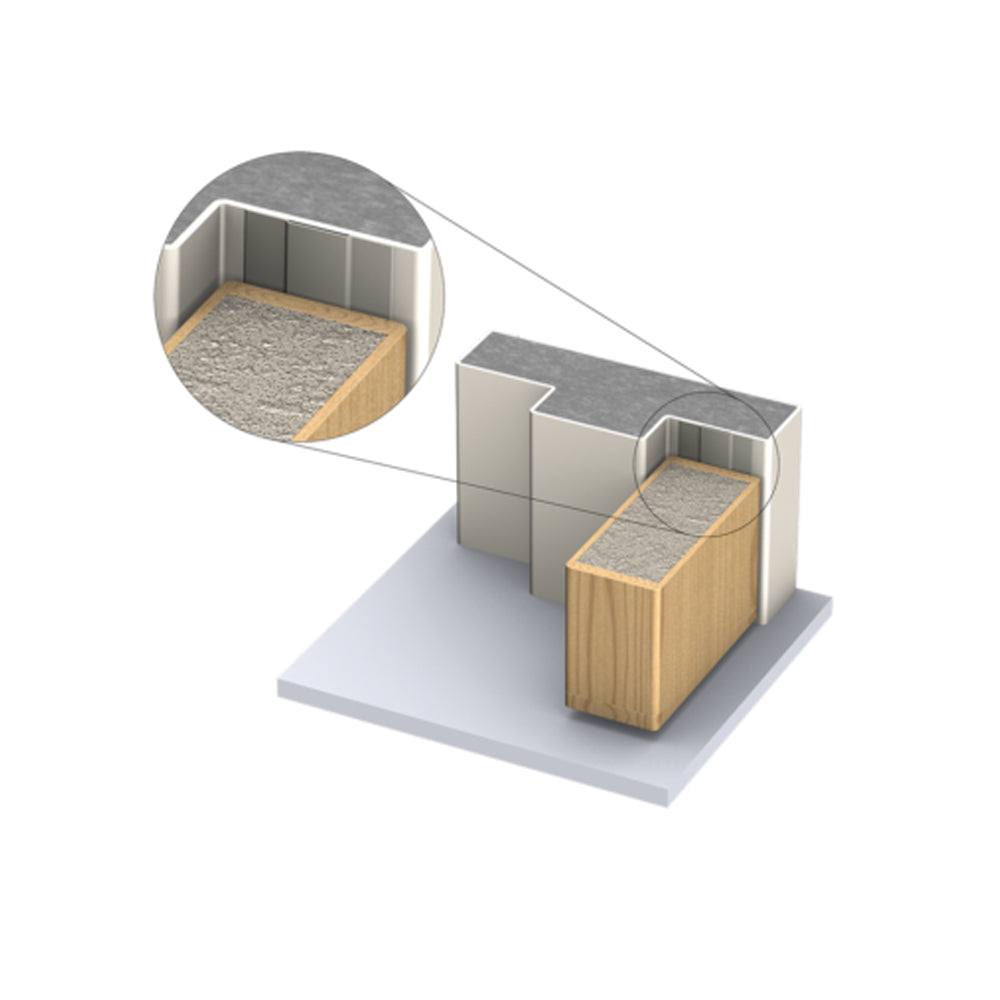

• Fixing: The KG4002 intumescent seal is simply applied to the top and sides of the door frame with two rows of aggressive self-adhesive tape. No screw fixing required.

Approval:

• Fire tested to AS1530 Part 4 for up to 2 hours on proprietary fire doors in accordance with AS1905 Part 1

Note: Please check with our Technical Department or the Fire Door Manufacturer for relevant test approvals and suitability for door type.
