Kilargo KG5102 Two piece high performance selfadhesive intumescent fire seal

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Low-profile intumescent perimeter seal set designed to upgrade existing proprietary fire doors.

Application

Allows for a cost-effective and clean build-up of non-rated steel frames with only 15mm stops, in lieu of the conventional 25mm stops required for fire doors.

Key Features

• Can provide up to 2 hours fire resistance on proprietary fire doors.
• Non compliant fire doors can be salvaged.
• Cost-effective solution.
• Easy retro-fit installation.
• Ideal for fire engineered solutions where extra protection is necessary for life safety.

Materials

Consis Twin Fin of 2 x purpose-designed flame retardant PVC top hat sections, encapsulating intumescent material, with aggressive self-adhesive backing tape.

Gap Size

Nominal 2mm to 3mm perimeter gaps.

Sizes

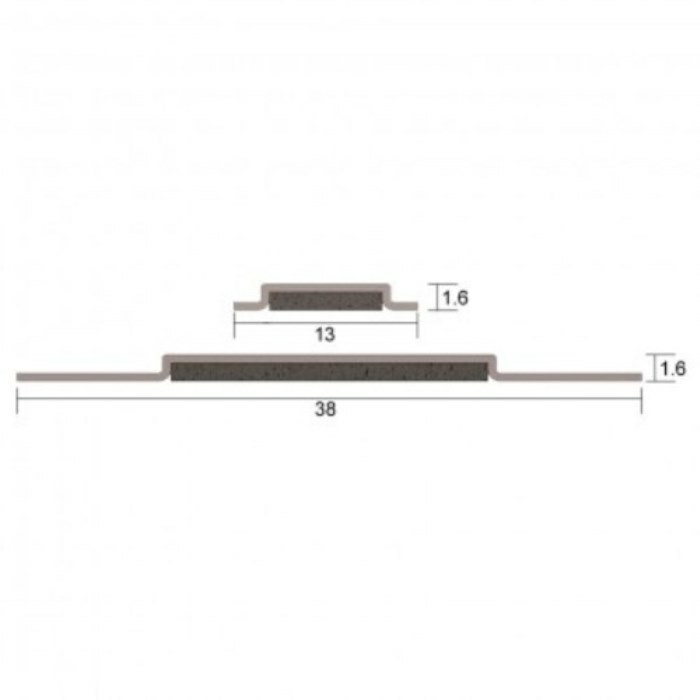

Dimensions: 1 x (38mm x 1.6mm)
1 x (13mm x 1.6mm)

Finish

Standard Colour: White, Silver
Can be painted on-site

Fixing

The KG5102 intumescent seal set is simply applied to the top and sides of the door frame with rows of aggressive self-adhesive tape. No screw fixing required.

Approval/s

• Fire tested to AS/1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
