Kilargo KP2504XX Rigid PVC encased intumescent fire seal

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

KP Series intumescent fire seals.

Application

Incorporated into the perimeter of fire door assemblies. When exposed to fire conditions, these strip seals expand to many times their original volume, sealing off the door perimeter to prevent the passage of hot smoke & other toxic gases.

Key Features

• Proven product with over 30 years in service history.
• Rebated into the door or frame for longevity in service.
• Decorative and protective PVC outer casing.
• Available in many sizes and finishes.
• Ideal for fire engineered solutions where extra protection is necessary for life safety.

Use With

Can be used in conjunction with a Kilargo medium temperature smoke seal such as the IS1212, IS1515 or IS0511 seal to maintain tenable conditions across all temperatures of smoke (ambient, medium and hot) in a typical fully developed fire scenario.

Materials

Kilargo high performance sodium silicate based intumescent core encapsulated in a rigid flame retardant PVC outer casing, complete with aggressive self-adhesive tape backing.

Gap Size

Minimum 1mm Maximum 3mm

The product si Twin Fin flush with the edge of the door leaf or door frame edge.

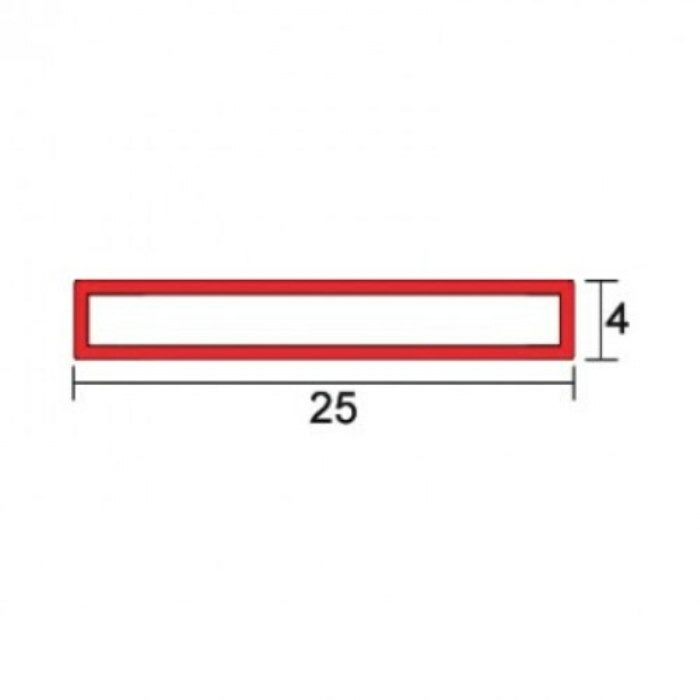

Sizes

Standard lengths: 1000mm, 2100mm, 2400mm, 2700mm, 3000mm

Finish

Standard Colour: Black, Grey (White & dark brown colours available to special order).

Fixing

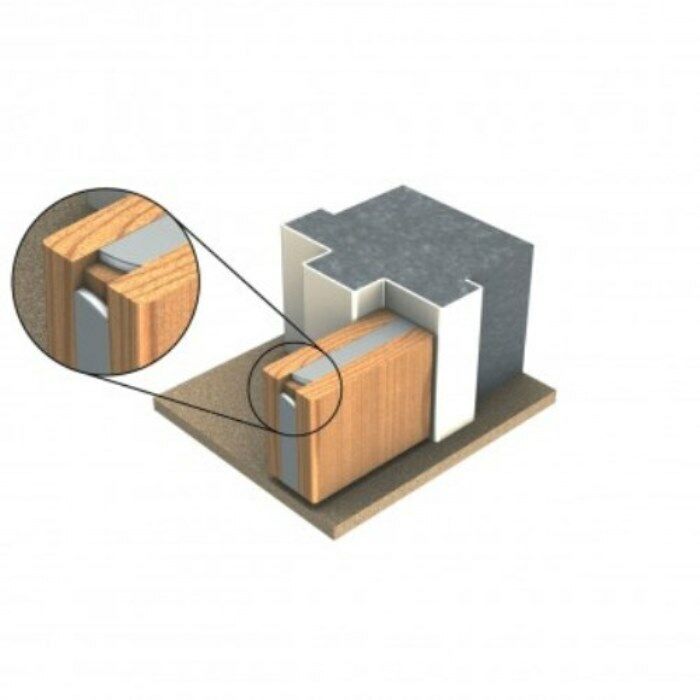

The product fi Twin Fin into a groove made in the door frame or the edge of the door leaf and is secured using the self-adhesive tape backing.

Approval/s

• Fire tested to AS1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
