Kilargo Medium Duty Concealed Automatic Door Bottom Seal
IS8010si
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:

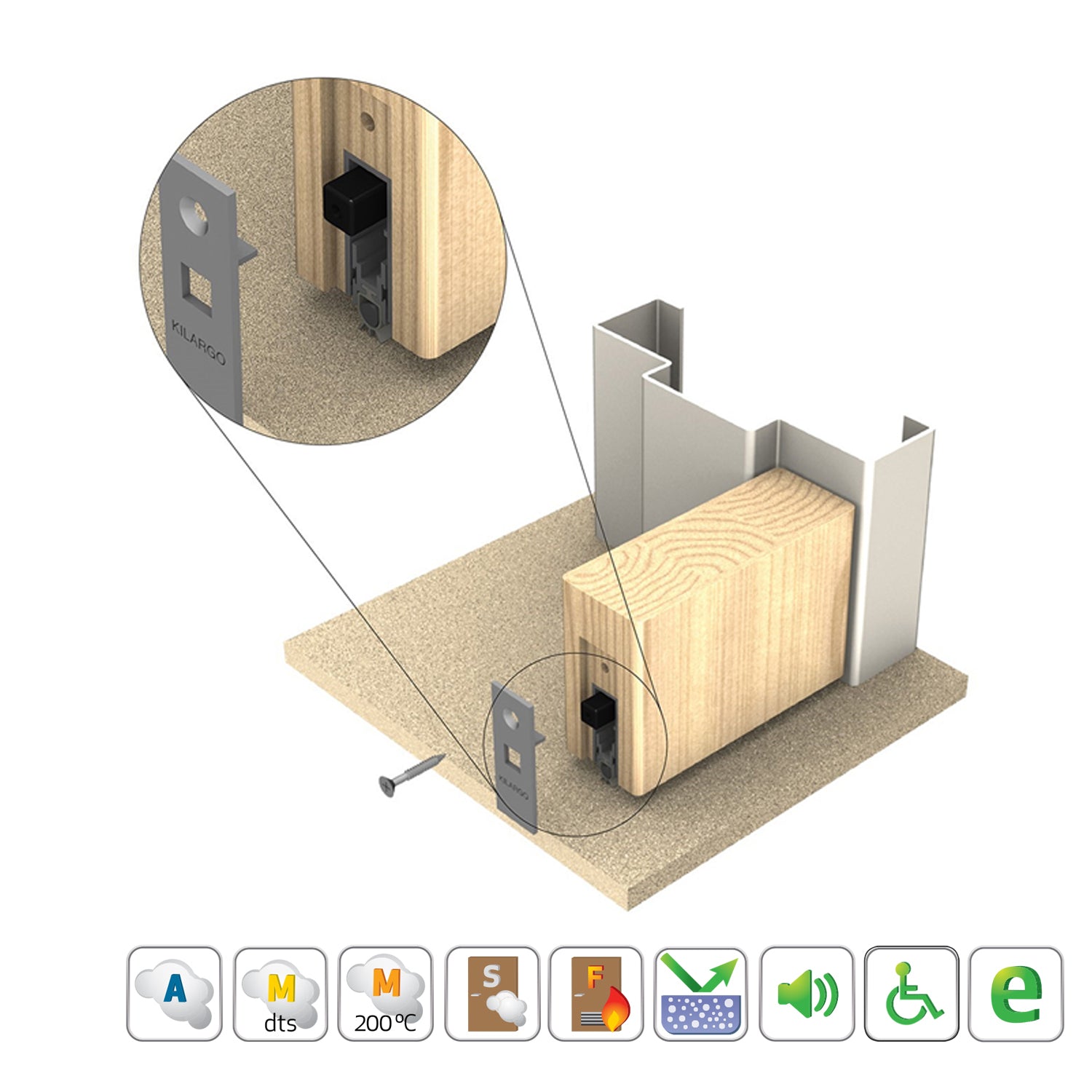

- Medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors
- It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.

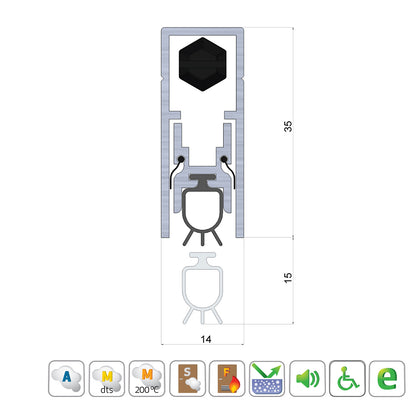

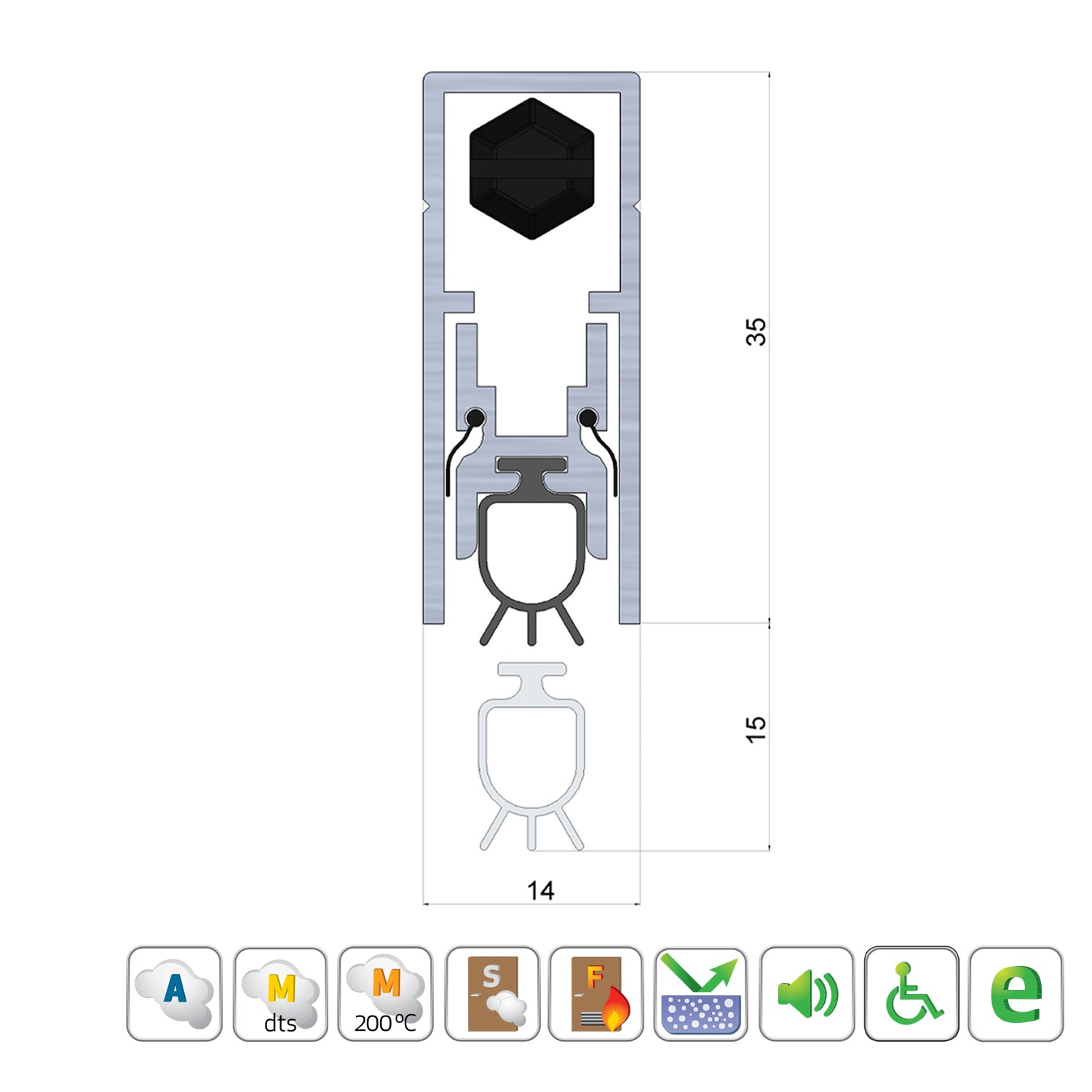

- Mounted into a 35mm deep x 15mm wide machined groove, the seal is screw fixed back into the door stiles via stainless steel end plates, holding the seal in place
- Operates automatically by pressure against the door jamb on its adjustable strike button
- Contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility)
Specifications:
- Gap size: 3mm (minimum) to 15mm (maximum)
-
IS8010si maximum allowable cut-back sizes:
- 380mm seal cuts to 275mm
- 600mm seal cuts to 380mm
- 820mm seal cuts to 600mm
- 920mm seal cuts to 820mm
- 1070mm seal cuts to 920mm
- 1220mm seal cuts to 1070mm
- 1300mm seal cuts to 1220mm
-
Available Size (Length):
- 380mm
- 600mm
- 820mm
- 920mm
- 1070mm
- 1220mm
- 1300mm
- Finish: Clear Anodised

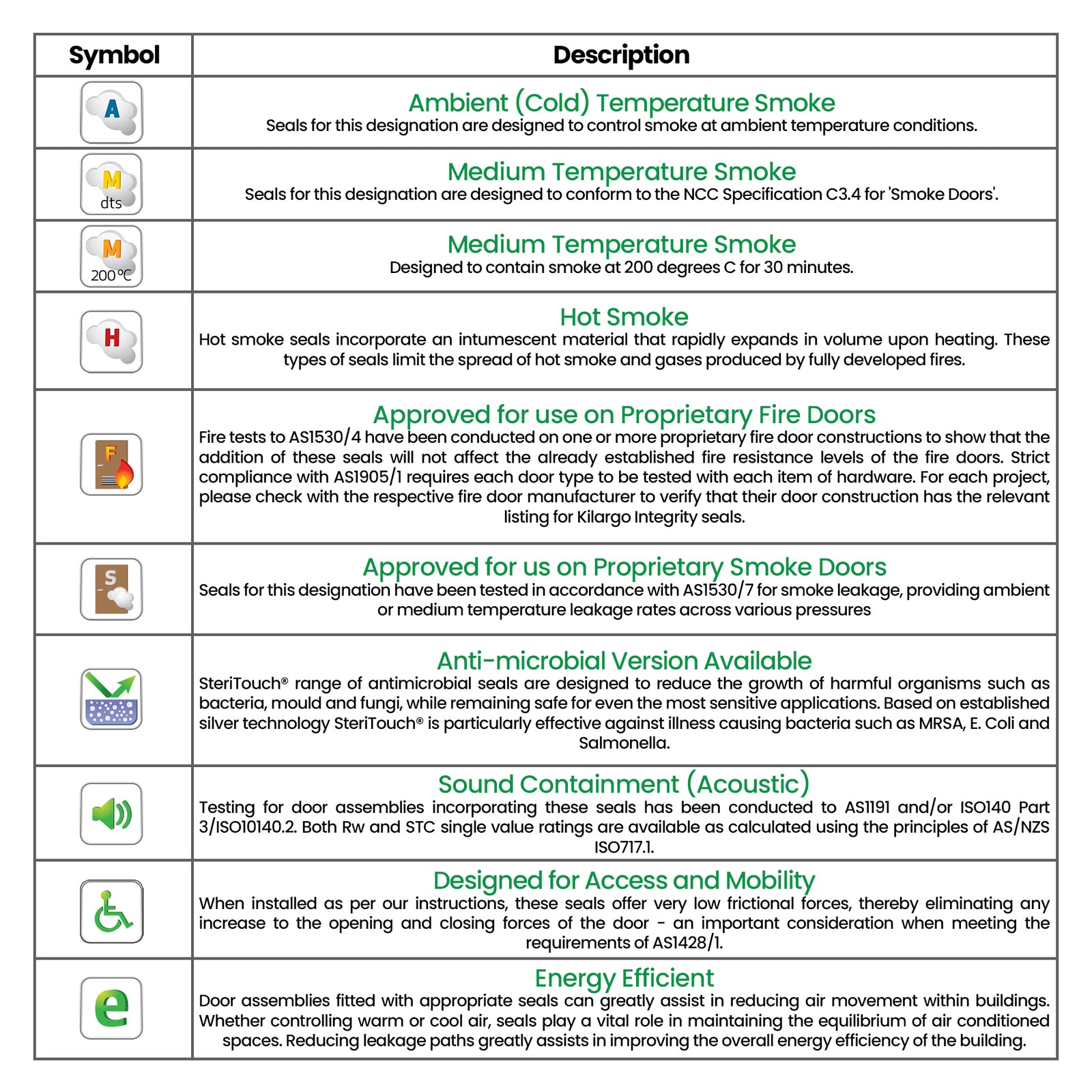

Approvals:
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Medium temperature smoke leakage approvals to AS1530 Part 7
- Compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Note: Radiused stainless steel end plates also available upon request.
Kilargo Medium Duty Concealed Automatic Door Bottom Seal
IS8010si-1220CA
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors
- It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Mounted into a 35mm deep x 15mm wide machined groove, the seal is screw fixed back into the door stiles via stainless steel end plates, holding the seal in place
- Operates automatically by pressure against the door jamb on its adjustable strike button
- Contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility)
Specifications:
- Gap size: 3mm (minimum) to 15mm (maximum)
- Length: 1220mm
- Antimicrobial: No
- Maximum Allowable Cut-Back Sizes: 1220mm seal cuts to 1070mm
- Finish: Clear Anodised
Approvals:
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Medium temperature smoke leakage approvals to AS1530 Part 7
- Compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Note: Radiused stainless steel end plates also available upon request.
