SKU: ALLLCC4031TSV
LCN EN1-3 Regular Door Track Closer Aluminium LCN4031T
RRP: $556.88
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

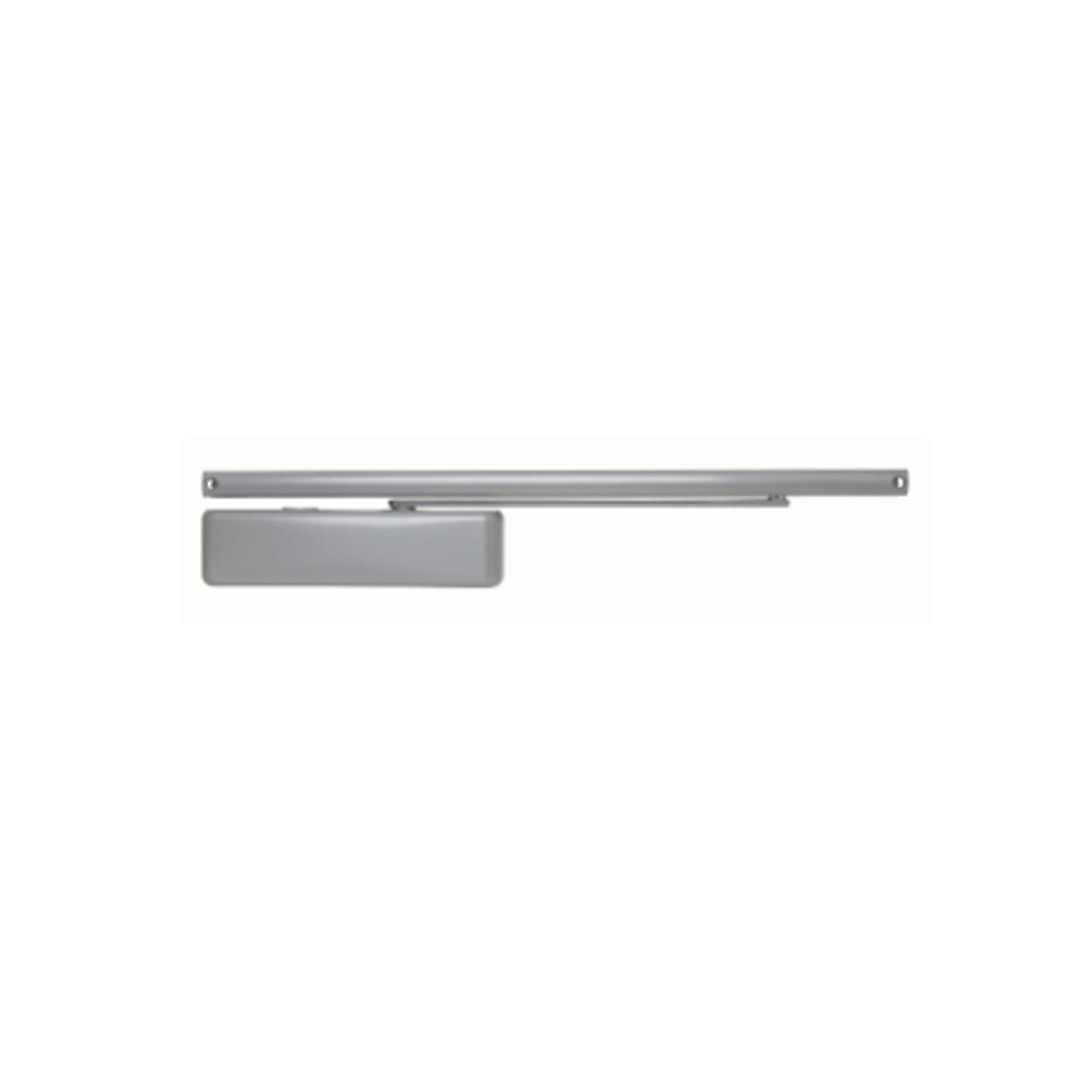

Legge Regular Door Track Closer
LCN4031T
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 1,500,000 cycles
- Fully adjustable 1-3 strength
- Independent adjustment valves for backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
Specifications:
-

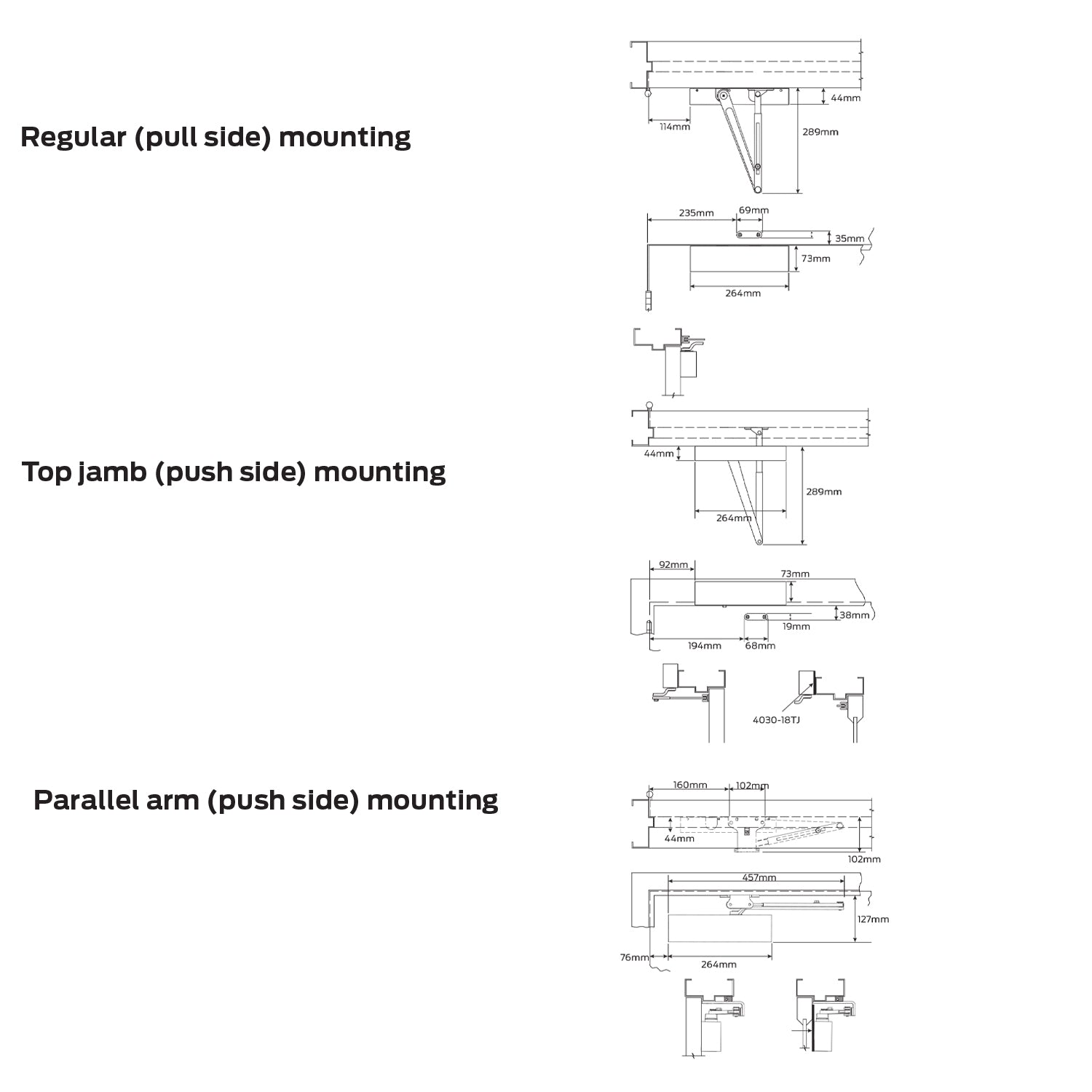

Applications
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Power: EN1-3
-
Adjustment controls:
- Closing speed
- Latching speed
- Backcheck
- Body Material: Cast Iron
- Finish: Aluminium
SRI:
- For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat finish of your choice, or a custom powder coat finish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes
Note:
- In areas of high wind pressure and/or air conditioning pressures, the LCN Automatic Door Operators are recommended
Ratings/Compliant:
- Successfully tested on fire door assemblies in accordance with AS1905 Part1: Fire resistance doorsets. Check with fire door manufacturer prior to installation.
- Compliant to the AS 1428:1-2009 Design for Access and Mobility Caution: When door closers are installed and adjusted to meet reduced opening force requirements, there may be insufficient power to reliably close and latch the door, depending on prevailing operating conditions.
