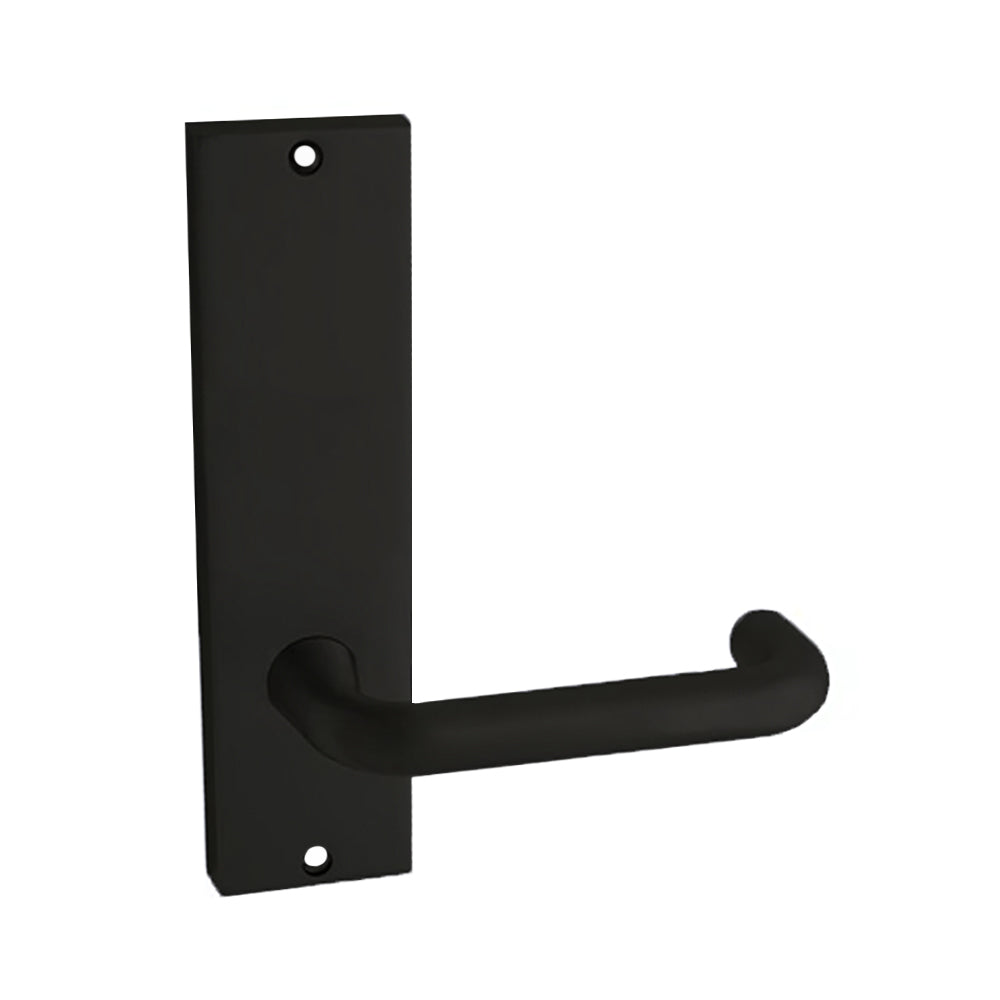

Legge Internal Lever Only On Plate Alpha 29 Lever Matt Black 712/29MB

Legge Internal Lever Only On Plate Alpha 29 Lever Matt Black
712/29MB

Features:

• Designed for use on commercial applications, including interior and exterior doors for retail, educational, governmental, medical and public buildings.
• Designed for use with the Legge 990MF mortice locks and latches or alike products, these handles are constructed from commercial-grade quality components, with forged brass levers and plates.

Specifications:

• Material: Forged Brass
• External plates are supplied with fixing screws to suit door thickness between 32 and 50mm
• Door Thickness: 32mm to 50mm
• Material: Forged Brass
• Spindle: Furniture accepts 7.6mm spindle
• Handing: Reversible or Handed depending on lever design
• Fixing: Plates are designed to fit back to back i.e. if the External (Ext) plate is specified with concealed fixing, then the Internal (Int) plate must be visible fixed.
• Plate Size: 172h x 46w x 11d (mm)
• Screw fixing spacing: 158mm
