SKU: ALLG2SCLASCPKD70MM

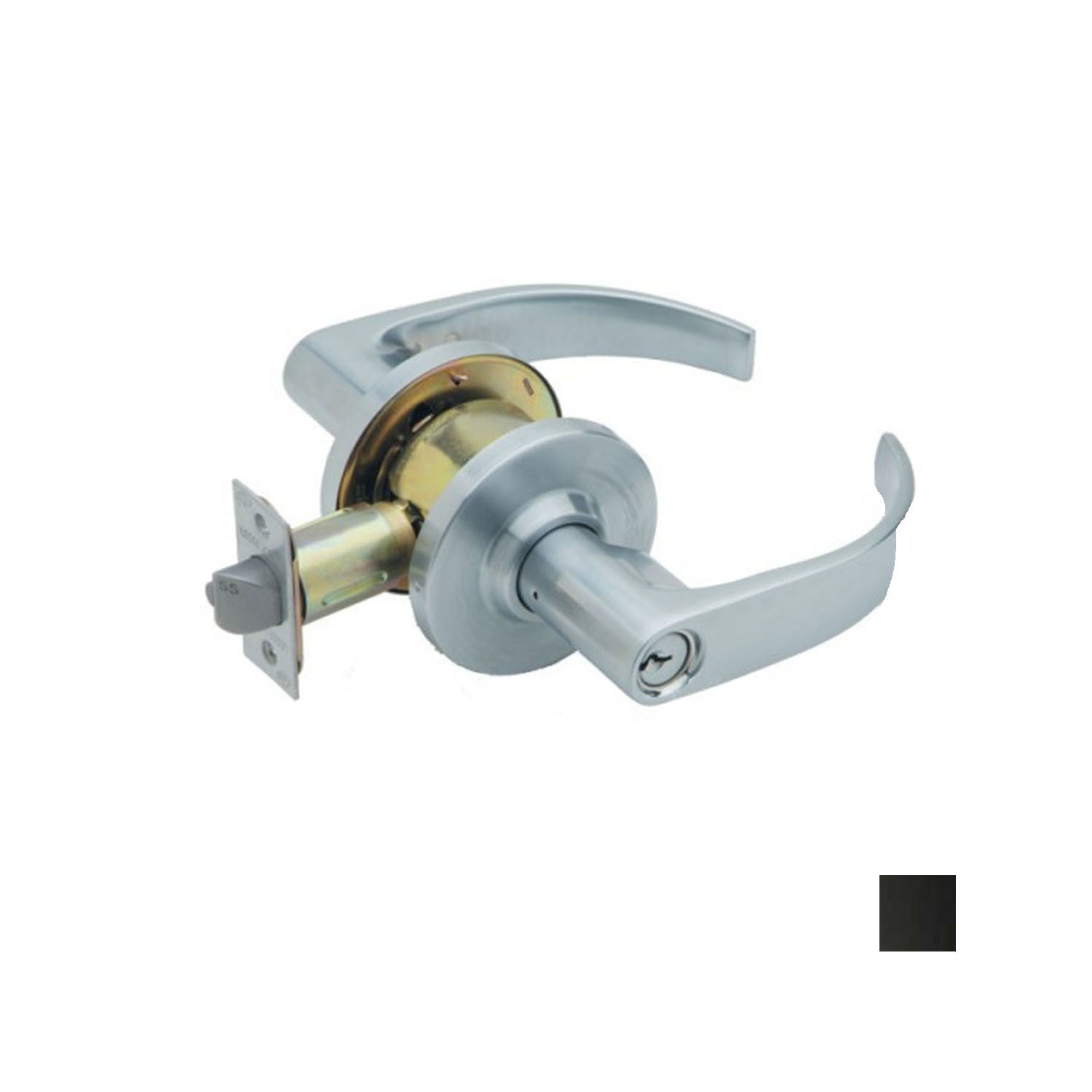

Legge Sparta G2 Series Door Lever - Available In Various Finishes and Functions
RRP: $192.68
Payments accepted:
Couldn't load pickup availability














There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Legge Sparta G2 Series Door Lever Set
Available Functions:
- Classroom Lever Function - Outside lever locked and unlocked by key. Inside lever always unlocked

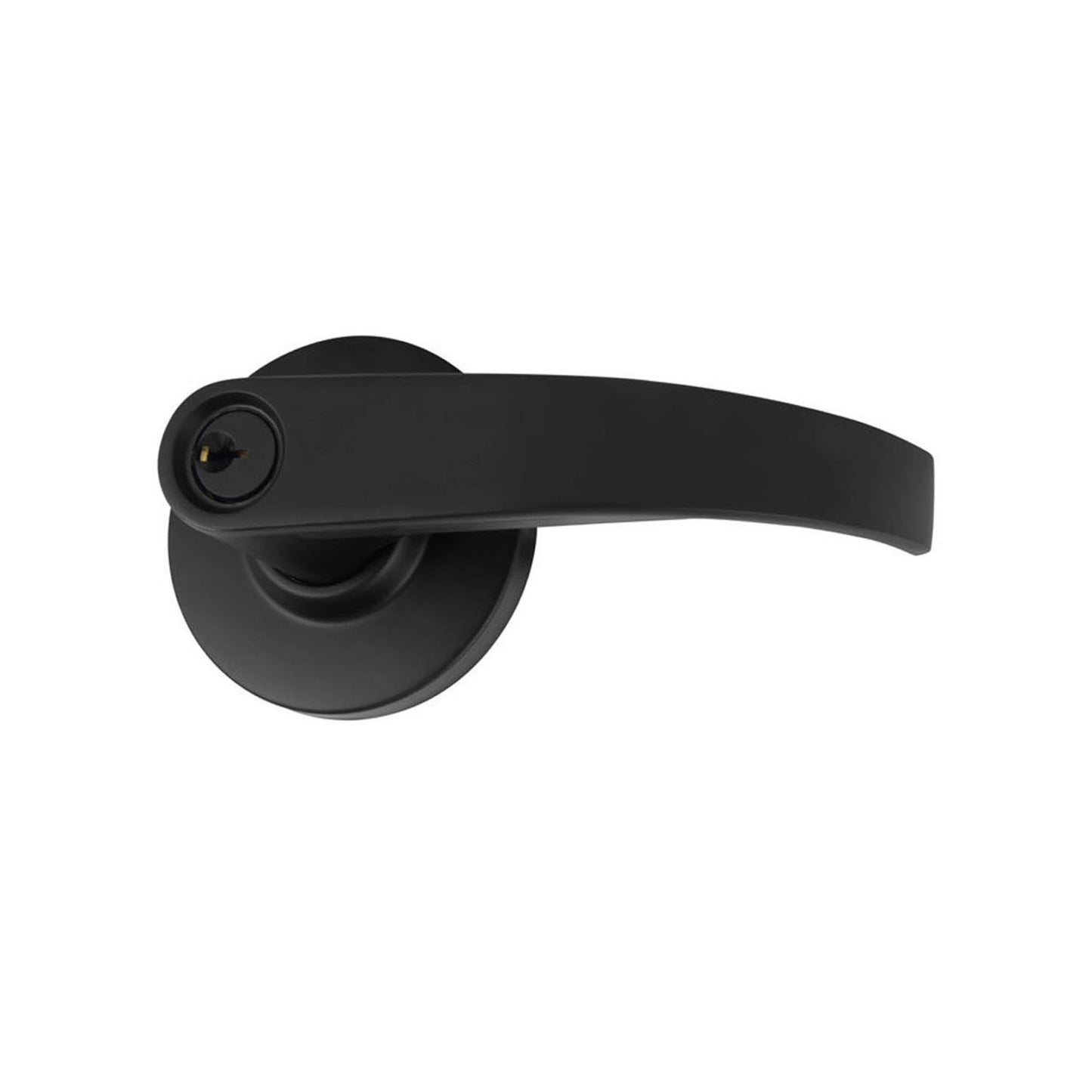

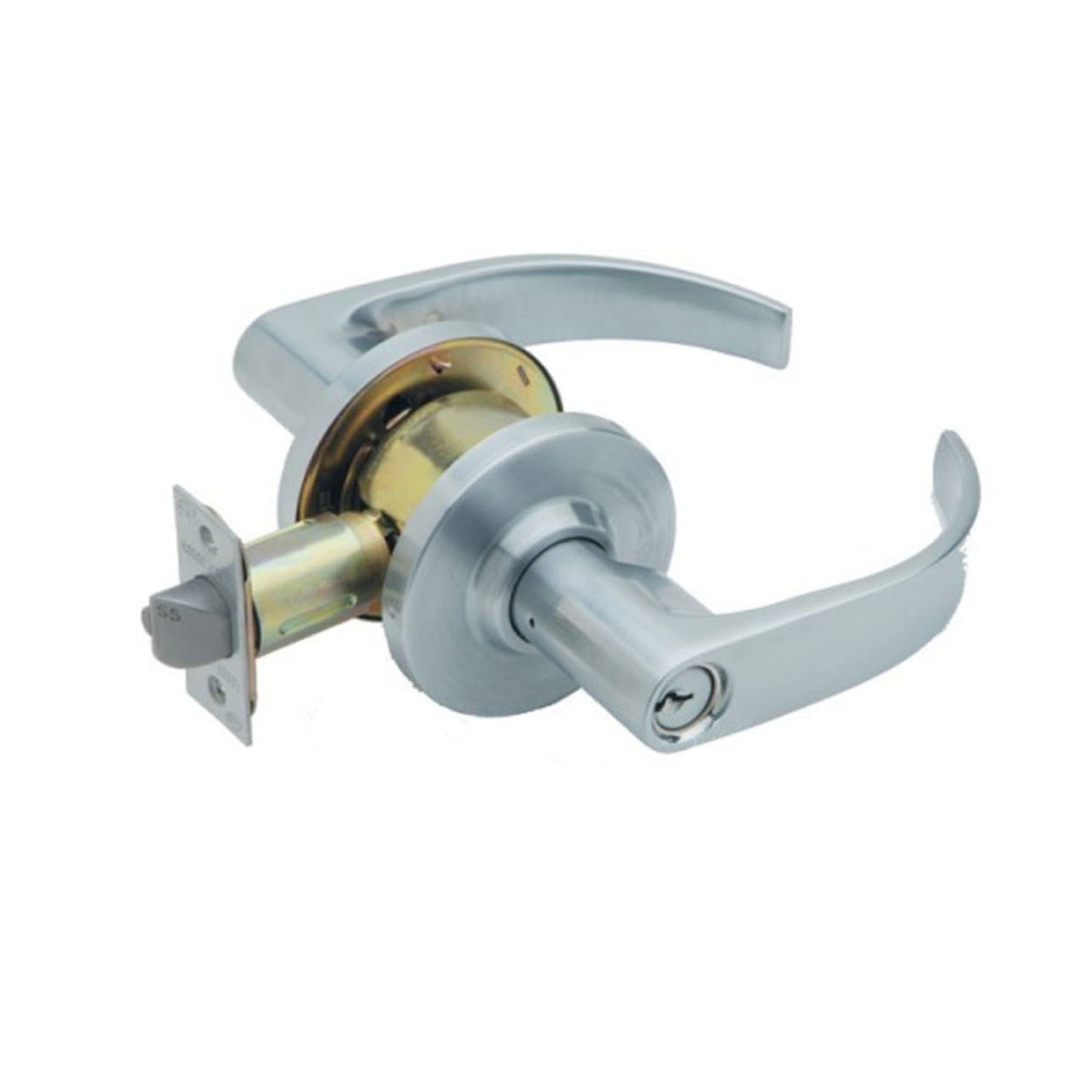

- Entrance Lever Function - Key outside locks/unlocks both handles simultaneously. Key inside locks/unlocks both handles simultaneously

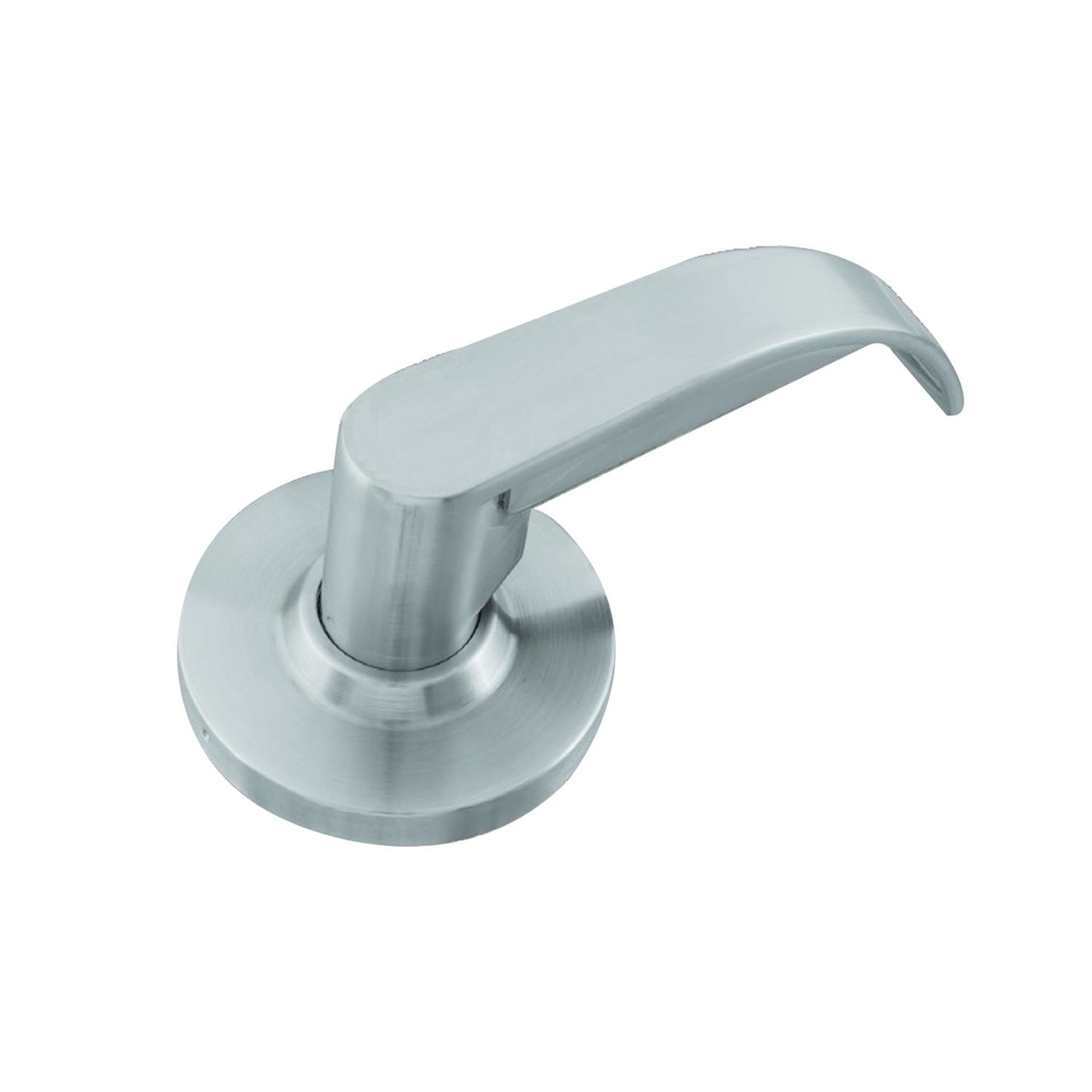

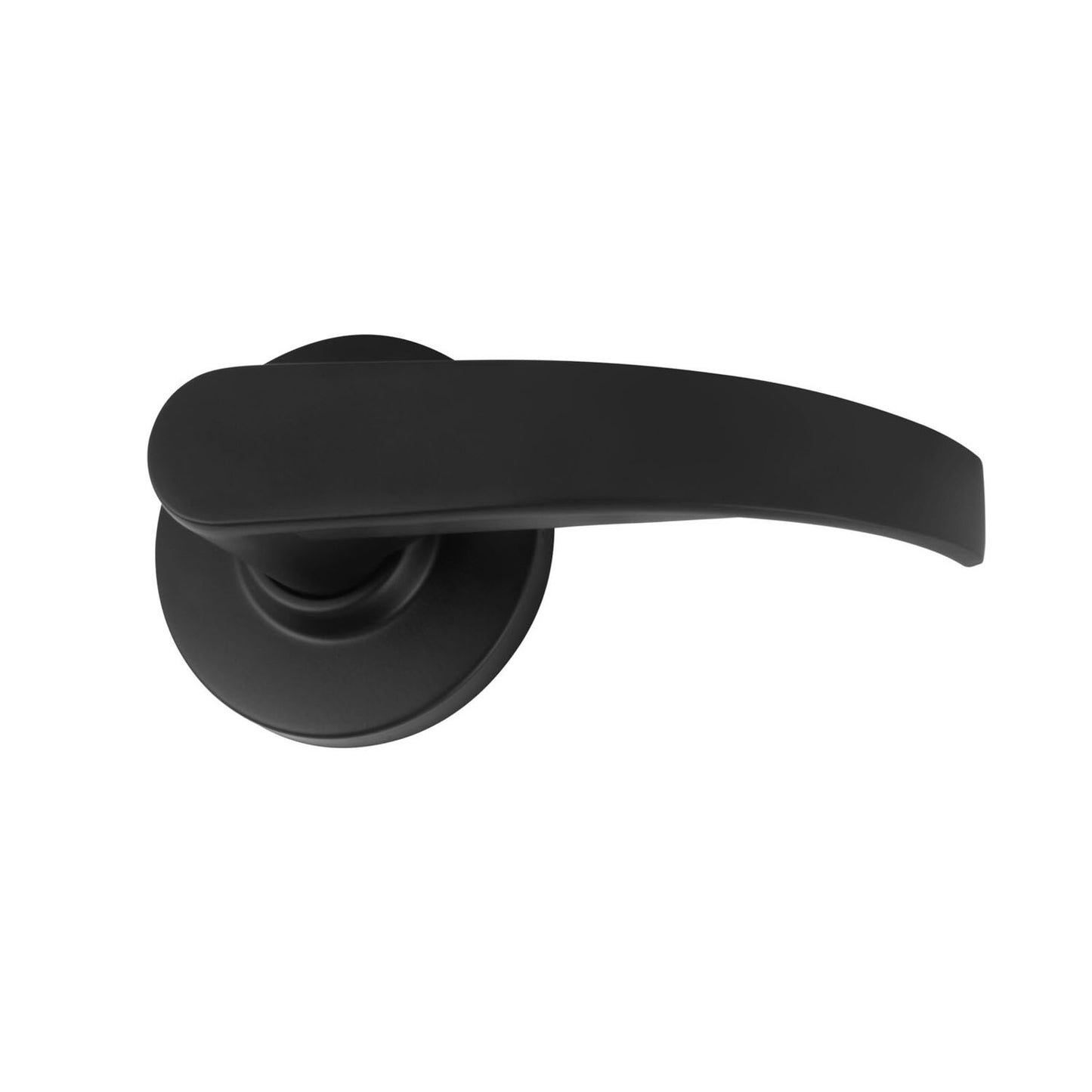

- Passage Lever Function - Both levers always unlocked

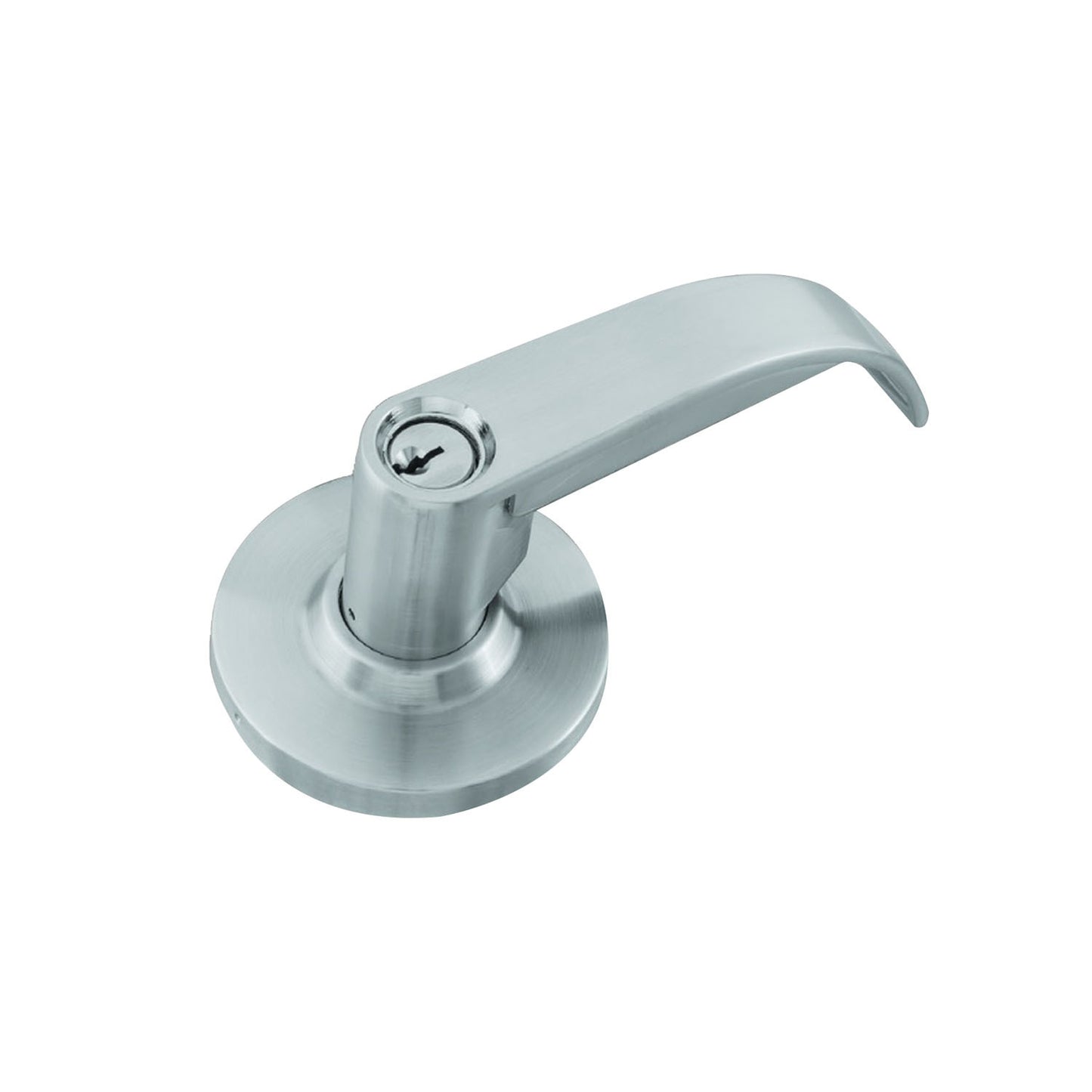

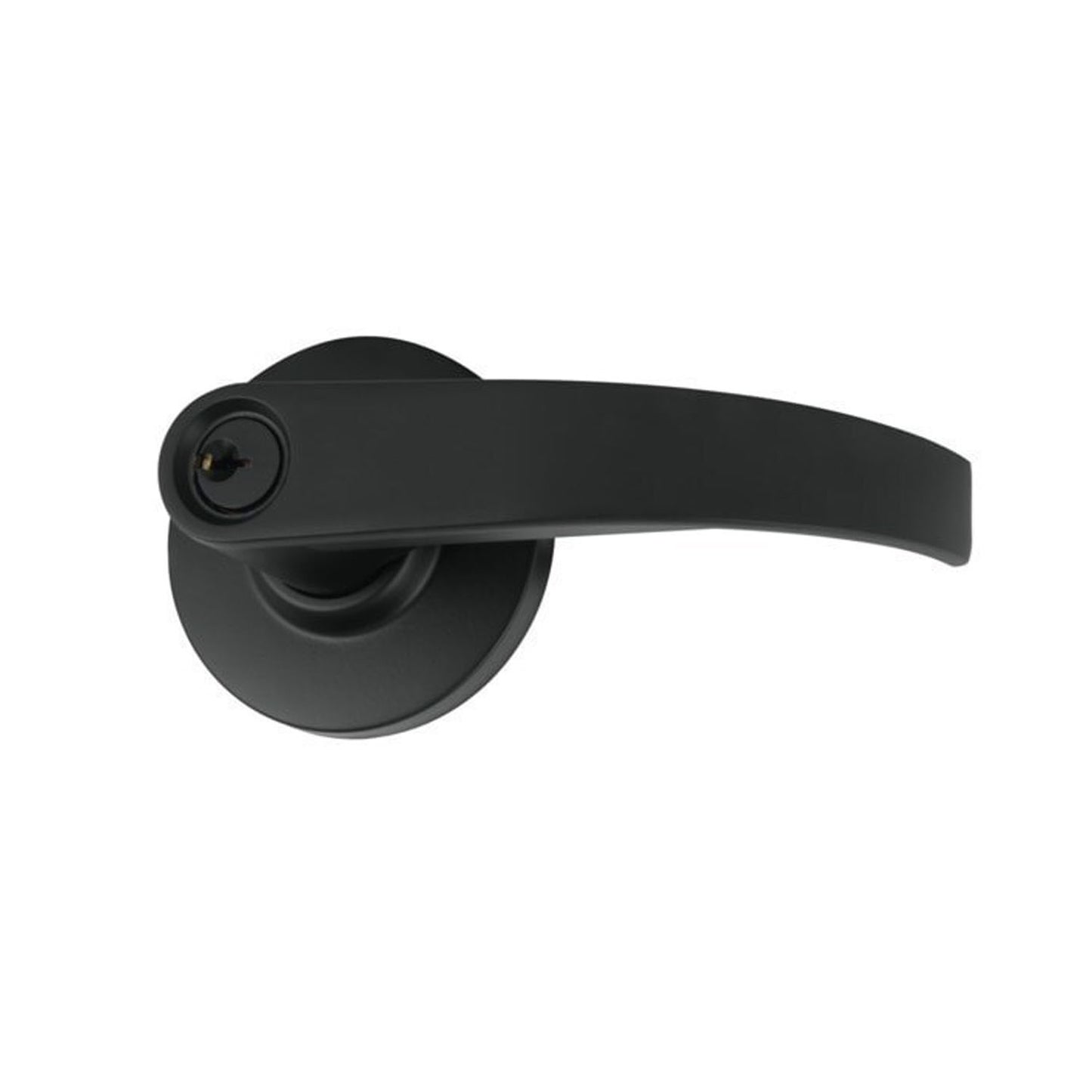

- Storeroom Lever Function - Outside lever fixed. Entrance by key only. Inside lever always unlocked

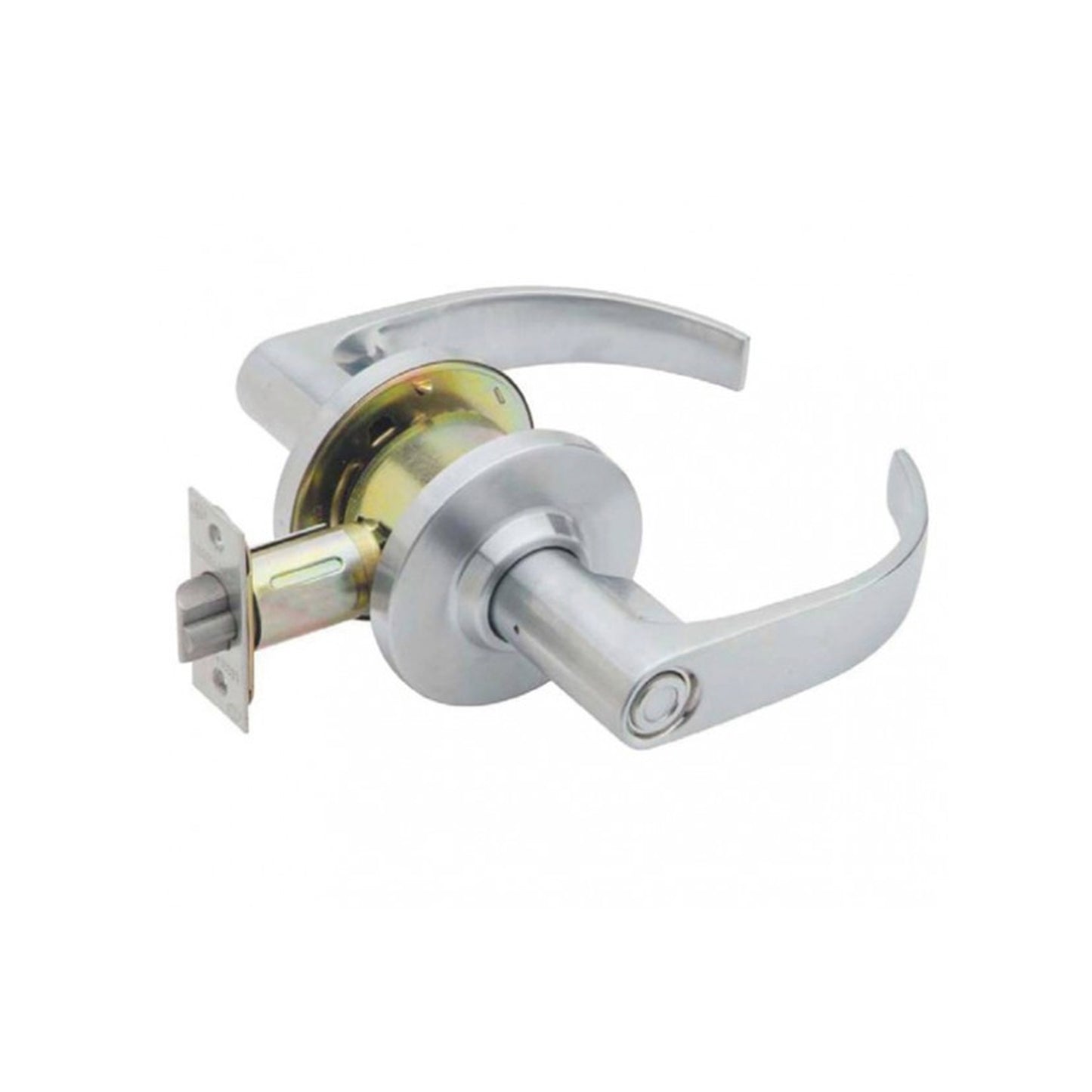

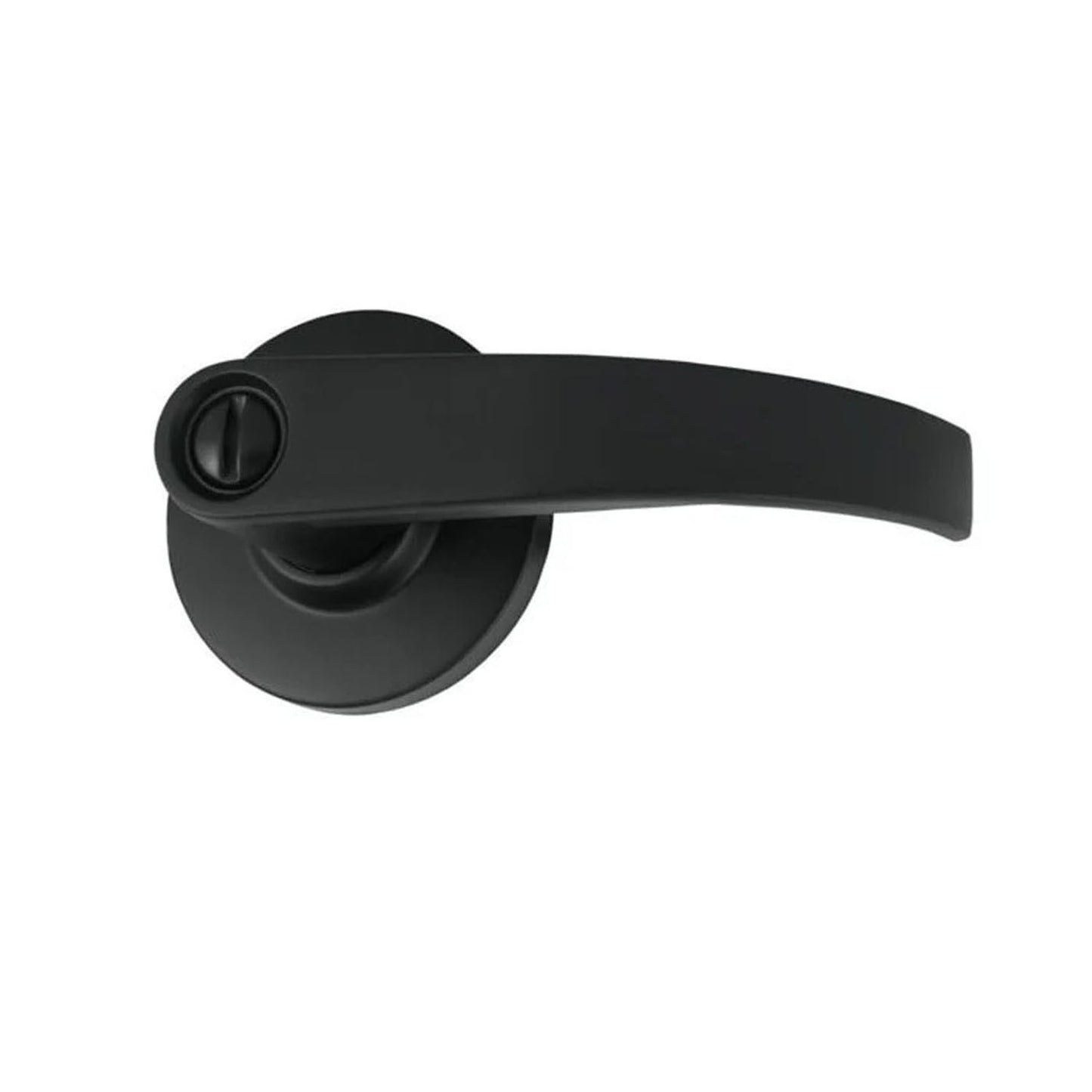

- Bath / Bedroom Privacy Lock - Push-button locking locks outside lever. Turning inside lever releases button. Outside lever has emergency release

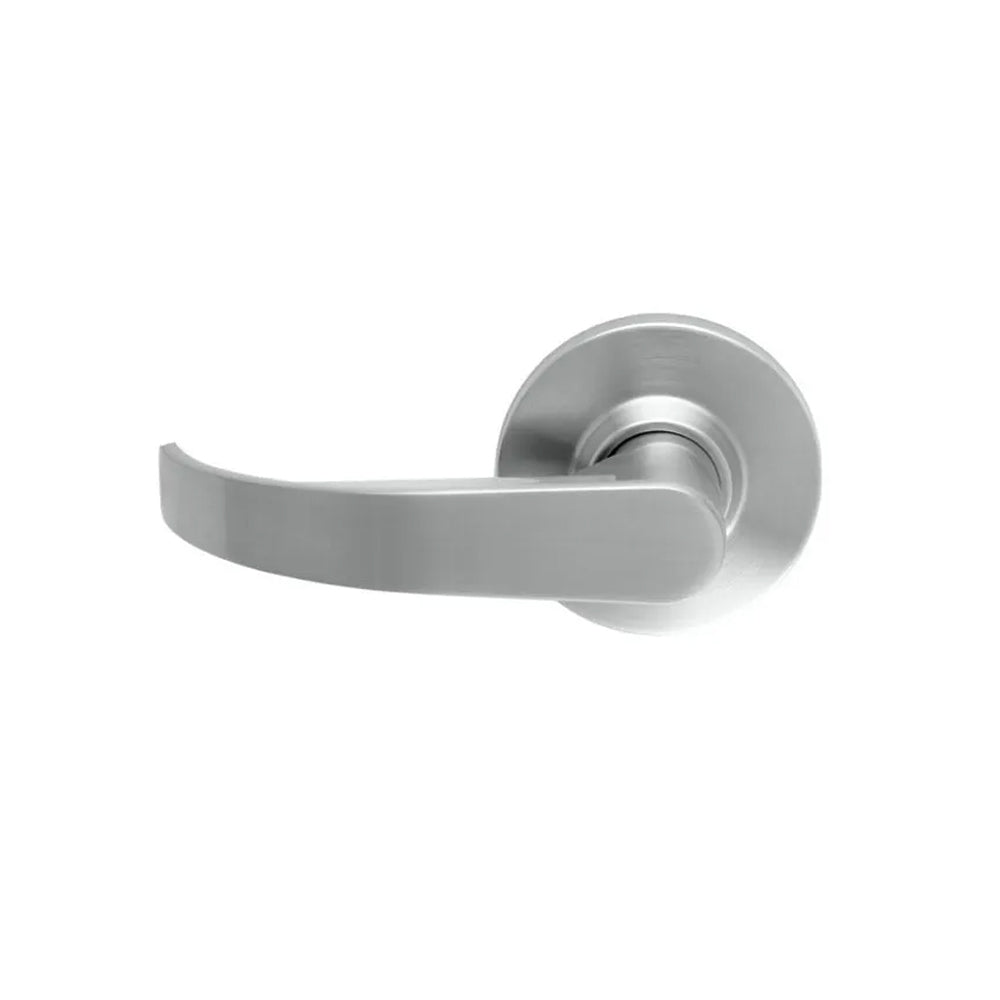

- Dummy Lever Function - Single dummy trim Dummy trim for one side of door. Used for door pull or as matching inactive trim
Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception. The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance.
Features:
- Sparta lever is compliant with AS1428:1-2009
- Tested in excess of 400,000 operating cycles
- Key removable outside lever for quick and easy cylinder placement
- Snap-on inside rose conceals mounting plate and screws
- Supplied standard with D and T strikes and spacer rings
- Two nickel silver keys per lock supplied with both
- Schlage 6 pin 'C' keyway and C4 6 pin keyway as standard
- The G2 series is ideally suited for residential, light and medium duty commercial applications
- Non-handed
- The 10 year warranty provides specifiers and users with assured quality and performance
Specifications:
- Rose Diameter: 75mm
- AS1428 Compliant: Yes
- Finger Clearance: 44mm
- Backset: 70mm
- Keyway: C4 6 Pin and Schlage C 6 Pin
- Material: Stainless Steel and Zinc
-
Available Function:
- Passage
- Privacy
- Entrance

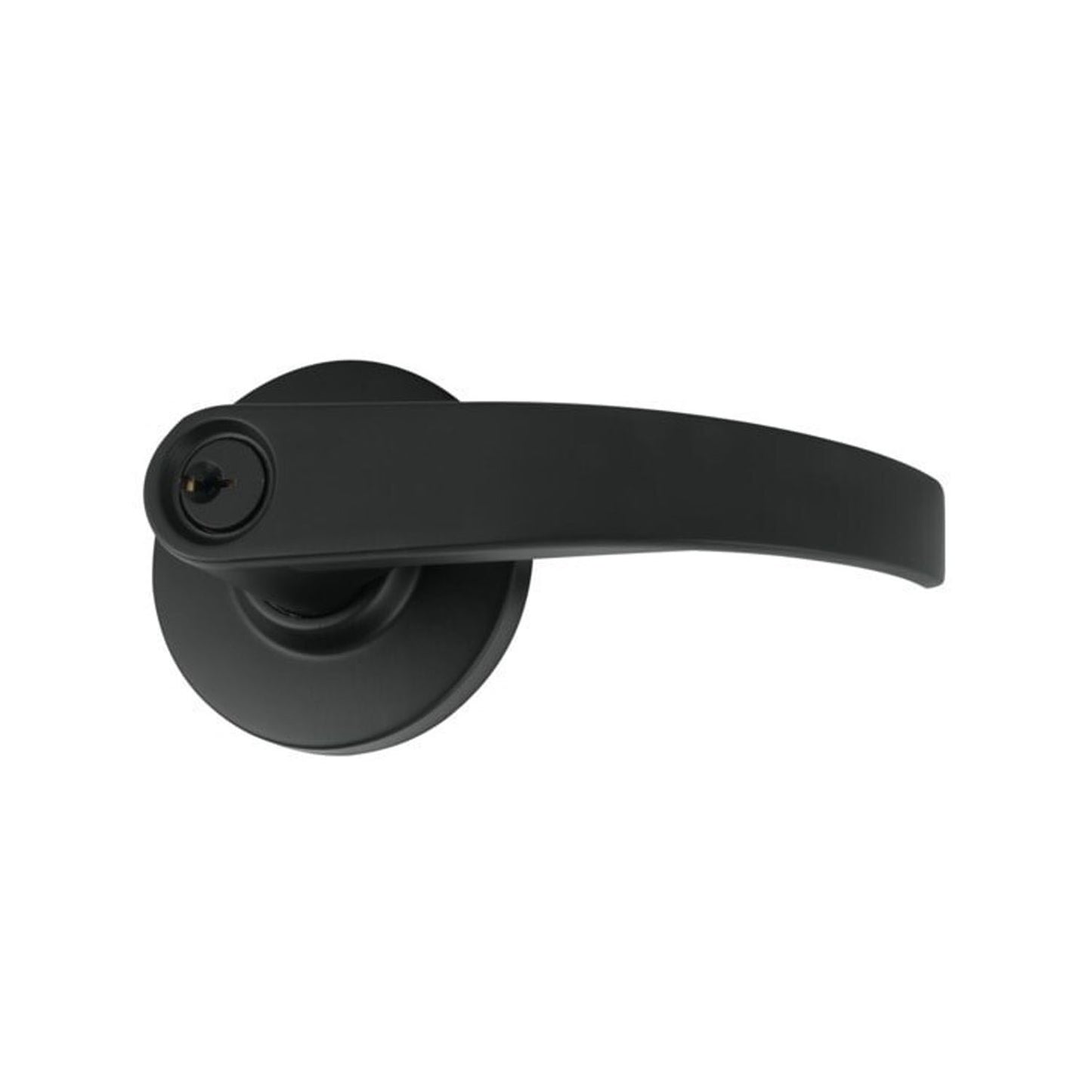

- Entrance (Double Cylinder)
- Storeroom
- Classroom
-
Available Finish:
- Matt Black
- Satin Chrome Plate
Compliance:
- Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details.

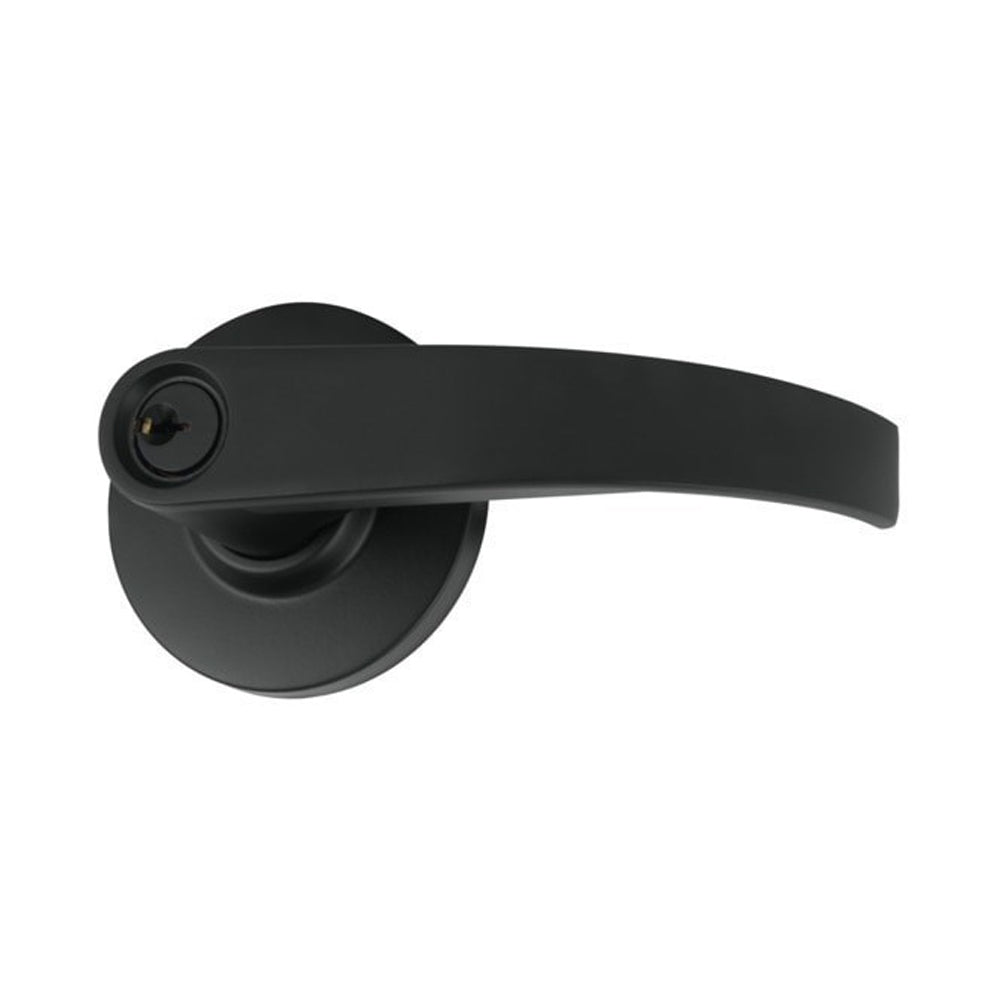

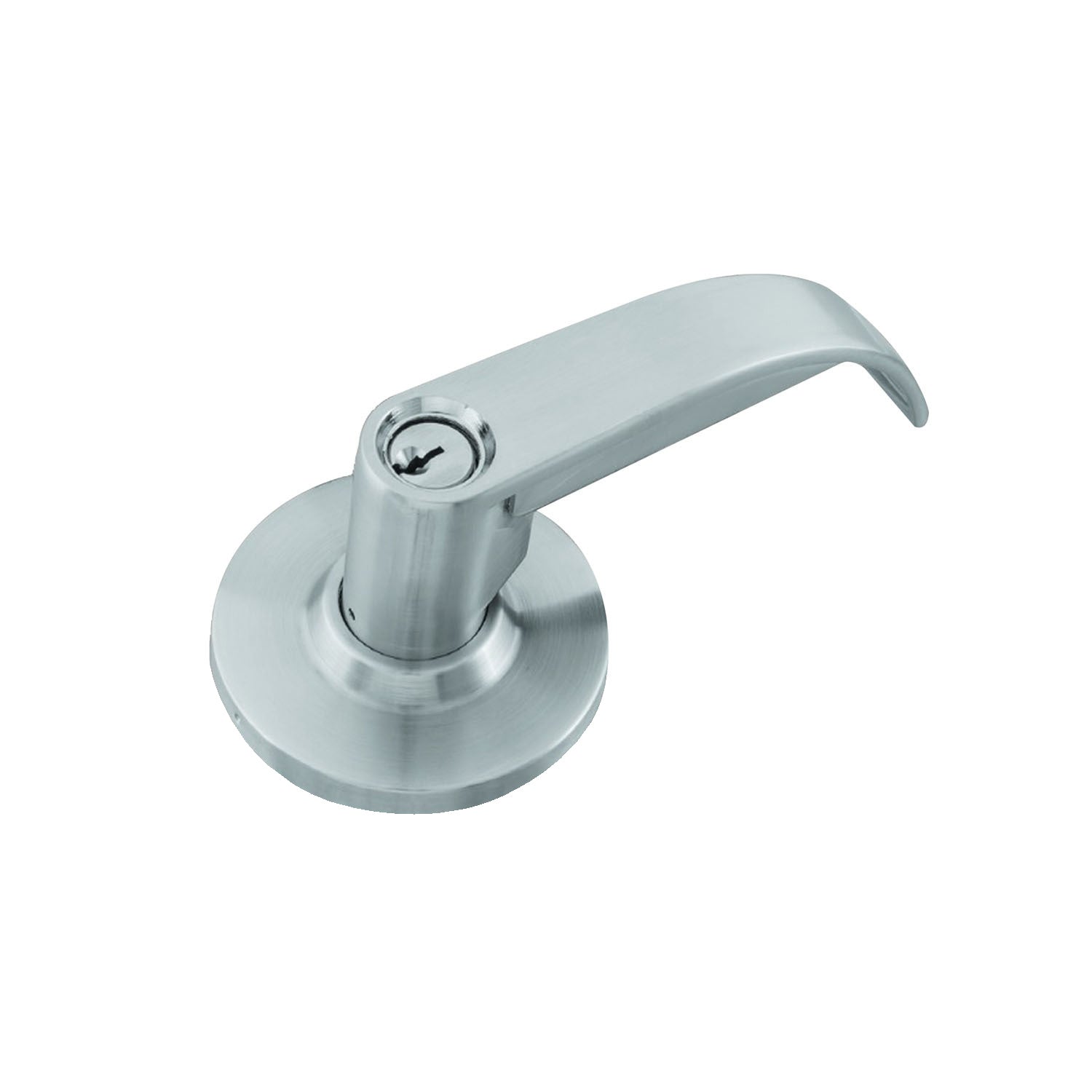

Legge Sparta G2 Commercial Classroom Lever Set
G2SCLASCPKD70MM
Classroom Lever are used on any door that needs the security of a key cylinder which are typically exterior doors.
Classroom Lever Function - Outside lever locked and unlocked by key. Inside lever always unlocked
Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception. The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance.
Features:
- Sparta lever is compliant with AS1428:1-2009 design for access and mobility code
- Tested in excess of 400,000 operating cycles
- Key removable outside lever for quick and easy cylinder placement
- Snap-on inside rose conceals mounting plate and screws
- Supplied standard with D and T strikes and spacer rings
- Two nickel silver keys per lock supplied with both
- Schlage 6 pin 'C' keyway and C4 6 pin keyway as standard
- The G2 series is ideally suited for residential, light and medium duty commercial applications
- Non-handed
- The 10 year warranty provides specifiers and users with assured quality and performance
Specifications:
- Chassis Steel: Zinc dichromate plated
- Lever: Pressure cast zinc
- Outer Forend: Stainless steel
- Bolt: Stainless steel
- Strike Plate: Stainless steel 45mm standard
- Backsets: 70mm Standard, for 60mm backset you will need to purchase a G2-60DLS Latchbolt
- Key: Cylinder Brass, Schlage C6 pin keyway and C4 6 pin keyway standard
- Door Type: Timber or Metal
- Door Thickness: 35mm to 50mm
- Finish: Satin chrome plate
- Warranty: 10 year mechanical
Compliance:
- Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details.
