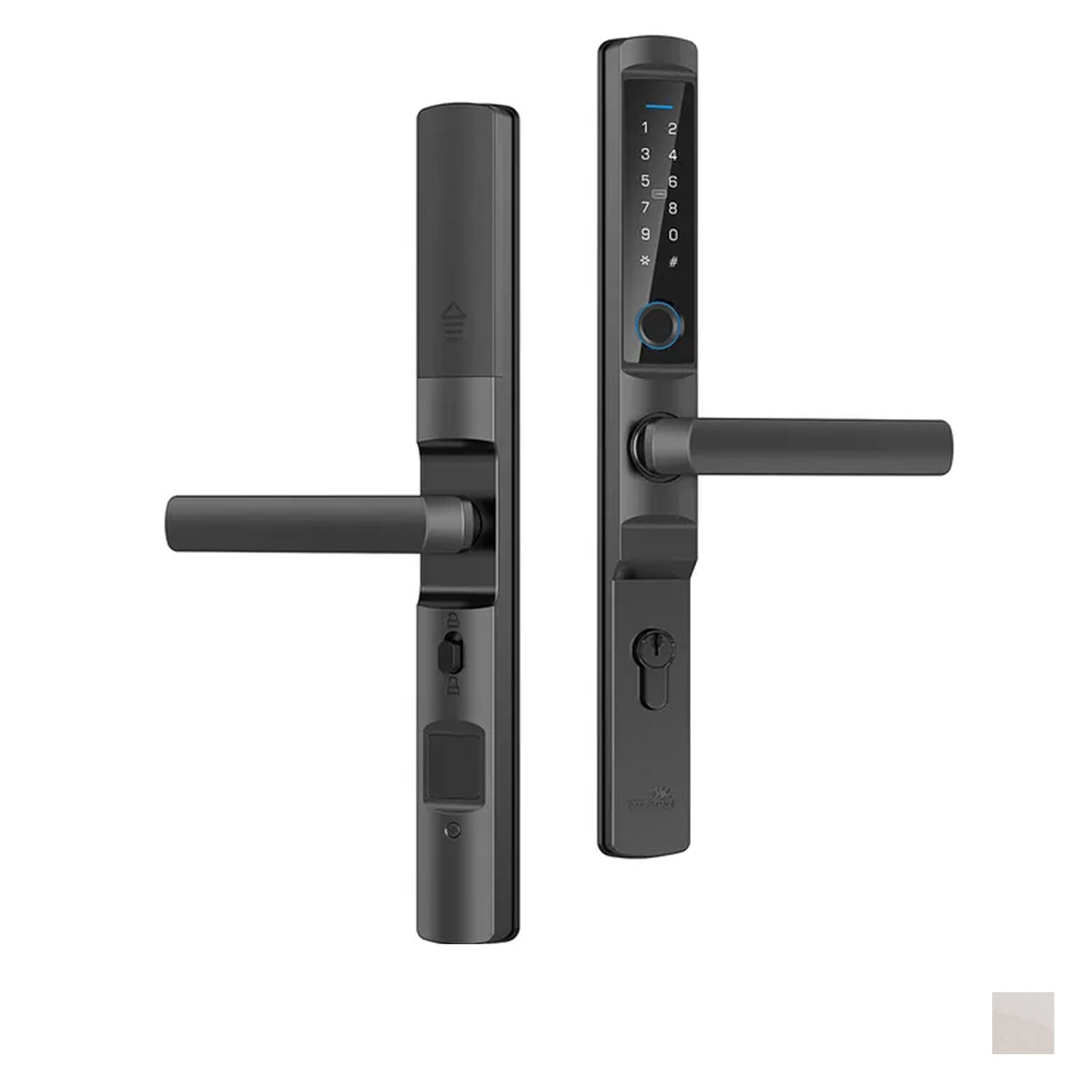

Lockton E-Series Smart Door Lock - Available in Various Finishes and Sizes

Lockton E-Series Smart Door Lock Handle Set

Smart Lock is designed to perform locking and unlocking operations on a door when it receives such instructions from an authorized device using a wireless communication.

Smart Lock Function - allows you to open your door without a physical key. Can be controlled remotely using a smartphone app.

• LOCKTON 'E-Series' Narrow Leverset Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.

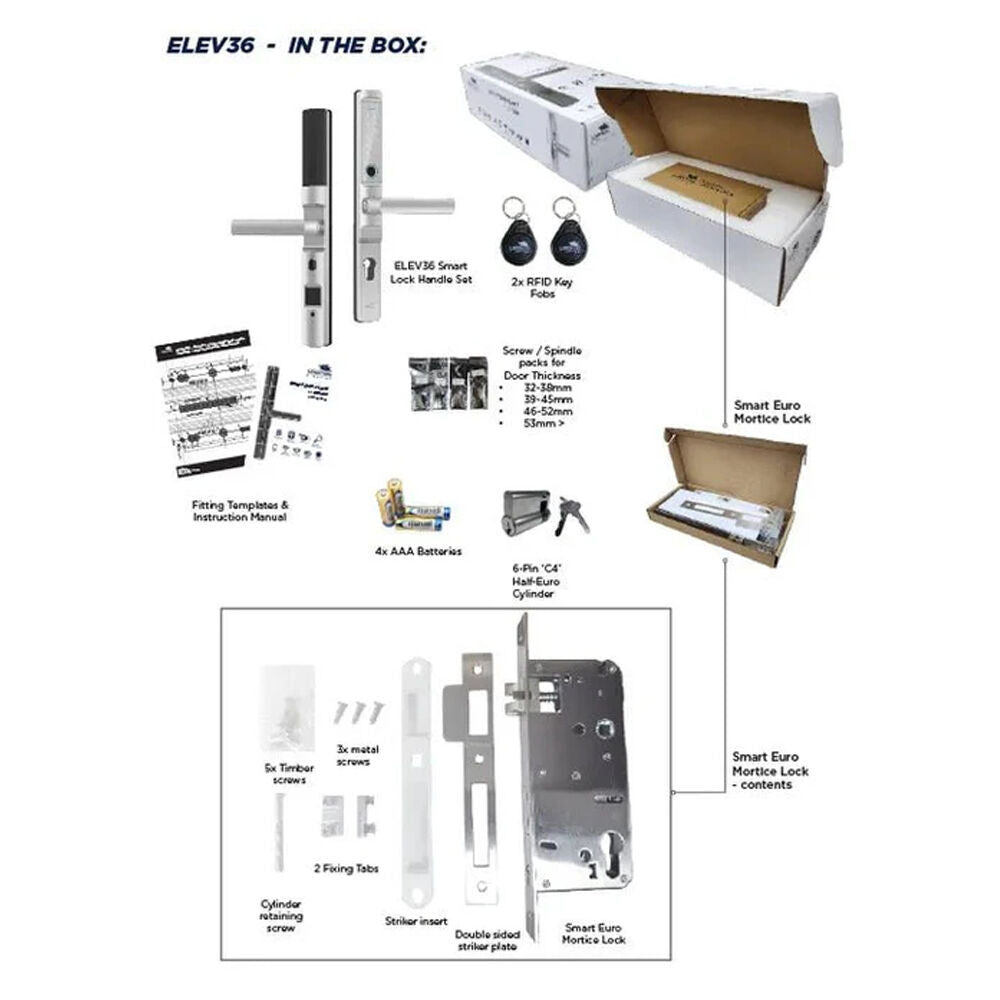

Includes:

• 1 x ELEV36 Smart Lock Handle Set
• 2 x RFID Key Fobs
• 4 x Screw/Spindle Packs for varying door thicknesses
• 4 x AAA Batteries
• 1 x Smart Euro Mortice Lock (ordered to desired backset from dropdown)
• 1 x 6-pin C4 Half-Euro Cylinder
• 1 x Fitting Template
• 1 x Instruction Manual

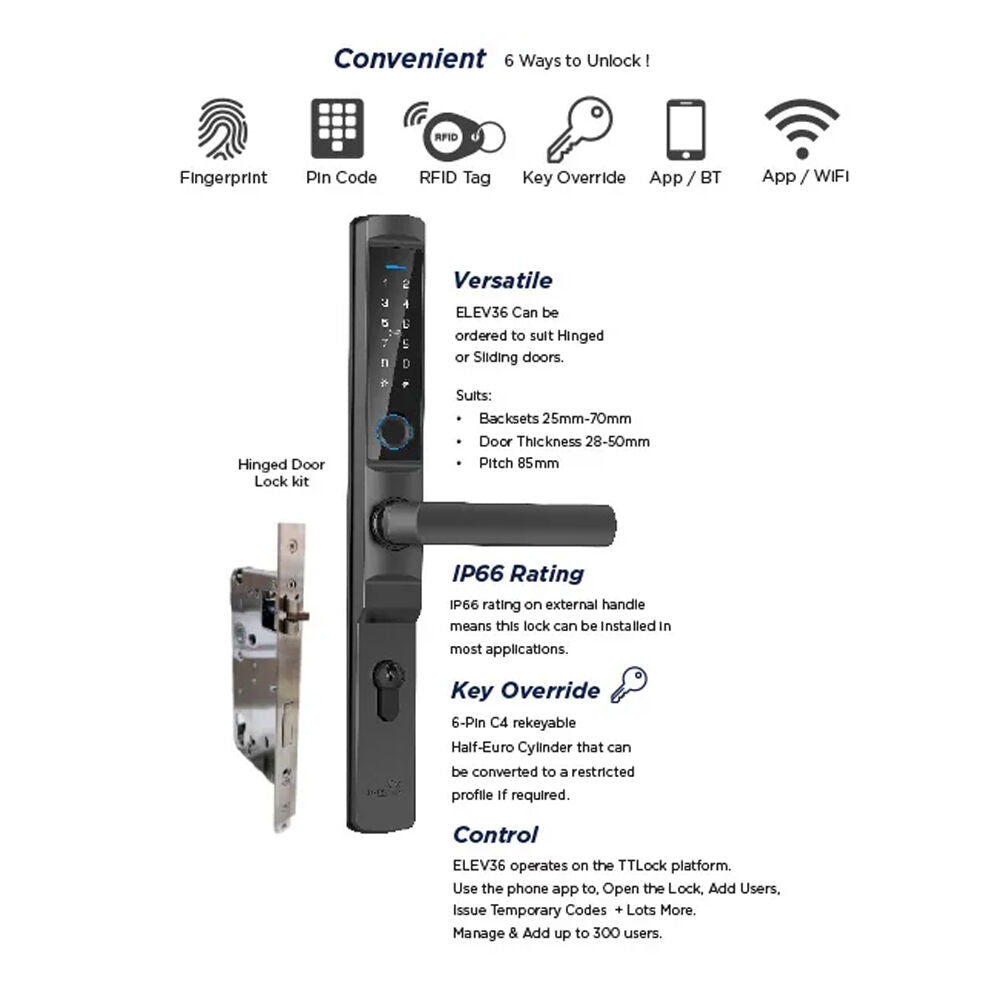

Features:

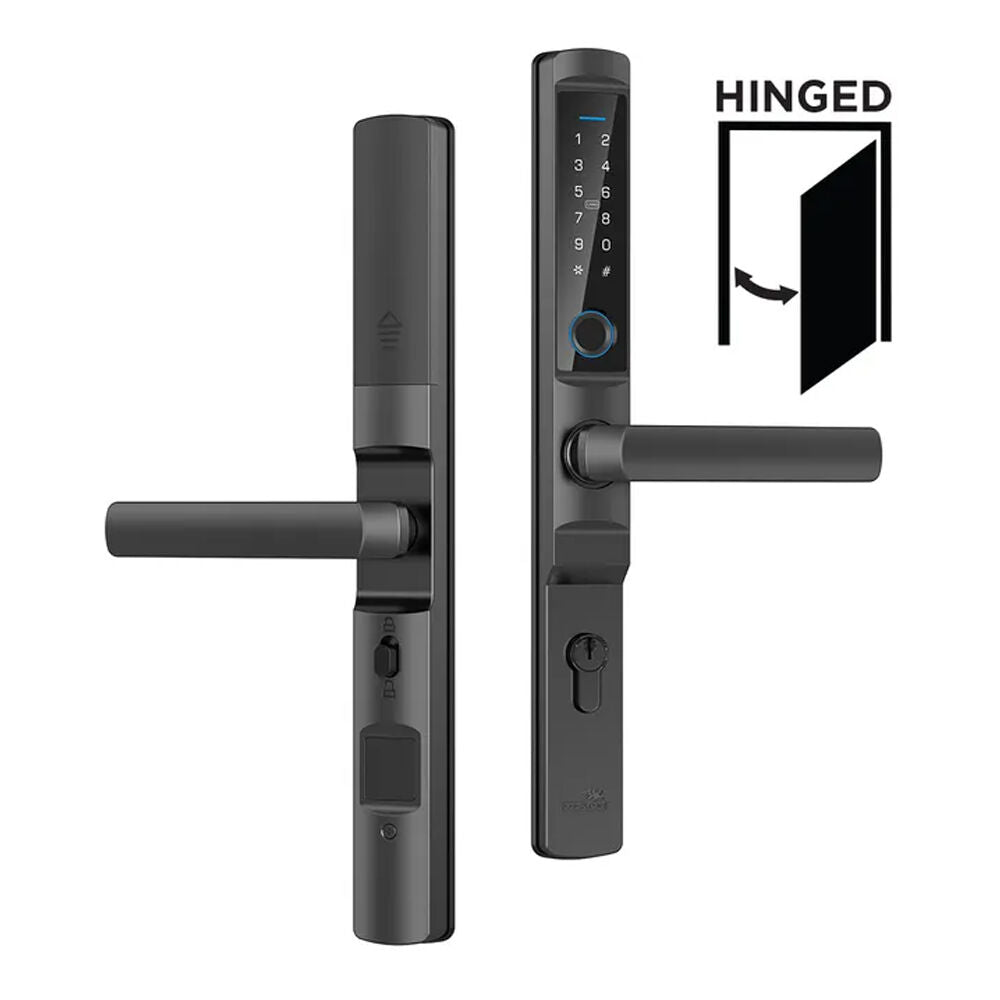

• Designed for Hinged Door installations
• The ELEV36 - Smart Euro Mortice Lock has double point locking and retrofits existing mortice locks in the market
• See RELATED PRODUCTS for additional Lock Faceplate and Strike Plate options for retrofitting
• IP66 Rating on external handle means this lock can be installed in almost any application
• Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
• Step by step instructions ensure ease of installation and operation
• Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
• Add up to 300 x Users
• Fingerprint sensing area is perfectly located within proximity of the lever to naturally read a thumb print for quick entry
• Deadbolt can be thrown by pulling lever handle up, giving the combined security of a latching lockset and a deadbolt in the one lock
• Optional G2 and G3 Gateway accessories allow for remote access and control of lock via internet

Specifications:

• Door Type: Hinged
• Available Backset:
  • 28mm
  • 30mm
  • 35mm
  • 40mm
  • 60mm
  • 70mm

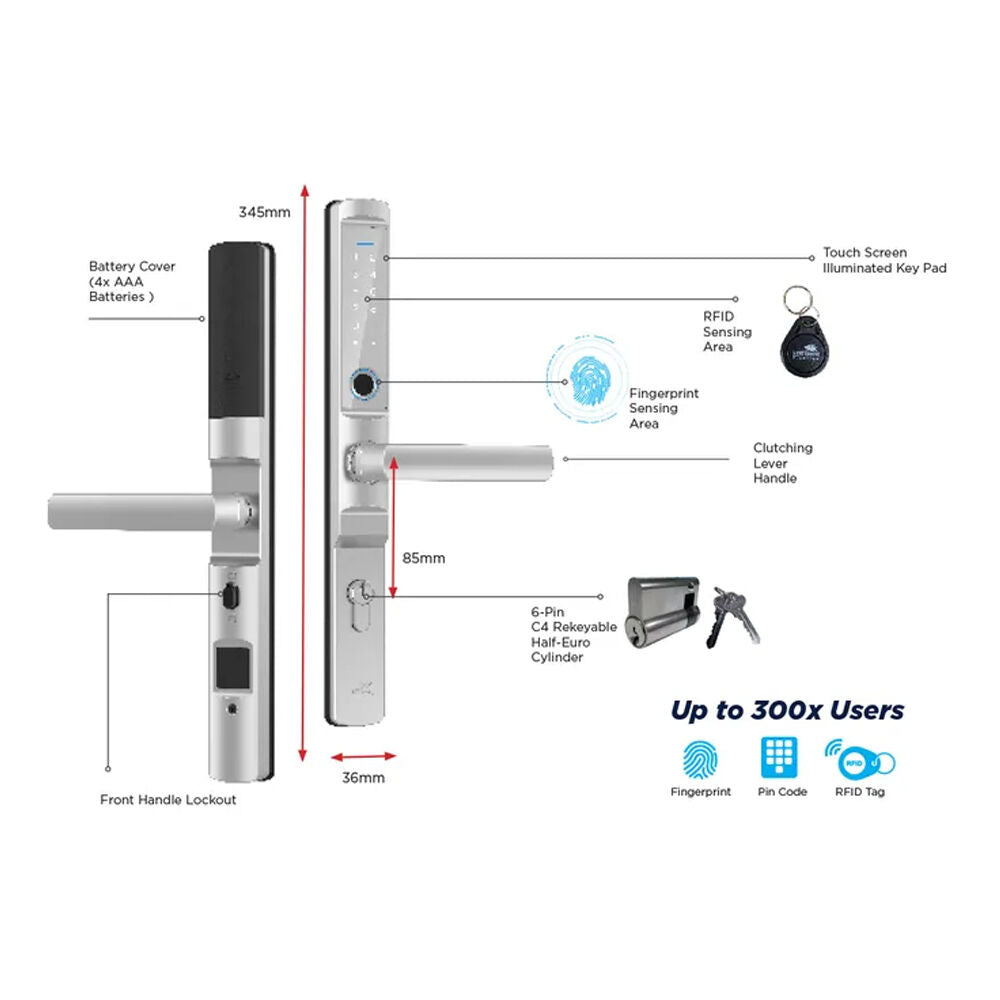

• Length: 345mm
• Width: 36mm
• Pitch: 85mm
• IP Rating: 66 (External Handle Only)
• Lock Backset Range: 25mm - 70mm
• Mortice Lock Faceplate Dimensions:
  • Length: 240mm
  • Width: 22mm
• Mortice Lock Strike Plate Dimensions:
  • Length: 198mm
  • Width: 24mm
• Door Thickness: 28mm - 50mm
• Spindle Size: 8mm
• Screw Type: M5
• Handle Projection: 30mm
• Handle Length: 130mm
• External Handle: Protrudes 58mm from door
• Power Supply: 4 x AAA Alkaline Batteries
• Battery Life: Approx. 10,000 openings
• Safe Working Temperature: -20 Degrees Celsius to 50 Degrees Celsius
• Available Finish:

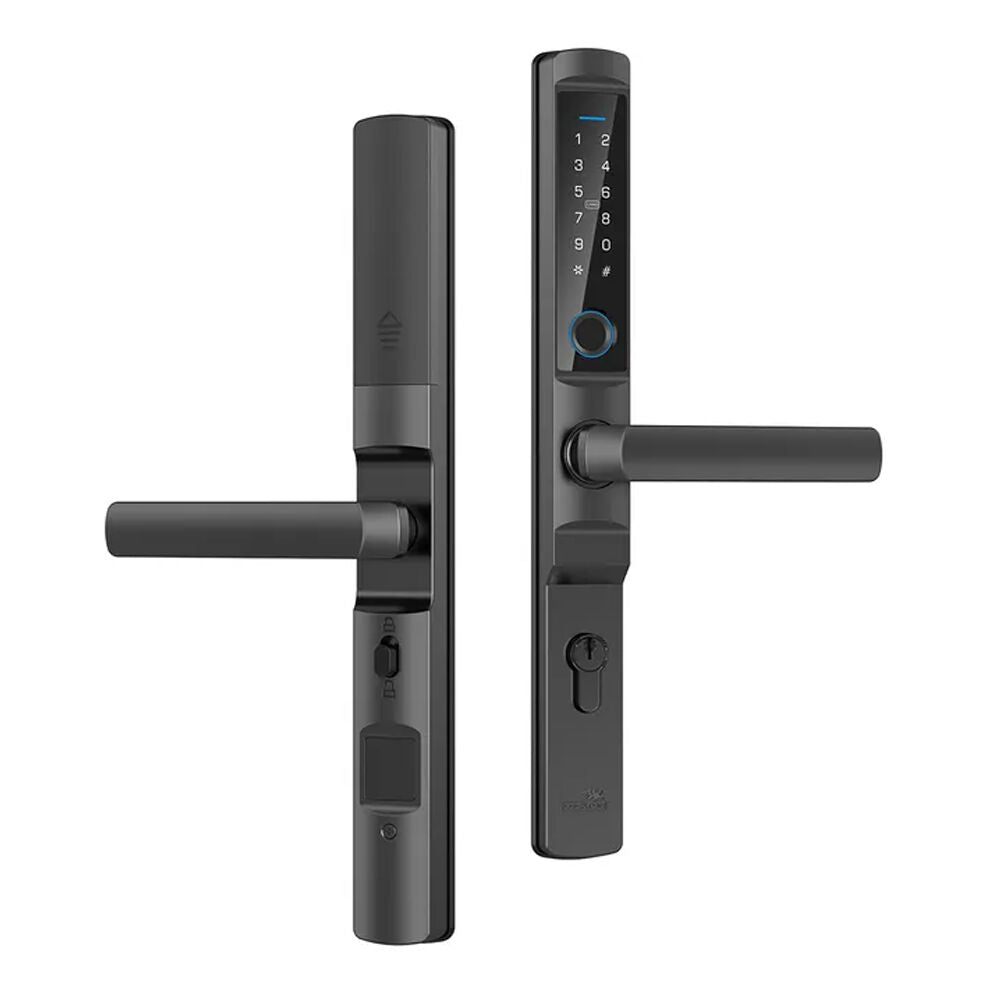

  • Black

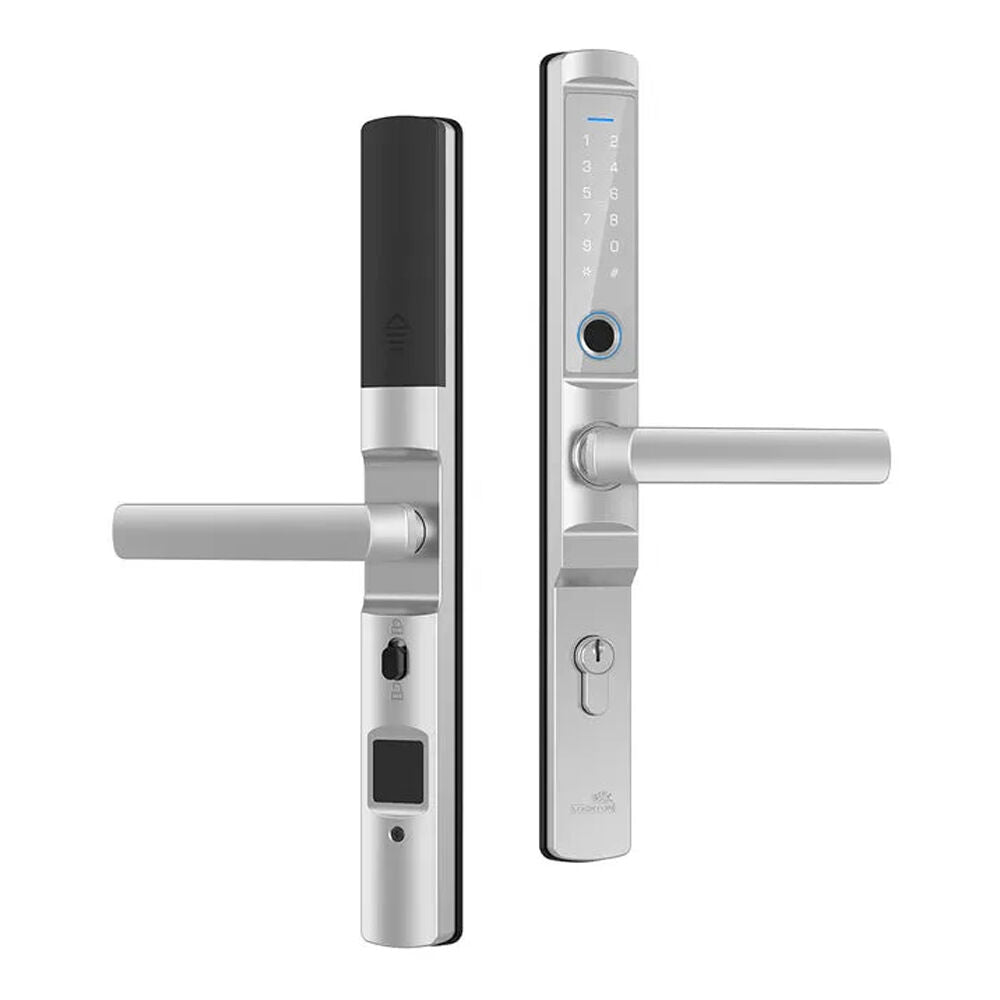

  • Silver
