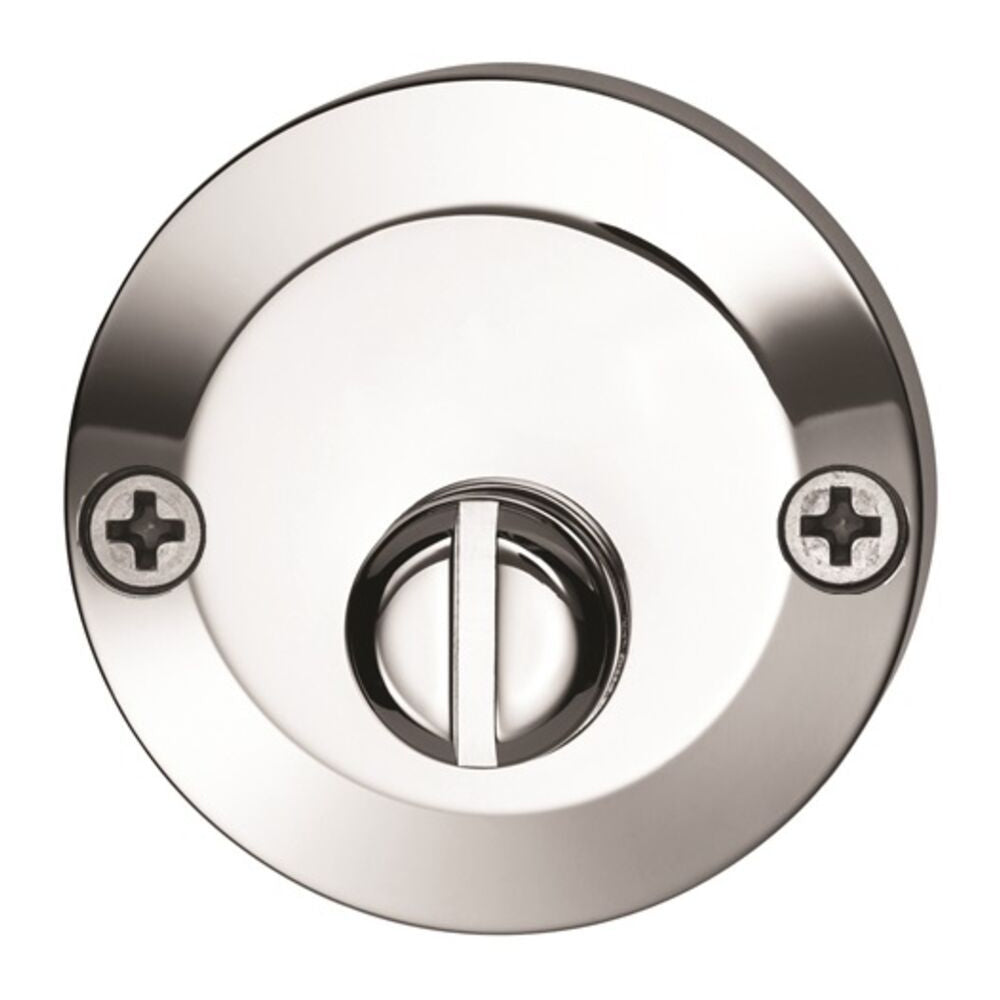

Lockwood 1360 Series Internal Emergency Turn Escutcheon Satin Chrome 1368/INSC

Lockwood 1360 Series Internal Emergency Turn Escutcheon
1368/INSC

Privacy Locking Turn Snib commonly used on bathroom, toilet, or privacy doors in residential and commercial buildings where internal privacy is required with emergency override.

Privacy Locking Turn Snib Function - allowing the door to be locked from the inside while still enabling external emergency access.

Features:

• Emergency coin-slot release turnsnib on round tapered escutcheon
• Designed to complement the Lockwood 1360 Series round rose door furniture
• Suitable for Lockwood mortice locks and similar products
• Compatible with Synergy® 3570 and Selector® 3770 series mortice locks
• Emergency slot allows external override using a coin or flat tool
• Visible screw fixing for installation
• Solid brass construction for durability
• Satin chrome finish
• Supplied with fixing screws and emergency tail bar

Specifications:

• Material: Brass
• Rose Diameter: 50mm
• Plate Thickness / Depth: 11mm
• Dimensions: 50mm × 11mm
• Door Thickness Suitability: 32-50 mm doors
• Door Types: Timber or aluminium doors
• Fixing Type: Visible screw fixing
• Handing: Non-handed
• Includes Fixing Screws: Yes
• Privacy Latch Included: No
• Fire Tested: Yes (fire rated up to 4 hours when used with compliant doors)
• Application: Commercial and residential
• Finish: Satin Chrome
