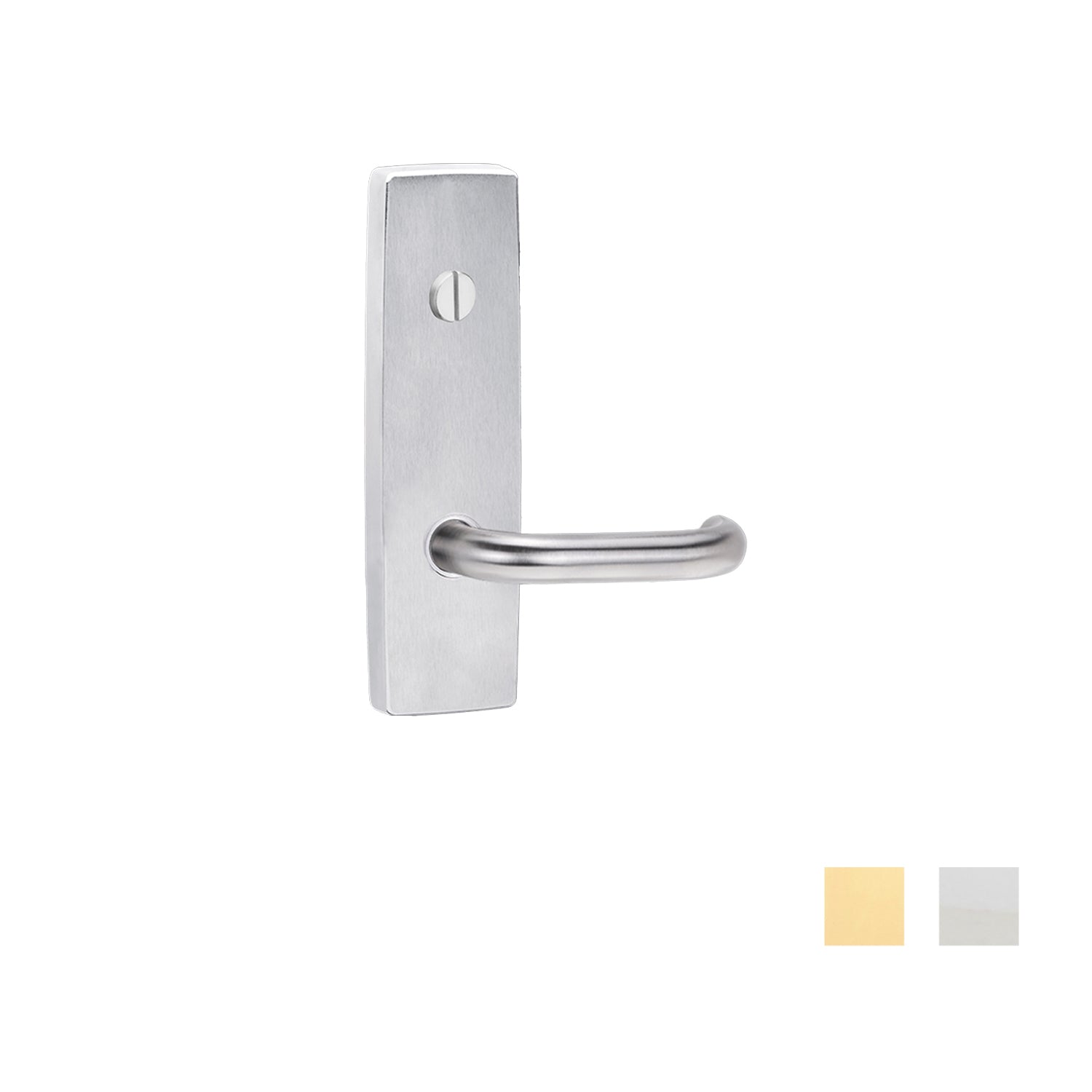

Lockwood 1803/70 Square End Plate With Emergency Turn & Lever - Available in Various Finishes

Lockwood 1803 Square End Plate With Emergency Turn & Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Square End Plate suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Lockwood 1800 series exterior square end plate furniture
• Designed for use with Lockwood 3570 series locks
• Rectangular exterior square end plate
• Slotted coin turn and 70 series lever
• Concealed fixing
• Plates are designed to fit back to back
• External plates supplied with fixing screws

Specifications:

• Door Thickness: 32mm - 50mm
• Plate Size: 166mm x 48mm x 12mm
• Screw Fixing Centres: 148mm
• Internal / External: External
• Plate Type: Square End
• Material: Brass
• Plate Has A Lever: Yes
• Plate Has An Emergency Slot Turn: Yes
• Available Finish:

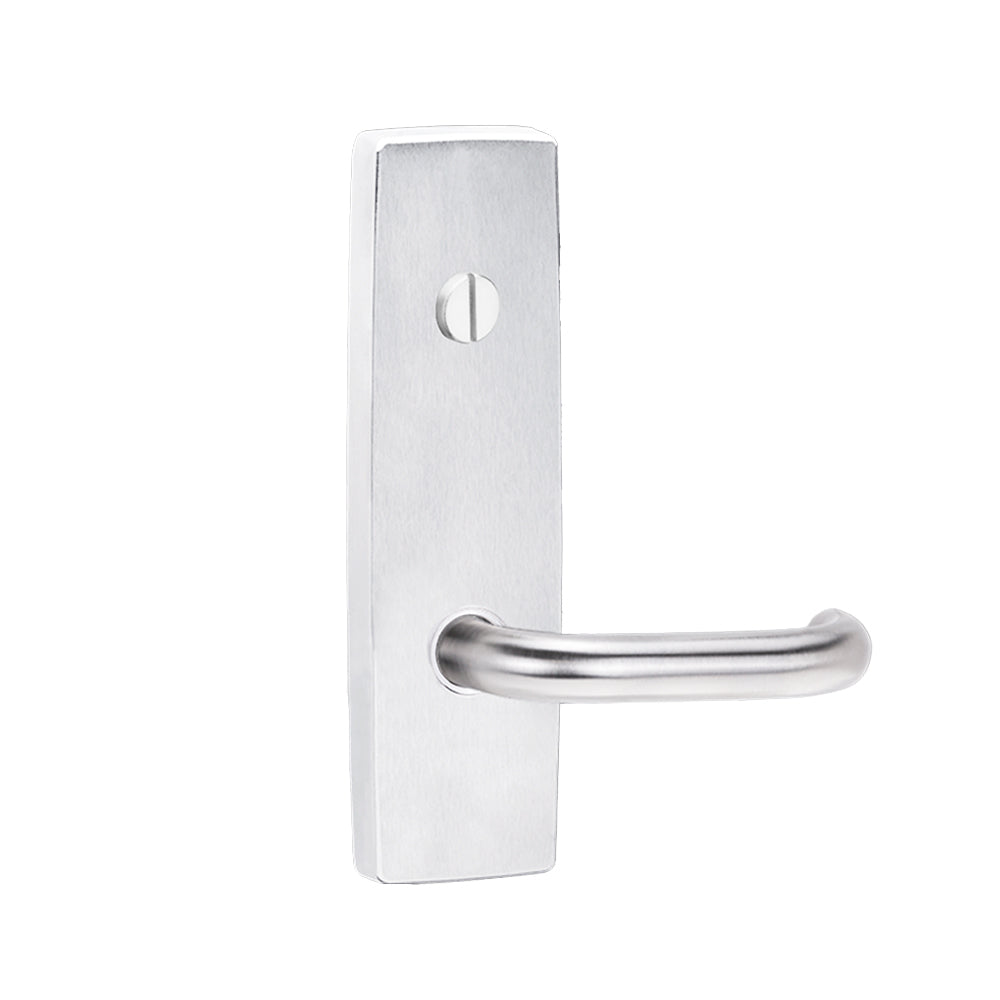

  • Chrome Plate

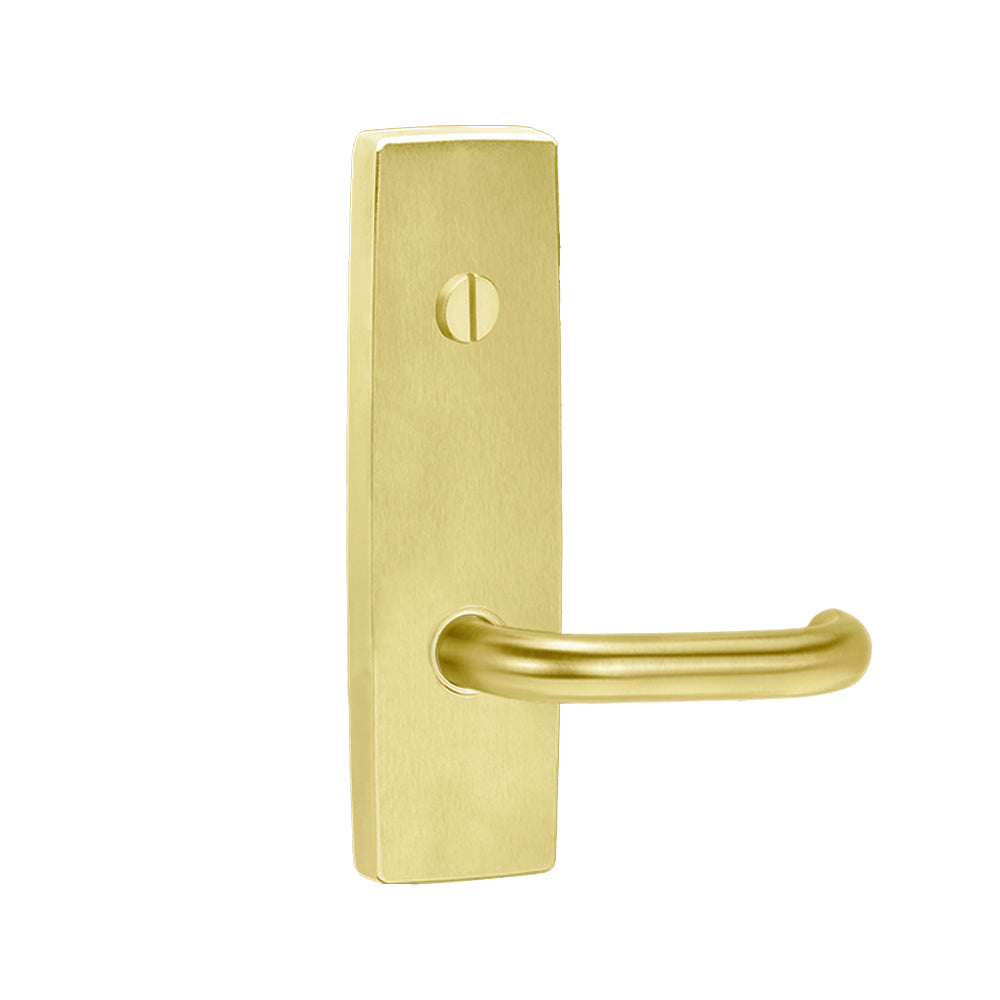

  • Polished Brass

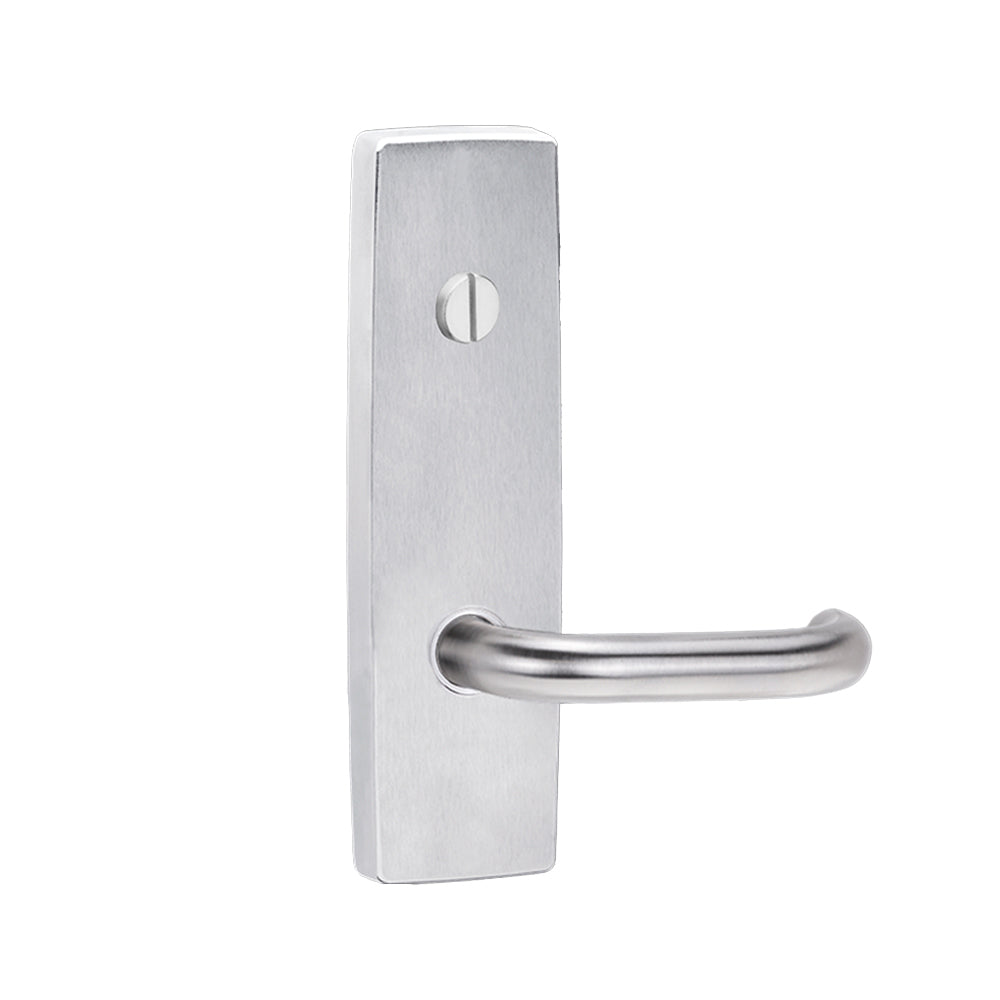

  • Satin Chrome

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled access AS1428.1 compliant lever.
