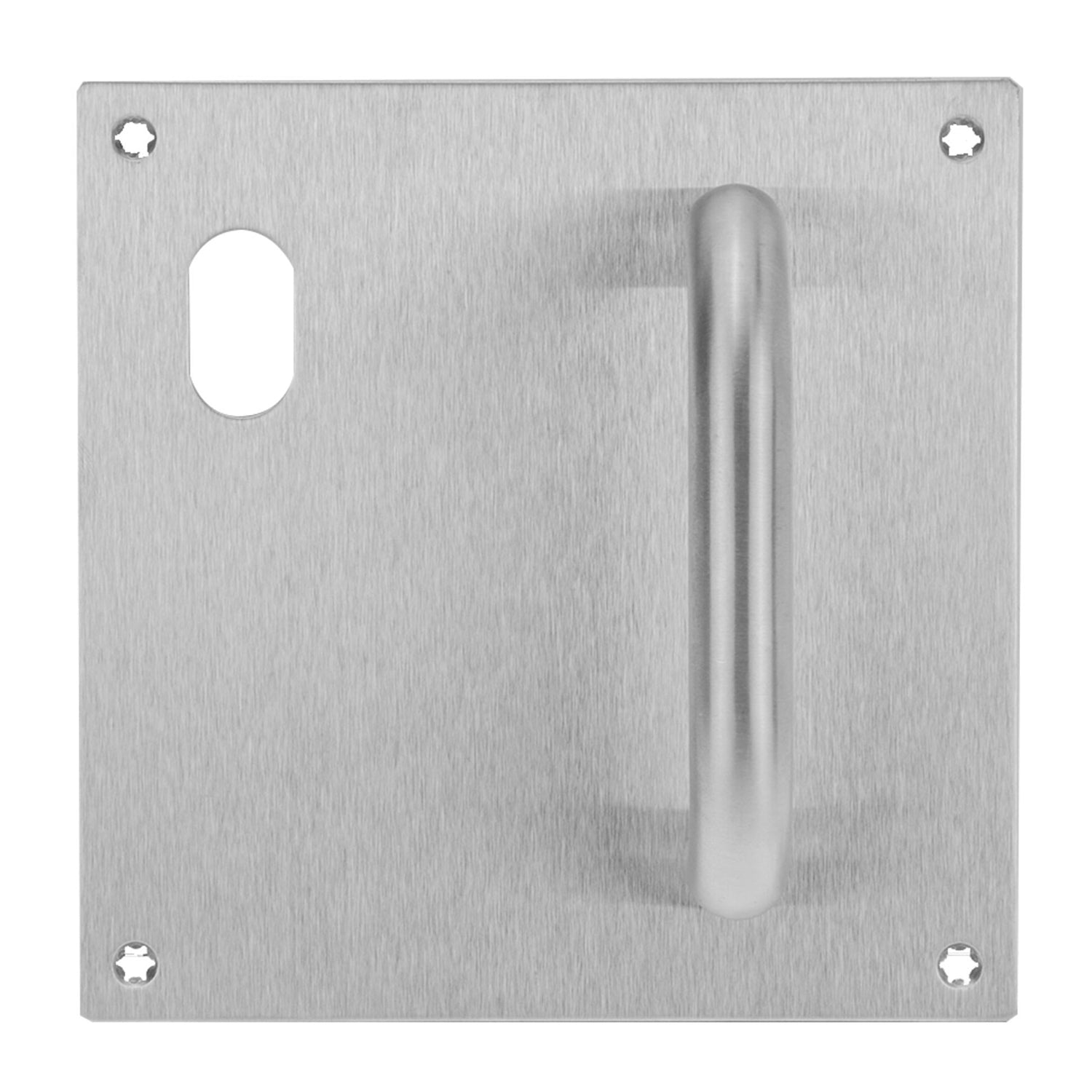

Lockwood 201 Interior Plate with Cylinder Hole and P1 Pull Handle LH 20125NA/P1LSS

Lockwood 201 Interior Plate with Cylinder Hole and P1 Pull Handle
20125NA/P1LSS

Pull and Push Plate commonly used in high-traffic places like auxiliary vestibule doors or large restrooms.

Pull and Push Plate Function - pushing or pulling the handle engages individual leverage and causes the axis to rotate. This unlocks the door. The handle is returned to its original position by the lock's spring.

Features:

• Distinguished range of Artefact in Aluminium, Brass and Stainless Steel, offers architects and specifiers a complete range of slim line, door furniture plates
• Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings

Specifications:

• Plate Height: 162mm
• Plate Width: 162mm
• Plate Depth: 2mm
• Handle Length: 125mm
• Handle Projection: 54mm
• Handle Diameter: 17.5mm
• Finger Clearance: 40mm
• Handing: Left Hand
• Finish: Stainless Steel
