Lockwood 2805 Round End Plate With 77 Lever - Available in Various Finishes

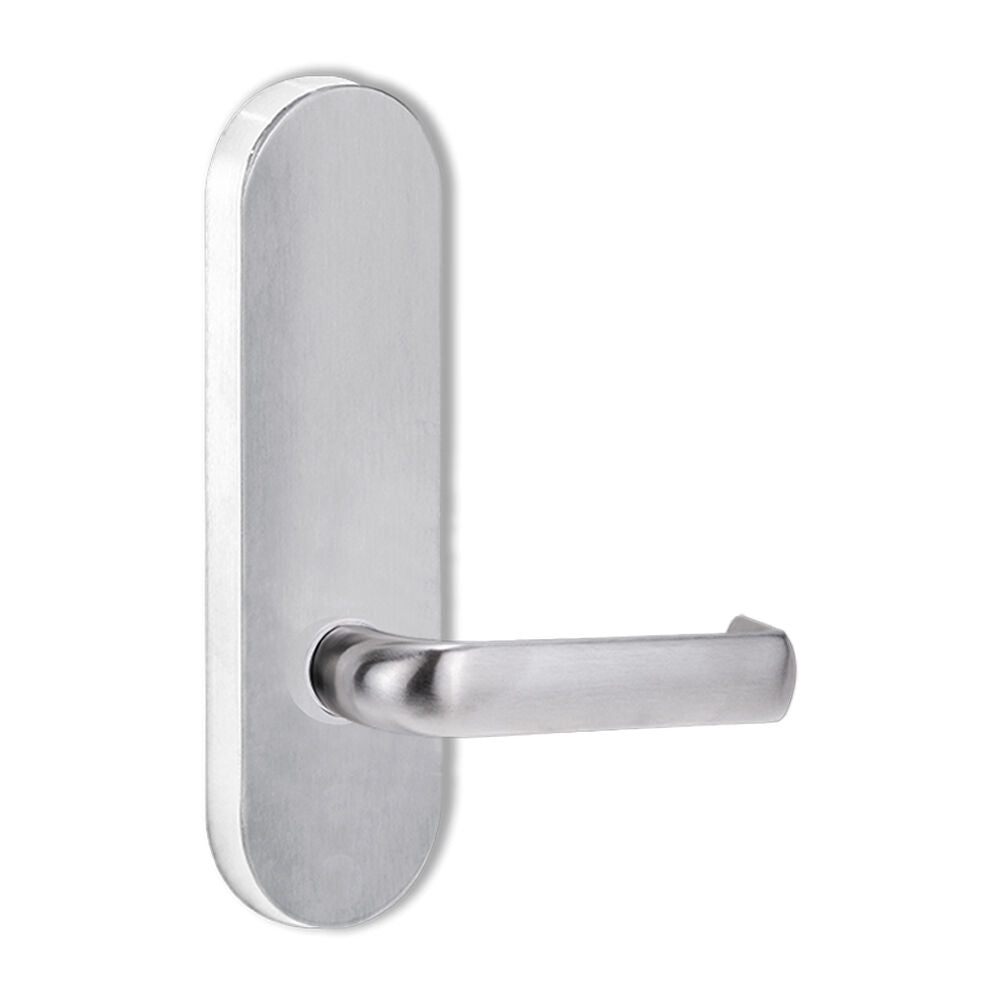

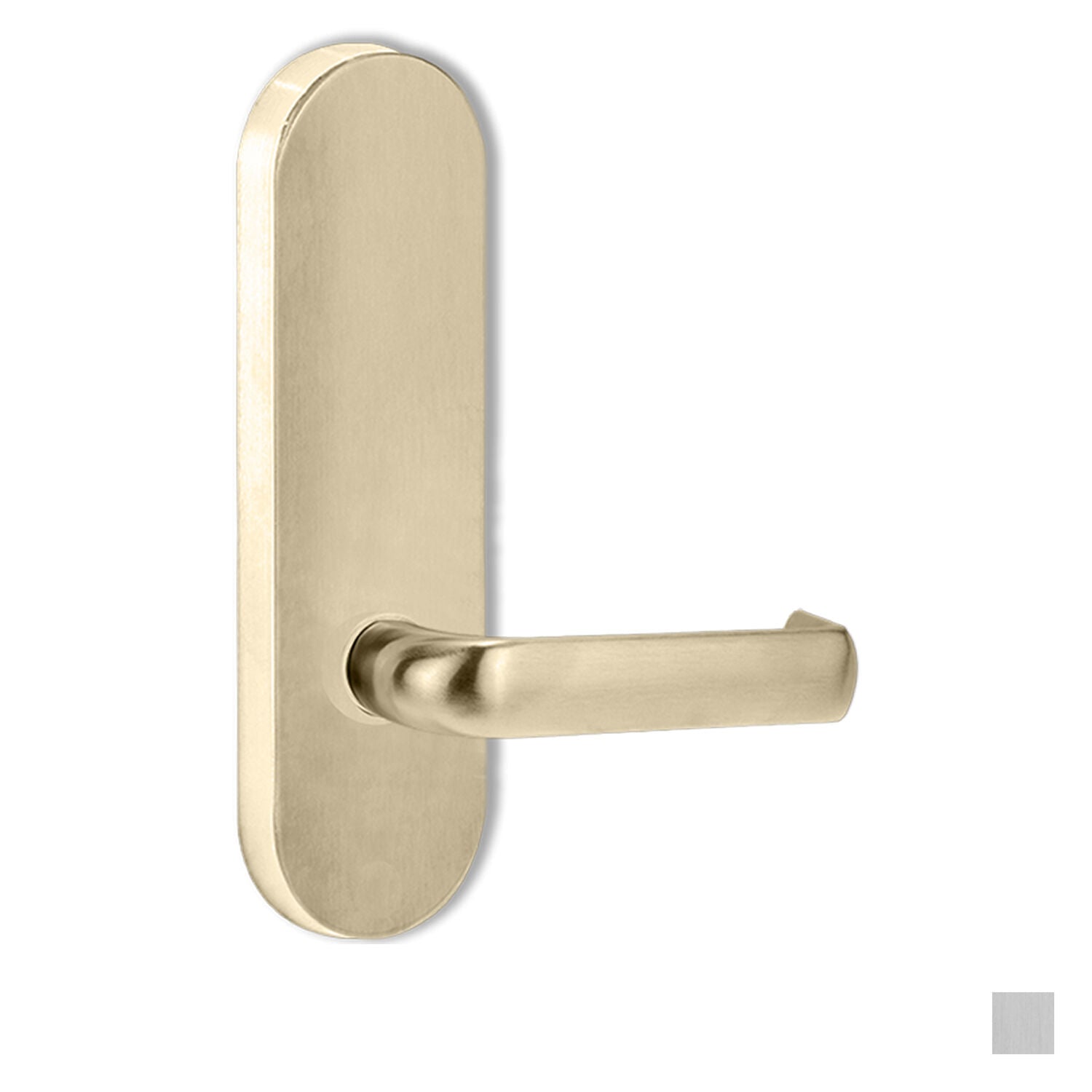

Lockwood 2805 Round End Plate With 77 Lever

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Pull and Push Plate commonly used in high-traffic places like auxiliary vestibule doors or large restrooms.

Pull and Push Plate Function - pushing or pulling the handle engages individual leverage and causes the axis to rotate. This unlocks the door. The handle is returned to its original position by the lock's spring.

Features:

• Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
• Made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The culmination of decades of experience in the design and manufacture of high quality door furniture
• A distinctly modern approach combining elegant lines and an offset lever action

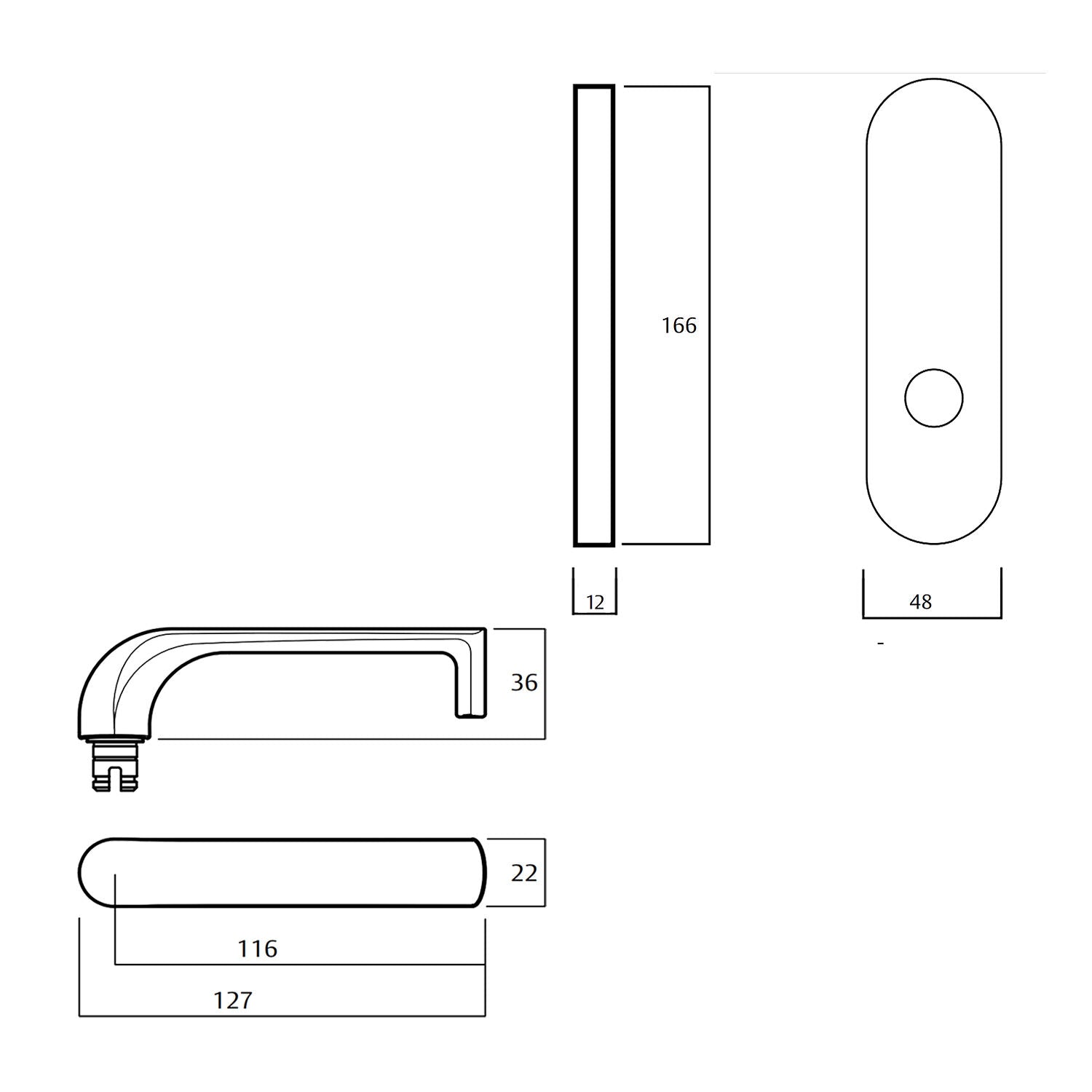

Specifications:

• Plate Height: 166mm
• Plate Width: 48mm
• Plate Thickness: 12mm
• Lever Length: 121mm
• Lever Projection: 51mm
• Finger Clearance: 48.3mm
• Cylinder Pitch: 64mm
• Centre to Centre: 148mm
• Available Finish:
  • Polished Brass
  • Satin Chrome
