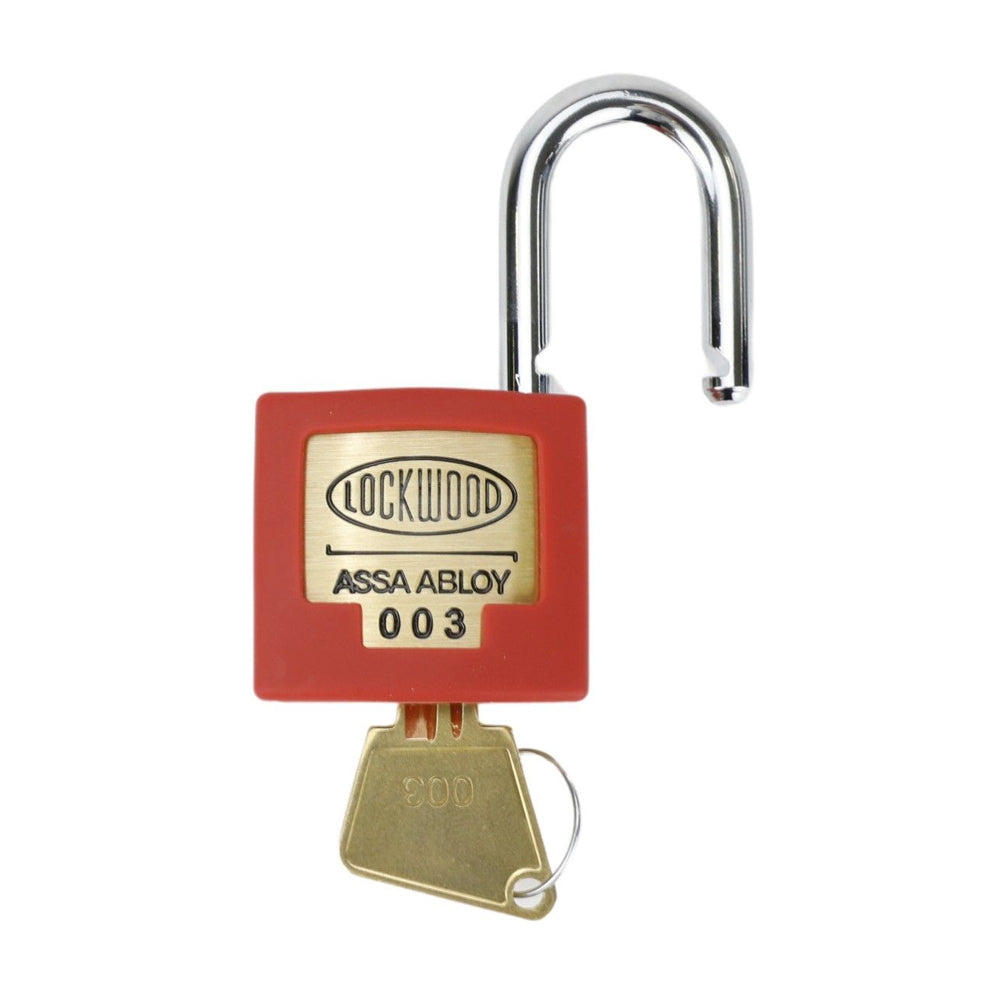

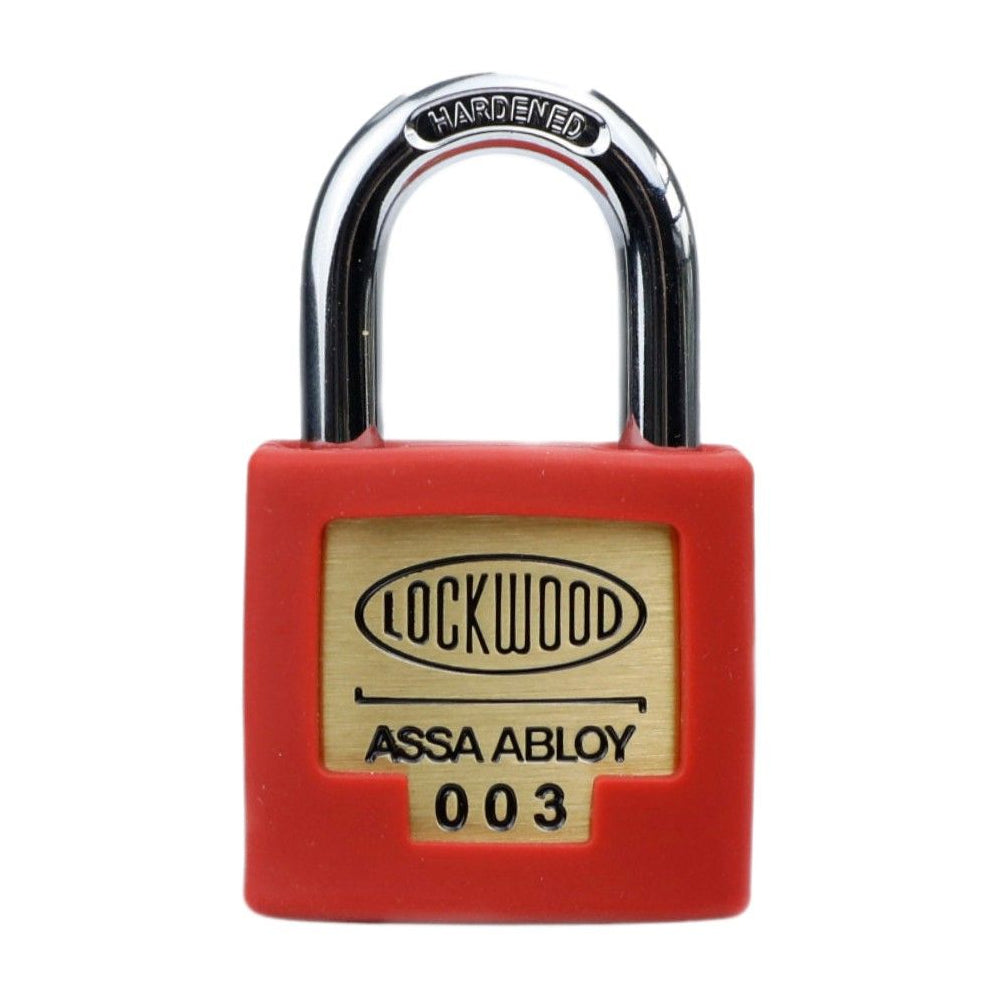

Lockwood 325 Series 003 Fire Key 35mm Padlock 23mm Shackle with 1 Key 325/35/123/003

Lockwood 325 Series 003 Fire Key Padlock
325/35/123/003

Padlock is commonly used in in both low and high security installations. (e.g. lockers, gates, cabinets, drawers etc.).

Padlock Function - a spring rests inside the lock and pushes against each latch, driving it outwards and into the notch with the angled edges. The shackle cannot be pulled out since the latch and notch are interlocked.

Features:

• Double-sided locking mechanism, paired with a chrome-plated hardened steel shackle for enhanced security
• Standard as latching function
• UV stabilized red silicon jacket for easy grip and identification
• AU 003 fire key padlock
• Coded to the 003 key code
• Compliant to AS 4428.17-2024 Fire detection, warning, control and intercom systems and design and tested to AS 4145.4-2002

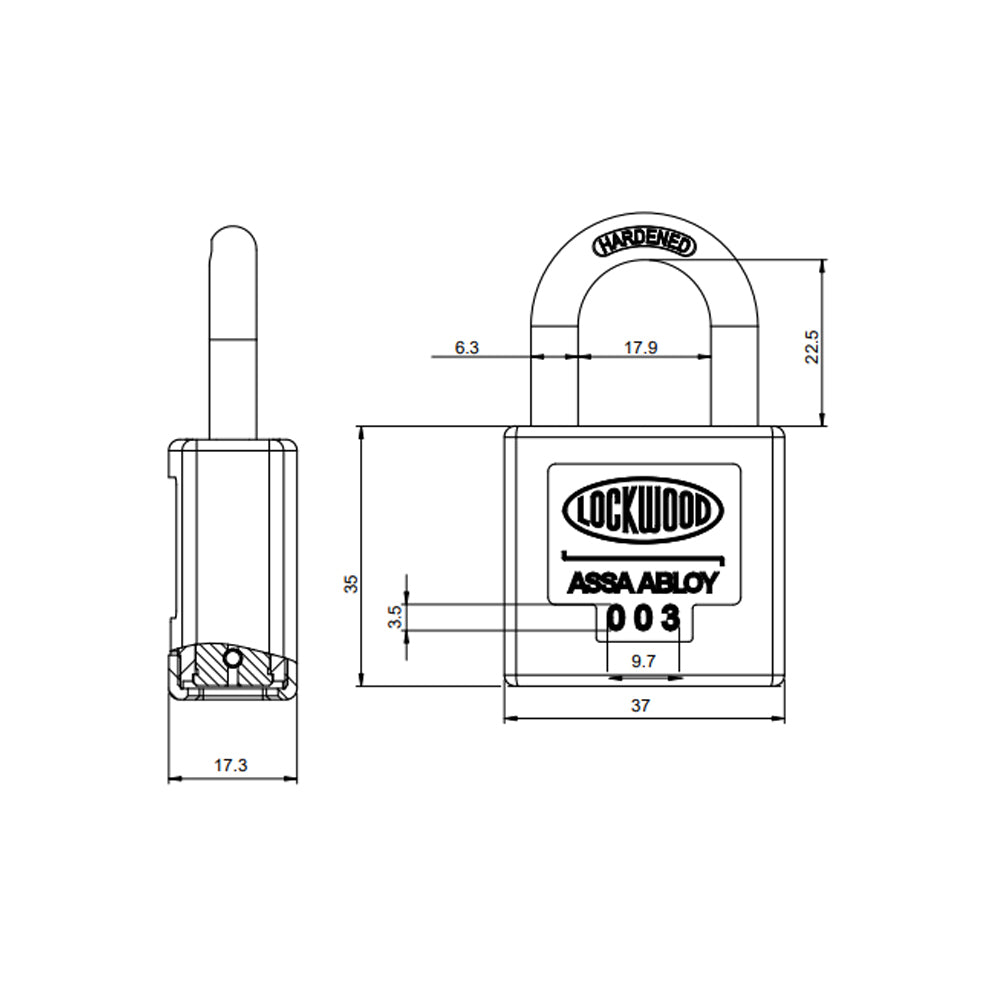

Specifications:

• Padlock Body: 35mm
• Shackle: 23mm
• Materials:
  • Body: Brass
  • Shackle: Hardened steel
  • Cover: UV stabilized silicon rubber (red)
• Function: spring loaded shackle with latching function (key removable in the open function)
• Finish:
  • Body: Natural material
  • Shackle: Chrome plate

Ratings/Compliance:

• SP4: Physical Security grades are employed for padlocks. These grades are defined in part by the effective differs and key combinations. Padlocks Physical Security (SP) grade 4.
• Corrosion Resistance Rating C3: Environments that are sometimes damp in the majority of normal rural and suburban localities, including interiors where condensation may occur.
• Durability D2: 25,000 key operation cycles Designed and tested to the Australian Padlock Standard AS4145.4 2002 and are rated for both security and corrosion resistance.
