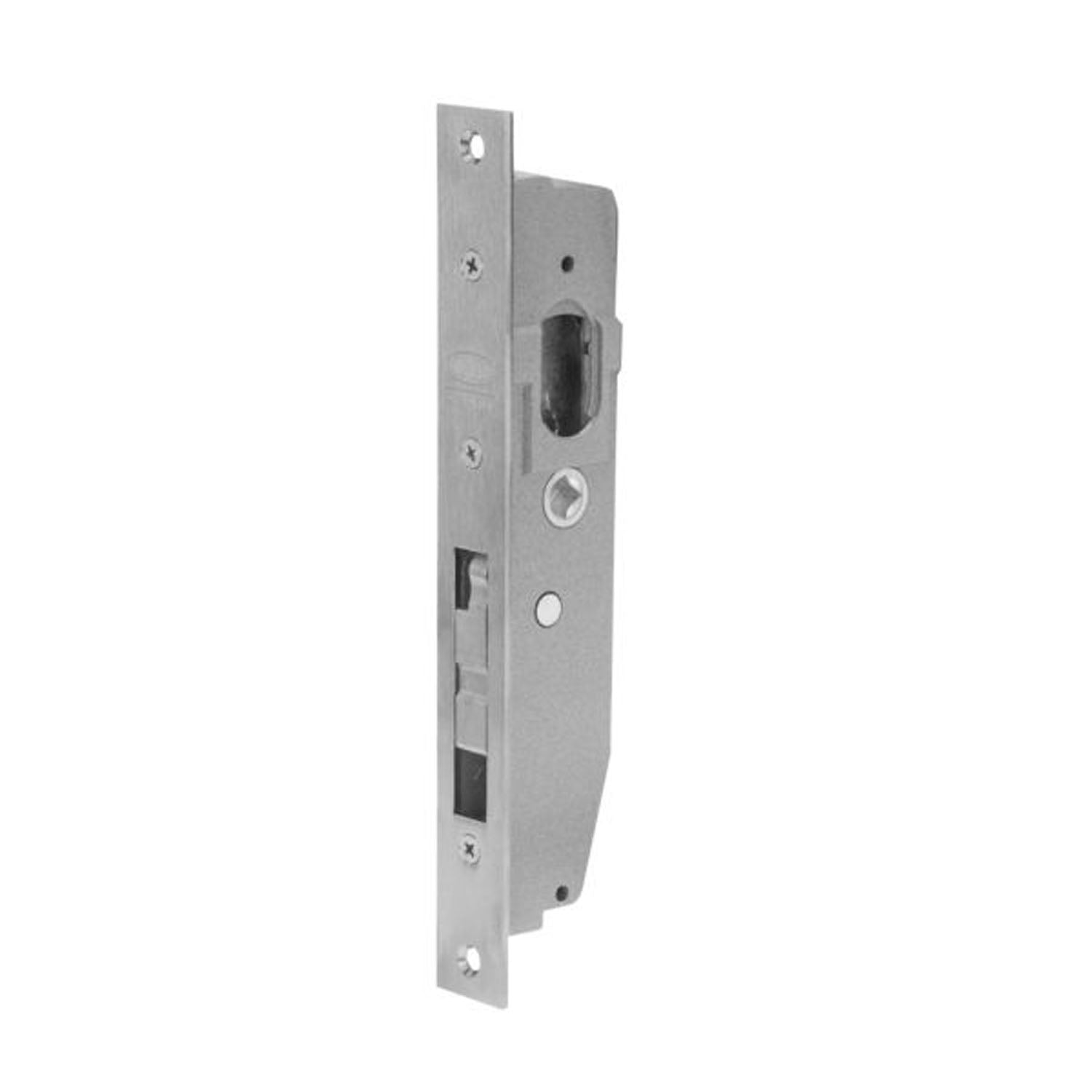

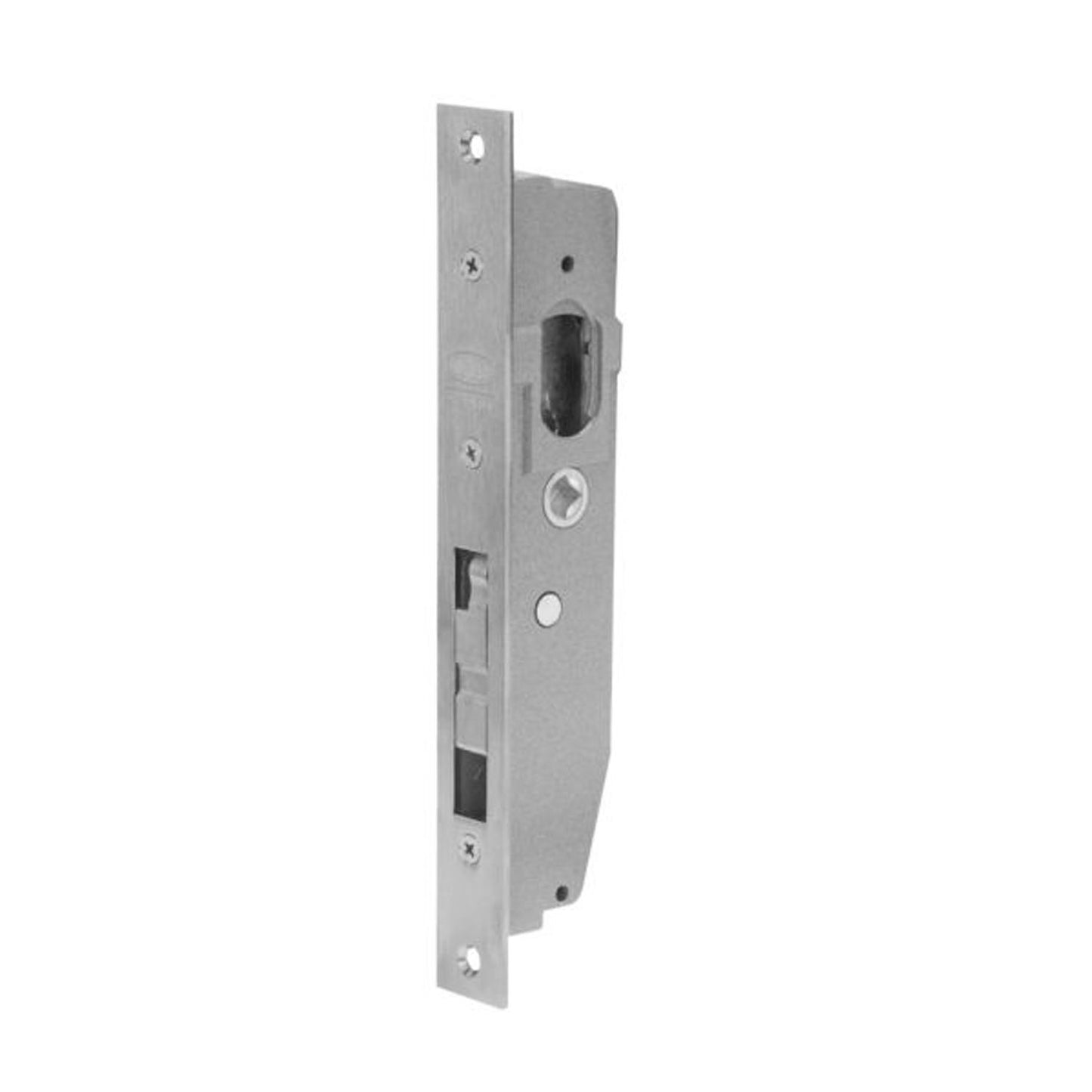

Lockwood 3740 Short Backset Primary Lock 60mm Satin Chrome 3740SC

Lockwood 3740 Short Backset Primary Lock
3740SC

Short Backset Primary Lock - is ideal for aluminum-framed doors, commercial storefronts, and narrow stile door systems, providing reliable security while accommodating limited door dimensions.

Short Backset Primary Lock Function - is a locking mechanism designed for doors with a shorter backset (the distance from the edge of the door to the center of the key cylinder or handle). It is commonly used on narrow stile aluminum, sliding, or commercial doors where standard backset locks cannot be installed.

Features:

• Short backset, swing bolt deadlocks suitable for narrow stile hinged doors
• Positive action deadbolt locked or unlocked by either key, turnknob, escape turn or handle
• Suitable for sliding doors where lock can be mounted to door jamb and deadbolt engages strike mounted to face of door. Suitable for heavy duty use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels, retail and similar buildings

Specifications:

• Application: Timber narrow stile hinged doors
• Backset: 22 mm (short backset)
• Bolt Type: Swing deadbolt
• Bolt Projection: 22mm
• Bolt Material: Sintered stainless steel
• Lock Case Material: High-quality zinc alloy
• Door Thickness: Timber doors: 32–50mm
• Handing Reversible Left or Right Hand
• Finish: Satin Chrome
