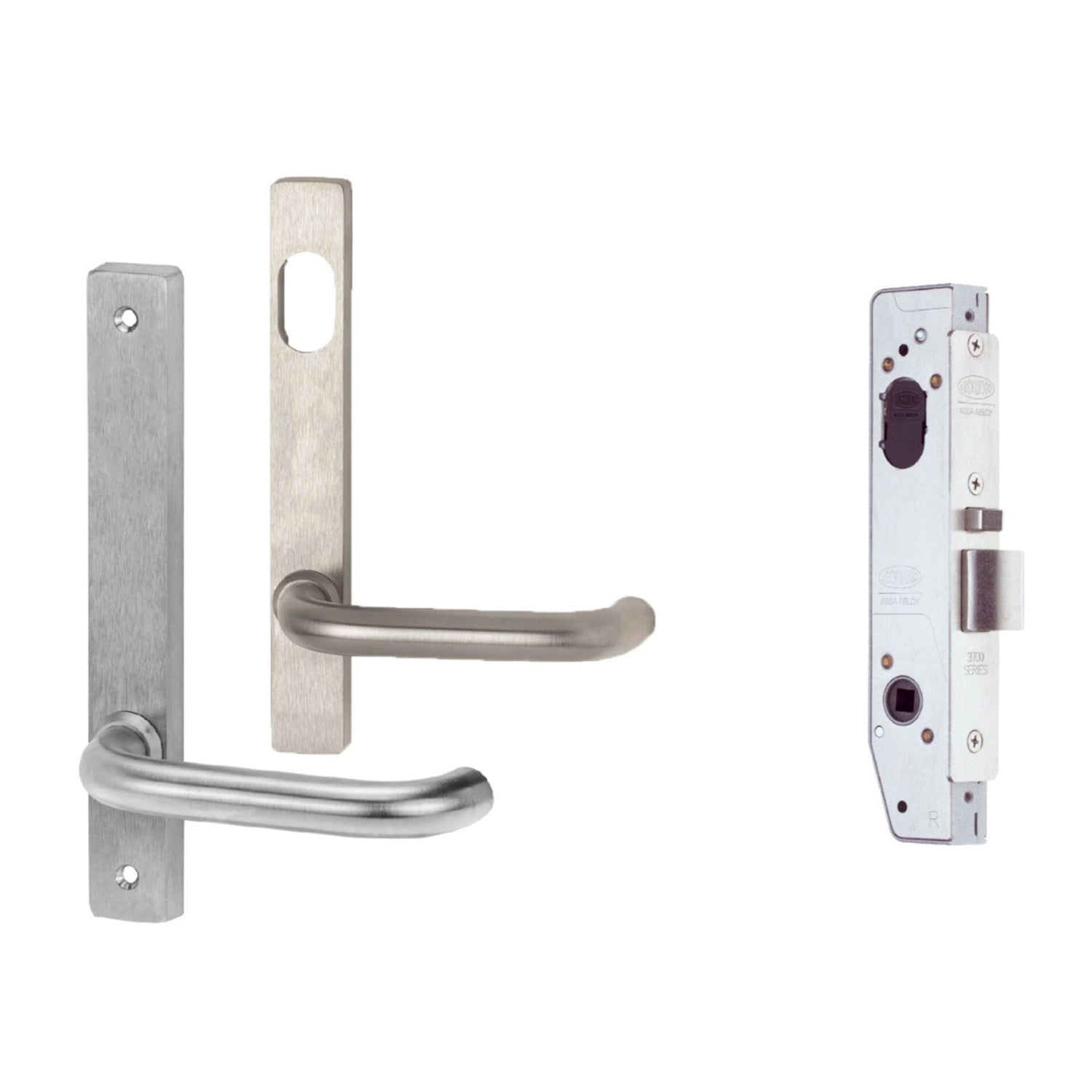

Lockwood 3782 Classroom Kit Narrow Stile No Cylinder Satin Chrome 3782KIT05NOCYL

Lockwood 3782 Classroom Kit Narrow Stile No Cylinder
3782KIT05NOCYL

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.

Features:

• Lock Type: Selector 3782 Series universal mortice lock
• External Square-end brass plate with cylinder hole and 70 series tubular lever
• Internal Matching square-end brass plate with plain lever
• Cylinder Not included compatible with standard Lockwood oval cylinders
• Operated by key or handle externally; turnsnib, key, or handle internally

Specifications:

• Plate Height: 185mm
• Plate Width: 26mm
• Plate Projection: 11.5mm
• Centre to Centre: 160mm
• Backset: 23mm
• Lever Length: 121mm
• Lever Projection: 53mm
• Finger Clearance: 37mm
• Finish: Satin Chrome
