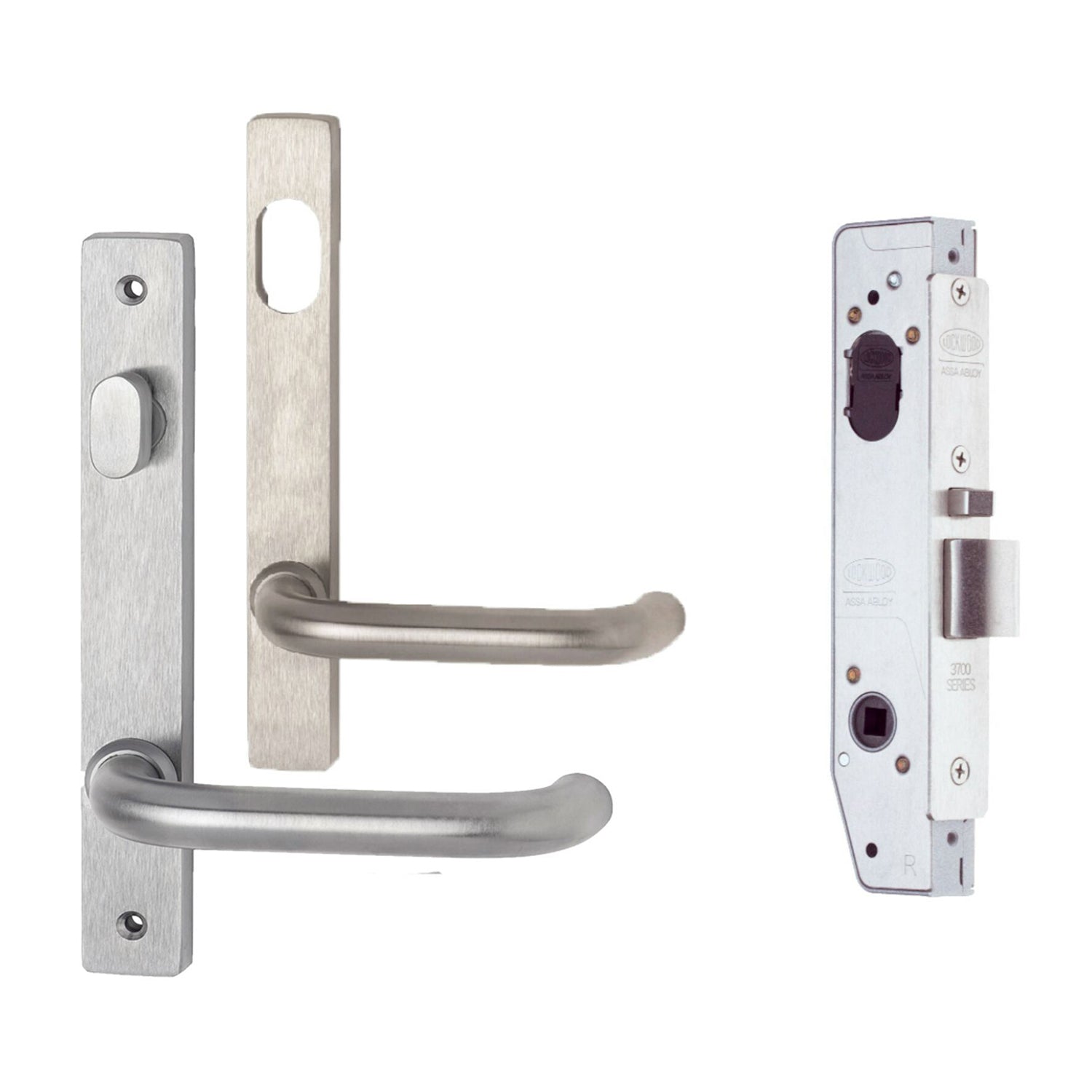

Lockwood 3782 Entrance Kit Narrow Stile No Cylinder Satin Chrome 3782KIT04NOCYL

Lockwood 3782 Entrance Kit Narrow Stile No Cylinder
3782KIT04NOCYL

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.

Features:

• Cylinder Hole & Turn Configuration: Operated by turnsnib internally; external cylinder hole allows for user-supplied cylinder installation.
• Custom Keying Ready: Supplied without cylinder, enabling tailored keying solutions including restricted systems.
• Zinc diecast body with stainless steel chassis plates.
• Reversible 15mm stainless steel latch bolt.
• Selectable holdback and anti-lockout functions under the faceplate.

Specifications:

• Plate Height: 185mm
• Plate Width: 26mm
• Plate Projection: 11.5mm
• Centre to Centre: 160mm
• Backset: 23mm
• Lever Length: 121mm
• Lever Projection: 53mm
• Finger Clearance: 37mm
• Finish: Satin Chrome
