Lockwood 3782 Narrow Mortice Lock Kit Matt Black Classroom 3782KIT05MBK

Lockwood 3782 Narrow Mortice Lock Kit Classroom Function
3782KIT05MBK

Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

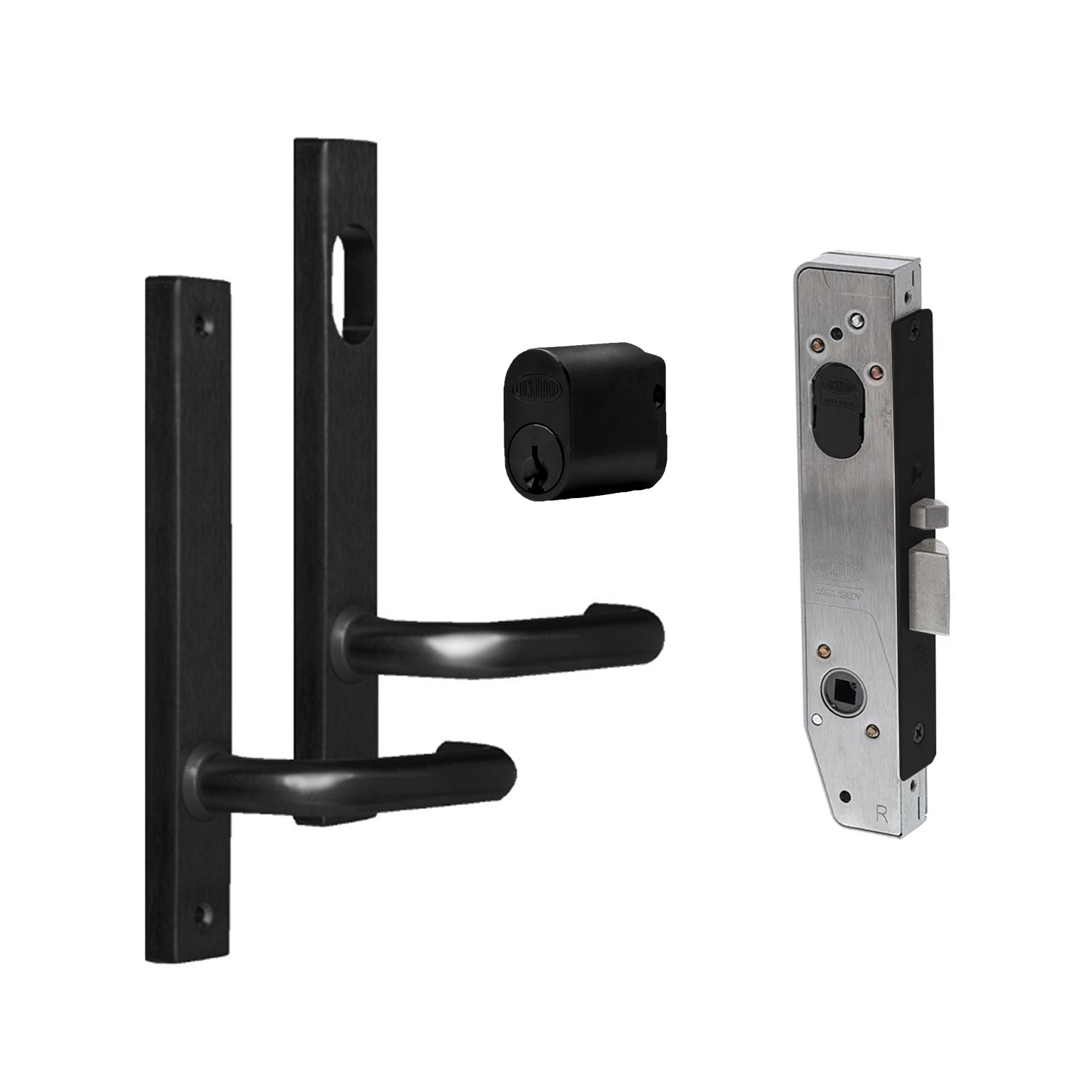

Includes:

• 1 x Lockwood Selector Mortice Lock 23mm Backset (3782SS)
• 1 x Lockwood 4800 Series Square End Narrow Plate Internal Furniture (4801/70SC)
• 1 x Lockwood 4800 Series Square End Narrow Plate External Furniture (4905/70SC)
•  1 x 570 Generic Oval cylinder with 2 keys

Features:

Mortice lock

• Short backset universal primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include holdback and anti-lockout capabilities.
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Electric Strike compatibility.
• 23 mm backset as standard, 25.4, 30 and 38 mm available upon request.
• Suits metal door thickness 35-50 mm.
• 15 mm stainless steel reversible latch bolt.
• Supplied with cylinders.
• Supplied with Selector® 'V' cam.
• Compatible to most restricted keying systems.

External furniture

• Narrow stile exterior square end plate.
• Cylinder hole and 70 series tubular lever.
• Concealed fixing.
• Plates are designed to fit back to back.
• External plates supplied with fixing screws.
• Disabled access AS1428.1 compliant lever.
• Plate size: 185 x 26 x 11.5 mm.
• Door Thickness: 32-50 mm.
• Screw fixing centres: 160 mm.
• Finish: Matt Black

Internal furniture

• Narrow stile internal square end plate.
• Plain plate and 70 series tubular lever.
• Visible fixing.
• Plates are designed to fit back to back.
• Disabled access AS1428.1 compliant lever.
• Plate size: 185 x 26 x 11.5 mm.
• Door Thickness: 32-50 mm.
• Fixing holes centres: 160 mm.
• Finish: Matt Black

Technical Specifications

• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Classroom Function: Yes
• Includes Cylinder/s: Yes
• Narrow Stile Kit 23 mm: Yes
• Square End Furniture: Yes
