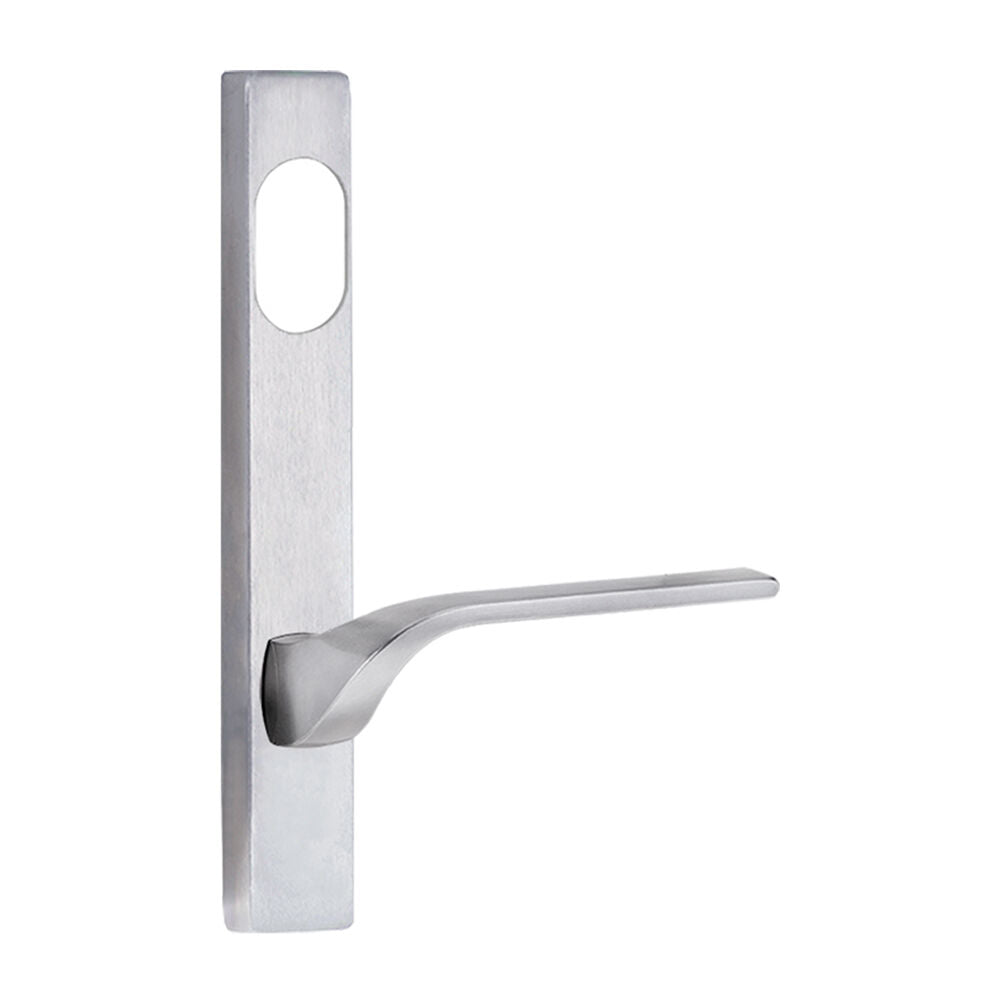

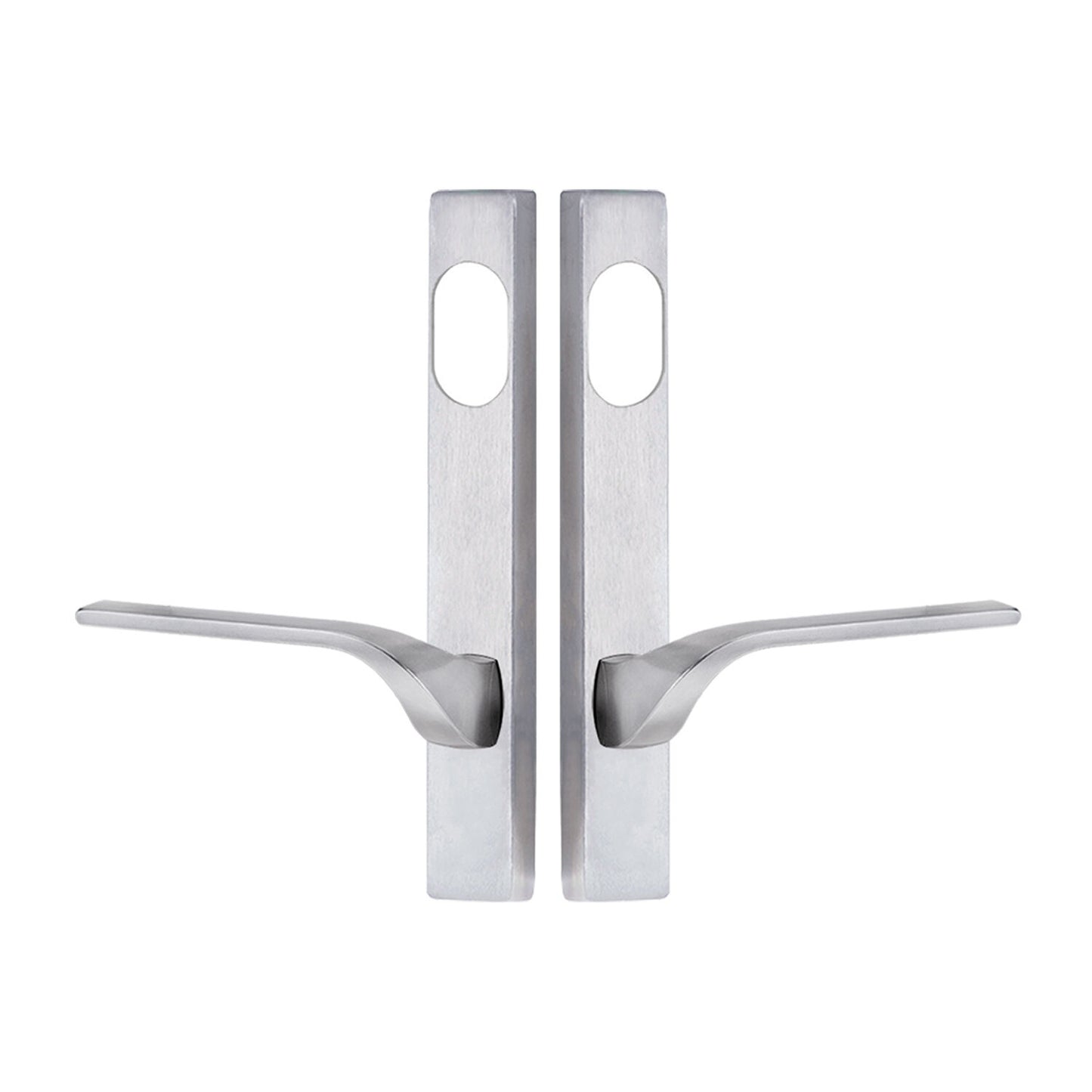

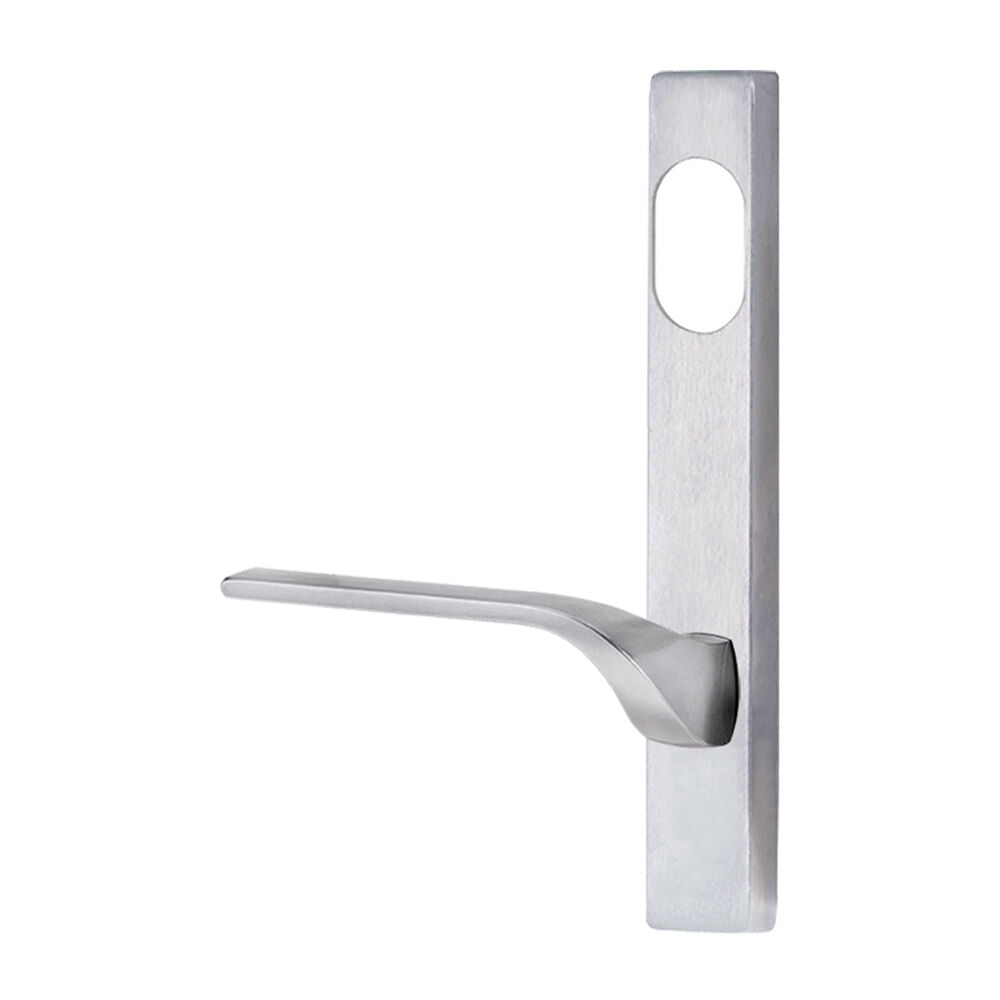

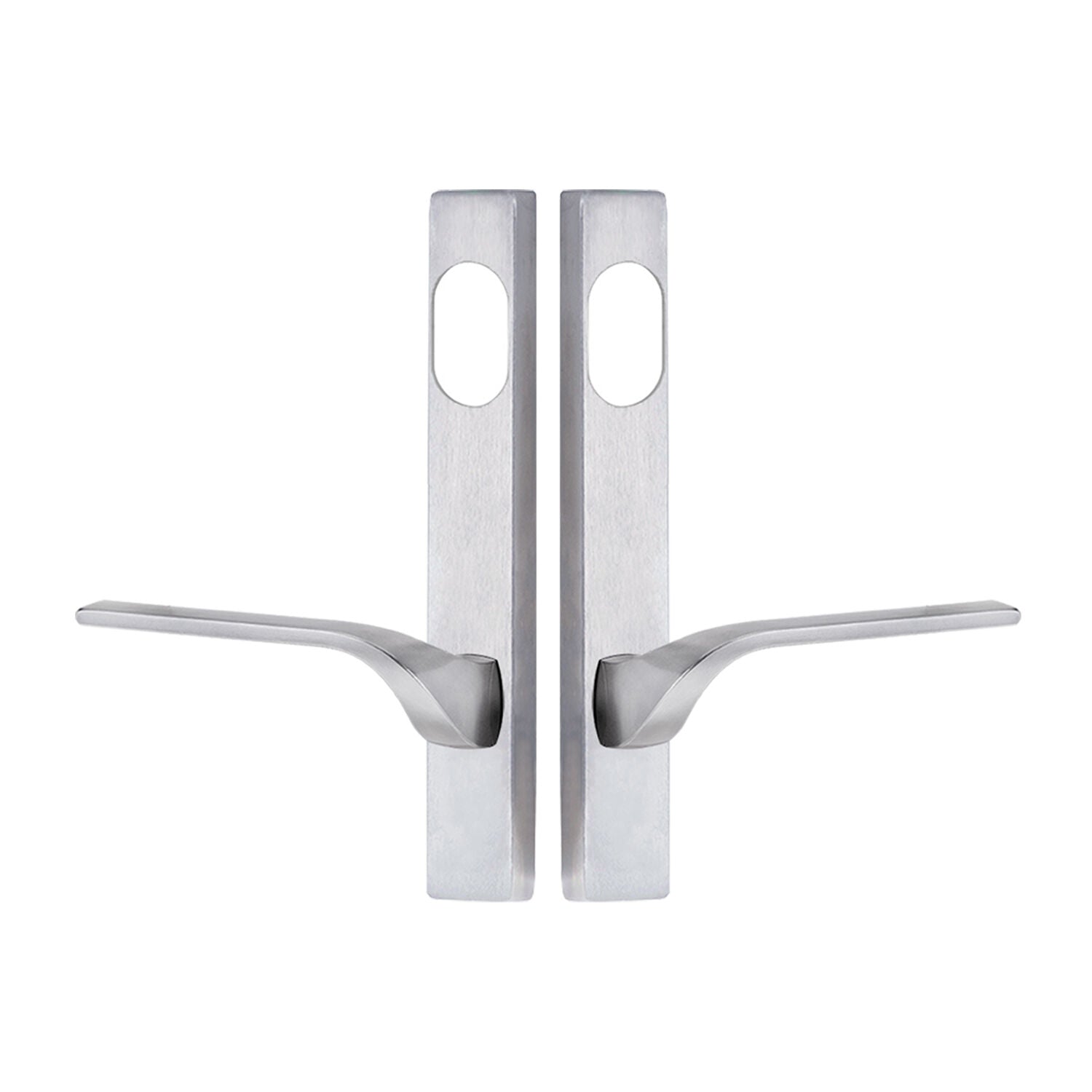

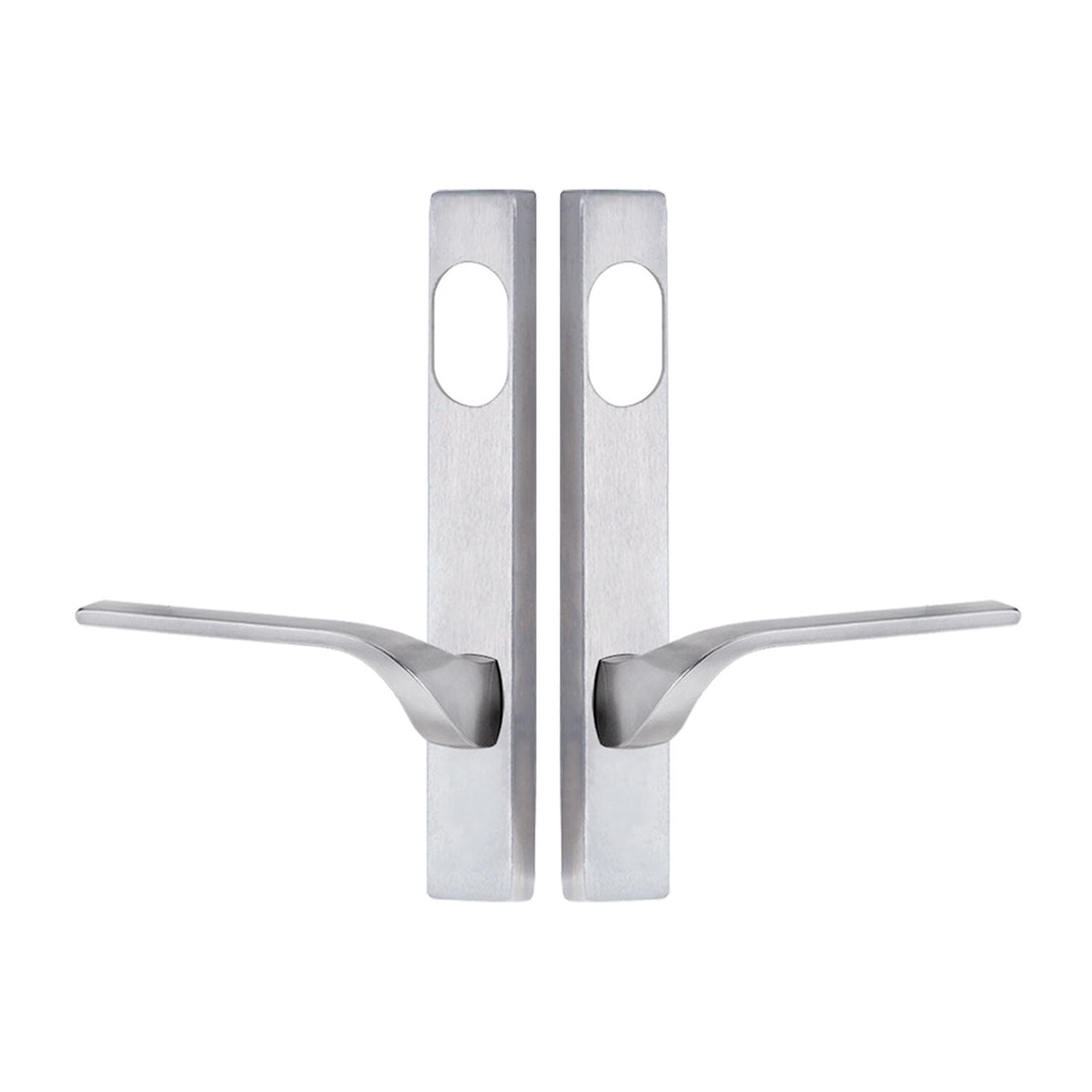

Lockwood 4801 Square End Plate With Cylinder Hole and 122 Lever - Available in Various Handing

Lockwood 4801 Square End Plate With Cylinder Hole and 122 Lever
4801/122LSC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping

Features:

• Made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The culmination of decades of experience in the design and manufacture of high quality door furniture
• Evolved as the product of choice for leading architects in commercial, institutional and industrial applications
• Provides distinct movement with its full face lever design punctuated by a right angle, thus making a strong and purposeful statement
• A classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements

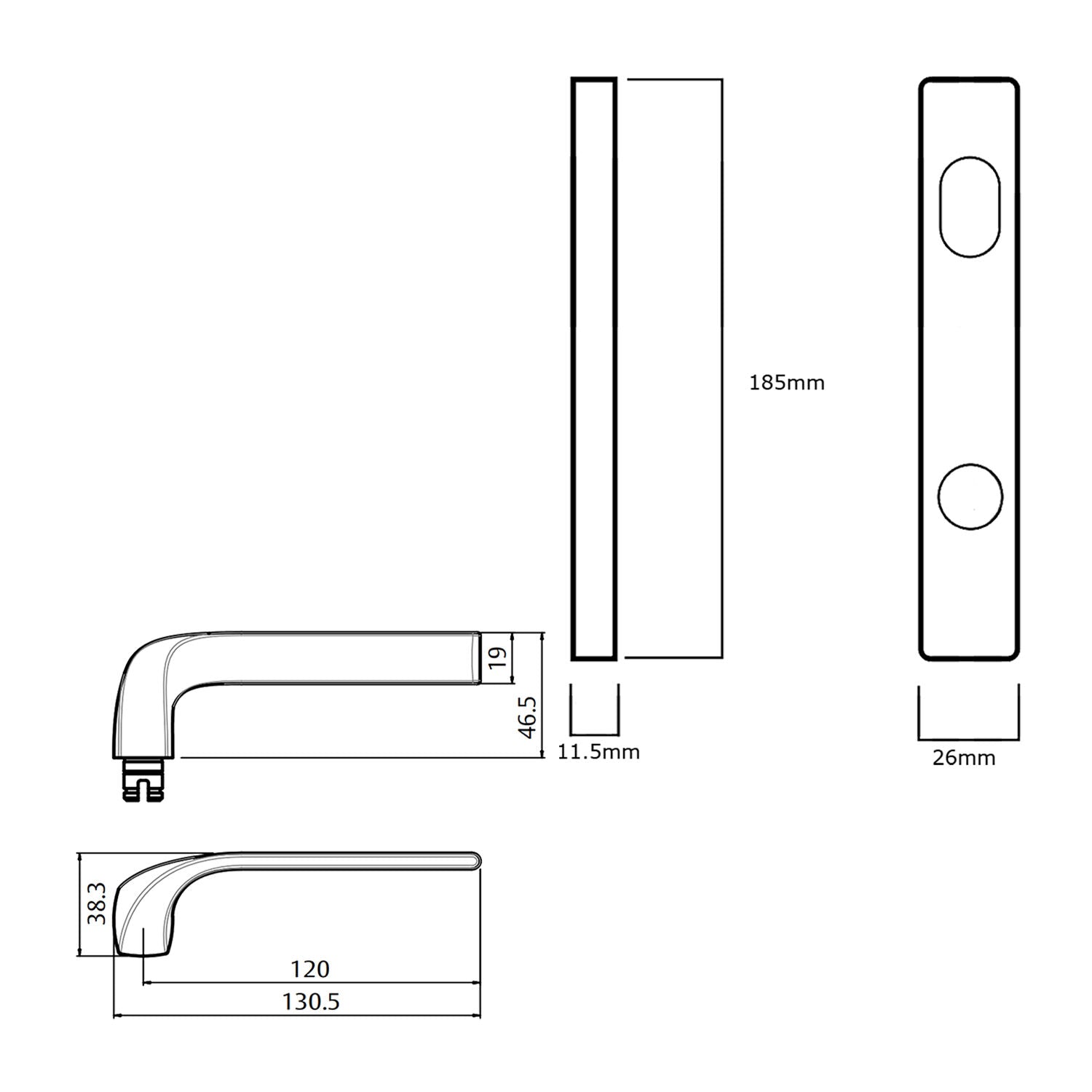

Specifications:

• Plate Length: 185mm
• Plate Width: 26mm
• Plate Thickness: 11.5mm
• Lever Length: 130.5mm
• Lever Projection: 59mm
• Finger Clearance: 40mm
• Cylinder Pitch: 89.9mm
• Centre to Centre: 160mm
• Handing: Left Hand
• Finish: Satin Chrome
