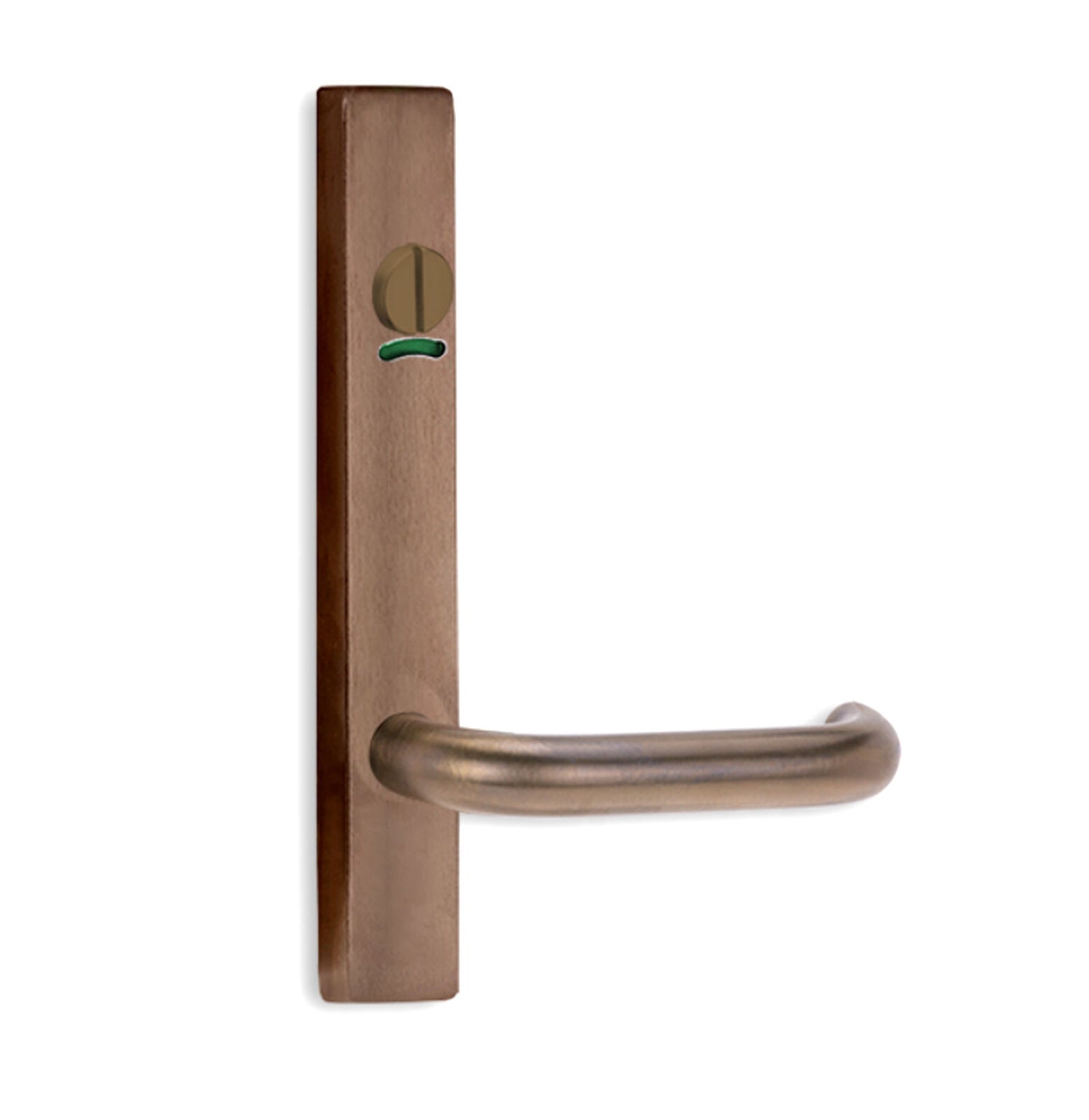

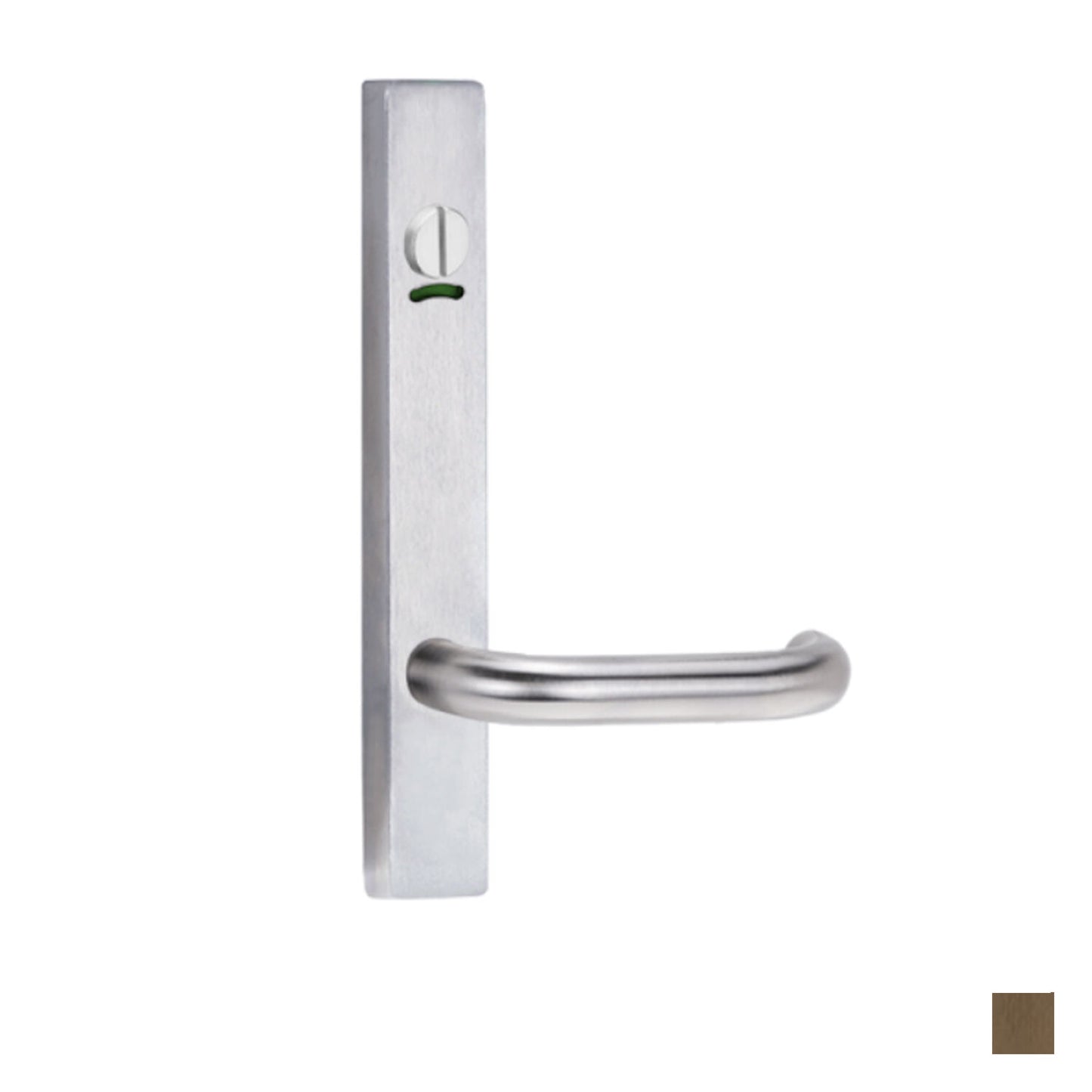

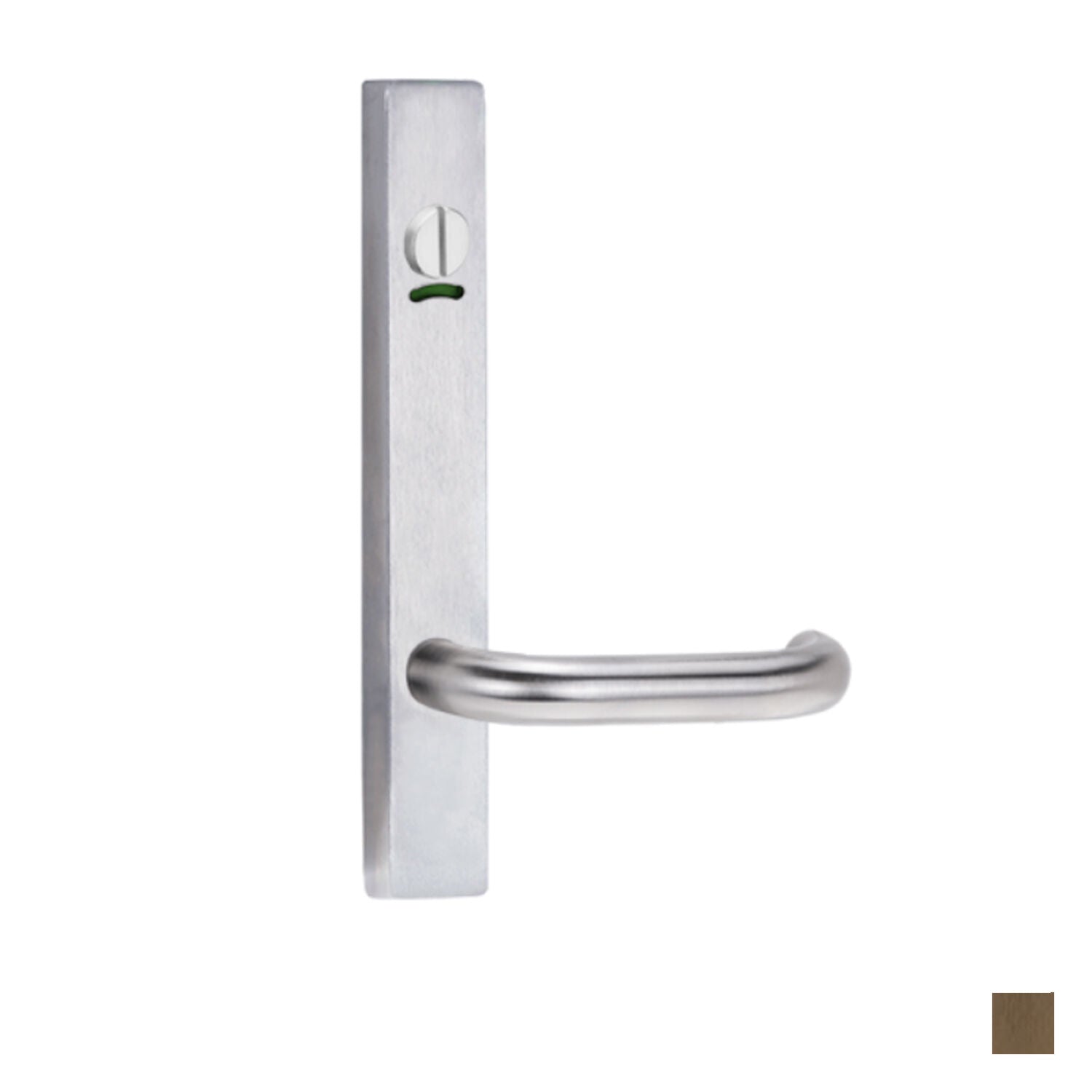

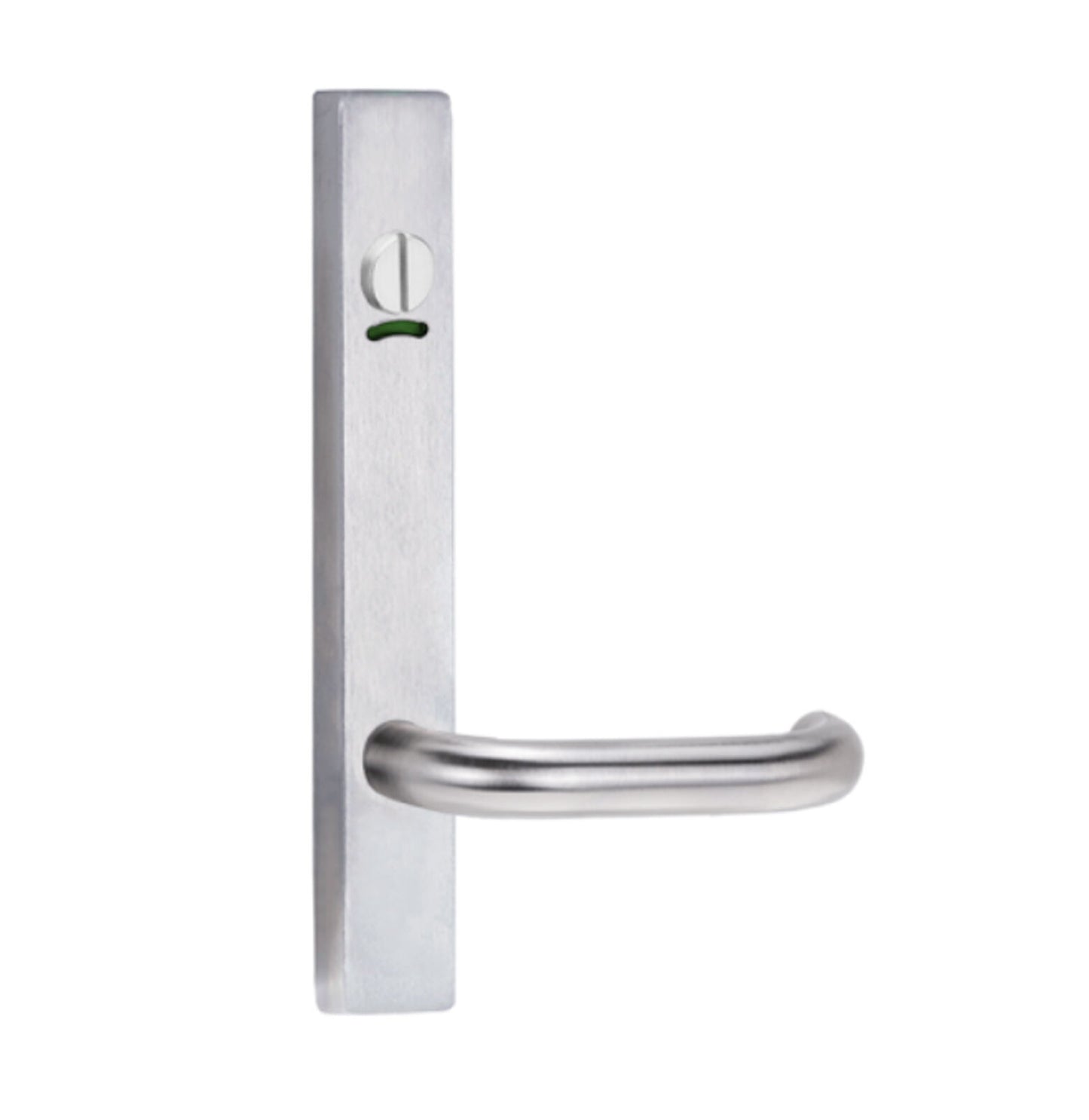

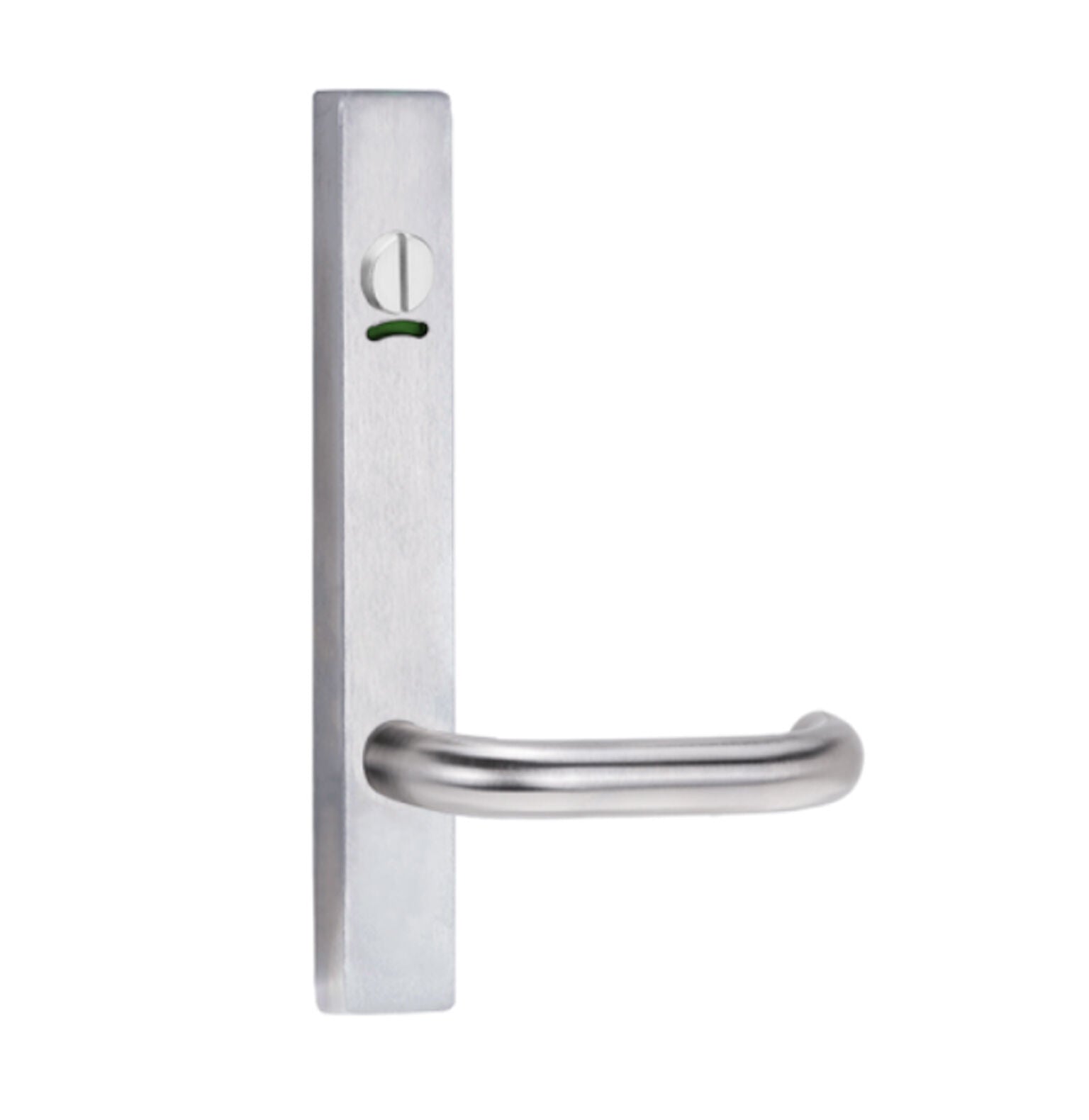

Lockwood 4814 Square End Plate w/ Privacy Indicating Emergency Turn and 70 Lever

Lockwood 4814 Square End Plate with Privacy Indicating Emergency Turn and 70 Lever
4814/70SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture
• Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
• The timeless design of this tubular shaped lever signifies quality and strength
• The Lockwood 4800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements
• Designed for use with Lockwood Synergy 3580 and Selector 3780 Series Mortice Locks. Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts

Specifications:

• Handle Type: Lever 70
• Door Thickness: 32mm to 45mm
• Plate Dimension:
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm
  • Cylinder pitch: 89.9mm
  • Fixing centres: 160mm
• Lever Dimension:
  • Length: 121mm
  • Projection: 53mm
  • Finger clearance: 37mm
• Finish: Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
