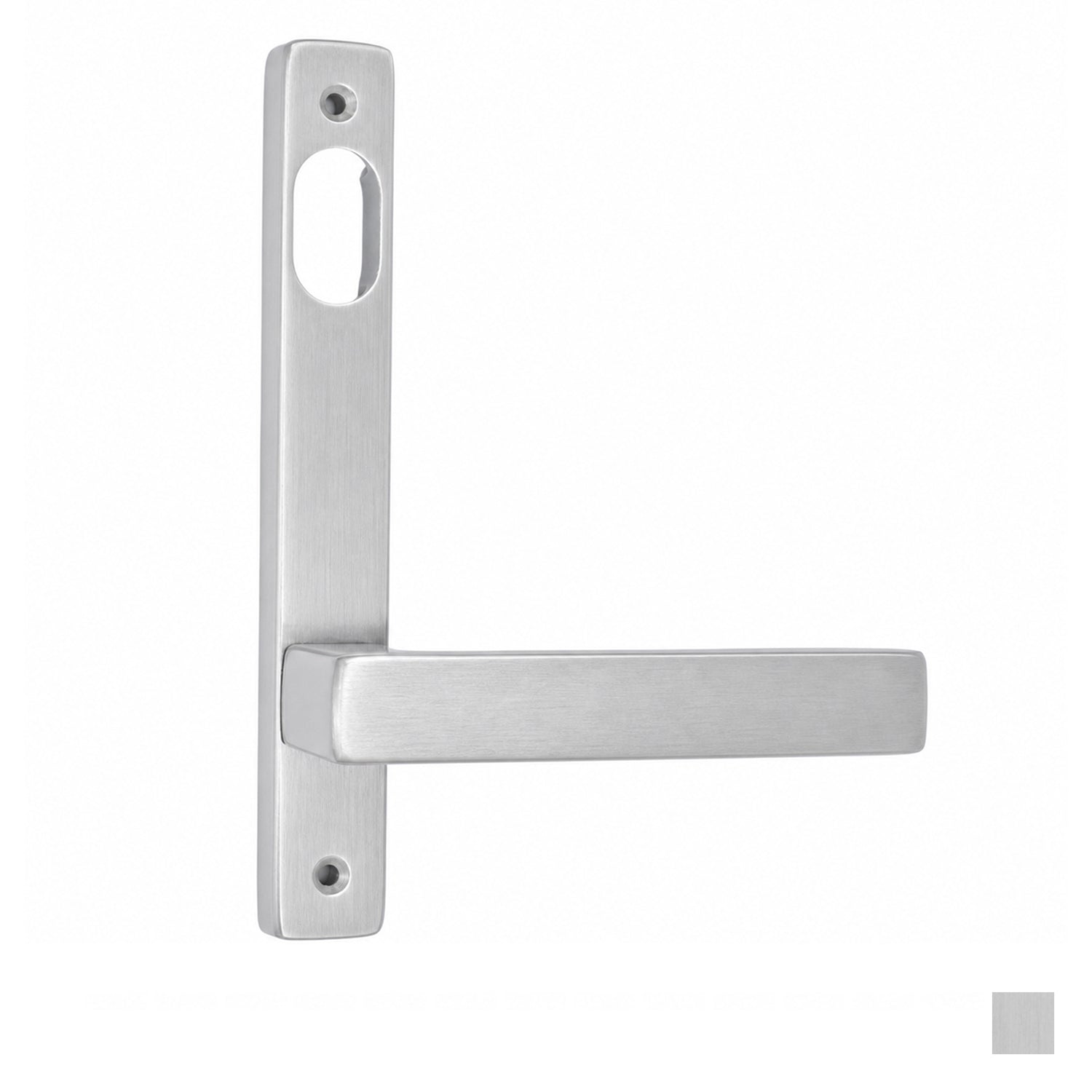

Lockwood 4901 Internal Square End Plate With Cylinder Hole & Lever 101 - Available in Various Finishes

Lockwood 4901 Internal Square End Plate With Cylinder Hole & Lever 101

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping

Features:

• Adjustable bolt projection with locknut to prevent loosening
• Suitable for internal and external doors
• Non-handed product
• Fixing screws
• Both 30mm and 90mm strikes supplied as standard

Specifications:

• Square-end plate with cylinder hole
• Fitted with 101 lever (right-hand configuration)
• Slimline rectangular design for modern aesthetics
• Designed for back-to-back installation
• Suits door thicknesses from 32mm to 50mm
• Non-handed design (lever handing can be adjusted if needed)
• Fixing centres: 160mm

Specifications:

• Plate Height: 185mm
• Plate Width: 26mm
• Plate Projection: 11.5mm
• Centre to Centre: 160mm
• Lever Length: 130mm
• Lever Projection: 48.5mm
• Finger Clearance: 40mm
• Available Finish:

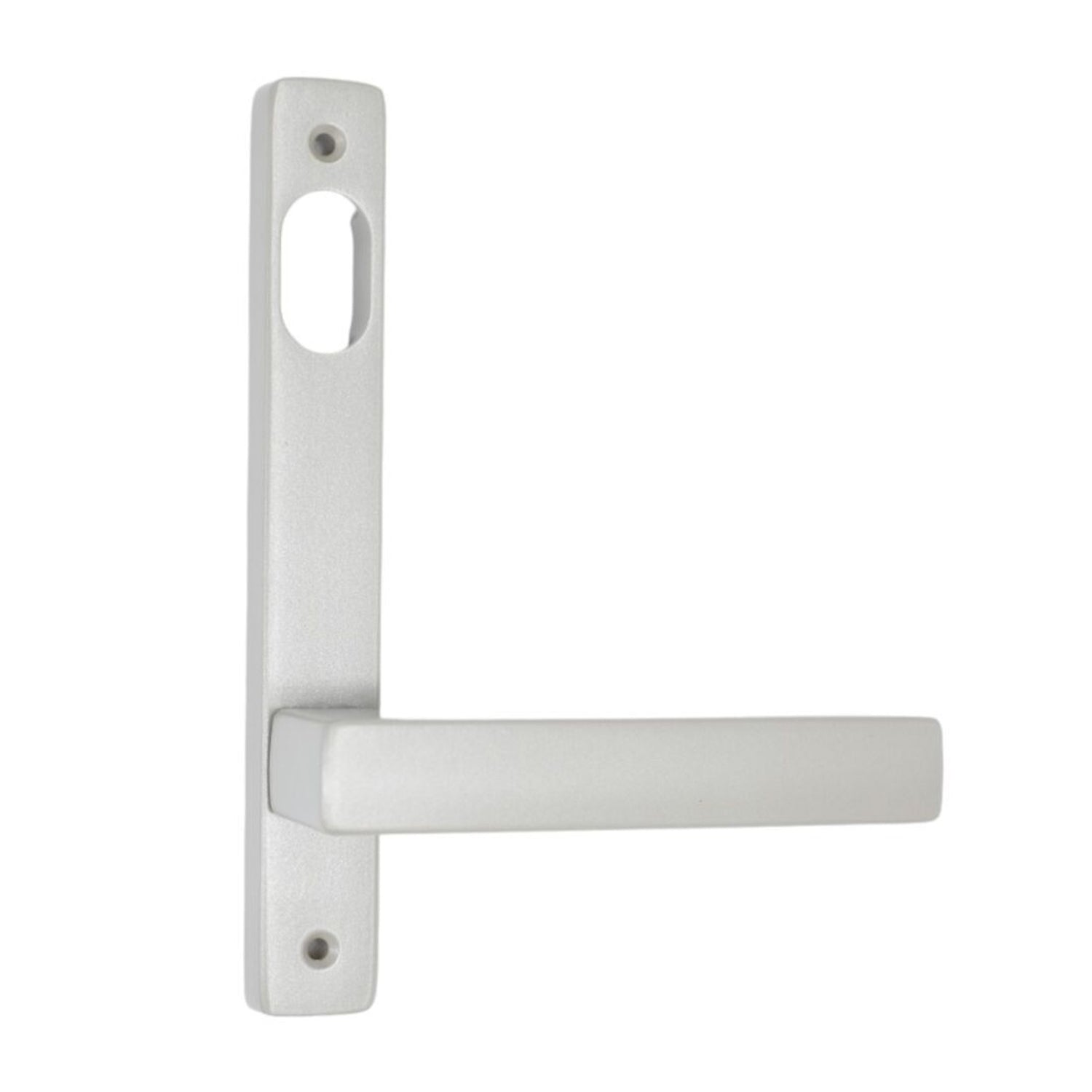

  • Powdercoat

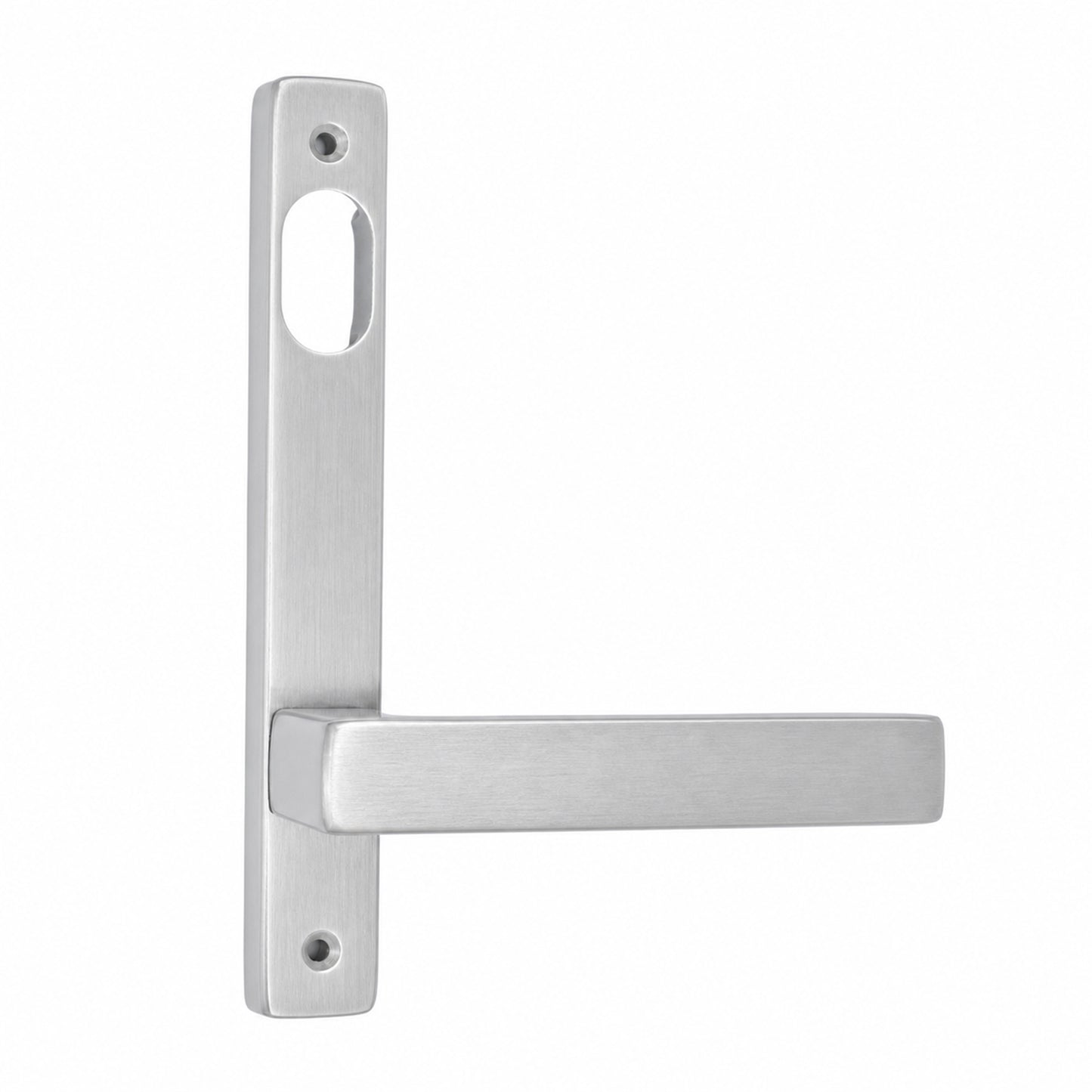

  • Satin Chrome
